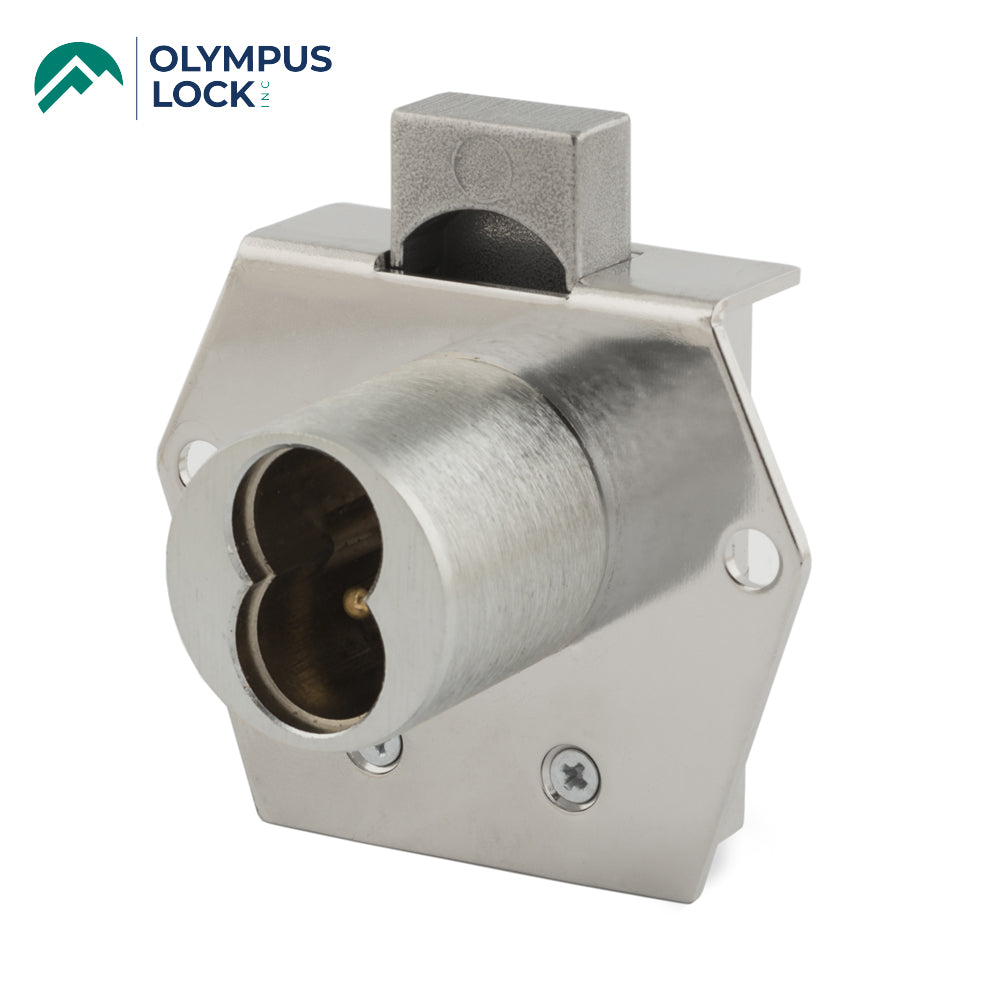

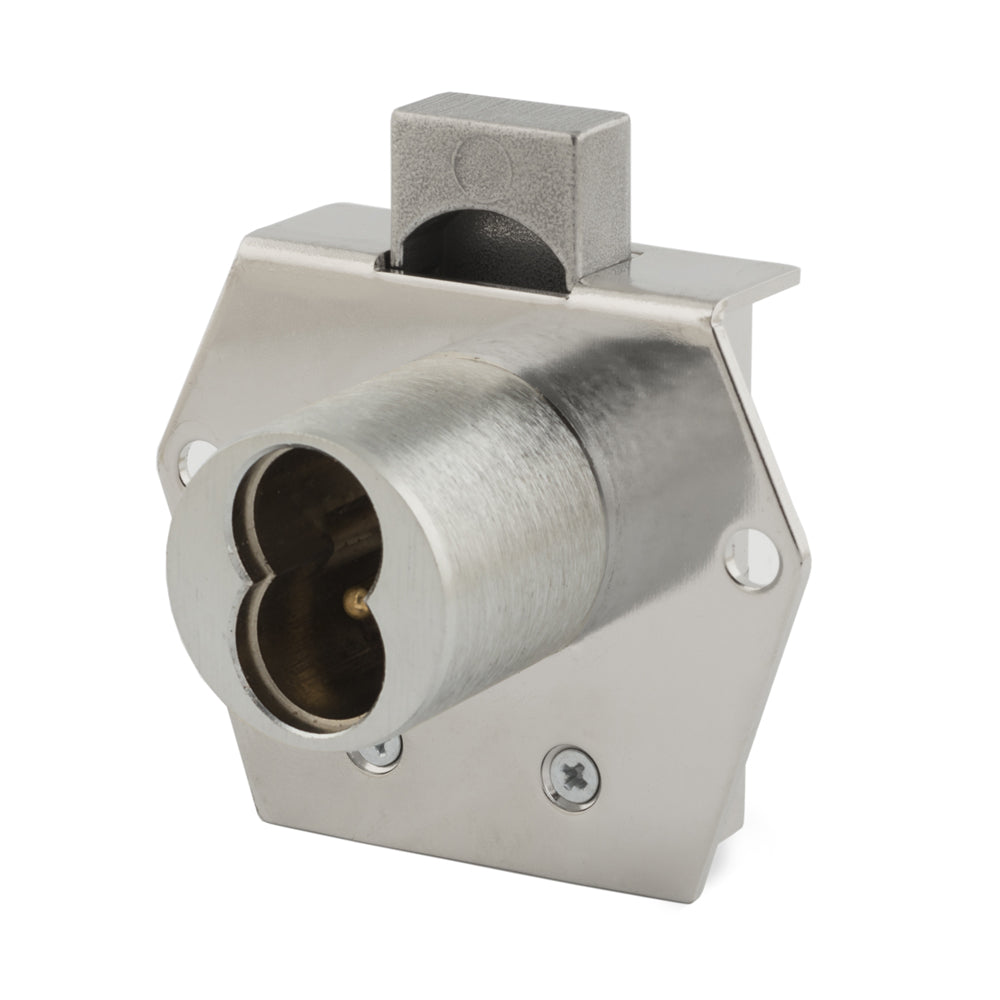

OLYMPUS LOCK - 725RD - IC Core Rim Mount Deadbolt Cabinet Drawer Lock - VH - BEST SFIC - 26D - Satin Chrome - Grade 1

OLYMPUS LOCK - 725RD - IC Core Rim Mount Deadbolt Cabinet Drawer Lock - VH - BEST SFIC - 26D - Satin Chrome - Grade 1

Interchangeable Core Best Compatible (Small Format) Cabinet Drawer Deadbolt Lock - Vertical Handed

The Olympus Lock 722RD cabinet drawer lock will accept a Best Keyways interchangeable cores allowing your cabinet lock to match the same key system as the rest of the facility.

SPECIFICATIONS

- Function Rim (surface) mounted deadbolt - Deadbolt cabinet door or drawer lock
- Handing VH - Vertical Handed Drawers
- Retrofits Best 5L7RD
- Standard function: Key removable in locked and unlocked position.
- Body Solid brass
- Barrel length 1-1/8”
- Cylinder length 1-1/16"
- Finish 26D - Satin Chrome
- Cores Not Included
- Accepts Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
Compatible electronic cylinders Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders
- Includes: - 725-1 spacer to fit 6 or 7 pin cores, - 725-SP-RD solid rectangular strike, - 725-PA plastic thumbturn
- Cerifications Passed ANSI/BHMA A156.11 Grade 1 performance requirements

Downloads
Installation Instructions / Dimensions
Spec Sheet
Cylinder Installation
