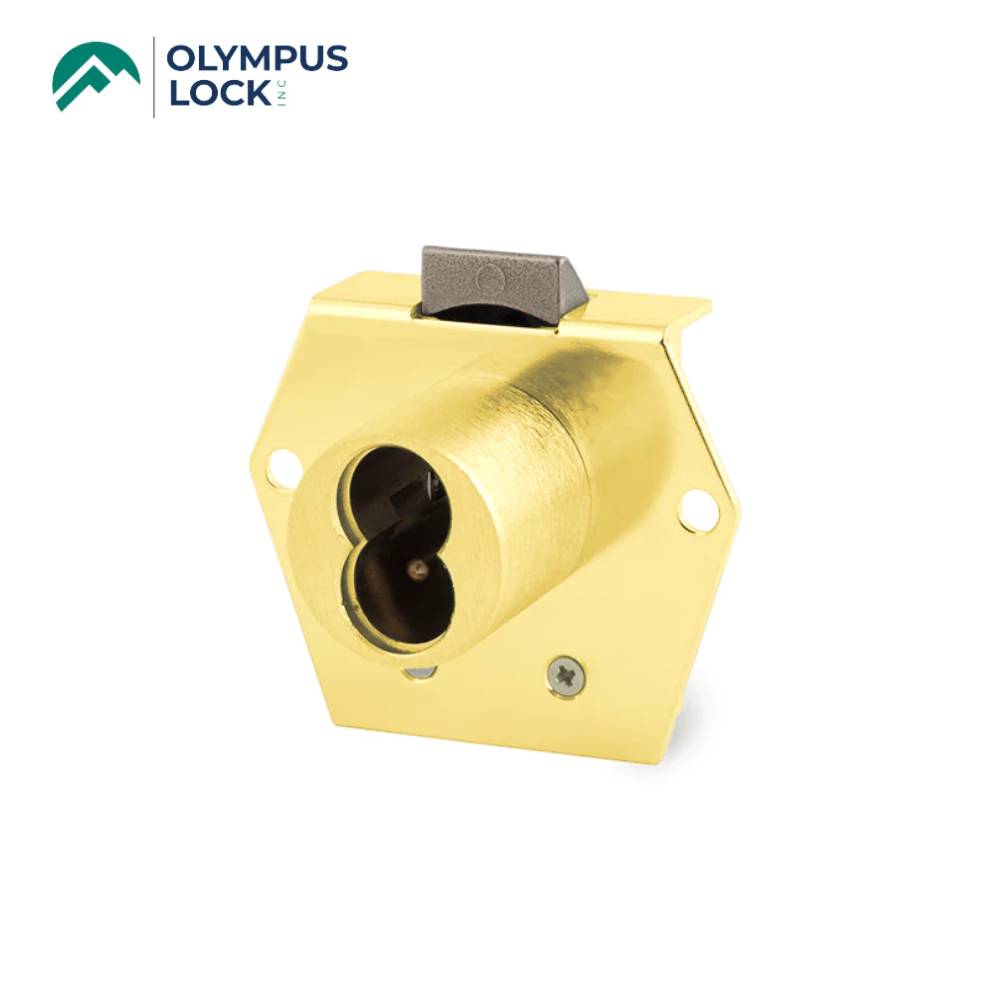

OLYMPUS LOCK - 725RL - Small Format (BEST) IC Core Rim Latch Door and Drawer Cabinet Lock - 1-1/16 Inch Cylinder Length - Optional Handed - US3 (Polished Brass-605)

OLYMPUS LOCK - 725RL - Small Format (BEST) IC Core Rim Latch Door and Drawer Cabinet Lock - 1-1/16" Cylinder Length - Optional Handed - US3 (Polished Brass-605)

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Feature:

• Cabinet lock, Rim - Surface mount
• Latch bolt locking mechanism
• Retrofits Best 5L series cabinet locks
• ANSI/BHMA E07091 (cabinet door)
• ANSI/BHMA E07061 (drawer)
• Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders
• Accepts 6 or 7 pin SFIC cores. See our SFIC compatible cylinders
• Barrel diameter: 1-1/8"
• Cylinder length: 1-1/16"

Specification:

• Retrofits: Best 5L7RL
• Function: Rim (surface) mounted latch
• Handing: Available for doors or drawers
• Reverse latch: This option is available for vertical or inverted function
• Finish: Polished Brass US3
• Cores: Not included
• Testing Passed ANSI/BHMA A156.11 Grade 1 performance requirements
• Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
• Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders.

Included Accessories:

• 725-1 spacer to fit 6 or 7 pin cores
• 725-SP-RL solid lipped strike
• 725-PA plastic thumbturn

MPN: 725RL-DR-LH-US3

Download:

• Installation Instruction
• Data Sheet
