OLYMPUS LOCK INC | SKU: OLY-800KI-138-KA-101-605

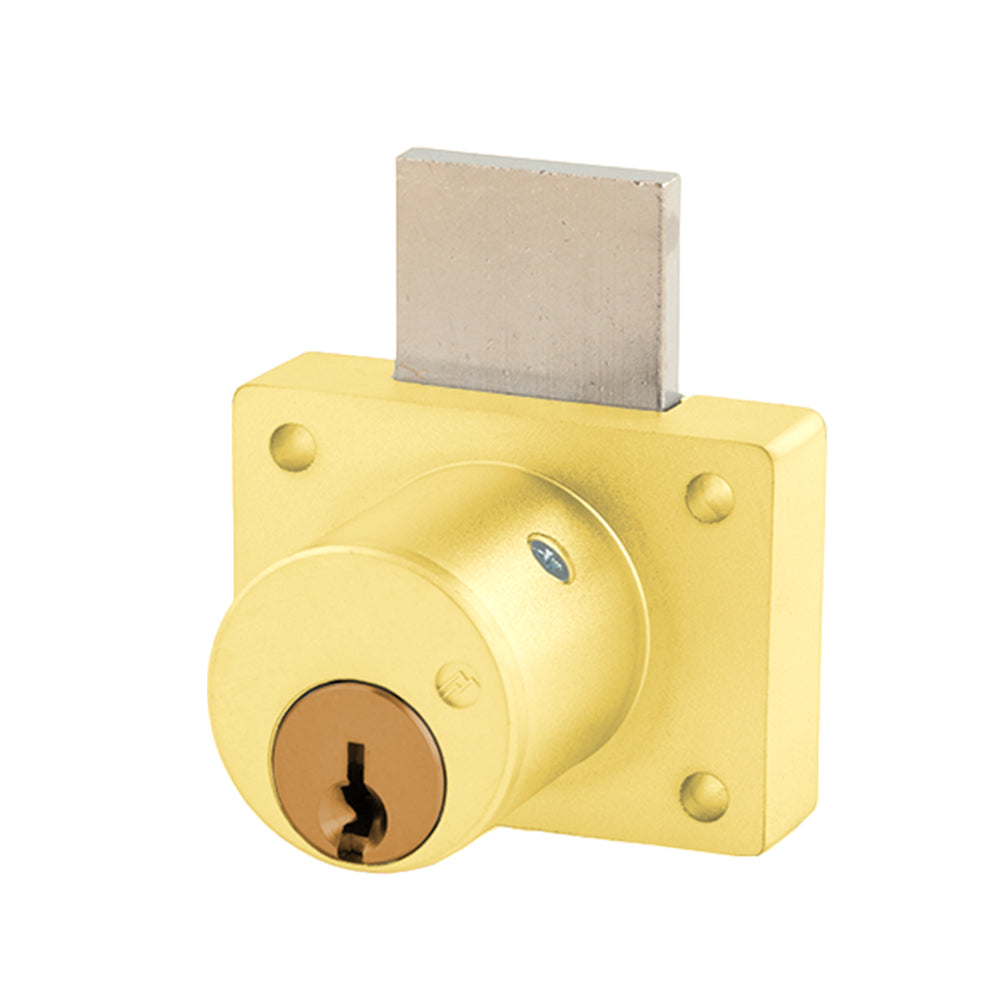

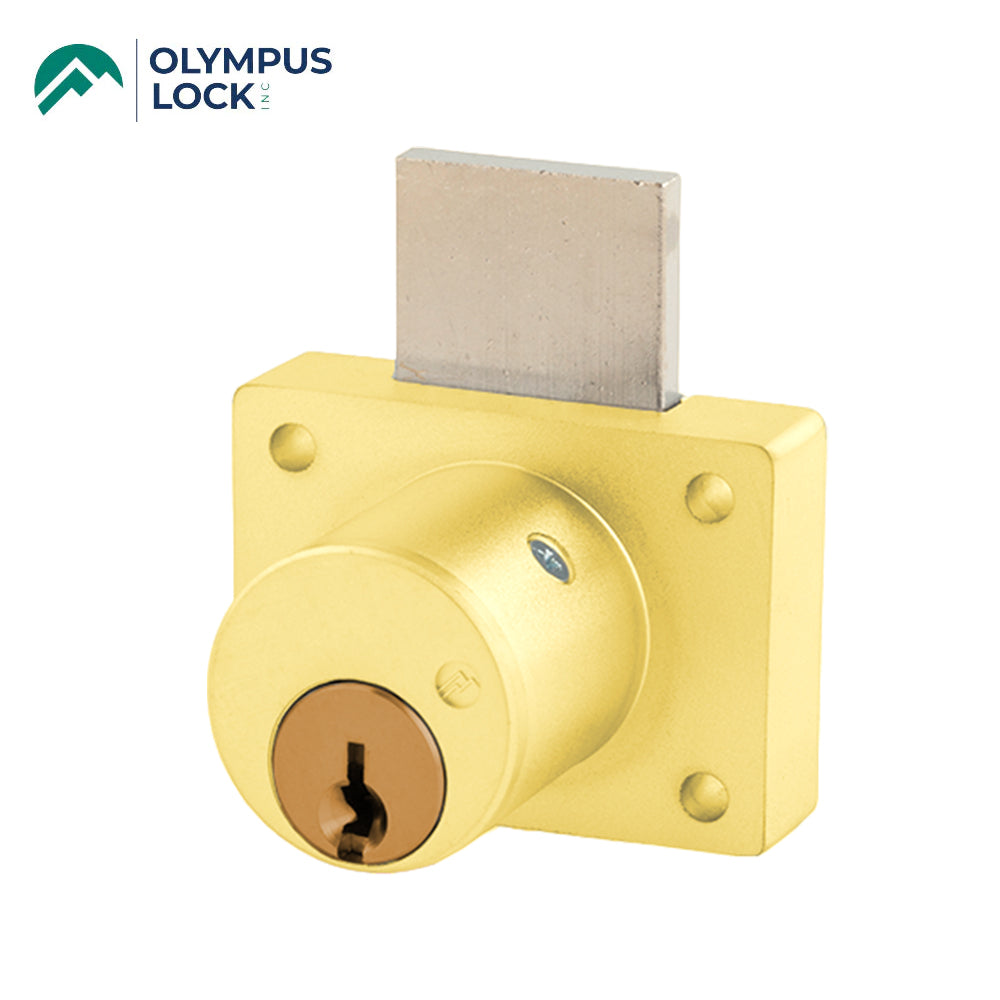

OLYMPUS LOCK - 800KI - Cabinet Deadbolt Drawer Lock - Key-Retaining - Schlage C Keyway - S Series - Optional Cylinder length - Optional Keying - Optional Handed - US3 (Polished Brass-605)

$53⁹⁵ ~~$64⁷⁴~~

Shipping calculated at checkout.

Cylinder Length

Handed

Keying

Product variants

Secure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

OLYMPUS LOCK - 800 - Cabinet Deadbolt Drawer Lock - Key-Retaining - Schlage C Keyway - S Series - Optional Cylinder length - Optional Keying - Optional Handed - US3 (Polished Brass-605)

Feature:

Cabinet lock - deadbolt drawer lock
Easily rekeyable via cylinder release mechanism
Will accept other manufacturer's Schlage compatible deadbolt cylinders
(Grade 1) ANSI/BHMA No. E07041
Standard function: locks are non-handed with key removable in the locked and unlocked position.
Optional key-retaining* function. Specify 800KV for vertical-hand or 800KI for inverted-hand. NOTE: Specify vertical-hand or inverted-hand for key-retaining function only.
Barrel lengths: 1-1/8" or 1-3/8" (specify barrel length when ordering)
Barrel diameter: 1-1/8"
Bolt projection: 7/8"
10B finish locks ship standard with US4 satin brass cylinder
US Patent Nos: 4,899,563; 4,920,774
*Key-retaining = key removable in locked position only.

Specification:

Keying: Can be keyed together with other Schlage C Keyway locks.
Rekeyable: Easily rekeyable via set screw cylinder release mechanism.
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (700S) / E07041 (800S).
US Patent Nos: 4,899,563; 4,920,774
Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.
Key-retaining: Key removable in locked position only. Specify handing (KL/KR for doors or KI/KV for drawers) when ordering.
Body: Zinc die cast
Cylinder: Will accept other manufacturer's Schlage compatible key-in-knob cylinders
Cylinder length: 1-1/8" or 1-3/8"
Barrel diameter: 1-1/8"
Finish: 26D, US3, 10B

Keying Information:

Keyway: Schlage C keyway
Keys: Includes 2 keys per lock
Cylinder: Solid brass, pin tumbler
Stock keying: KD/KA - 5 pin standard
Stock KA#: 101, 102, O-Bit
Masterkeying: 6 pin standard
Grand masterkeying: Available
Keyblank 6-pin: KBSC-6

Included Accessories:

For 1-1/8"barrel length locks:

10-350 plastic spacers (qty 2)
10-054 1/4" plastic bar strike
10-055 1/2" plastic bar strike

For 1-3/8"barrel length locks:

10-054 1/4" plastic bar strike

Optional Accessories:

Spacers: 10-348 (1/4" thick), 10-349 (1/2" thick), 10-350 (1/8" thick)
Strikes: 10-052, 10-056, 10-057, 10-058, 12-2, 12-3, 12-4
Trim collar: TR78
Through-bolt hardware: ETS1 through-bolt plate, ETS1-PL trim pull and ETST1 template
