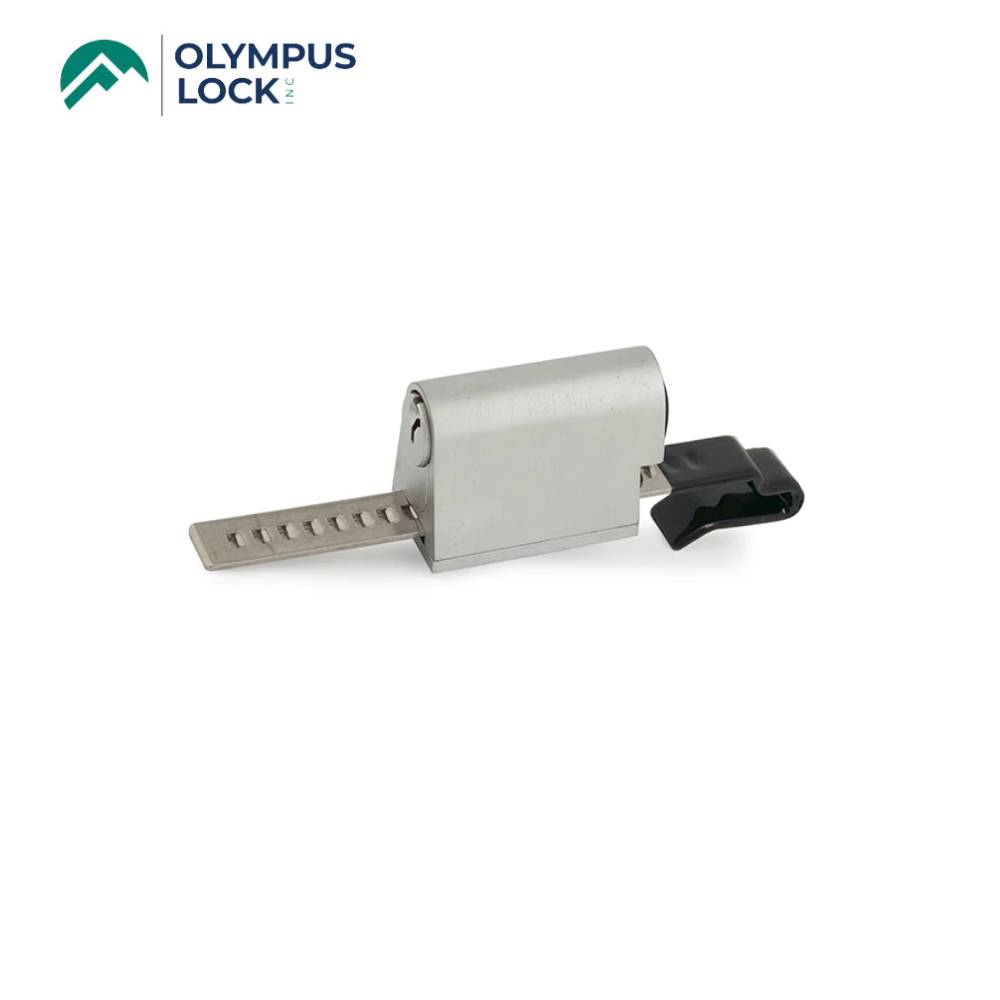

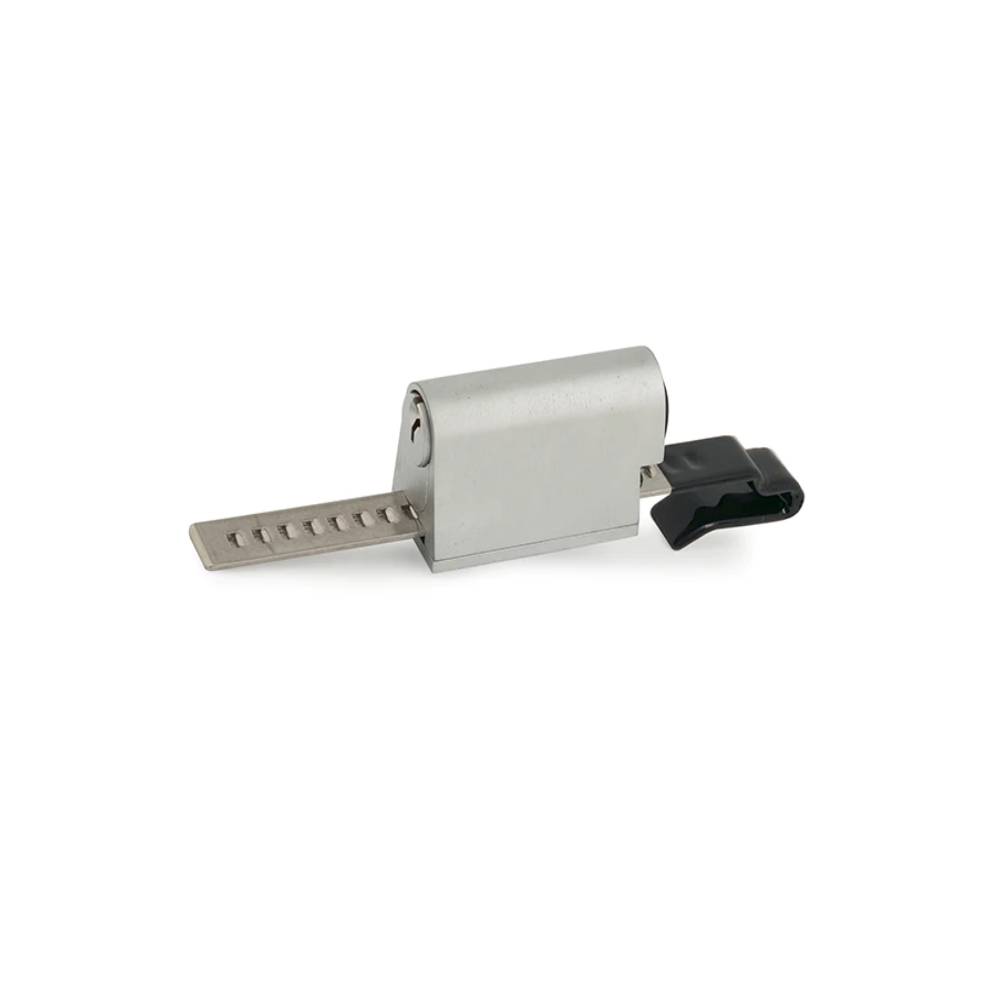

OLYMPUS LOCK - 829R - S Series - Schlage C Sliding Door Ratchet/Showcase - Optional Keying - US26D (Satin Chrome-626)

OLYMPUS LOCK - 829R - S Series - Schlage C Sliding Door Ratchet/Showcase - Optional Keying - US26D (Satin Chrome-626)

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Feature:

• 829R Ratchet lock - for bypassing sliding doors
• Easily rekeyable: remove bottom plate, then remove set screw to remove cylinder
• ANSI/BHMA: E07191
• Includes 729RS-1 strap: 6" stainless steel strap for 3/16" to 1/4" glass thicknesses
• Zinc die cast cylinder housing, steel strap

Specification:

• Rekeyable: Easily rekeyable via set screw cylinder release mechanism
• ANSI/BHMA: Complies with clause 6.3 (8.2~8.4) of ANSI/BHMA A156.11 ANSI standards
• Use: Sliding glass or wood doors
• Body: Zinc die cast
• Strap: Steel
• Keying: Can be keyed together with other Schlage C Keyway locks
• Keyway: Schlage C keyway
• Keys: Includes 2 keys per lock
• Cylinder: Solid brass pin, tumbler
• Keying: 101, 102, O-Bit
• 729RS-1 strap for 3/16" to 1/4" material thickness
• Finish: Satin Chrome US26D

MPN: 829R-26D

Download:

• Installation Instruction
• Data Sheet
