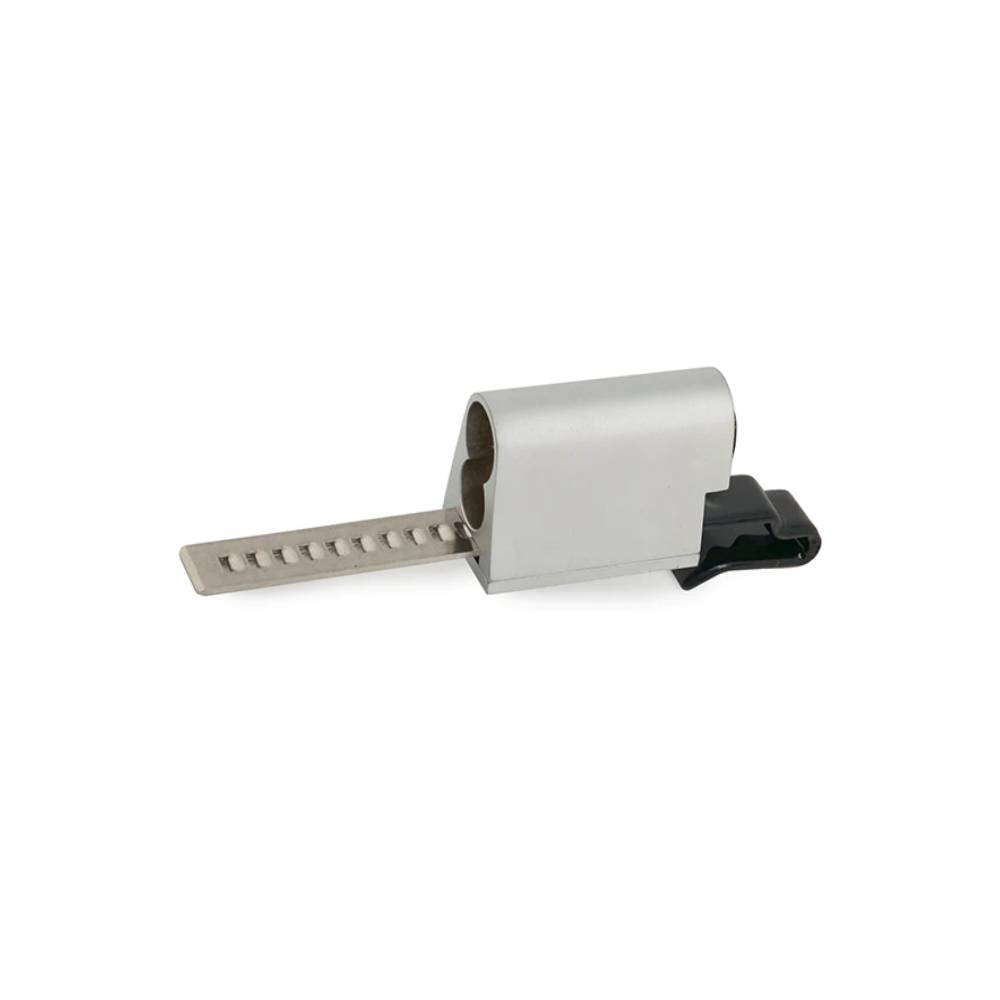

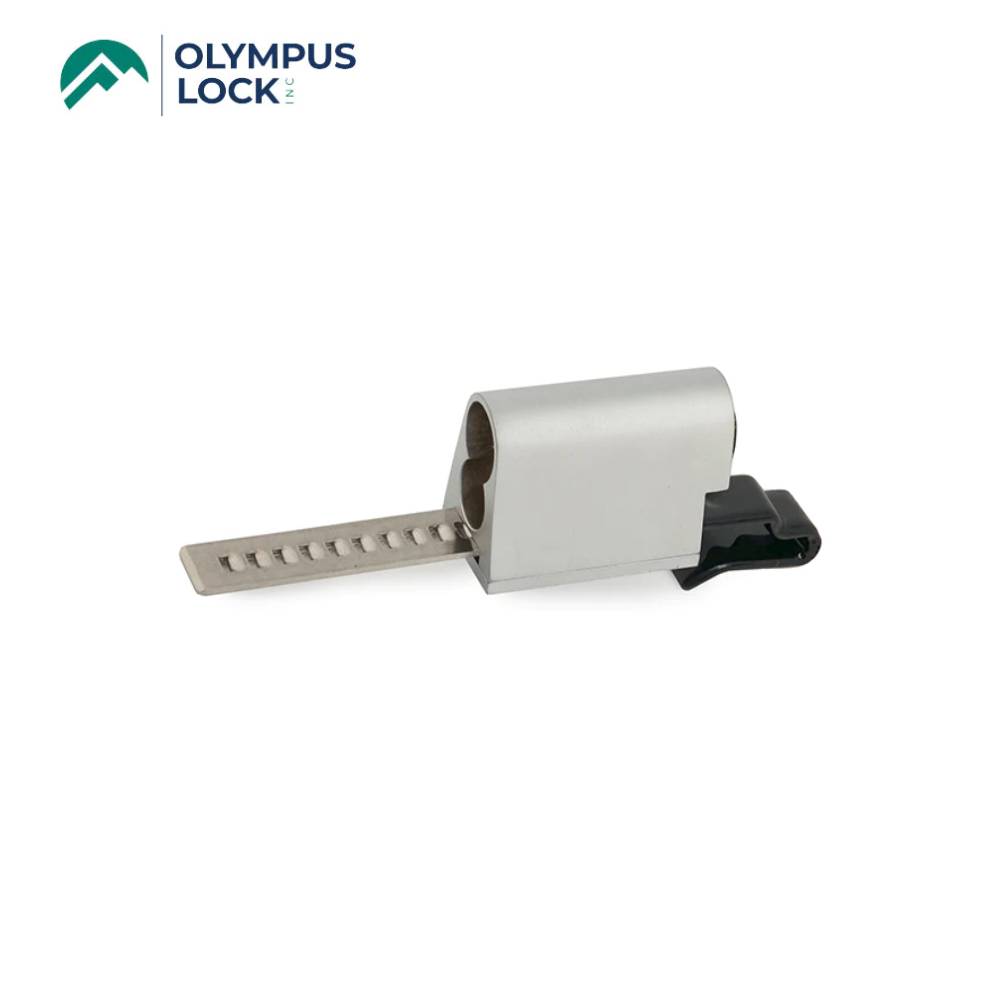

OLYMPUS LOCK - 929R - IC: Showcase / Ratchet Lock For Schlage Full-Size Cores - Sliding Door Lock - US26D (Satin Chrome-626)

OLYMPUS LOCK - 929R - IC: Showcase / Ratchet Lock For Schlage Full-Size Cores - Sliding Door Lock - US26D (Satin Chrome-626)

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Feature:

• 929R Ratchet lock - for bypassing sliding doors
• Will Retrofits a Best 3S prep, but uses Schlage full-size IC core
• Accepts Schlage standard or Primus/Everest large format interchangeable core cylinders
• ANSI/BHMA: E07191
• Includes 729RS-1 strap: 6" stainless steel strap for 3/16" to 1/4" glass thicknesses
• Includes plastic thumbturn to operate lock without key 7788-PA-D
• Zinc die cast cylinder housing, steel strap

Specification:

• ANSI/BHMA: Complies with clause 6.3 (8.2~8.4) of ANSI/BHMA A156.11 1999 ANSI standards
• Use: Sliding glass or wood doors
• Body: Zinc die cast
• Strap: Steel
• Cylinder: Not included
• Compatible electronic cylinders: VIDEX CyberLock LFIC cylinders
• Finish: Satin Chrome US26D

Included Accessories:

• 7788-PA-D plastic thumbturn
• 729RS-1 strap for 3/16" to 1/4" material thickness

MPN: 929R-26D

Download:

• Installation Instruction
• Data Sheet
