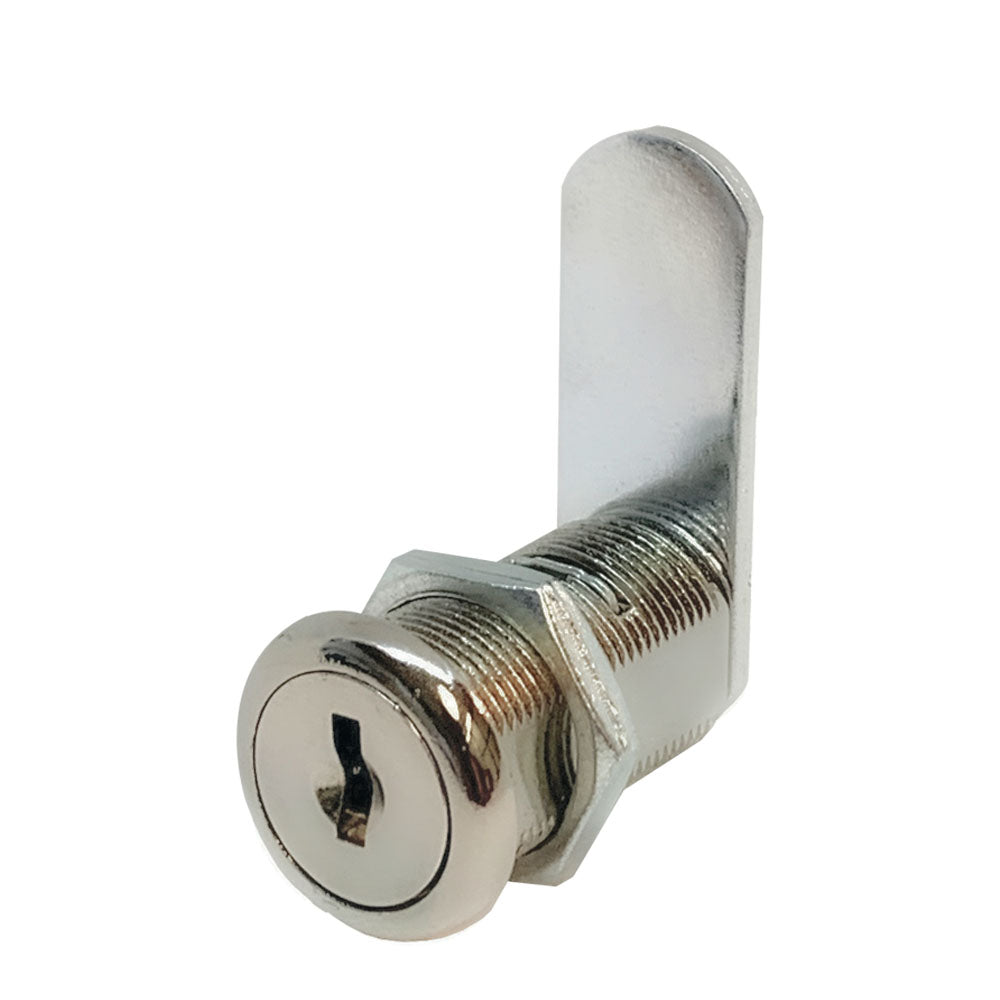

OLYMPUS LOCK - 954 - 15/16 Inch Cascade Series Cam Lock Disc Tumbler

OLYMPUS LOCK - 954 - 15/16" Cascade Series Cam Lock Disc Tumbler

Specification:

• Keying: Will key together with CompX/National C8053 style disc tumbler locks
• Assembly: Ships with body and cylinder assembled for fast and easy installation
• ANSI/BHMA: Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles, including key insertion and removal [E07262]
• US Patent: Patent pending
• Body: Zinc die cast
• Cylinder: Zinc die cast, 5 disc tumbler
• Standard Function: Key removable in locked or unlocked position
• Cams: Ships with one straight and one offset cam
• Spur Washer: Ships with anti-rotation, eyelet spur washer (which can be locked into place for a more secure mounting)

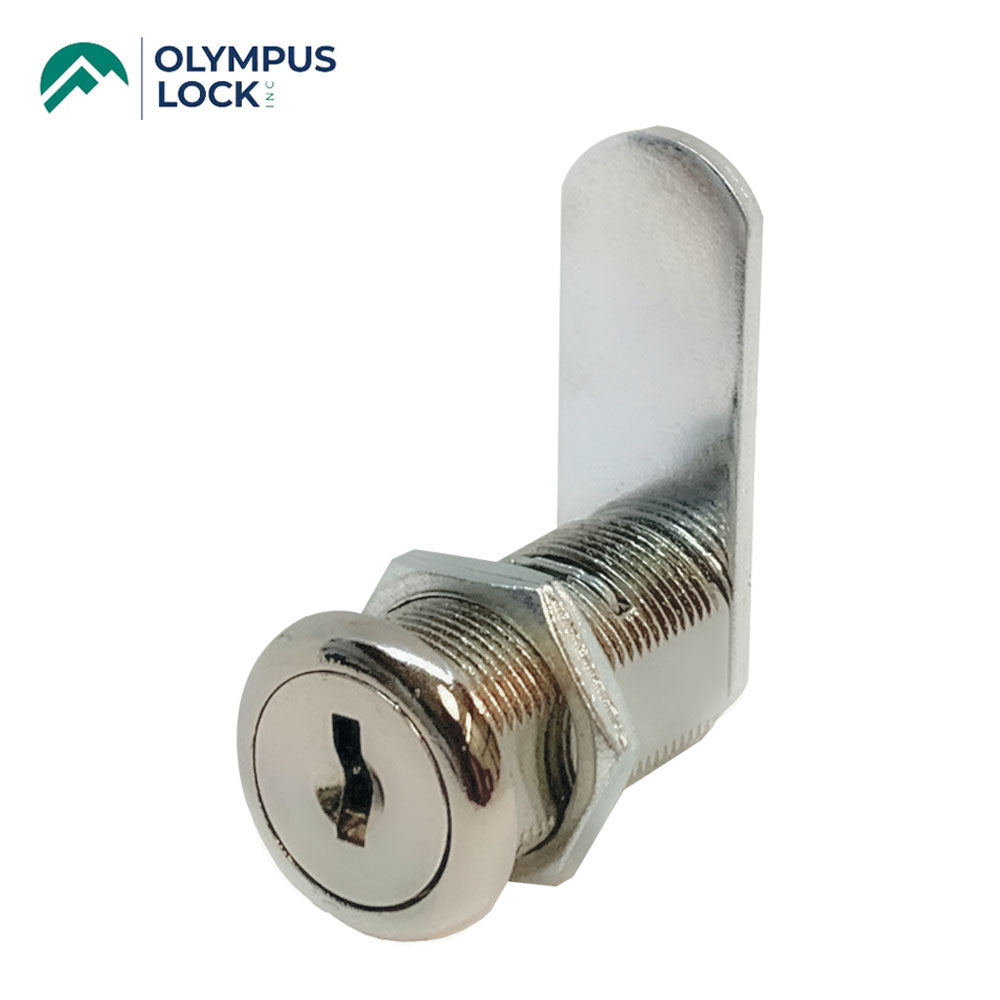

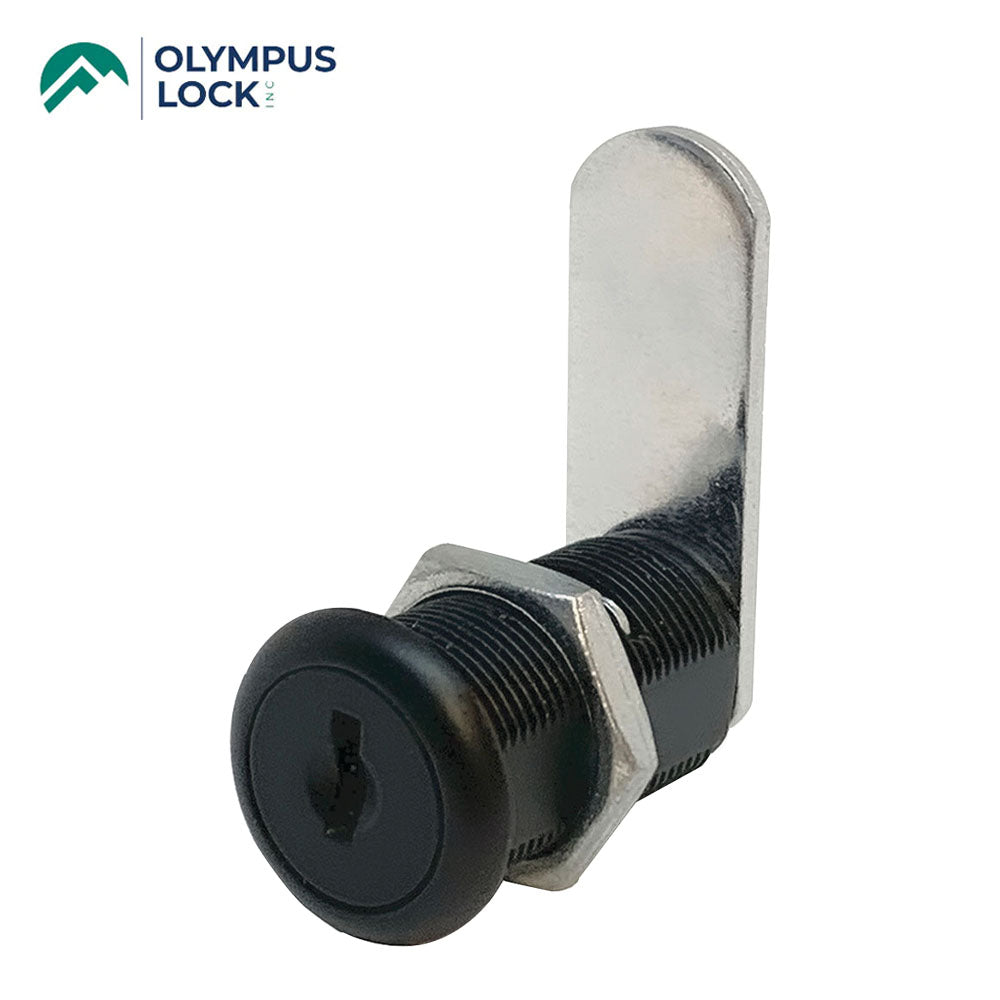

• Finish: 14A (bright nickel) or US19 (matte black)

Keying Information:

• Keyway: Cascade Series (equivalent to National 5-disc system)
• Keys: Includes 2 keys per lock
• Stock Keying: : KD (120 KD codes), MKKD (120 MKKD codes)
• Stock KA#: C346A, C390A, C413A, C415A, C420A, C452A
• Custom Keying: MKKA or combination of MKKA/MKKD* to schedule (*NOTE: there are a maximum of 380 MKKD codes if custom keyed. If you require more key codes, see our DCN series pin-tumbler products.)

Included Accessories:

• Keys: 2 change keys per lock
• P95-CM-1: 1-1/2” straight cam
• P95-CM-2 1-1/8” long with 11/32” offset cam
• P95-SPW Eyelet spur washer *Patent Pending*
• P95-FN-Z Fixing nut
• P95-TR Trim ring
• P95-CS Cam screw with star washer
• P95-RS Retainer staple
• P9**-EXT Plug extender (if required)

Optional Accessories:

• P95-CM-3 3” straight cam
• P95-CM-4 1-5/8” x 5/16” offset cam
• P95-CM-5 1-1/2” straight hook cam
• P95-CM-6 1” straight cam
• Keyblanks KB-D83/KB-D85
• Keying Kit D1

Download:

• Installation Instruction
