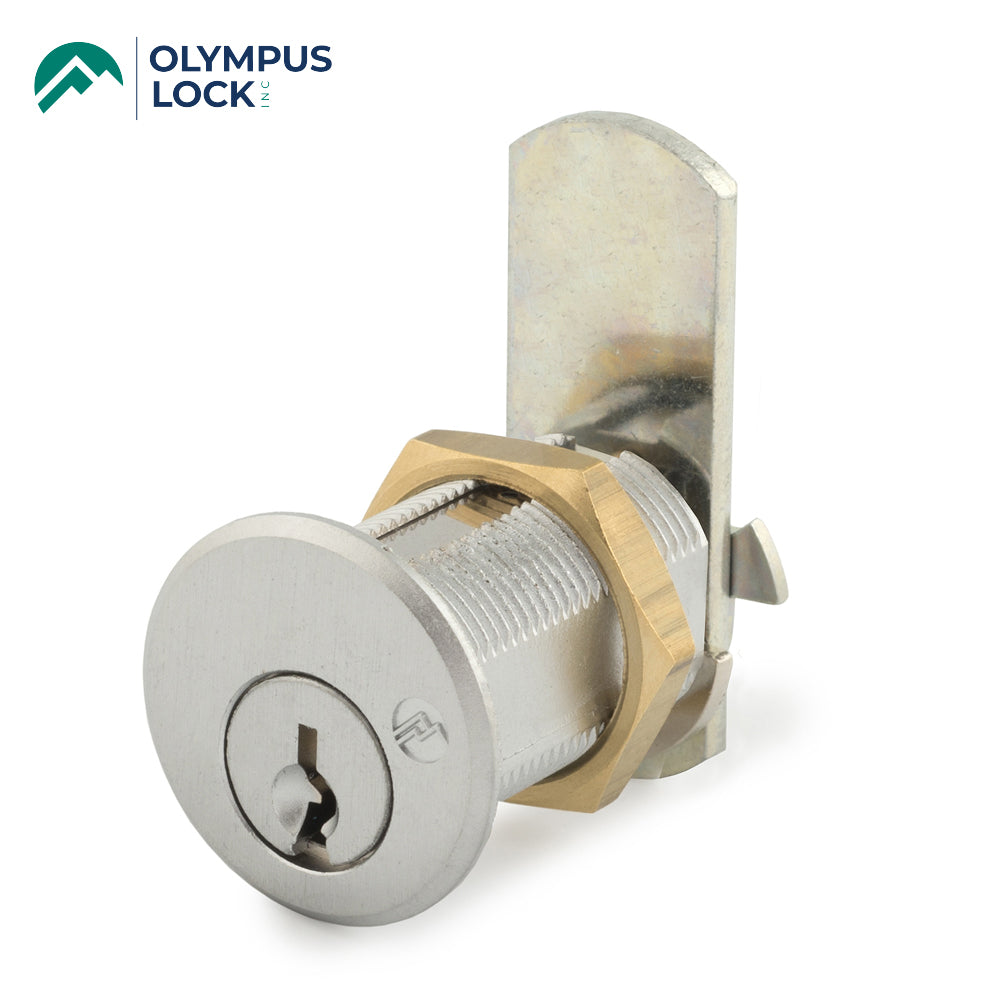

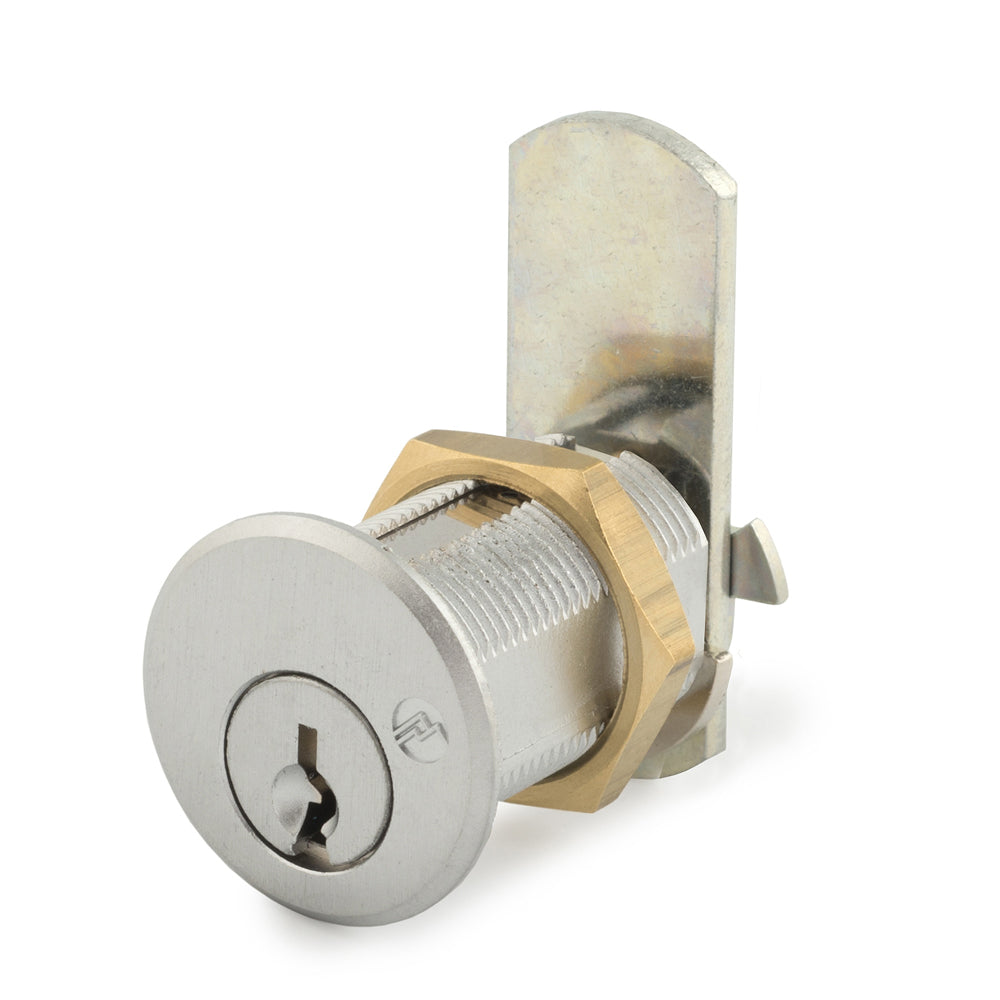

OLYMPUS LOCK - DCN - Cam Lock - 1-3/4- N Series National - 26D - Satin Chrome - KA 101 - Grade 1

OLYMPUS LOCK - DCN - Cam Lock - 1-3/4"- N Series National - 26D - Satin Chrome - KA 101 - Grade 1

N Series National Keyway Cam Lock 1-3/4" Cyl. Length

- Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted
- Only 2 cams required—Ships with reversible straight and offset cams that meet requirements of all locking positions
- Easy rekeyability—Allows for a quick installation and increased productivity
- Anti-rotation plate—Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security in particleboard applications

SPECIFICATIONS

- Function: Cam Lock
- Cylinder: National N Series (equivalent to National D4291 4-pin ) Keyway w/ 2 keys per lock
- Keyed Alike: KA 101
- Handing: Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted Includes 2 cams that work in all handings (door or drawer)
- Rekeyable: Easily rekeyable via cylinder retainer clip
- Anti-rotation plate: Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security in particleboard applications
- Cams: 2 reversible cams work in all positions
- Face: 1" face covers splintering, no additional trim ring required
- Body: Zinc die cast
- Dimensions:1-3/4" without cam (see chart below), 1-13/16" with Straight Cam
- Functions: Key removable in locked or unlocked position.
- Finish: 26D - Satin Chrome
- Includes:
2 nickel plated keys
1 brass fixing nut
1 straight cam
1 offset reversible cam
1 anti-rotation plate
1 lost-motion cam shifter
