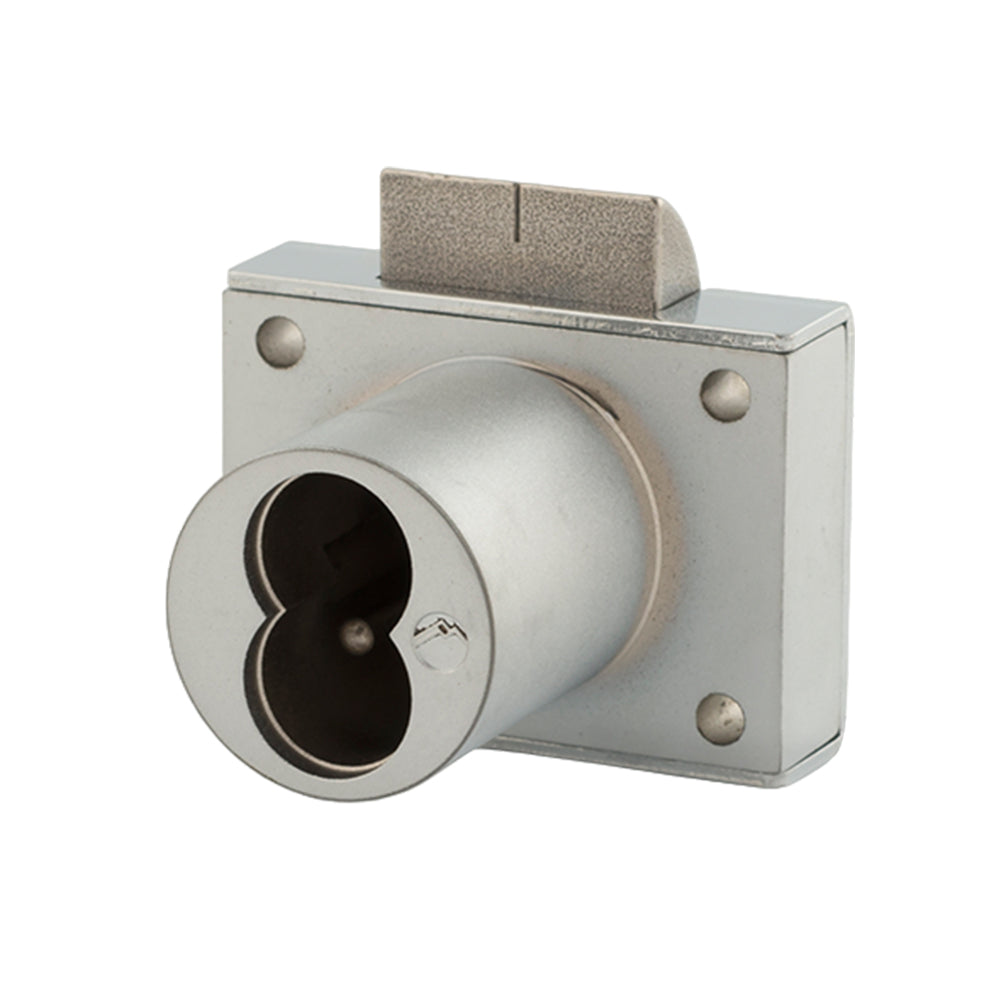

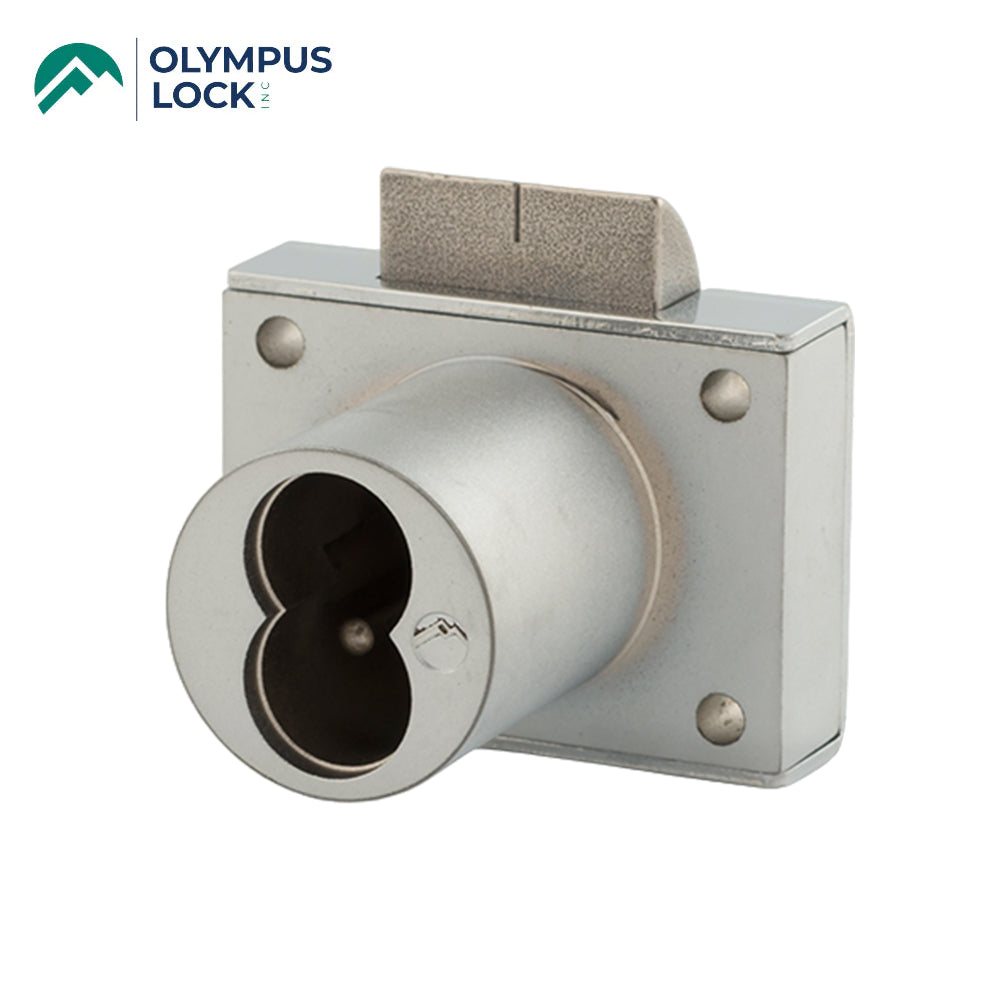

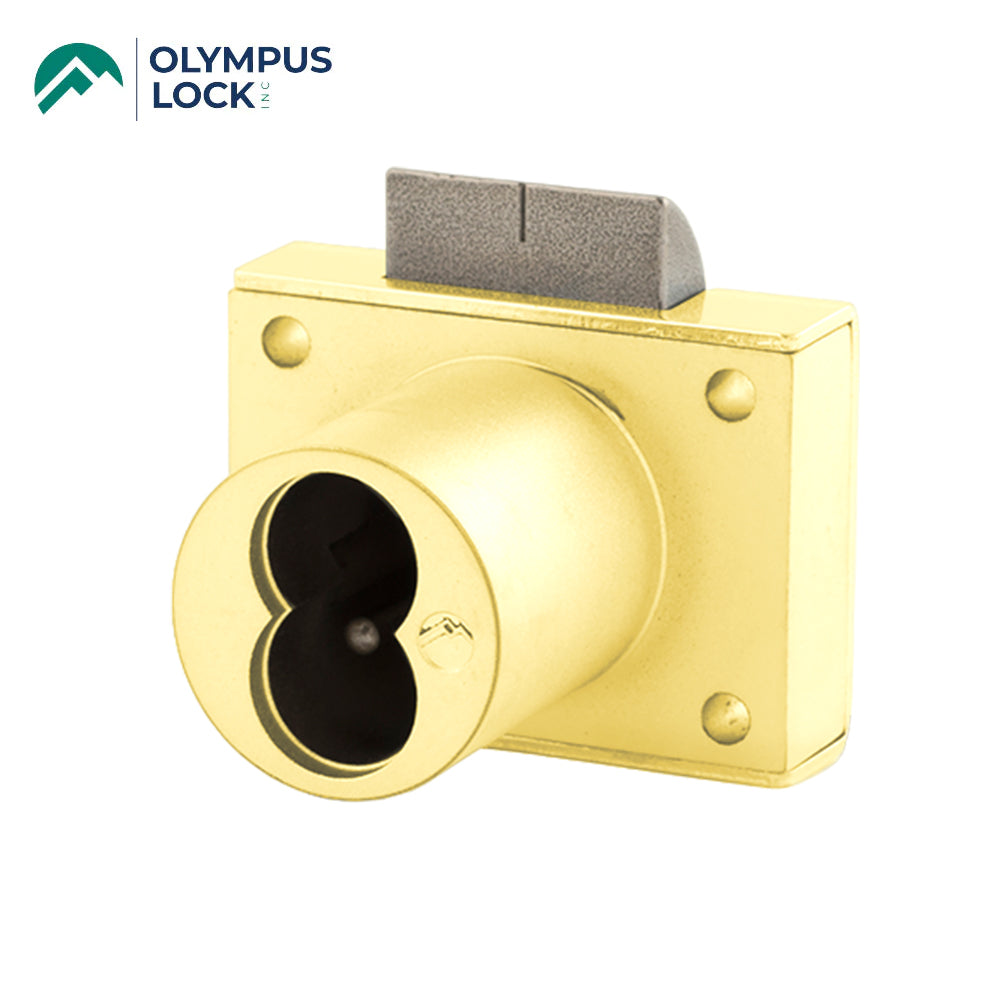

OLYMPUS LOCK - L72V - SFIC Drawer Latch Lock - Less Cylinder - 1-1/4 Inch Cylinder Length - Optional Keying - Optional Color

OLYMPUS LOCK - L72V - SFIC Drawer Latch Lock - Less Cylinder - 1-1/4" Cylinder Length - Optional Keying - Optional Color

Feature:

• Cabinet lock - drawer latch lock
• Accepts Best, Arrow, Falcon or equivalent small format interchangeable cores
• Barrel diameter: 1-1/8"
• Barrel length: 1-1/4"
• Cabinet lock - drawer latch lock
• Accepts Best, Arrow, Falcon or equivalent small format interchangeable cores
• Barrel diameter: 1-1/8"
• Barrel length: 1-1/4"

Specification:

• Function: Spring latch
• Body: Zinc die cast
• Barrel diameter: 1-1/8"
• Cylinder length: 1-1/4"
• Latch projection: 3/8"
• Finish: 26D or US3

Keying Information:

• Cores: Not included
• Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
• Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders

Included Accessories:

• 10-350 spacers (qty 3)
• L78ST-1-SS matching lip strike
• 725-1 spacer to fit 6 or 7 pin cores
• 725-PA plastic thumbturn

Optional Accessories:

• Prong drivers: Shortened prong driver for use with Sargent XC or Marks high security cores with side pins. Specify L72V-PD-SP1 (for prong driver only).
• Spacers: 10-350 (1/8" thick), 10-348 (1/4" thick), 10-349 (1/2" thick)
• Trim ring: TR78
• Through-bolt hardware: ETS1 trim plate, ETS1- PL trim pull and ETST1 template
• SFIC cores: 206/207 Series

Download:

• Data Sheet
• Installation Instruction
• SFIC Installation Instruction
