PBB - BB51630N - Plain Bearing Full Mortise 4.5x4.5" 630 US32D Stainless Architectural NRP Steel Hinge
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
PBB - BB51630N - Plain Bearing Full Mortise 4.5x4.5" 630 US32D...
Description
Description

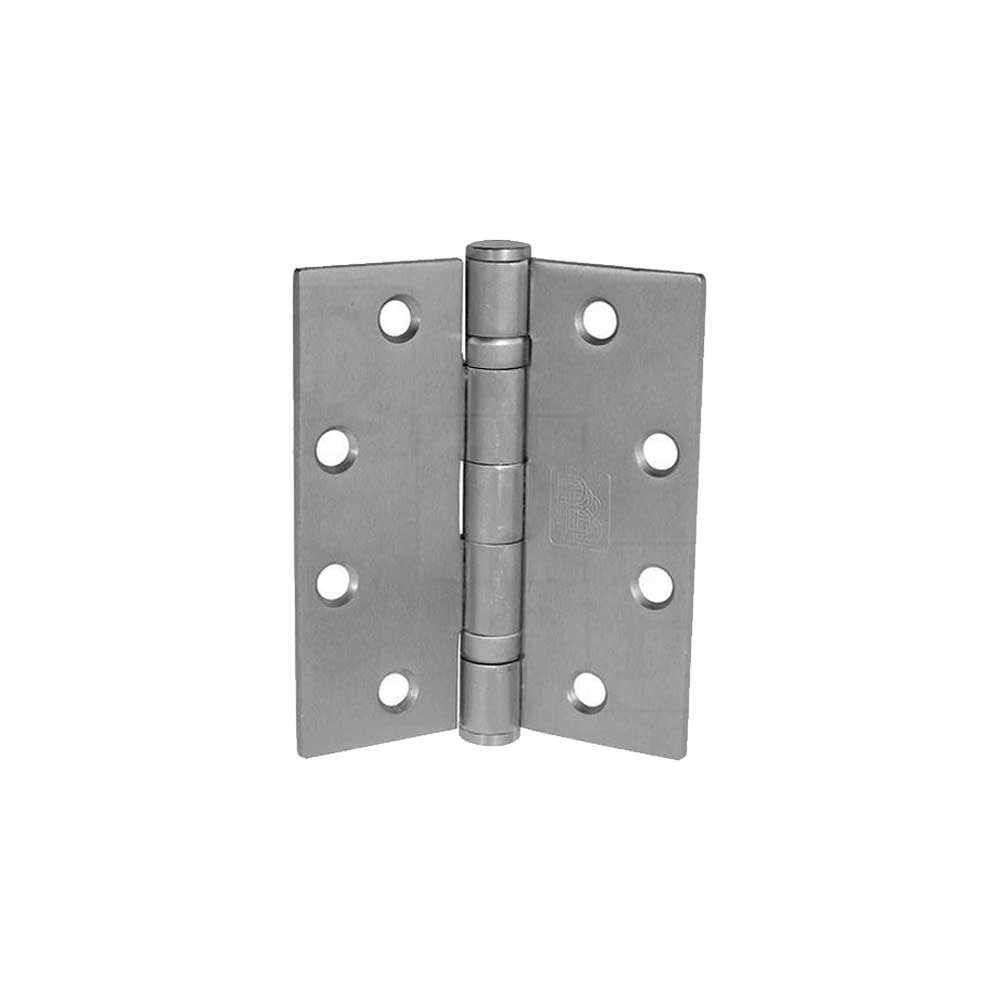

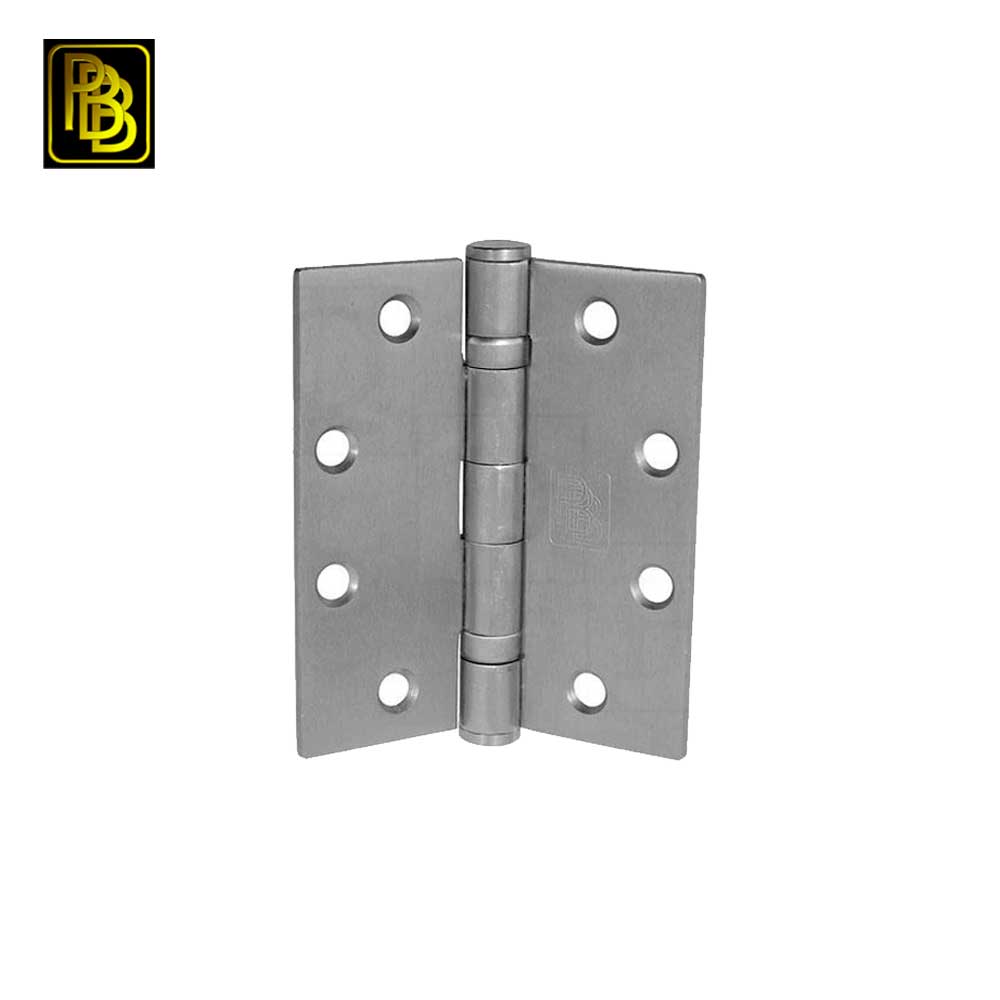

PBB - BB51630N - Plain Bearing Full Mortise 4.5x4.5" 630 US32D Stainless Architectural NRP Steel Hinge
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI).
HINGE SWAGING: A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16” clearance between leaves.
Description:
- Ball Bearing
- Full Mortise
- Center Hinge Position
- 4-1/2" x 4-1/2"
- Five knuckle
- Includes Screw Pack with all machine screws (24), and 1/2" wood screws (12)
- Stainless Steel
- Optional Non-Removable Pin
Specifications:
| Corner Type | Square |
| Duty Weight / Class | Standard Weight |
| Height | 4-1/2" |
| Width | 4-1/2" |
| Standard Screw Size | FHMS – 12-24 x 1/2” FHWS – 12 x 1-1/4” |
| Material Gauge | 0.134 |
| Finish | Optional Finish |
| Certification | ANSI A8112 |
