Description
Description

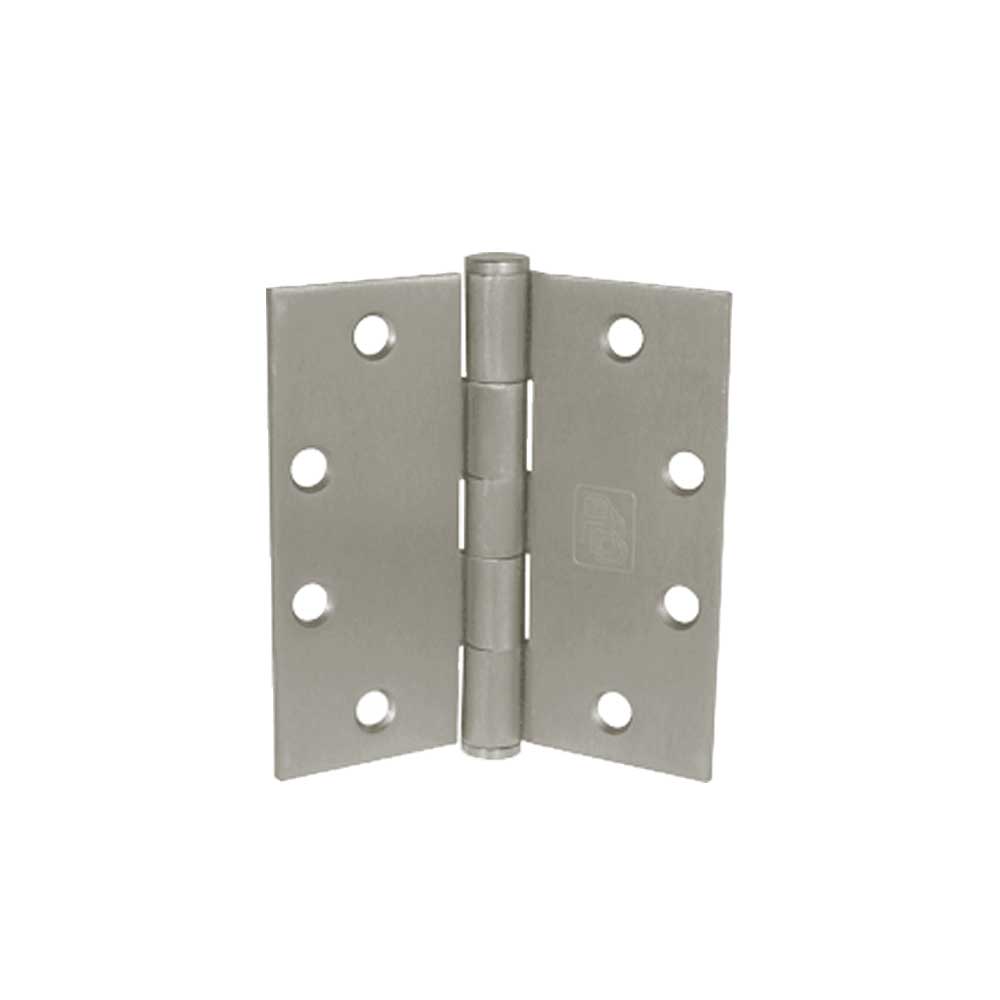

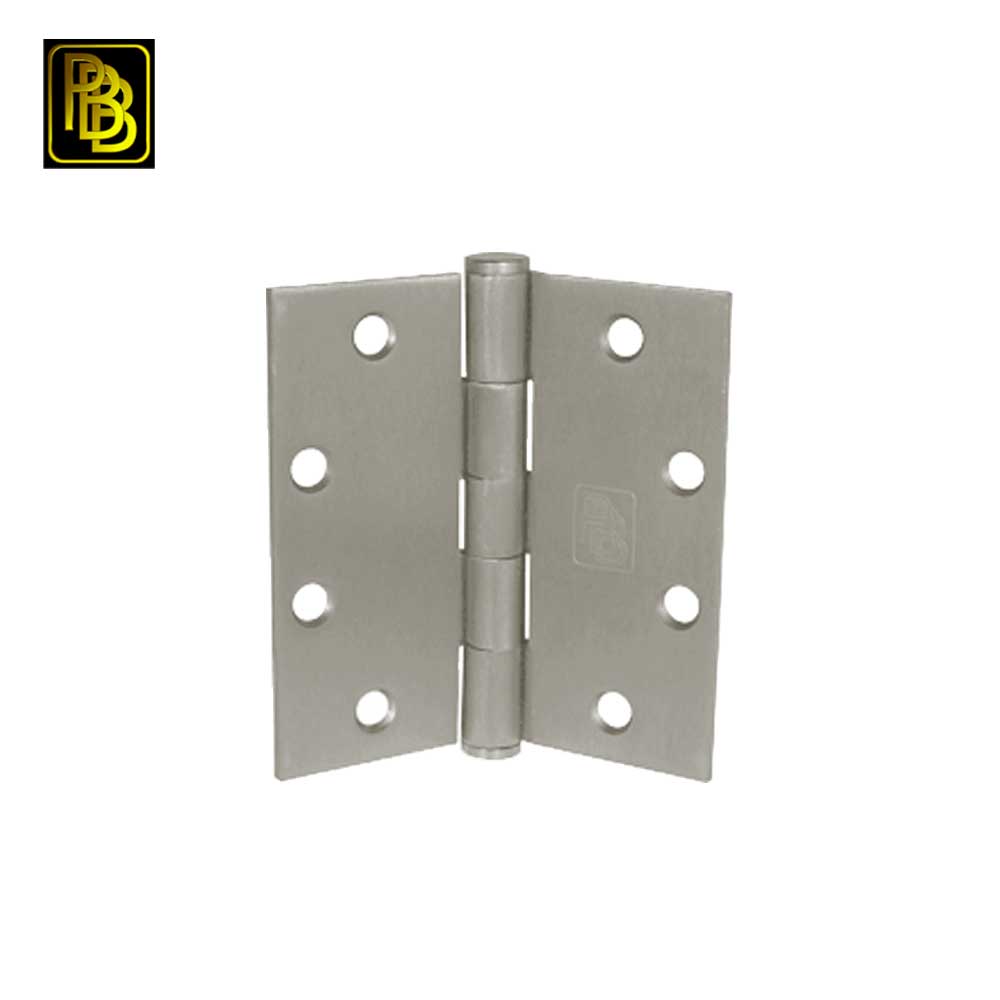

PBB - PB813535646 - Plain Bearing Full Mortise 3.5x3.5" 646 US15 Satin Nickel Architectural Steel Hinge Grade 3
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI).
HINGE SWAGING: A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16” clearance between leaves.
Description:
- For use on standard weight doors or doors receiving low frequency usage
- 3.5" x 3.5"
- Finishes available: Satin Chromium, Primed for painting, Satin Nickel Plated
- 1/4" Rounded corners available in Satin Chromium finish
- Includes screw pack with machine screws and wood screws
- Not for use with door closers
- Satin Nickel and Primed for paint in Squared ONLY
Specifications:
| Hinge Type | Plain Bearing |
| Corner Type | Square or Rounded on select finishes |
| Duty Weight / Class | Standard weight |
| Height | 3.50 ± .015 |
| Width | 3.50 ± .015 |
| Max door size | 2'6" x 7' |
| Max door weight | 40 |
| Material Gauge | .123 ± .005 |
Downloads:
