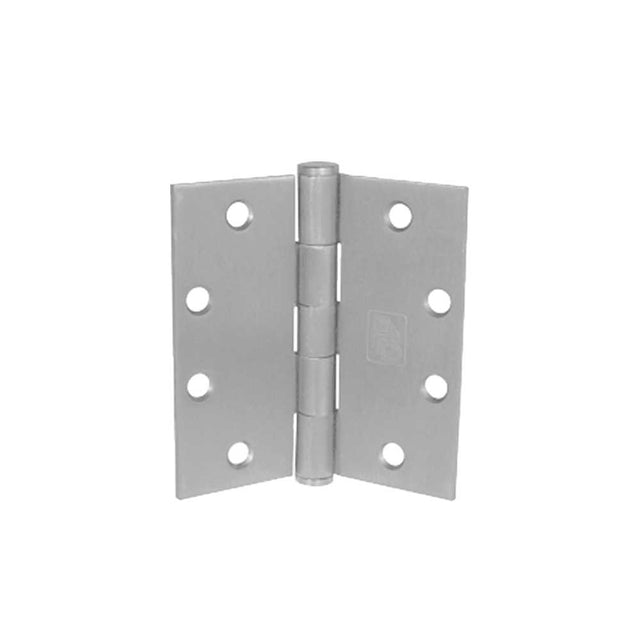

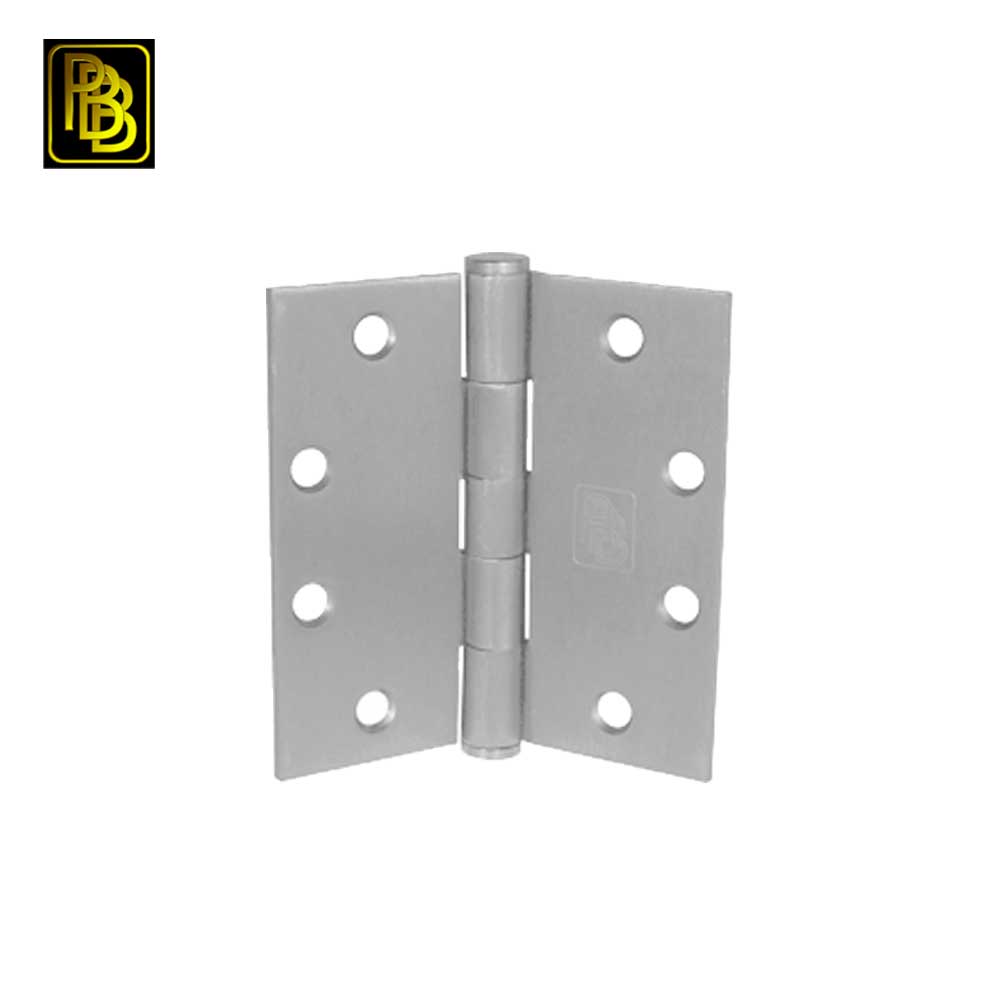

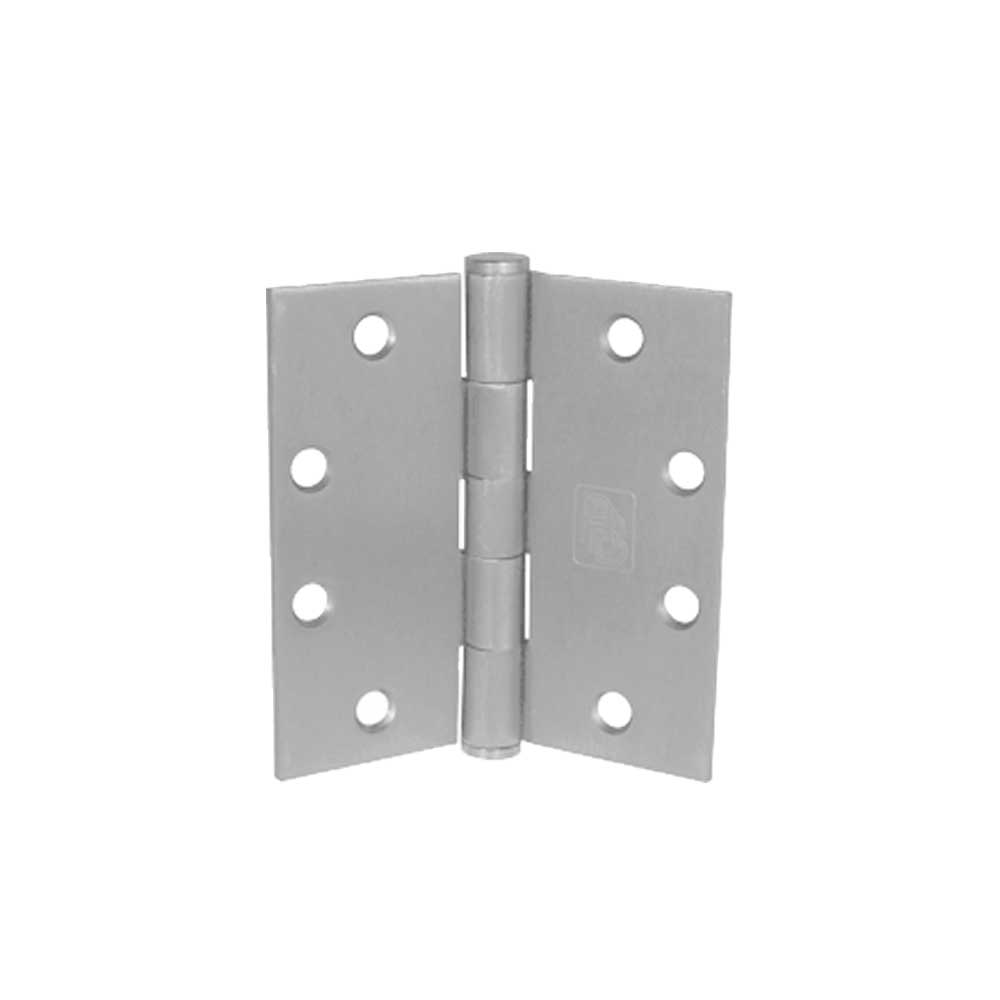

PBB - PB81652 - Plain Bearing Full Mortise 4.5x4.5" 652 US26D Satin Chrome Architectural Steel Hinge
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
PBB - PB81652 - Plain Bearing Full Mortise 4.5x4.5" 652 US26D ...
Description
Description
PBB - PB81652 - Plain Bearing Full Mortise 4.5x4.5" 652 US26D Satin Chrome Architectural Steel Hinge
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI).
HINGE SWAGING: A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16” clearance between leaves.
Description:
- For use on medium weight doors or doors requiring low frequency service.
- Not for use with door closer.
- For hospital type, add HT to suffix of part number.
- All hinges are ANSI template.
Specifications:
| Corner Type | Square |
| Duty Weight / Class | Standard Weight |
| Height | 4-1/2" |
| Width | 4-1/2" |
| Standard Screw Size | FHMS – 12-24 x 1/2” FHWS – 12 x 1-1/4” |
| Material Gauge | 0.134 |
| Finish | Optional Finish |
| Certification | ANSI A8112 |
Downloads:
