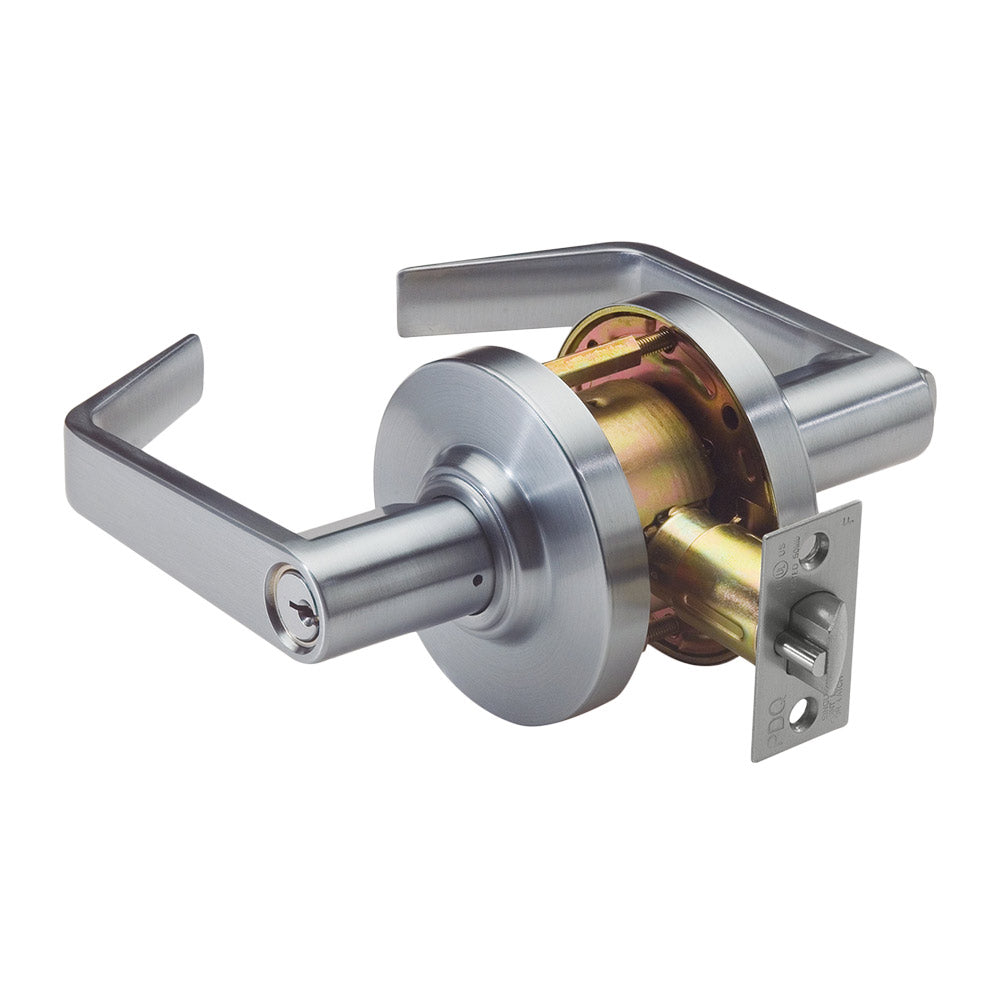

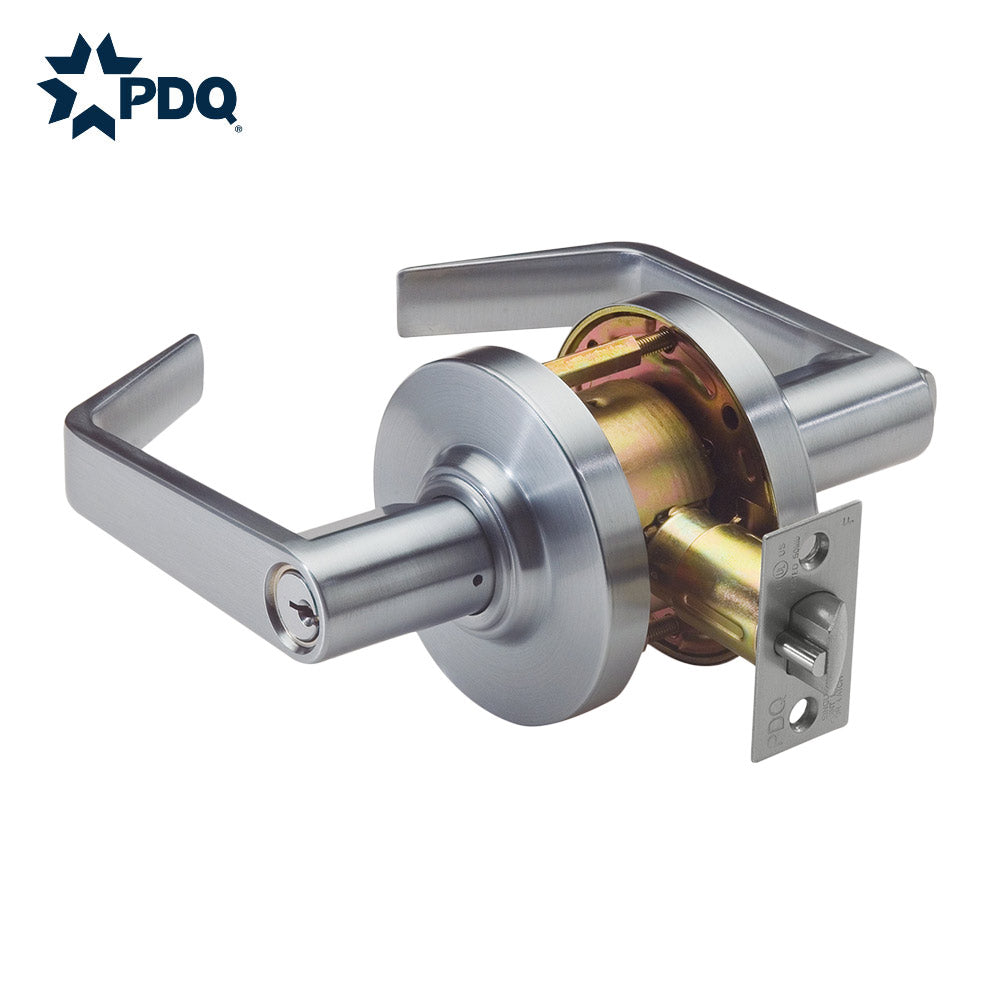

PDQ SD176 - Privacy HD Cylindrical Lock with 2-3/4" Backset - ASA Strike - ANSI F76 - Grade 2
The SD Series is a Cylindrical Lock, Grade 2 crafted for both quality and value. This ANSI/BHMA Grade 2 certified lock combines durability with affordability, making it a standout choice. Choose from a range of lever styles and finishes to complement any setting, ensuring a cohesive aesthetic across your space.
It is designed to seamlessly integrate with other products, enabling you to create a unified appearance throughout your property. Backed by a reassuring 5-year warranty, you can trust in the reliability and longevity of this lock. Enhance security and style with the SD Series, a smart investment for any project.
Features & Benefits:
- Crafted from heavy-gauge cold rolled steel, this lock offers unparalleled durability and corrosion resistance with its dichromate finish.
- Its removable thru-bolts ensure easy installation and added security.
- Choose from 5 lever styles: Philadelphia, Boston, Miami, Memphis, Orlando
- Choose from 4 distinct finishes: 605(US3), 613(US10B), 622(US19), 626(US26D)
Certifications:
The SD Series Grade 2 Cylindrical Lock boasts impressive certifications for safety and compliance.
- It is UL/CUL 10C listed for use on 3-hour fire doors, suitable for single doors measuring up to 4' x 8'
- This lock is certified to ANSI/BHMA A156.2 Grade 2 standards, ensuring exceptional performance and durability
- The SD Series meets ADA (Americans with Disabilities Act) requirements and complies with ICC/ANSI 117.1 standards for Accessible and Usable Buildings
Specifications:
| For Doors: | 1-3/8" to 1-3/4" thick Preset for 1-3/4" door |
| Applications: | Through door thru-bolting Fits 160 and 161 Door prep Thru-Bolts are removable |
| Backset: | 2-3/4" Standard 2-3/8" 3-3/4" 5" Optional |
| Chassis: | Heavy-gauge cold rolled steel mechanism Dichromated for corrosion resistance |
| Front: | 2-1/4" x 1-1/8" or 2-1/4" x 1" Beveled 1/8" on 2" Stainless Steel or Wrought Brass |
| Strike: | ASA standard T-Strike or Full Lip Strike optional Stainless Steel or Wrought Brass |
| Levers: | Philadelphia Boston Miami Memphis Orlando |
| Rose: | 3-3/8" DIA Wrought |
| Latchbolt: | 1/2" Throw |
| Hand: | Non-handed |
| Trim: | Solid diecast PHL, BSN, MIA, MEM and ORL Levers Wrought Brass Roses Concealed Screws |
| Keys: | Two (2) per Lock |
| Keyways: | SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers |
| Interchangeable Core: | 6 or 7-pin Compatible with Best, Falcon & Arrow. Not available with Memphis lever |
| Cylinder: | 6-pin Brass Insert Cylinder keyed to 5-pins Standard High Security and UL437 Cylinders Available |
| Keying: | Options: MK, CMK or GMK / Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems |
| Finishes: | 605 (US3), 613E, 622 (US19), 622 (19D), 626 (US26D) |
| Certifications, Listing, Compliances: | UL listed for 3 hrs, for single doors up to 4'0" x 8'0" Certified to ANSI/BHMA A156.2 Grade 2 Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings TAA compliant. Country of origin: KR |
| Warranty: | Five (5) year Limited Warranty |
