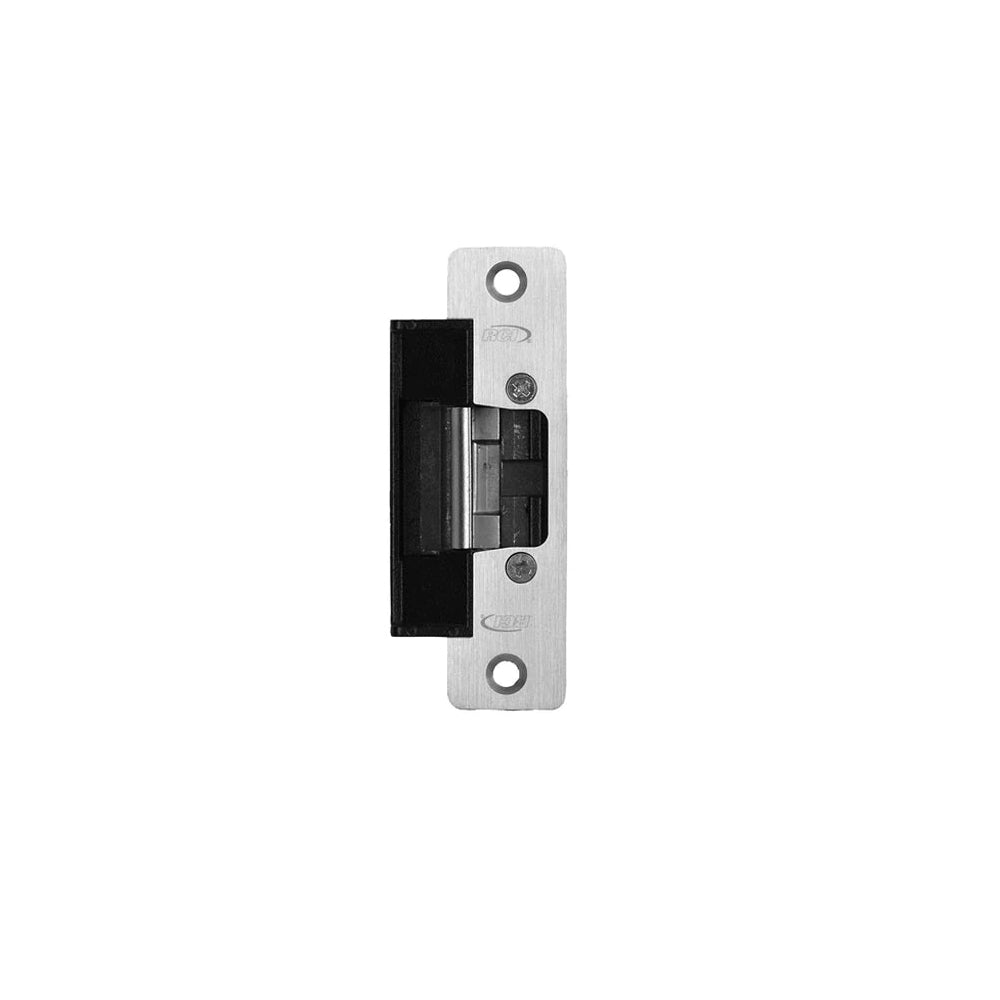

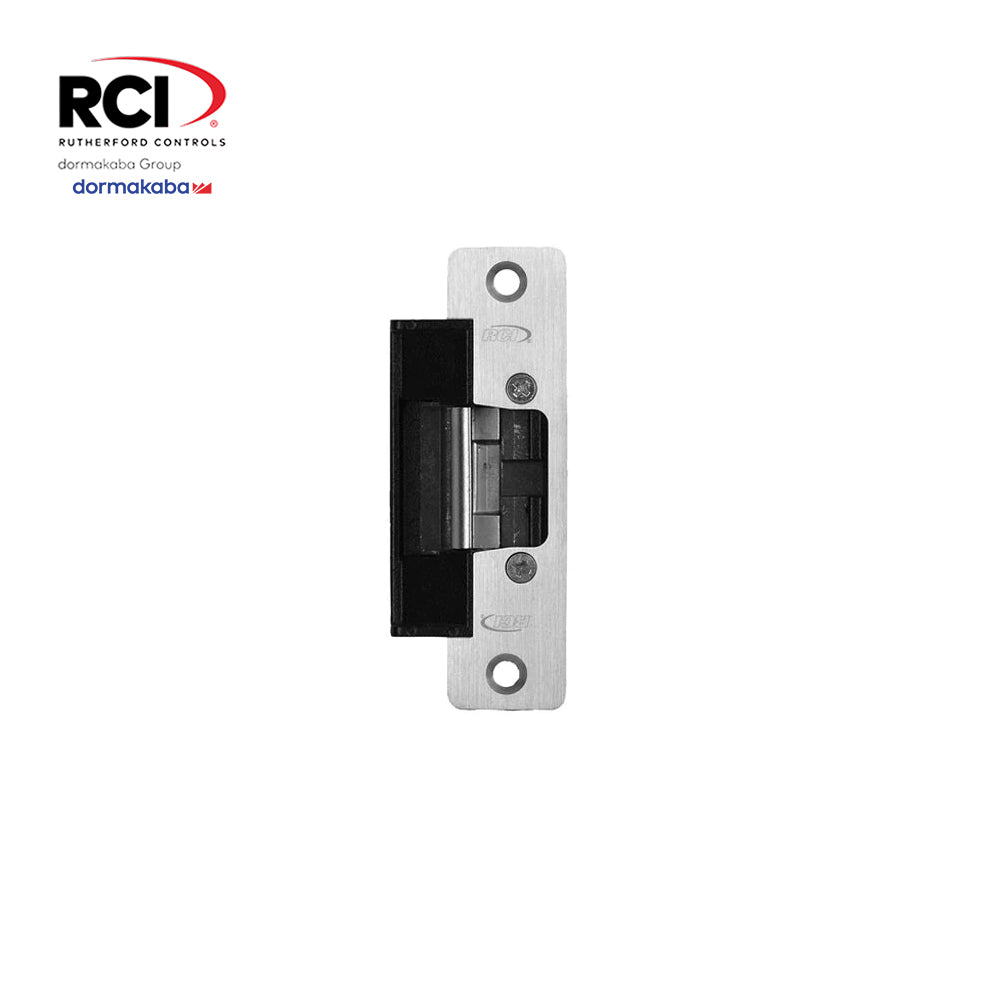

RCI S6504-32D - Electric Strike for 4-7/8" Round Corner Faceplate For 5/8" Projection Latches - 12/24 VDC - ANSI Grade 1 - 32D (Satin Stainless Steel-630)
The RCI S6504-32D electric strike series are used with aluminum, cylindrical, centerline mortise lock and exit devices. These electric strike combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode, horizontal adjustment, and plug-in wire connectors. The S65 Standard version is ideal when you require 3/4" latch projection.
Features:
- Stainless Steel finish
- Static strength: 1500 lbs
- Non-handed
- Field selectable lock mode
- Voltage input: 12 or 24VDC and 12 to 24VAC, field selectable
- Faceplate: 1-1/4"W x 4-7/8"H (32mm x 124mm), ANSI round corners
- Trim plate Included
- Modular faceplate designs for a variety of frame types and cut outs
- UL 1034 Burglary-resistant listed
- Accommodates 3/4" latch projection
Product Specifications:
| Vendor | DormaKaba |
| Manufacturer | RCI |
| SKU | S6504 32D |
| UID | RUT100S650432D |
| Installation | Commercial |
| Origin | |
| Unit of Measure | Each |
| Base Material | Stainless Steel |
| Limited Warranty | 3 Years |
Technical Specifications:
| Function | Field Selectable (Safe/Secure) |
| Operating Voltage | 12VACDC/24VACDC |
| Amp Draw | .375 Amps at 12VDC, .19 Amps at 24VDC, .280-.565 Amps at 12-24VAC |
| For Use With | Cylindrical Locks, Mortise Exit and Latch Locks |
| Faceplate Size | 4-7/8 In. X 1-1/4 In. |
| Faceplate Shape | Flat Face, Round Corners |
| Switch Type | None |
| Frame Application | Aluminum |
| Product Type | Electric Strikes |
