Description
Description

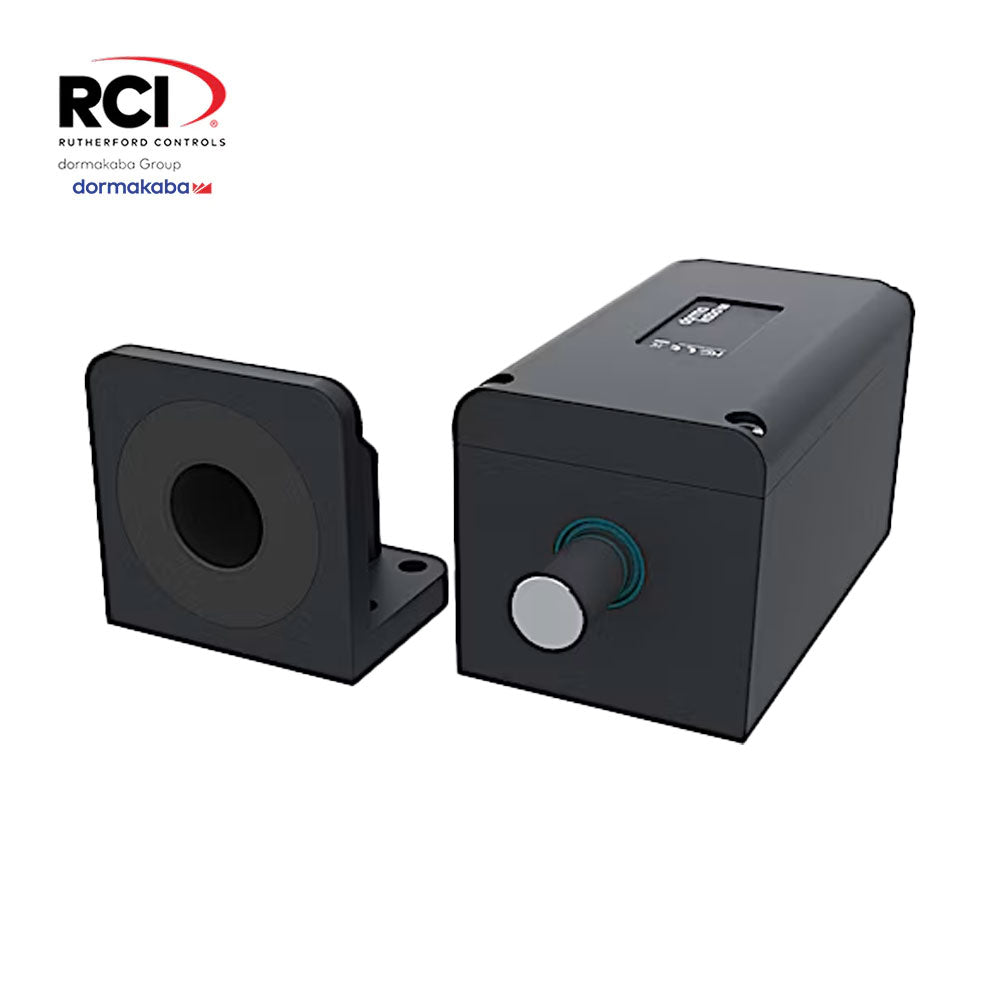

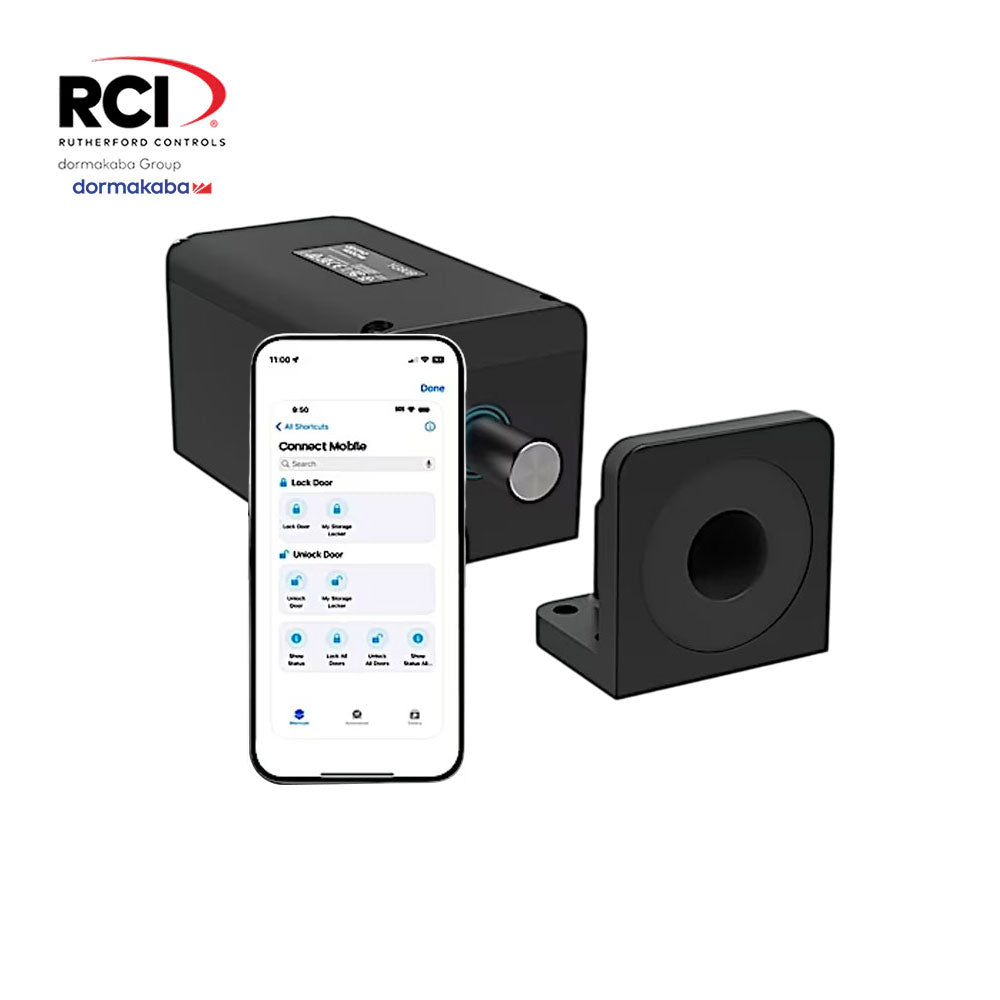

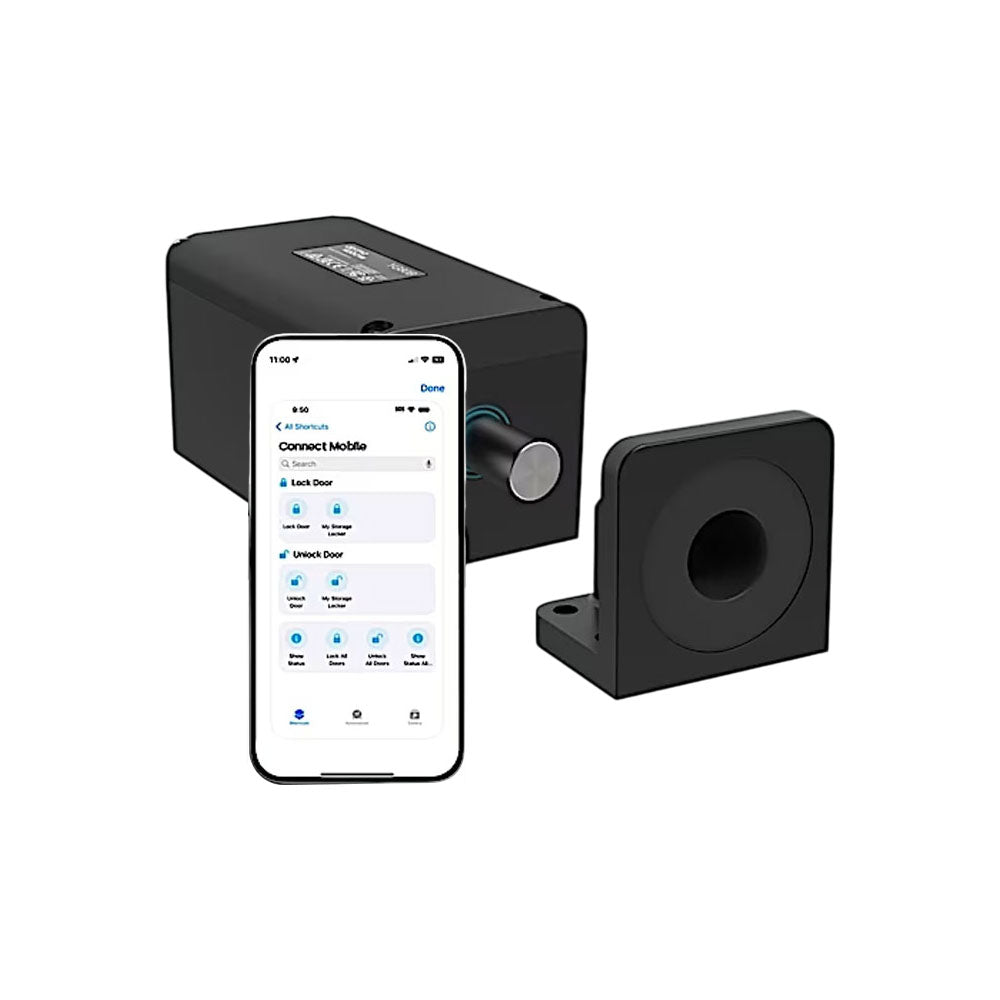

RCI YG80B - Heavy-Duty Electronic and Weatherproof Door Lock with Bluetooth System
Features:
- High security. 18mm diameter stainless steel bolt pin and reinforced strike design exceeds the highest UL strength tests.
- Weatherproof. An IP67 certified design and built-in heater for continued functionality in sub-zero climates.
- Complete monitoring. A full range of output signals, including bolt locked and unlocked position, door position and tamper detection.
- Versatile installation options. The symmetrical design means the YG80 can be installed both horizontally and vertically in indoor and outdoor environments.
- Eco-friendly. Draws as little as 40mA in standby and only 1000mA in operation at 12VDC.
- Integration. Able to be integrated into an access control system or operate completely stand-alone with built-in Bluetooth control.
Specifications:
| Door gap | 5/8" (15mm) maximum |
| Static strength | 8,800 lbf / 39,000N |
| Dynamic strength | 148 ft-lbs / 200 joules (factory tested to UL 1034) |
| Endurance | Cycle tested to 300,000 operations |
| Dimensions | 5-29/32" x 3-5/32" x 3-5/32" (150mm x 80mm x 80mm) |
| Bolt pin | Double (2 pieces) 11/16" (18mm), 1-3/16" (30mm) extension, 1-1/8" (28mm) receiver |
| Locking / Unlocking time | 4.5 seconds (typical) |
| Voltage at lock | 12 - 24VDC +/- 15% |
| Current usage | Standby: 40mA@12V, 30mA@24V Maximum: 1.0A@12V, 0.5A@24V 2.0A@24V with heater on |
| Monitor switch ratings | 24VDC, 0.25A |
| Materials | Bolt pin: Stainless steel 304 Lid: Glass Fiber Reinforced, UV Stabilized Polypropylene Lock body/strike: Aluminum A383 |
| Compliance and certification | UL294 and UL1034 Certified CE Compliant, RoHS 2 Compliant FCC Part 15 / IC Compliant |
| Rating | IP67 Rated |
| Corrosion resistance | Grade 4, 240 hours salt spray (EN 1670:2007) |
| Cold resistance | -31°F (-35°C) for 2 hours (EN 60068-2-1:2007) |
| Heat resistance | +158°F (+70°C) for 2 hours (EN 60068-2-2:2007) |
| Warranty | 5 years |
Download:
