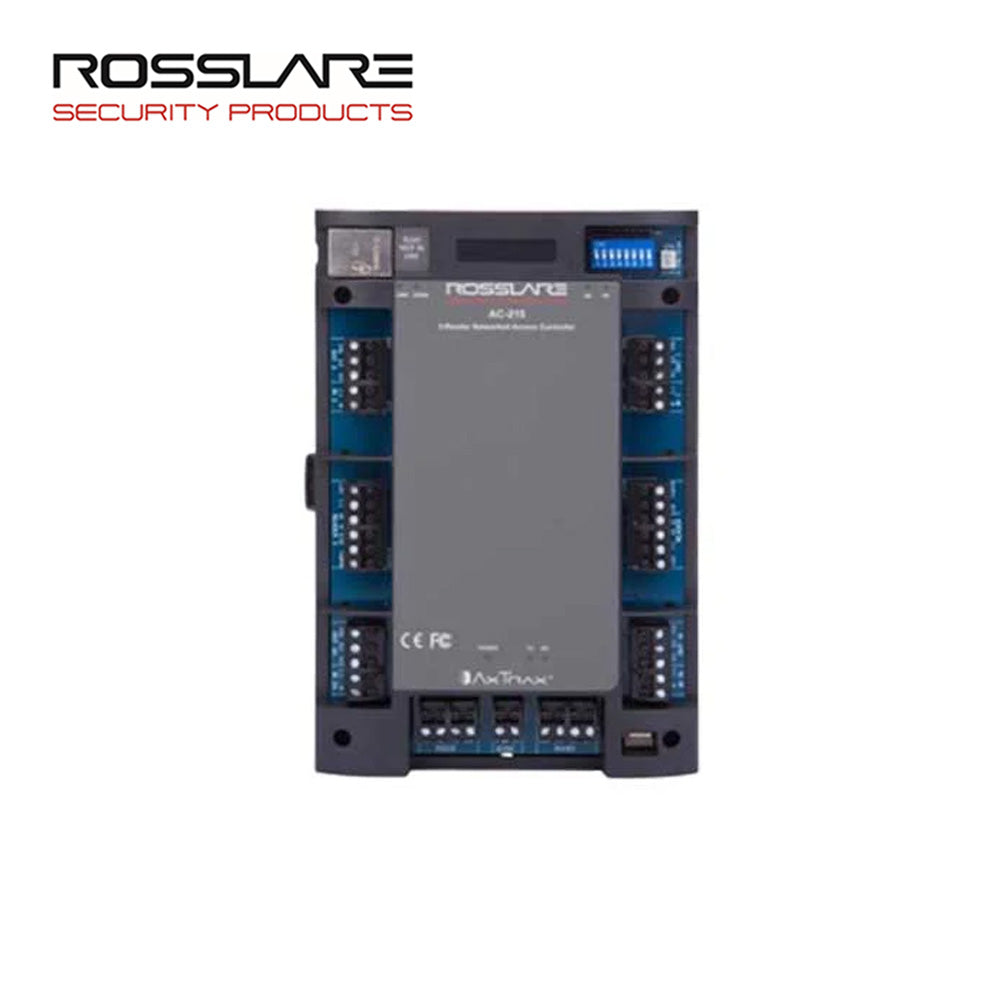

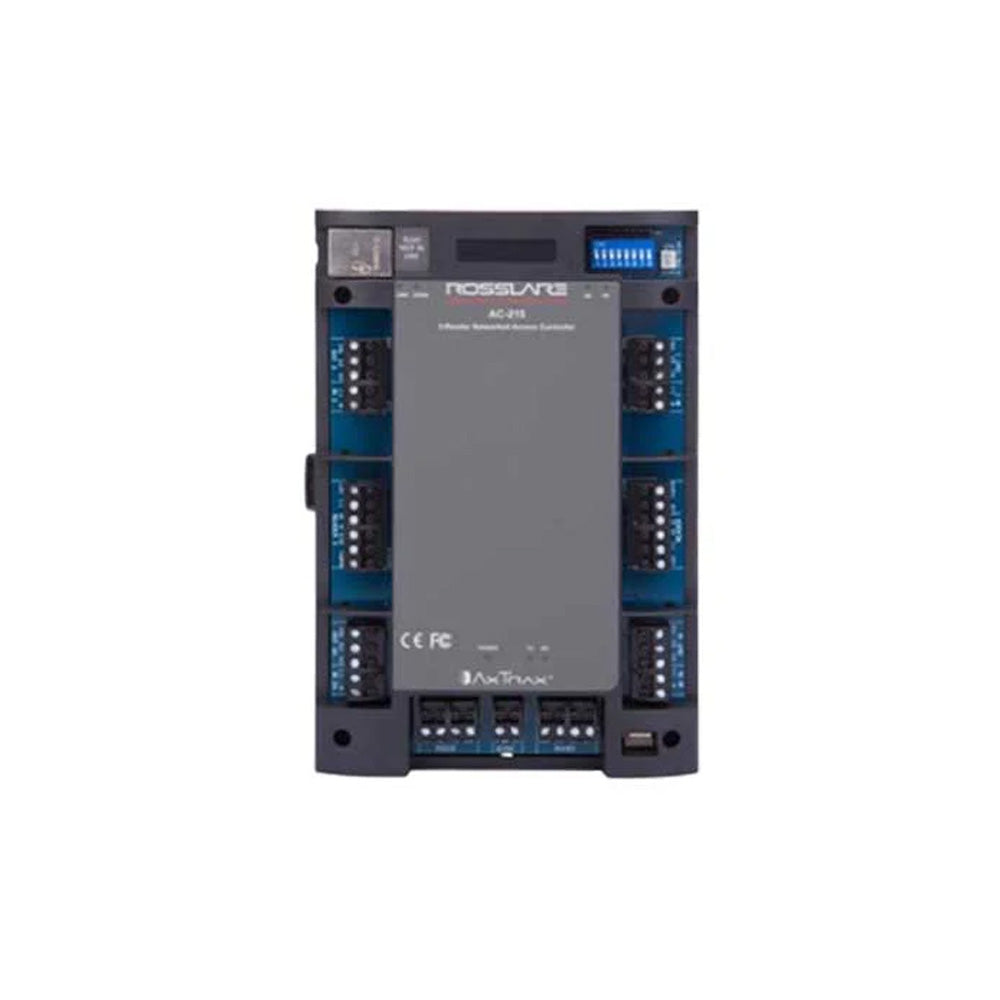

Rosslare - AC-215IP-DIN - DIN Housing Networked Access Control Panel for PCBA - TCP/IP - 2 Readers
The Intelligent 2-Reader Networked Access Controller is powered by Rosslare's AxTraxNGâ„¢ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.
Features:
- DIN Housing for DIN Rail Mounting.
- 20,000 event history entries per computer.
- Supports up to 30,000 users in off-line mode, unlimited server based capacity.
- Multi-user authentication for high-level security.
Specifications:
| Type | Network Control Panel / DIN Housing |
| Inputs | 4 supervised, hi-impedance, inputs Max. voltage: 5 VDC |
| Outputs | 4 fully programmable 5 A, N.O. and N.C. relay outputs rated 5A @ 30 VDC |
| Readers | 2 reader ports (6-wire) Communication: Wiegand, or Clock & Data Input/Output: LED control, tamper input |
| Interface | TCP / IP |
| Serial Ports | 10/100 Ethernet Port |
| Max Readers | 2 |
| Networking | Rosslare's AxTraxNGâ„¢ Server |
| Users | 30,000 active credentials (Card & PIN) |
| Unauthorized & Access Groups | 30,000 Unauthorized Users |
| Event Log | 20,000 Events |
| Operating Voltage | 12 VDC, 1.5 A from a regulated power supply |
| Housing | Protective Cover & DIN Rail / Wall Mount |
| Dimensions | 7.6 x 5.4 x 1.5 in. |
| Standard Approvals | CE - Safety, ENC, RFI, LVD RED 2104/53/EU; FCC - CFR47 Part 15b |
| Weight | 0.36 kg (12.7 oz) |
