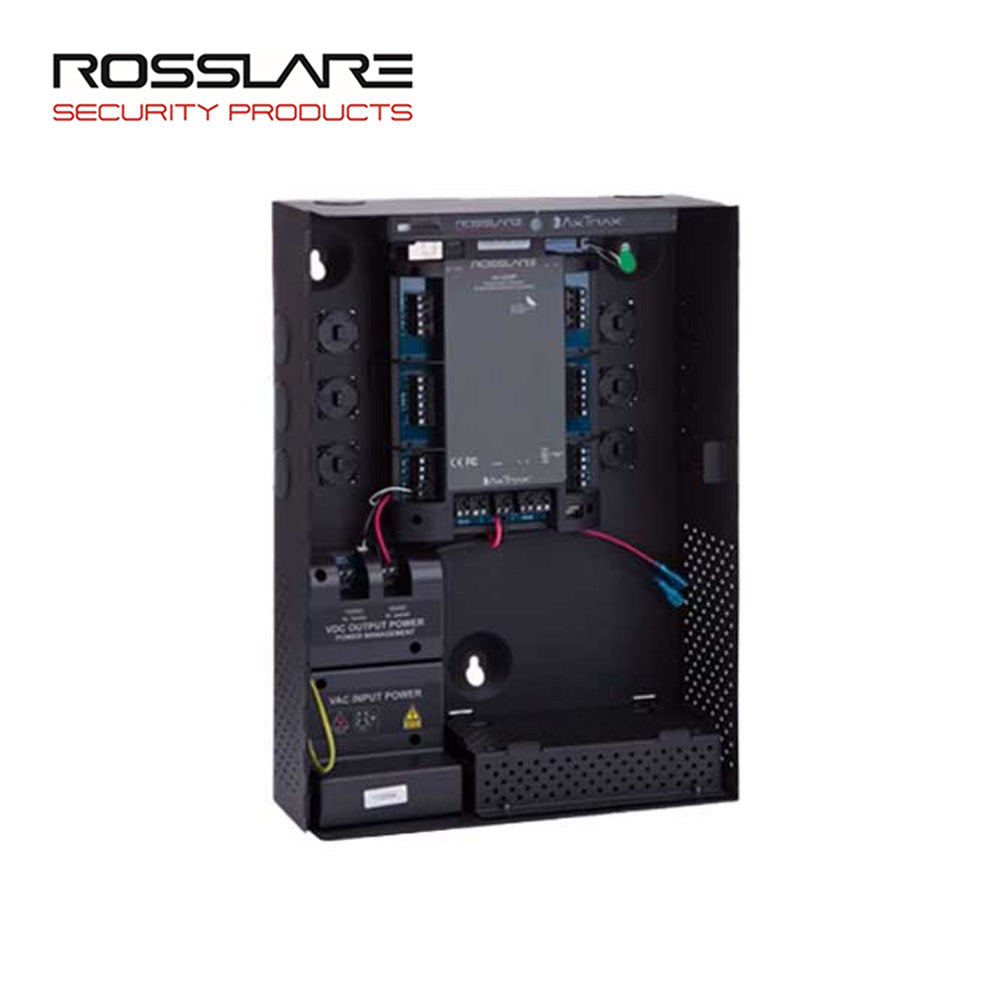

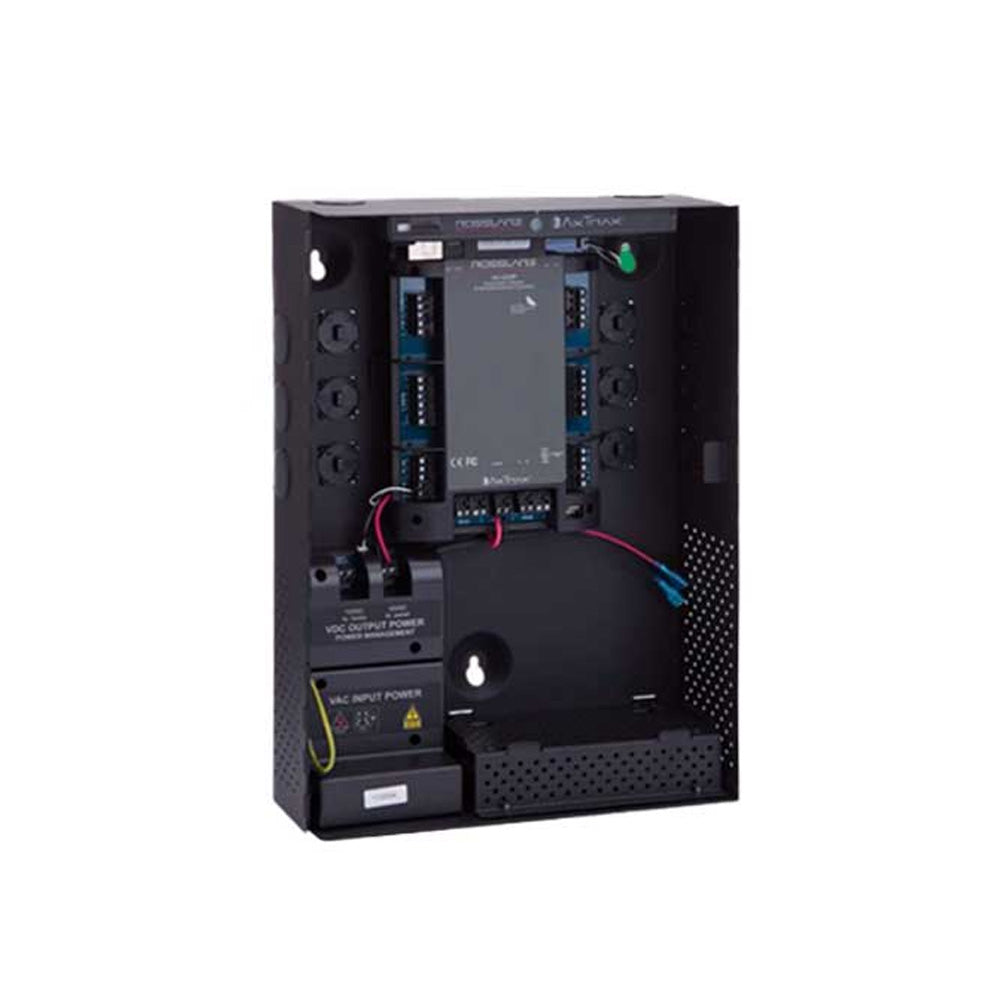

Rosslare - AC-225IP-BU - Enclosed Expandable Networked Access Control for 2 Readers - TCP/IP
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Rosslare - AC-225IP-BU - Enclosed Expandable Networked Access Contr...
Description
Description
Rosslare - AC-225IP-BU - Enclosed Expandable Networked Access Control for 2 Readers - TCP/IP
Features:
- Secure Lockable Enclosure.
- Power Supply with UPS Charger.
- Supports up to 30,000 users in off-line mode, unlimited server based capacity.
- 20,000 event history entries per computer.
- multi-user authentication for high-level security.
- supports a wide range of Wiegand and PIN formats.
Specifications:
| Type | Network Control Panel |
| Readers | 2 reader ports, 4 reader Output voltage: 12 VDC Max. current: 245 mA LED control output and Tamper Input |
| Inputs | 4 supervised high impedance inputs. 8 or 12 supervised inputs when using MD-D02B or MD-IO84B expansion boards. Maximum voltage: 5 VDC |
| Outputs | 4 Form C 5 Amp relay outputs. 8 outputs when using MD-D02B or MD-IO84B expansion boards |
| Interface | TCP / IP |
| TCP / IP | Onboard RJ-45 connector |
| Serial Ports | 10/100 Ethernet Port |
| Networking | Rosslare's AxTraxNGâ„¢ Server |
| Users | 30,000 active credentials (Card & PIN) |
| Event Log | 20,000 Events |
| Housing | ME-1015 Power Management Enclosure |
| Standard Approvals | CE - Safety, ENC, RFI, LVD RED 2104/53/EU; FCC - CFR47 Part 15b |
| Enclosure | Protective cover, with 1 expansion slot for MD expansions |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
