Rosslare  |  SKU: RSL-AC-225IP-DIN

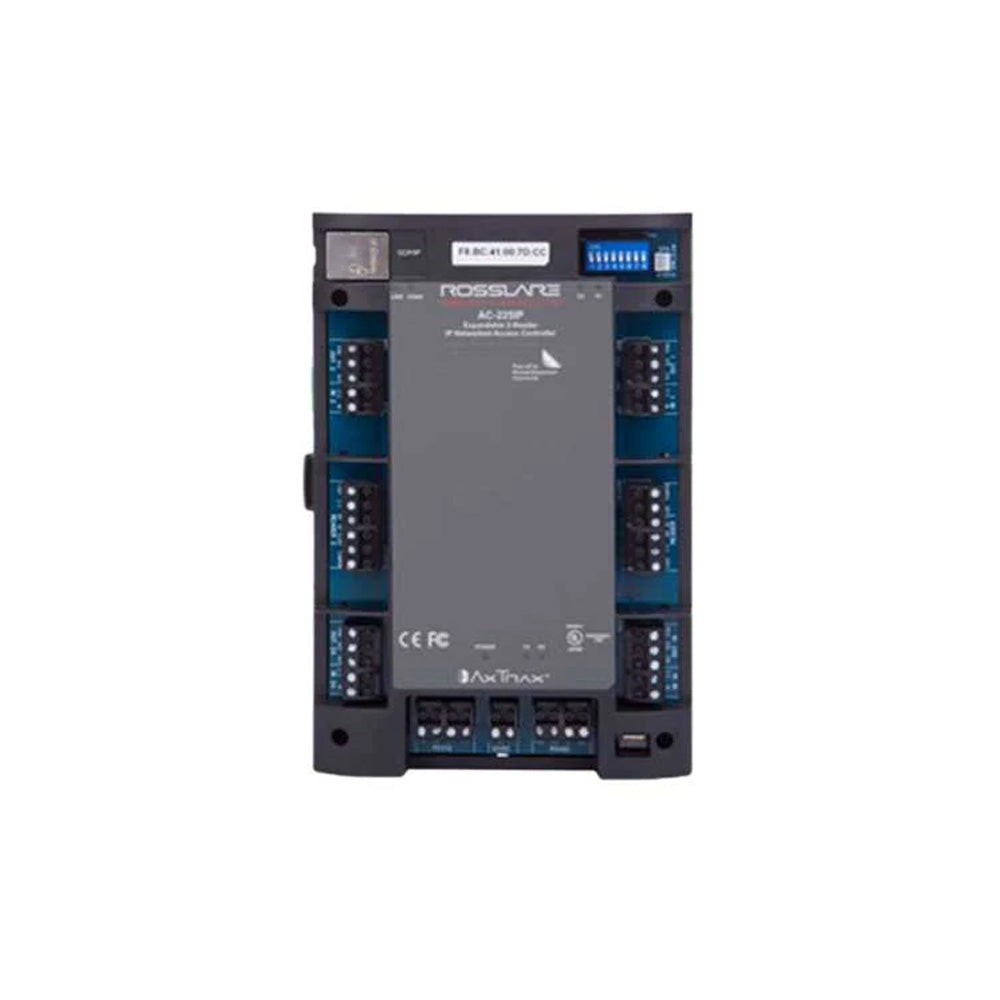

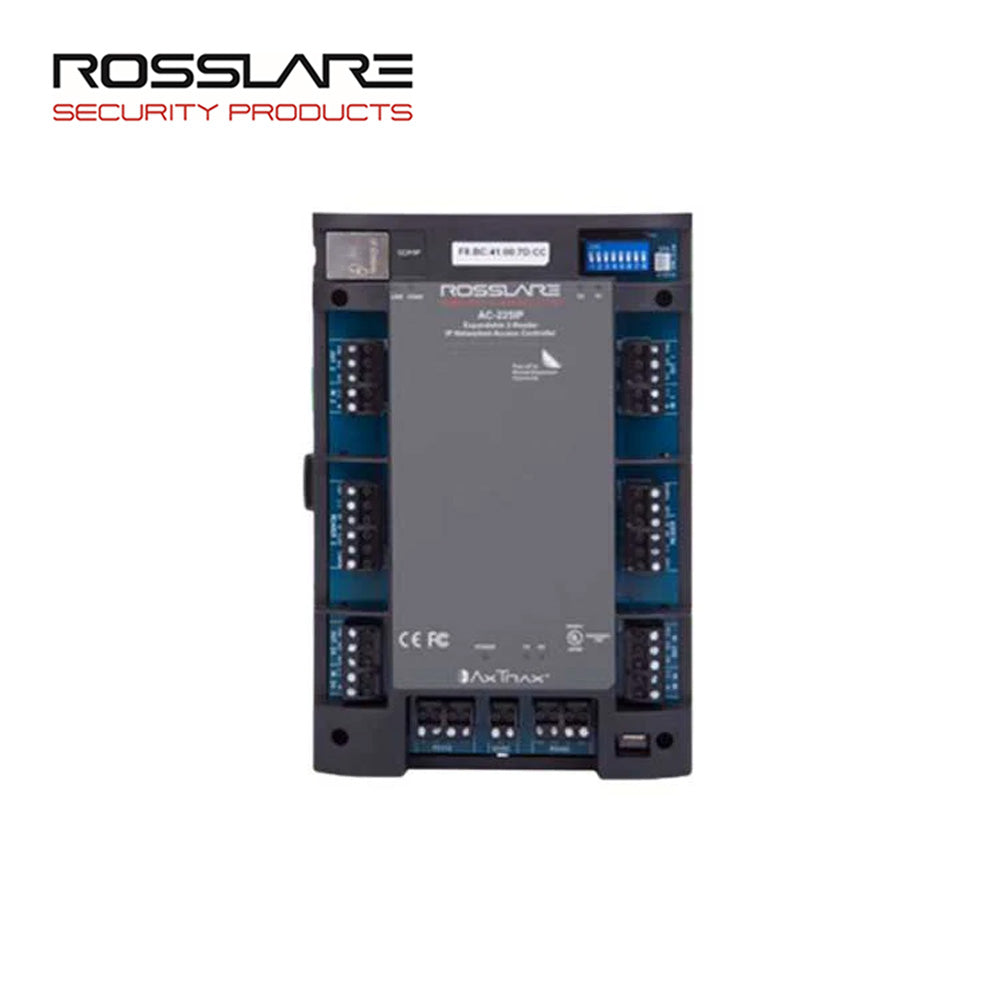

Rosslare - AC-225IP-DIN - DIN Housing Expandable Networked Access Control for 2 Readers - TCP/IP

$66550 $1,09808
Shipping calculated at checkout.
Trust Guard Security Scanned
Trust Guard Security ScannedSecure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more

Description

Rosslare - AC-225IP-DIN - DIN Housing Expandable Networked Access Control for 2 Readers - TCP/IP

Features:
  • DIN Housing for DIN Rail Mounting.
  • Supports up to 30,000 users in off-line mode, unlimited server based capacity.
  • 20,000 event history entries per computer.
  • multi-user authentication for high-level security.
  • supports a wide range of Wiegand and PIN formats.
Specifications:
Type Network Control Panel / DIN Housing
Readers 2 reader ports, 4 reader
Output voltage: 12 VDC
Max. current: 245 mA
LED control output and Tamper Input
Inputs 4 supervised high impedance inputs. 8 or 12 supervised inputs when using MD-D02B or MD-IO84B expansion boards. Maximum voltage: 5 VDC
Outputs 4 Form C 5 Amp relay outputs. 8 outputs when using MD-D02B or MD-IO84B expansion boards
Interface TCP / IP
TCP / IP Onboard RJ-45 connector
Serial Ports 10/100 Ethernet Port
Networking Rosslare's AxTraxNGâ„¢ Server
Users 30,000 active credentials (Card & PIN)
Event Log 20,000 Events
Housing Protective Cover & DIN Rail / Wall Mount
Standard Approvals CE - Safety, ENC, RFI, LVD RED 2104/53/EU; FCC - CFR47 Part 15b
Dimensions 7.6 x 5.4 x 1.5 in.
Enclosure Protective cover, with 1 expansion slot for MD expansions
Operating Temperature 0°C to 49°C (32°F to 120°F)
Weight 0.36 kg (12.7 oz)
Downloads:
