Rosslare - AC-225IP - Expandable Networked Access Control for PCBA ...
Description
Description

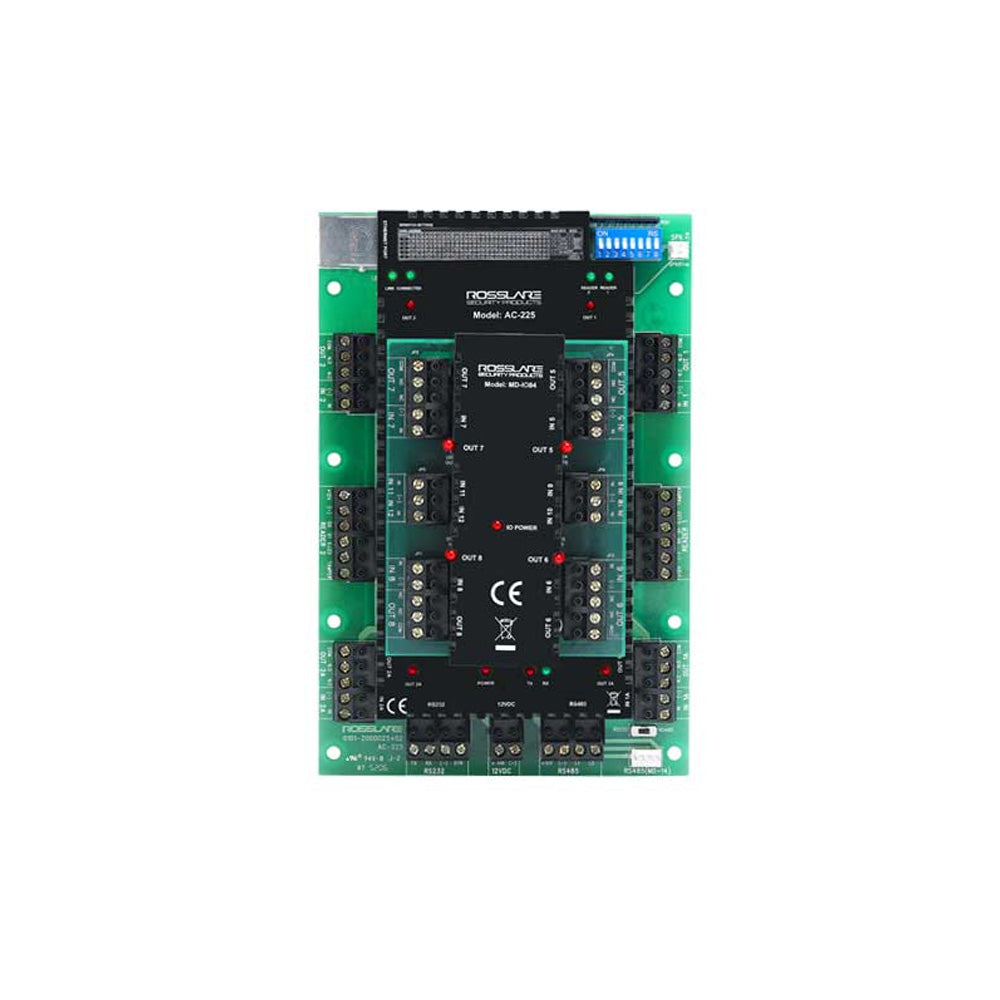

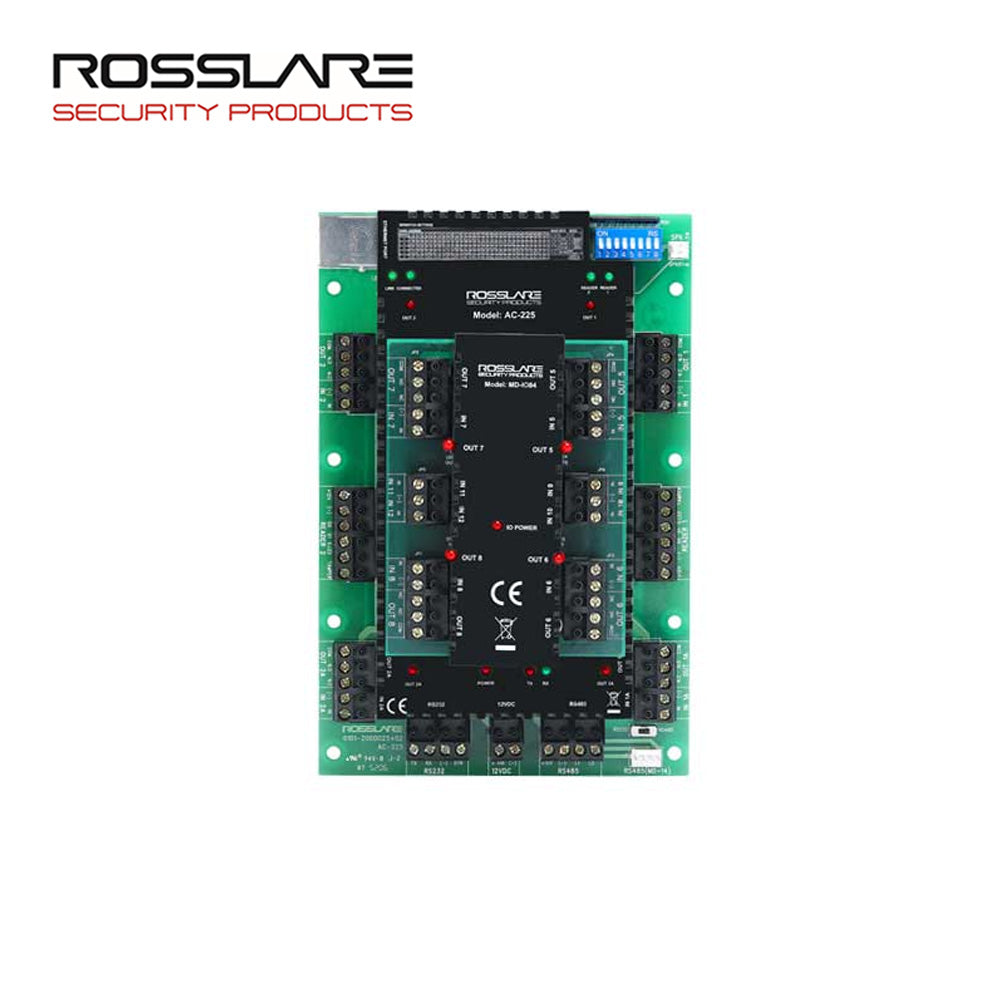

Rosslare - AC-225IP - Expandable Networked Access Control for PCBA Only - 2 Readers - TCP/IP
Specifications:
| Type | Printed Circuit Board Assembly |
| Readers | 2 reader ports, 4 reader Output voltage: 12 VDC Max. current: 245 mA LED control output and Tamper Input |
| Inputs | 4 supervised high impedance inputs. 8 or 12 supervised inputs when using MD-D02B or MD-IO84B expansion boards. Maximum voltage: 5 VDC |
| Outputs | 4 fully programmable, or 8 supervised outputs when using MD-D02 or MD-IO84 expansion boards 5 A, N.O. and N.C. relay outputs rated 5A @ 30 VDC |
| Interface | TCP / IP |
| TCP / IP | Onboard RJ-45 connector |
| Serial Ports | 10/100 Ethernet Port |
| Networking | Rosslare's AxTraxNGâ„¢ Server |
| Users | 30,000 active credentials (Card & PIN) |
| Event Log | 20,000 Events |
| Housing | Printed Circuit Board Assembly Only |
| Standard Approvals | CE - Safety, ENC, RFI, LVD RED 2104/53/EU; FCC - CFR47 Part 15b |
| Dimensions | 14.3 x 10.4 x 3.4 in. |
| Enclosure | Protective cover, with 1 expansion slot for MD expansions |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
Downloads:
