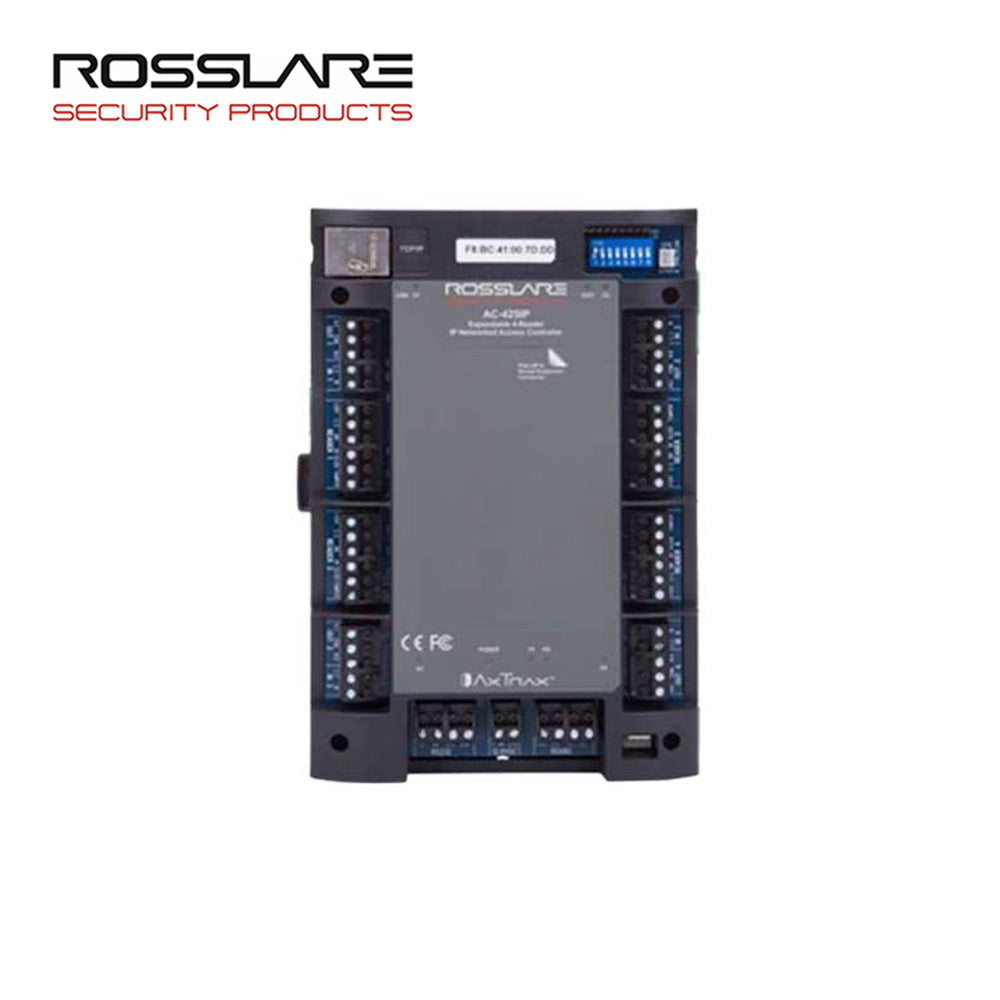

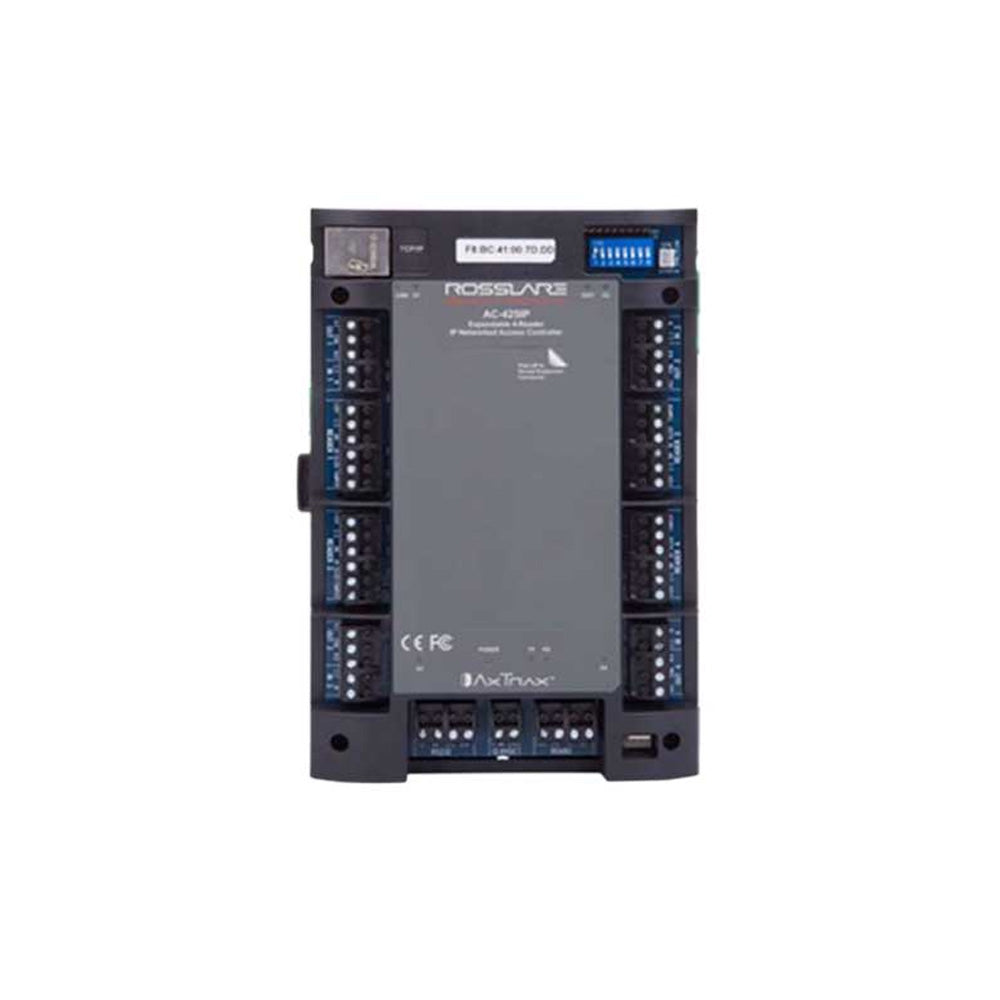

Rosslare - AC-425-DIN - DIN Housing Expandable Networked Access Control for PCBA Only - 4 Readers
Features:
- DIN Housing for DIN Rail Mounting.
- Supports up to 30,000 users in off-line mode, unlimited server based capacity.
- 20,000 event history entries per computer.
- multi-user authentication for high-level security.
- supports a wide range of Wiegand and PIN formats.
Specifications:
| Type | Network Control Panel / DIN Housing |
| Readers | 4 reader ports (6-wire) Output voltage: 12 VDC Max. current: 245 mA LED control output and Tamper Input |
| Inputs | 4 supervised high impedance inputs, 8 or 12 supervised inputs when using MD-D04B or MD-IO84B expansion boards Maximum voltage: 5 VDC |
| Outputs | 4 Form C 5 Amp relay outputs, 8 outputs when using MD-D04B or MD-IO84B expansion boards |
| Interface | RS-485 |
| Serial Ports | 10/100 Ethernet Port |
| Networking | Rosslare's AxTraxNGâ„¢ Server |
| Users | 30,000 active credentials (Card & PIN) |
| Event Log | 20,000 Events |
| Housing | Protective Cover & DIN Rail / Wall Mount |
| Standard Approvals | CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b |
| Dimensions | 7.6 x 5.4 x 1.5 in.) |
| Weight | 0.36 kg (12.7 oz) |
