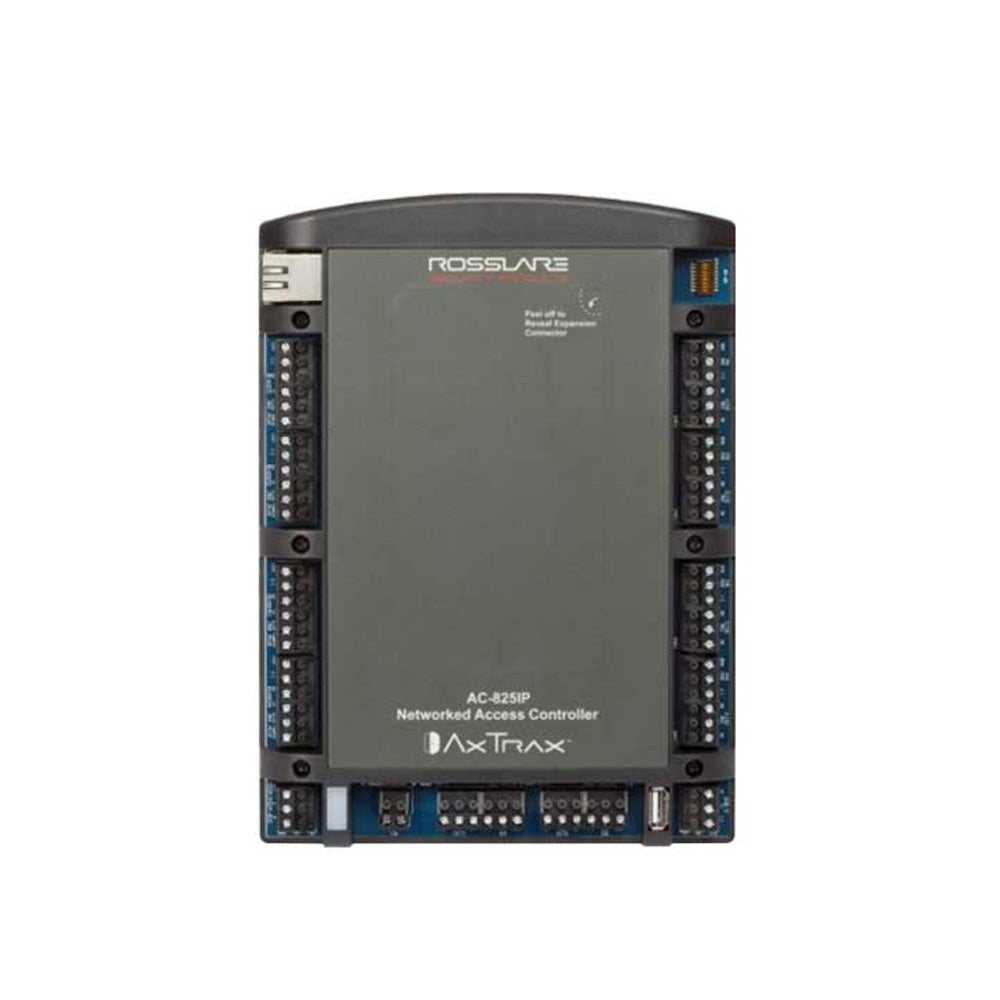

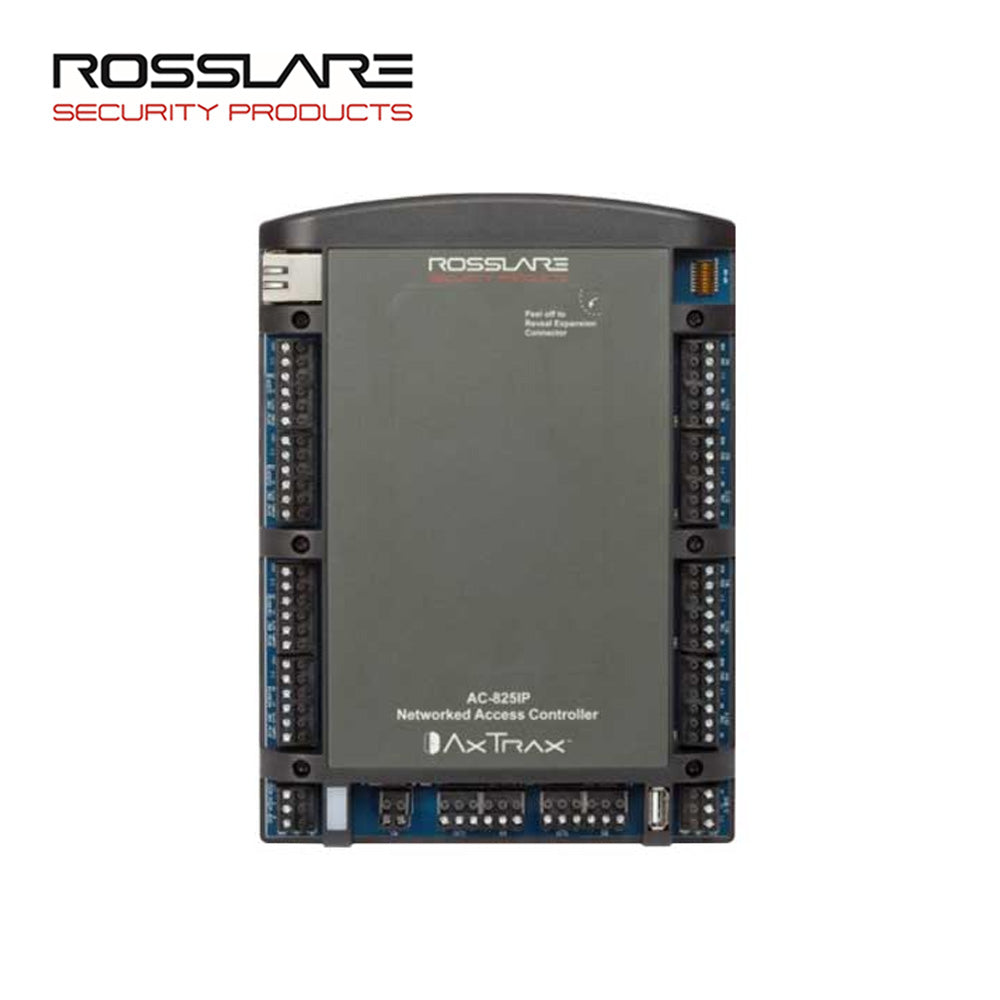

Rosslare - AC-825IP - DIN Housing Enclosed Expandable Networked Access Control for PCBA Only - 4 Readers - TCP/IP
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Rosslare - AC-825IP - DIN Housing Enclosed Expandable Networked Acc...
Description
Description
Rosslare - AC-825IP - DIN Housing Enclosed Expandable Networked Access Control for PCBA Only - 4 Readers - TCP/IP
Features:
- DIN Housing for DIN Rail Mounting.
- Supports up to 60,000 users in off-line mode, unlimited server based capacity.
- 500,000 event history entries per computer.
- Onboard TCP / IP networking with AES 128-Bit data encryption to an AxTraxNG Server.
- Bi-directional communication for enhanced data transmission speed and reliability.
- supports a wide range of Wiegand and PIN formats.
Specifications:
| Type | Network Control Panel |
| Readers | 4 at 12VDC 245 mA max current Open collector, Active low LED Output TTL input 5VDC Tamper input |
| Inputs | 12 inputs at 5 VDC maximum voltage |
| Outputs | 6 Outputs at 5 Amps with N.O., N.C., and COM contacts FormC Relays |
| Interface | TCP/IP |
| Ethernet port | On-board RJ-45 connector |
| Expandable | The number of supported doors, inputs, and outputs can be increased by using the onboard 10-pin x-bus expansion slot |
| Networking | Rosslare's AxTraxNGâ„¢ Server |
| Users | Up to 60,000 users |
| Event Log | Up to 500,000 entries |
| Operating Voltage | 12 - 16 VDC |
| Tamper Input (from enclosure) | 4-pin tamper connector |
| Housing | Protective Cover & DIN Rail / Wall Mount |
| Dimensions | 8.8 x 6.5 x 1.5 in. |
| Weight | 400 g (14.1 oz) |
Downloads:
