Rosslare - AC-F44 - Outdoor Backlit PIN & PROX Standalone Contr...
Description
Description

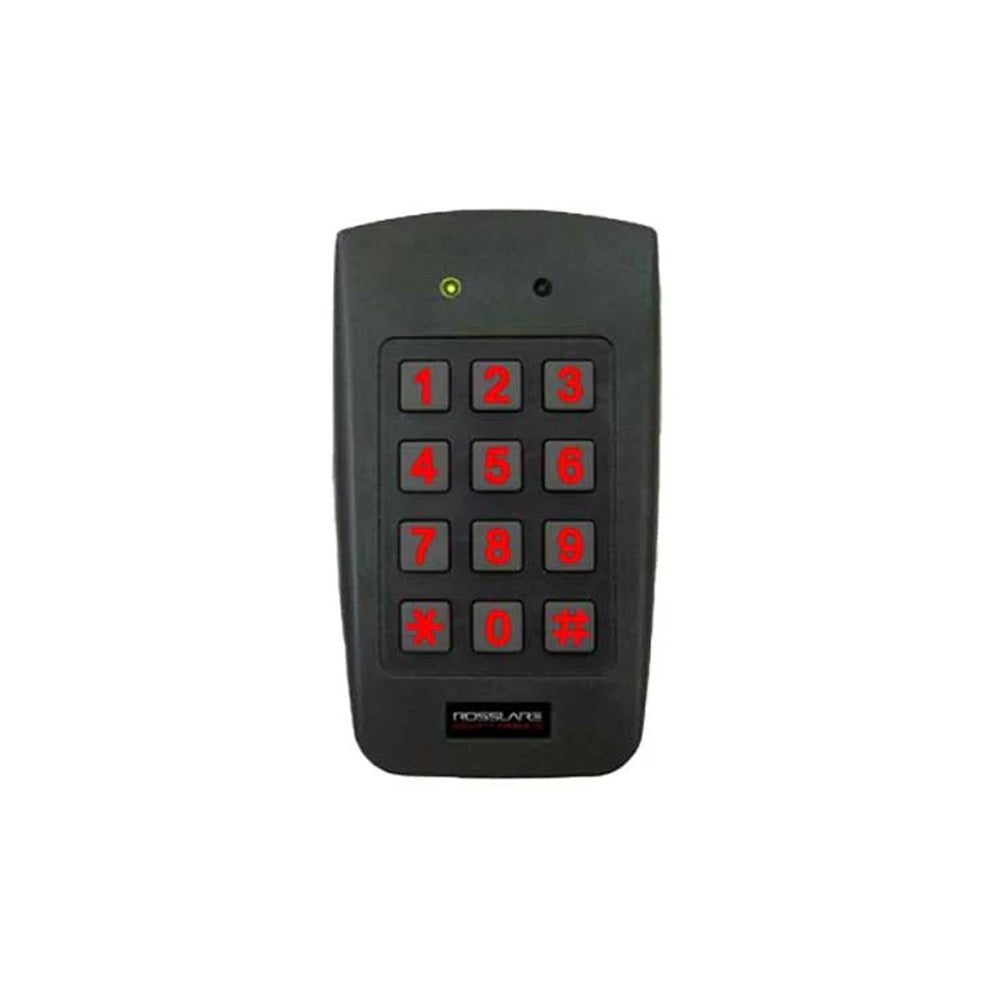

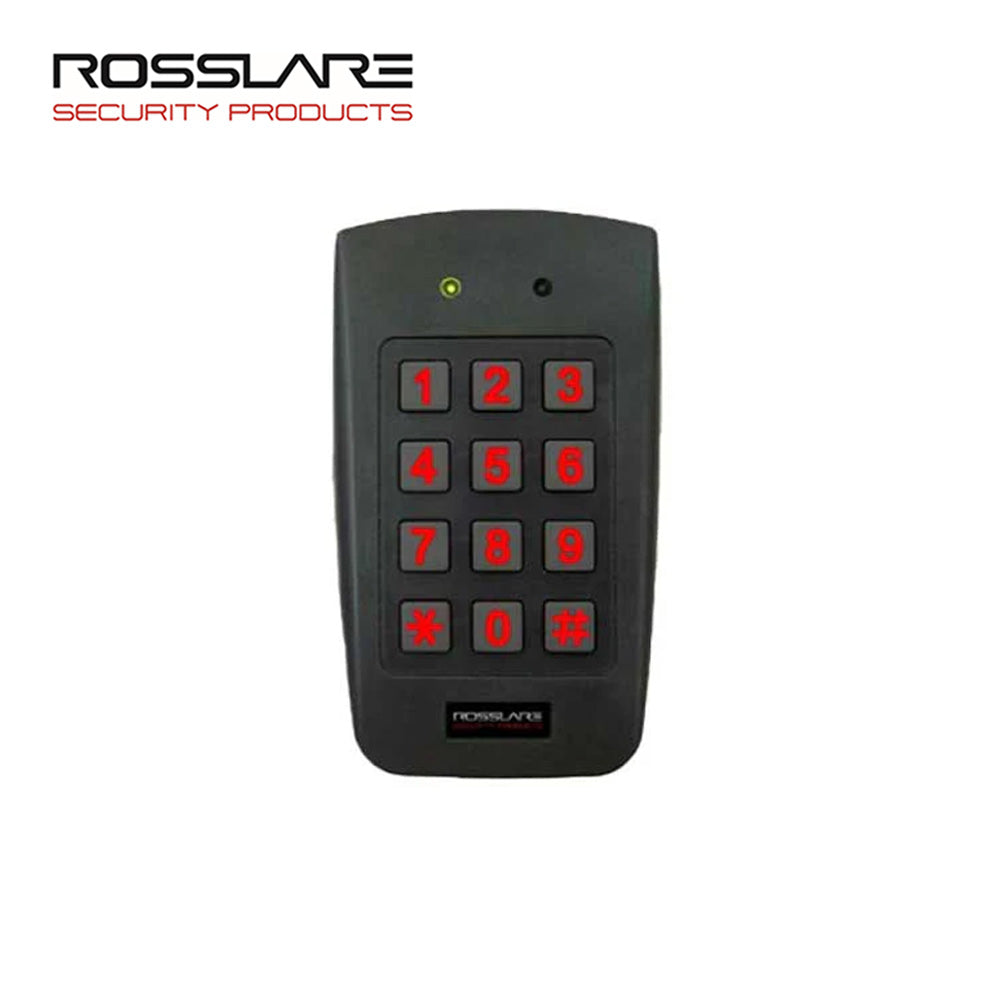

Rosslare - AC-F44 - Outdoor Backlit PIN & PROx Standalone Controller
Rosslare's newest standalone backlit PIN & PROxIMITY controller, the AC-F44, is a cost effective solution for indoor and outdoor systems where pin and/or proximity credentials are required. This durable model can be easily programmed with up to 500 users on a single door. The AC-F44 is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the Ex-01 Push to Exit button.
Features:
- Up to 500 users can be coded using Smart enroll and delete technology.
- A mounting template and installation kit are provided.
- Three user levels: Normal - Requires single PIN code or PROx card. Secure - Requires both PIN and PROx card. Master User.
- Three access levels: Normal, Bypass, Secure.
- Suitable for Gang Box installations.
- Programmable PIN code length between 4 digits and 8 digits.
- Powered either by transformer (AC) or regulated power supply (DC).
Specifications:
| Operating Voltage Range | 12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer |
| Input Current | Standby: 95 mA at 12 VDC Maximum: 160 mA at 12 VDC |
| Relay Outputs | Lock Strike: 2 A Form C, N.O. and N.C. Auxiliary: 2 A Form C, N.O. and N.C. |
| Tamper | Optical back tamper sensor |
| Inputs | REx: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes |
| Capacity | 500 users, dual code/card or code + card each |
| Keypad | 3x4 keys for local programming and 4- to 8-digit PIN code entry |
| User levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Audio/Visual | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder |
| Design | Epoxy potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments. |
| Dimensions | 4.7 x 2.8 x 1.2 in. |
| Certifications | IP65 Water Resistant |
| Weight | 244 g (0.54 lbs) |
Downloads:
