Rosslare - AC-Q41SB - Anti-Vandal Slim Backlit PIN & Standalone...
Description
Description

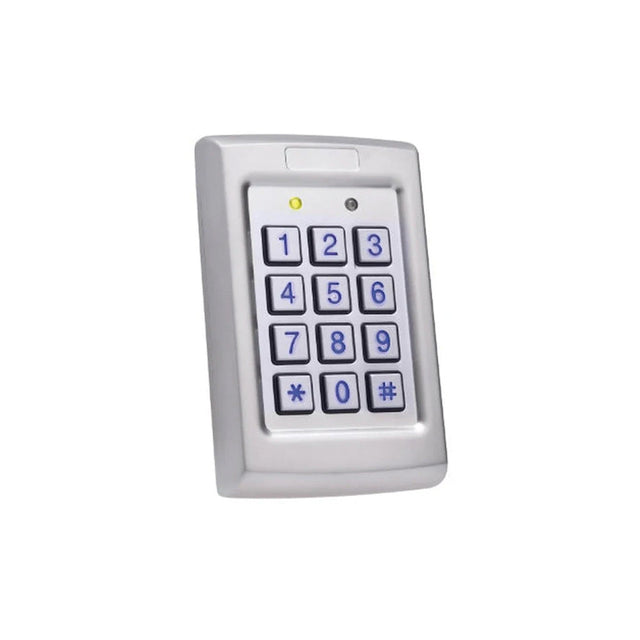

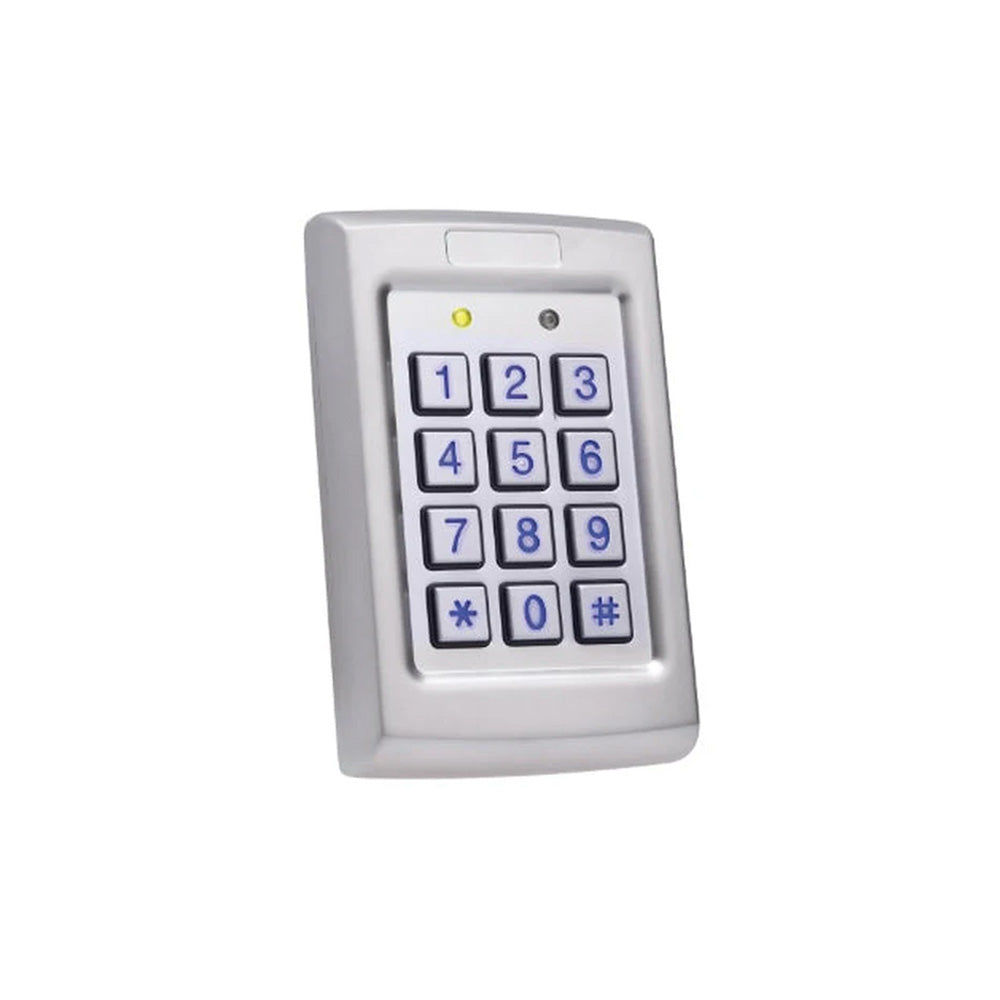

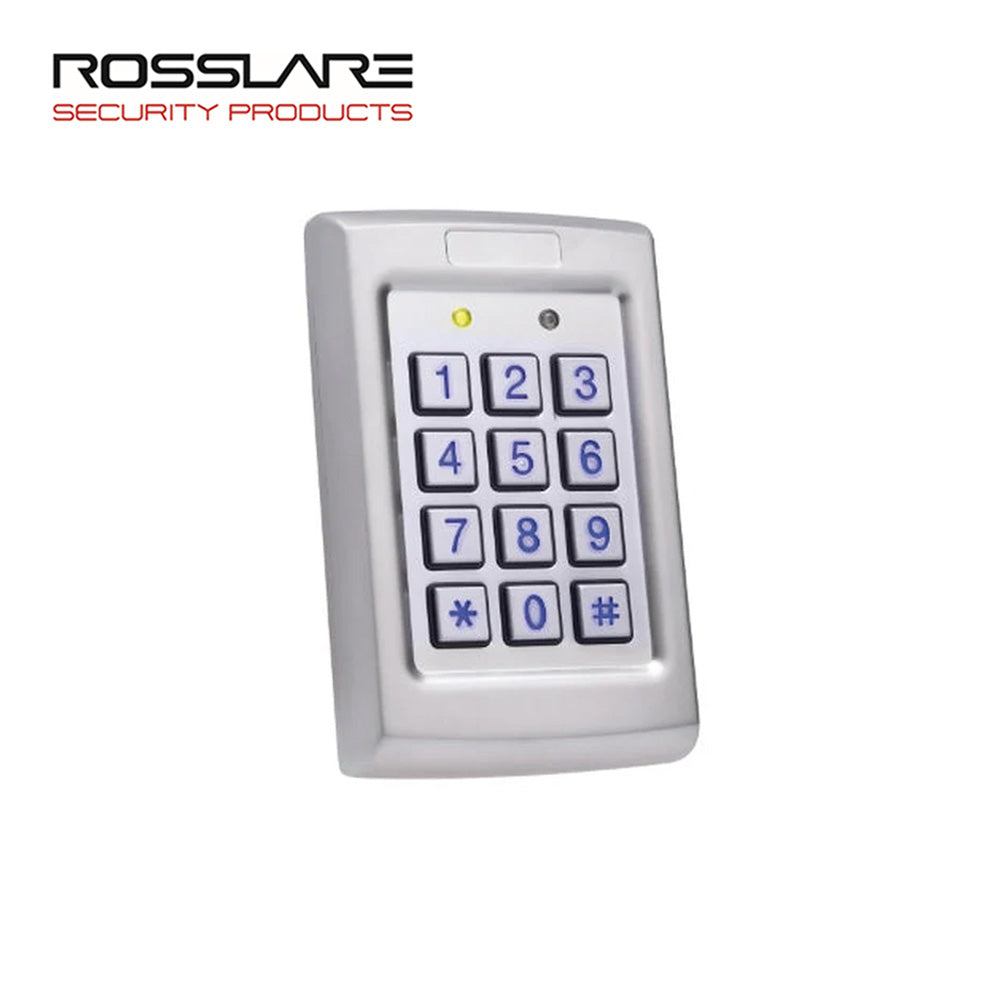

Rosslare - AC-Q41SB - Anti-Vandal Slim Backlit PIN & Standalone Controller - IP65
This advanced 500 user anti-vandal standalone controller features shiny blue illuminated metal keys for pin code user credentials. AC-Q41SB has a slim metal construction. This model is epoxy filled, designed to withstand the rigors of the outdoor environment, and has advanced programming options. The AC-Q41SB is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the Ex06/16/07/17 Push to Exit buttons.
Features:
- 500 users can have PIN user credentials for granting access.
- Smooth attractive design, with anti-vandal construction.
- Highly-visible blue backlit keypad.
- 3 operational Security Levels can be selected with special PIN codes.
- Supports up to 8-digit PIN codes, with timed wrong code lockout after 3 wrong attempts.
- 2 tri-colored LEDs and integral sounder for programming and operation.
- Wide range of low voltage AC/DC power input.
Specifications:
| Operating Voltage Range | 12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer |
| Input Current | (Heater Off) Standby: 70 mA, Maximum: 130 mA, at 12 VDC (Heater On) Standby: 550 mA, Maximum: 610 mA, at 12 VDC |
| Relay Outputs | Lock Strike: 2A, N.O. and N.C. Auxiliary: 2A, N.O. and N.C |
| Tamper | Optical back tamper sensor, O.C. active low 32 mA max sink current |
| Inputs | REx: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes |
| Capacity | 500 users, single / dual code each |
| Keypad | 3x4 Blue illuminated Keys for local programming and 4 to 8 digit PIN codes entry |
| User levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Audio/Visual | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder |
| Design | Epoxy potted, fully sealed in a rugged metal enclosure, highly strong construction, blue backlit metallic keys. Suitable for extremely harsh environments |
| Dimensions | 120 x 76 x 22 mm (4.72 x 3 x 0.85 in.) |
| Certifications | IP65 Water Resistant |
| Weight | 521 g (1.18 lbs) |
Downloads:
