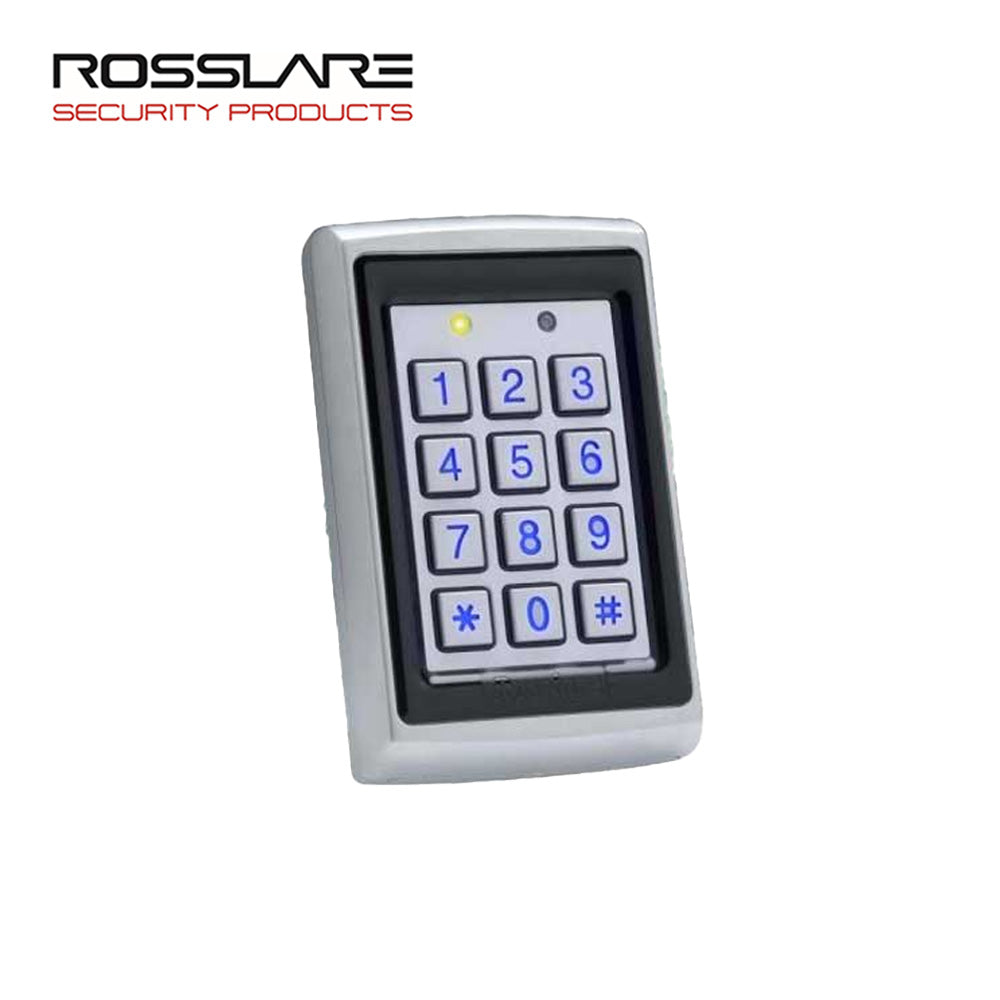

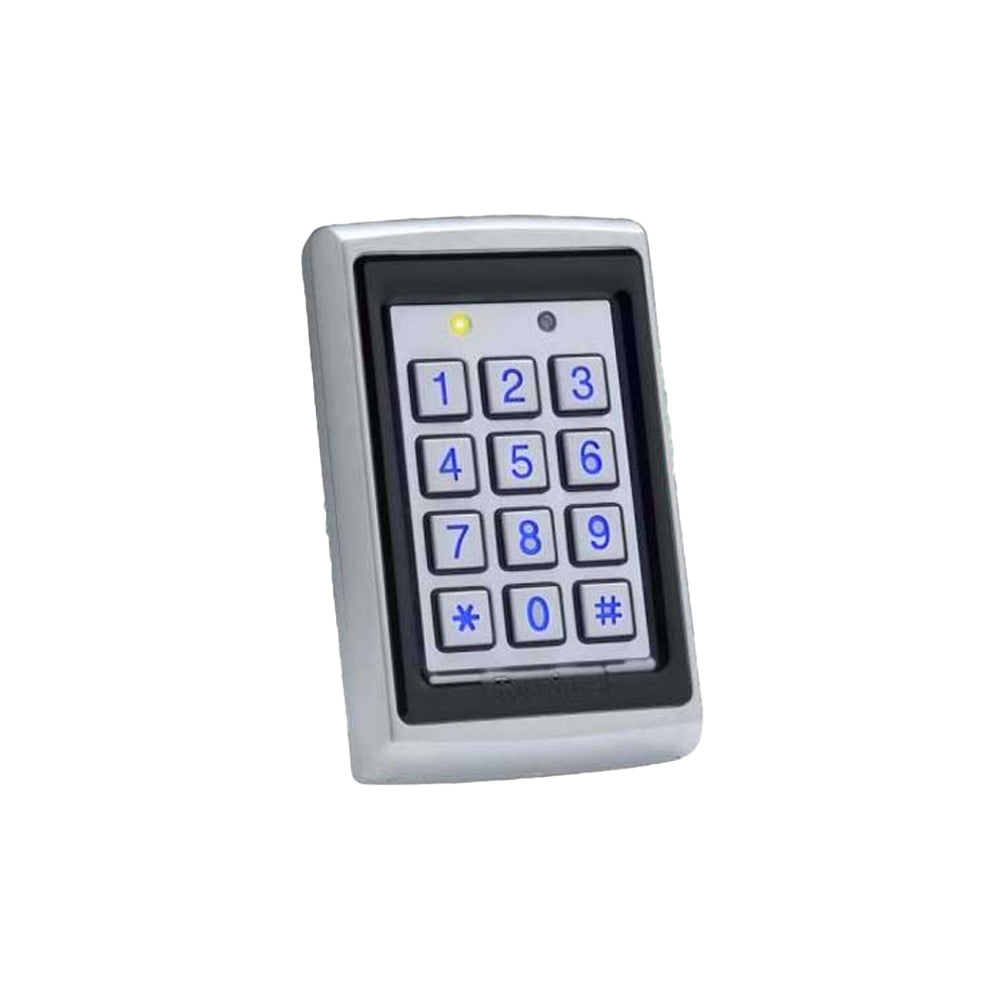

Rosslare - AC-Q42HB - Anti-Vandal Backlit PIN & Proximity Standalone Controller - IP65
This advanced anti-vandal, 500-user standalone controller features shiny blue illuminated metal keys for PIN code and a built-in proximity reader for RFID user credentials. AC-Q42HB has a rugged metal construction ideal for high traffic environments. This model comes with removable terminal blocks, for quick installation, and has advanced programming options. The AC-Q42HB is compatible with the BL-D40 alarm, chime and door bell enunciator/strobe unit, as well as with the Ex-01 Push to Exit button.
Features:
- Built-in 125 kHz RFID card reader.
- 500 users can have PIN and / or RFID user credentials for granting access.
- Highly-visible blue backlit keypad.
- Smooth attractive design, with anti-vandal construction.
- 3 operational Security Levels can be selected with special PIN codes.
- Supports up to 8-digit PIN codes, with timed wrong code lockout after several wrong attempts.
- 2 tri-colored LEDs and integral sounder for programming and operation.
- Removable terminal blocks are used for connecting the wires to the unit.
Specifications:
| Operating Voltage Range | 12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer |
| Input Current | (Heater Off) Standby: 85 mA, Maximum: 145 mA, at 12 VDC (Heater On) Standby: 565 mA, Maximum: 625 mA, at 12 VDC |
| Relay Outputs | Lock Strike: 2A, N.O. and N.C. Auxiliary: 2A, N.O. and N.C |
| Tamper | Optical back tamper sensor, O.C. active low 32 mA max sink current |
| Inputs | REx: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes |
| Proximity Card Reader | Maximum read range: 65 mm (2.5 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM Cards |
| Capacity | 500 users, single / dual code each |
| Keypad | 3x4 Blue illuminated Keys for local programming and 4 to 8 digit PIN codes entry |
| User levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Audio/Visual | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder |
| Design | Rugged metal enclosure, highly strong construction, blue backlit metallic keys. Suitable for extremely harsh environments. |
| Dimensions | 4.72 x 3 x 1.06 in. |
| Certifications | IP54 Water Resistant |
| Weight | 440 g (1 lb) |
