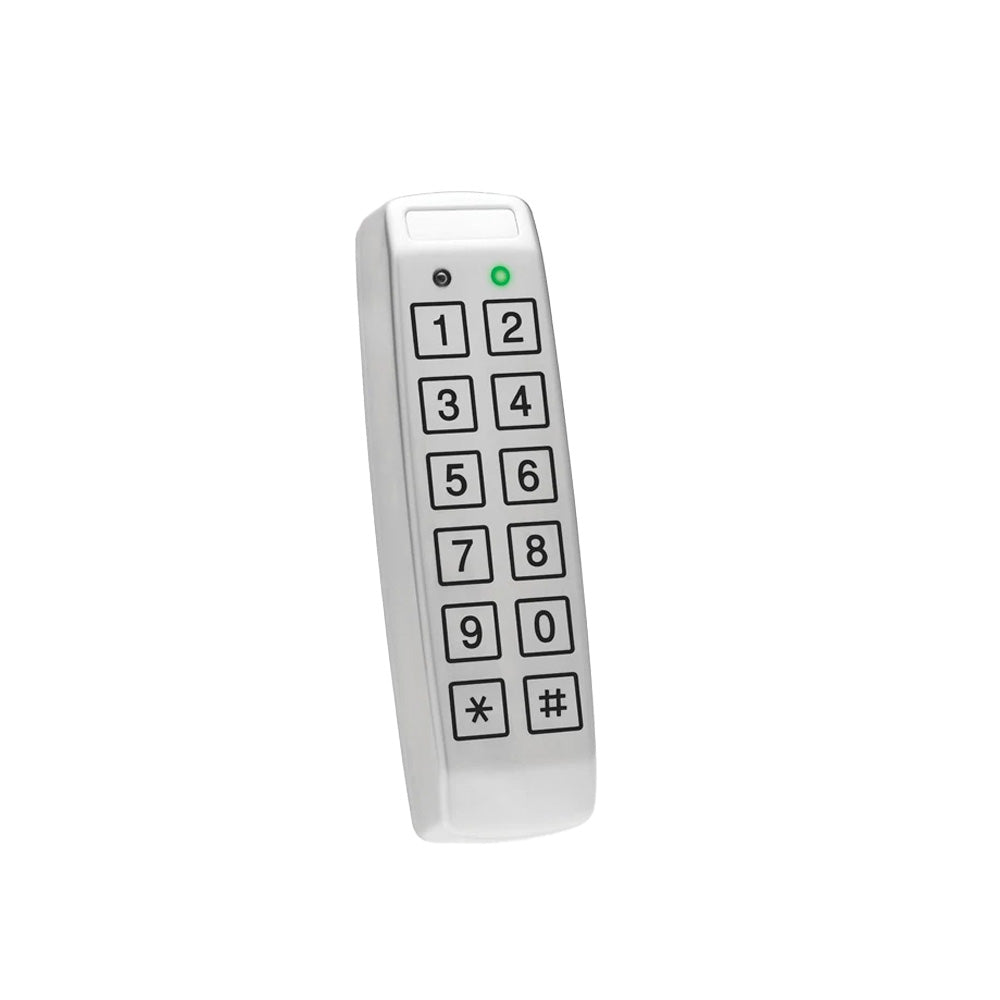

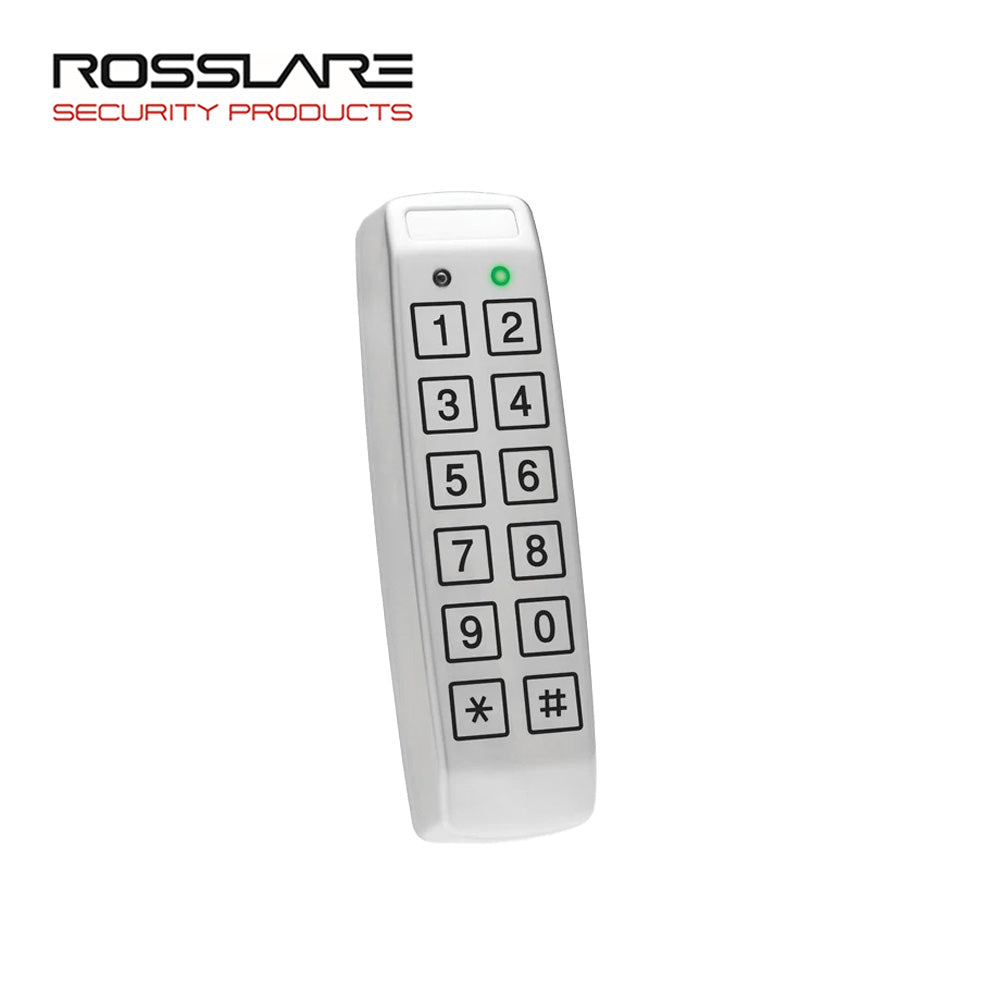

Rosslare - AC-S43 - Anti-Vandal Mullion Piezoelectric PIN Standalone Controller - IP65
The AC-S43 is a stylish, cost effective single door PIN access control unit. It is the ideal solution for outdoor residential, commercial, and industrial applications. The controller is standalone (no PC is required), and each user can be assigned one or two codes, effectively creating three different security levels. Housed in a sturdy metal vandal-resistant casing and completely epoxy potted, the AC-S43 is built for indoor or outdoor use in all weather conditions. This feature-rich unit offers flexible and easy programming capabilities including a unique “code search" for simple user management.
- 500 PIN users.
- Smooth attractive design, with anti-vandal casing.
- Highly-sensitive piezoelectric metal keys.
- 3 operational security levels can be selected with special PIN codes.
- Supports up to 8-digit PIN codes, with timed wrong code lockout after 3 wrong attempts.
- 2 tri-colored LEDs and integral sounder for programming and operation.
- Wide range of low voltage AC/DC power input.
Specifications:
| Operating Voltage Range | 12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer |
| Input Current | Standby: 35 mA, at 12 VDC Maximum: 90 mA, at 12 VDC |
| Relay Outputs | Lock Strike: 3 A, N.O. and N.C. Auxiliary: 3 A, N.O. and N.C. |
| Tamper | Optical back tamper sensor |
| Inputs | REx: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact, 10 programmable modes |
| Capacity | 500 users, single / dual code each |
| Keypad | 2x6 keys for local programming and 4- to 8-digit PIN codes entry |
| User levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Audio/Visual | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder |
| Design | Epoxy-potted, fully-sealed in a rugged metal slim enclosure, high strength construction, high-sensitive piezoelectric metal keys. Extremely suitable for extreme harsh environments. |
| RFI Protection | > 20 V/m up to 1000 MHz |
| Dimensions | 5.91 x 1.65 x 1.06 in. |
| Certifications | IP65 Water Resistant |
| Weight | 407.5 g (0.9 lb) |
