Rosslare - AY-E20 - Ultra-Slim Mullion PROX Reader and 5-16VDC - IP68
Description
Description

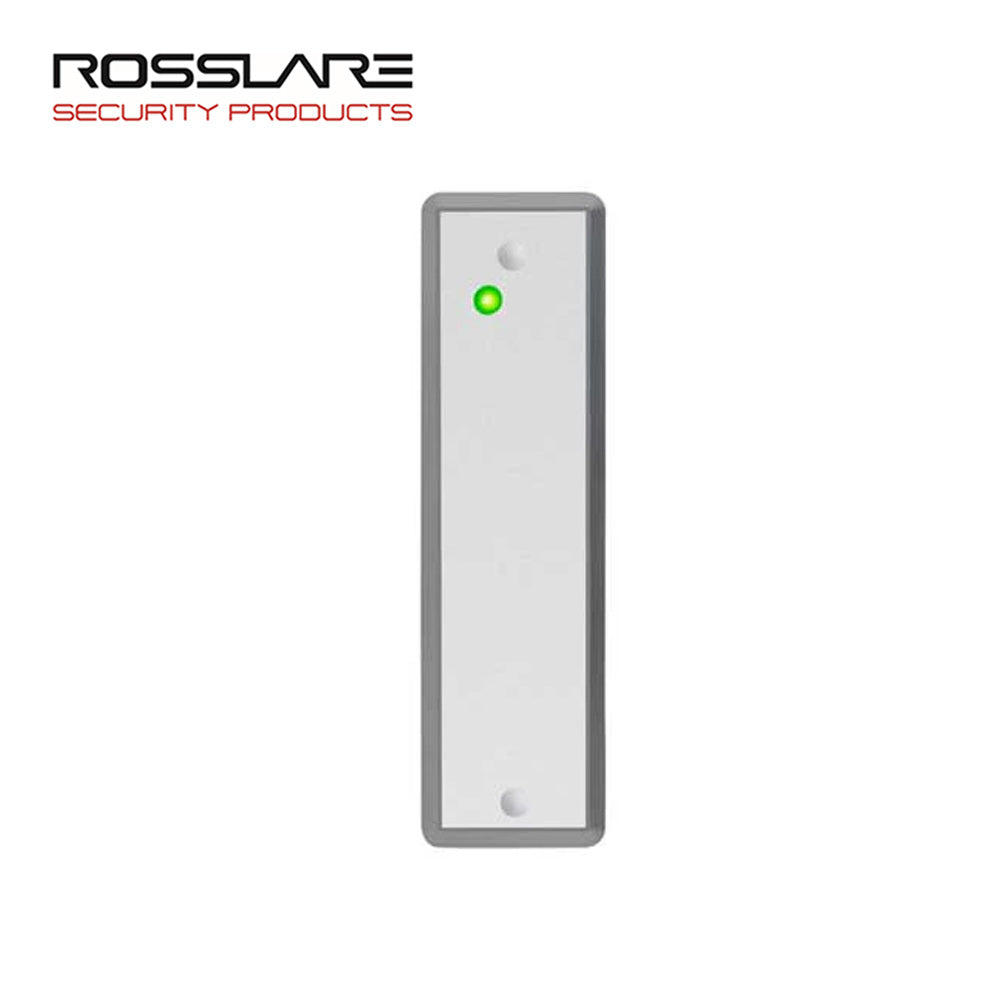

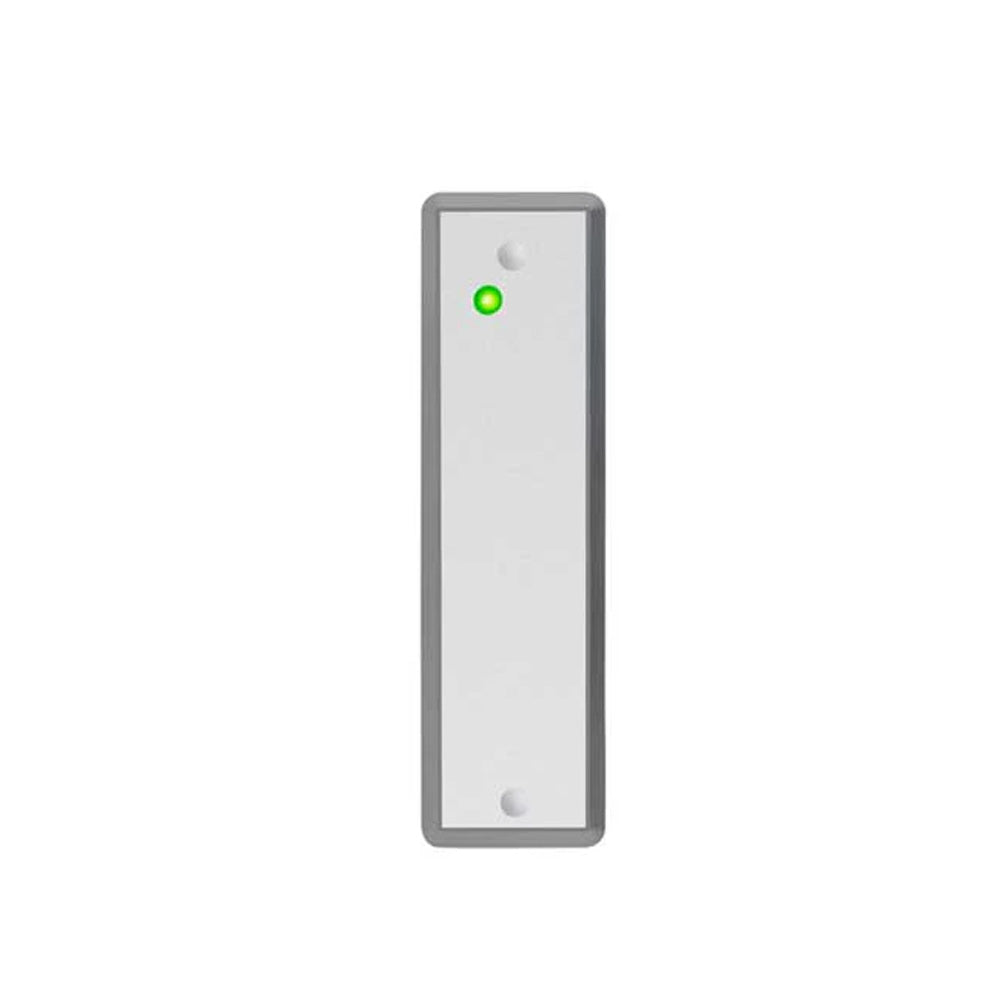

Rosslare - AY-E20 - Ultra-Slim Mullion PROx Reader and 5-16VDC - IP68
The AY-E20 is one in a line of highly sophisticated proximity card readers developed by Rosslare, pioneers and market leaders in the access control field. Ideal for residential and commercial applications, this ultra-slim and attractively designed reader compliments any décor. The unit is water resistant but delicate, and is suitable for indoor or outdoor mounting. Compatible with a variety of Rosslare's Wiegand 26-bit supported single/double/multi door controllers (AC-215, AC-225, AC525), proximity cards and key fobs, and many third-party access control systems.
Features:
- Ultra-slim flush-mount design on flat surface.
- Reading distance: 3.5 cm (1.37 in.).
- Built-In 125 kHz ASK EM proximity card reader.
- Internal buzzer provides audible interface feedback.
- Bi-colored ultra bright LED indicator.
- Fully-potted, waterproof construction for outdoor use.
- Mounting template for easier installation.
- Back tamper signal report in Wiegand format, with Rosslare's AC-015, AC-020, AC- 115, & AC-215, AC-225 and AC-525.
Specifications:
| Operating Voltage Range | 5-16 VDC, from a regulated power supply (power usually supplied from host controller) |
| Input Current | Standby: 40 mA @ 12 VDC Maximum: 100 mA @ 16 VDC |
| Tamper Output | Open collector, active low, 16 mA max sink current |
| Power Supply Type | Linear type recommended |
| Cable Distance to Host Controller | Up to 150 m (500 ft) using an 18-AWG cable |
| Read Range | 3.5 cm (1.37 in.) |
| Modulation Options | ASK at 125 KHz |
| Card Transmit Format | Wiegand 26-Bit, Clock & Data, Serial RS232 |
| Compatible Cards | All 26-Bit EM cards |
| LED Indicator | One bi-colored LED |
| Dimensions (L x W x D) | 6.10 x 1.77 x 0.31 in. |
| Weight | 135 g (4.76 oz) |
Downloads:
