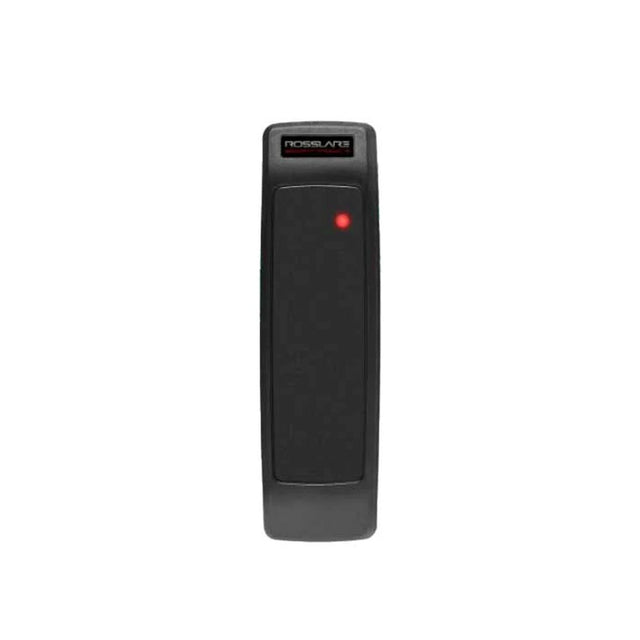

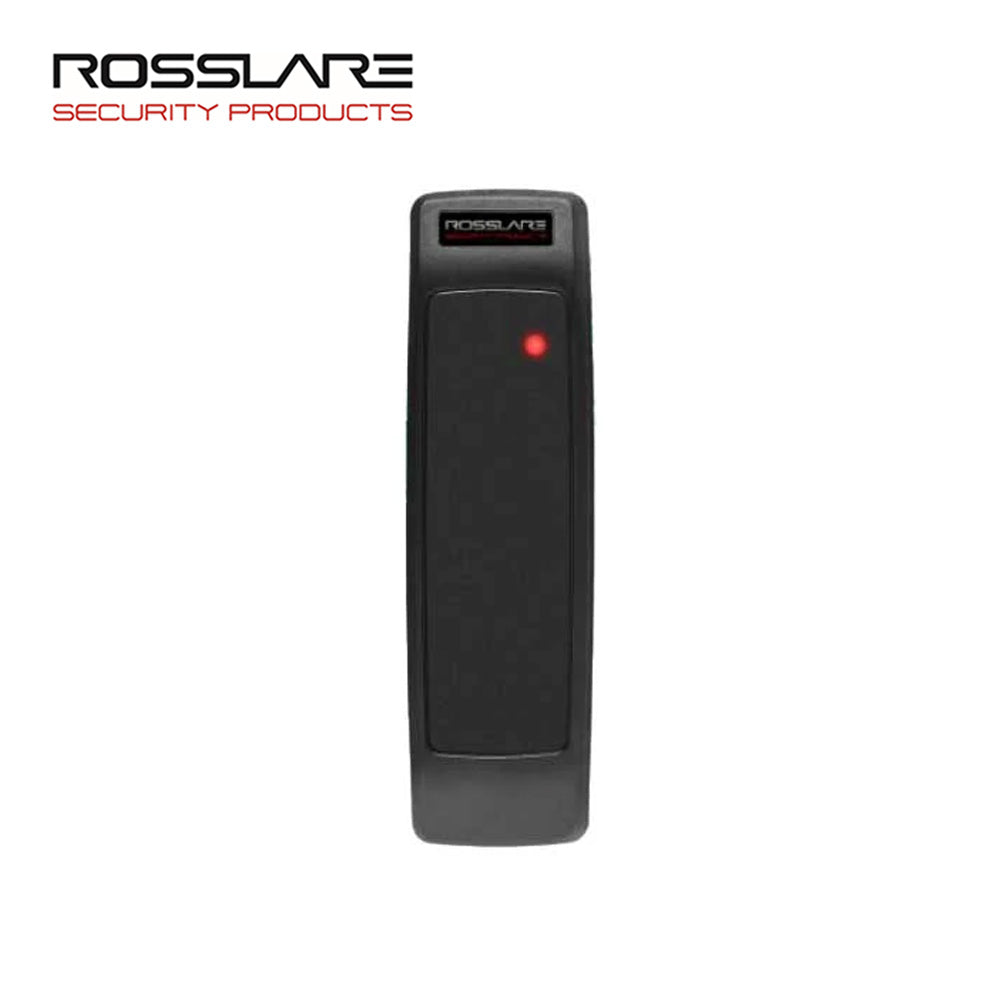

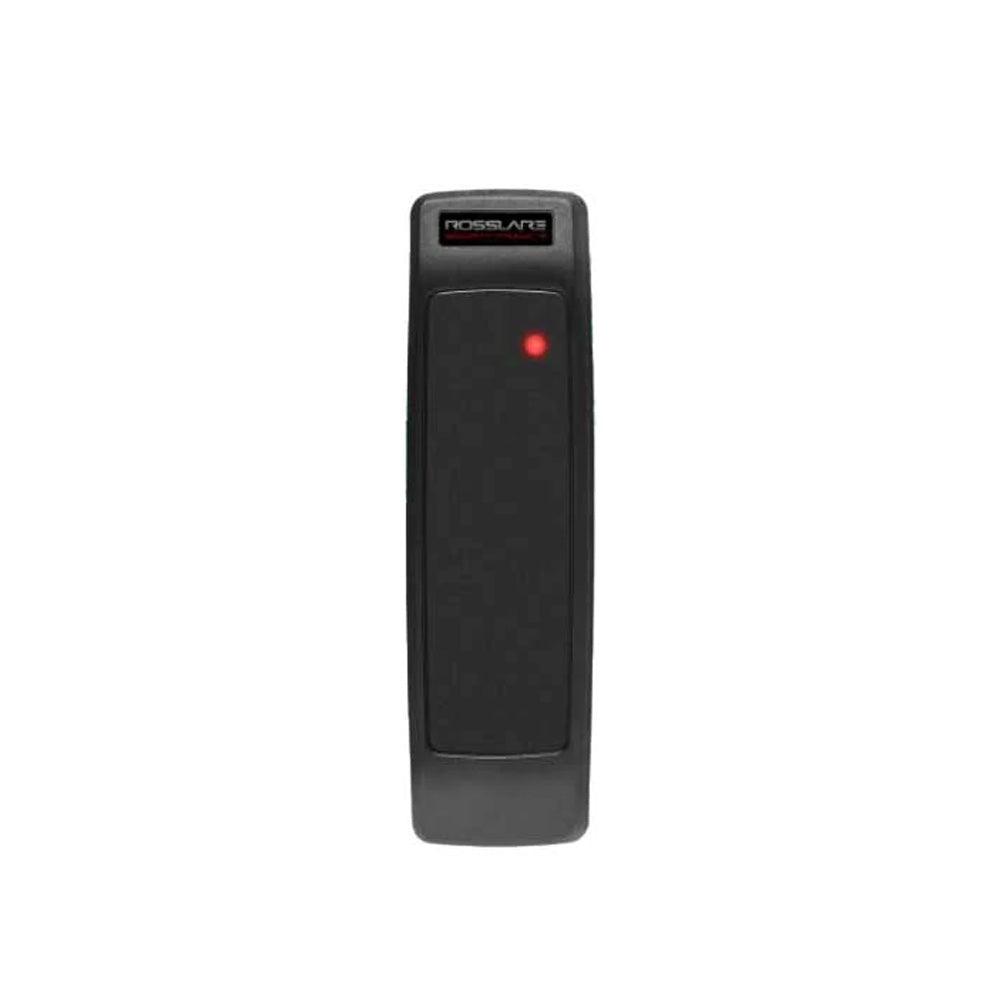

Rosslare - AY-L12C - Mullion Proximity Reader - 125 kHz - IP65
The readers are highly flexible with behavior control options. With a sleek design and a tough UV-resistant and water resistant casing, the AY-L12C are equally suited for indoor and outdoor use. The AY-L12C series is compatible with a variety of Rosslare's controllers, as well as with many third-party access control systems.
Features:
- Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data.
- Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.).
- Wide range operating voltage: 5 to 16 VDC.
- RF Modulation: ASK at 125 kHz.
- 45 cm (18 in.) pigtail cable.
- External reader hold control.
- Internal sounder with external control option.
- Tri-color LED with external control inputs.
- Made of tough polycarbonate UV-resistant plastic.
- Optical wall tamper detection.
- Water-resistant with epoxy potting (IP65), suitable for indoor and outdoor applications.
- Comes with mounting template for easier installation.
Specifications:
| Operating Voltage Range | 5-16 VDC, from a regulated power supply |
| Standby Input Current | 60 mA @ 12 V |
| Maximum Input Current | 120 mA @ 12 V |
| Proximity Card Reader | Maximum read range: 8 cm (3.2 in.) to 10 cm (3.9 in.) Modulation: ASK at 125 kHz Compatible cards: 26-Bit EM cards |
| Tamper Output | Open collector, active low, max. sink current 16 mA |
| LED Control Input | Dry Contact, N.O |
| Output Format | Wiegand 26-Bit, RS-232, or Clock & Data |
| Audio/Visual | Tri-colored LED indicator, built-in sounder |
| Design | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. |
| Dimensions | 5.7 x 1.7 x 0.8 in. |
| Weight | 116 g (4.1 oz) |
| Device Certifications | IP65 |
