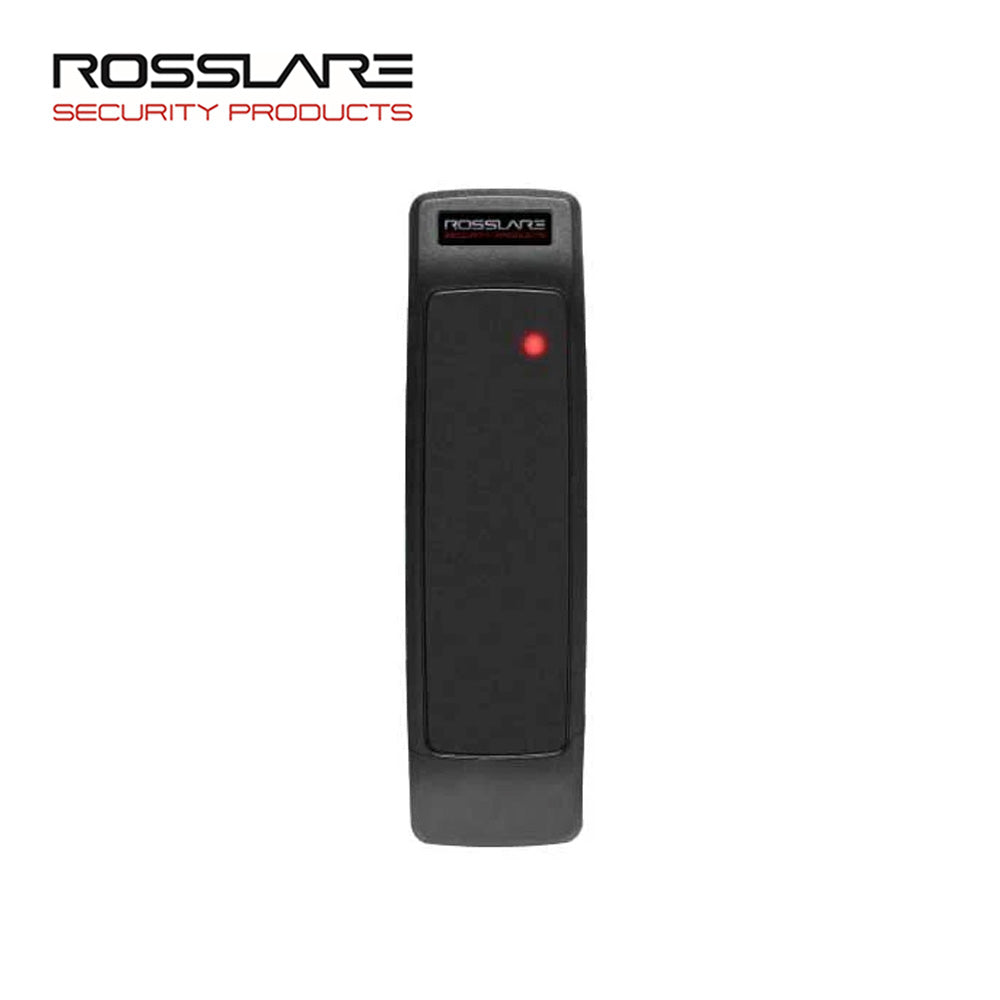

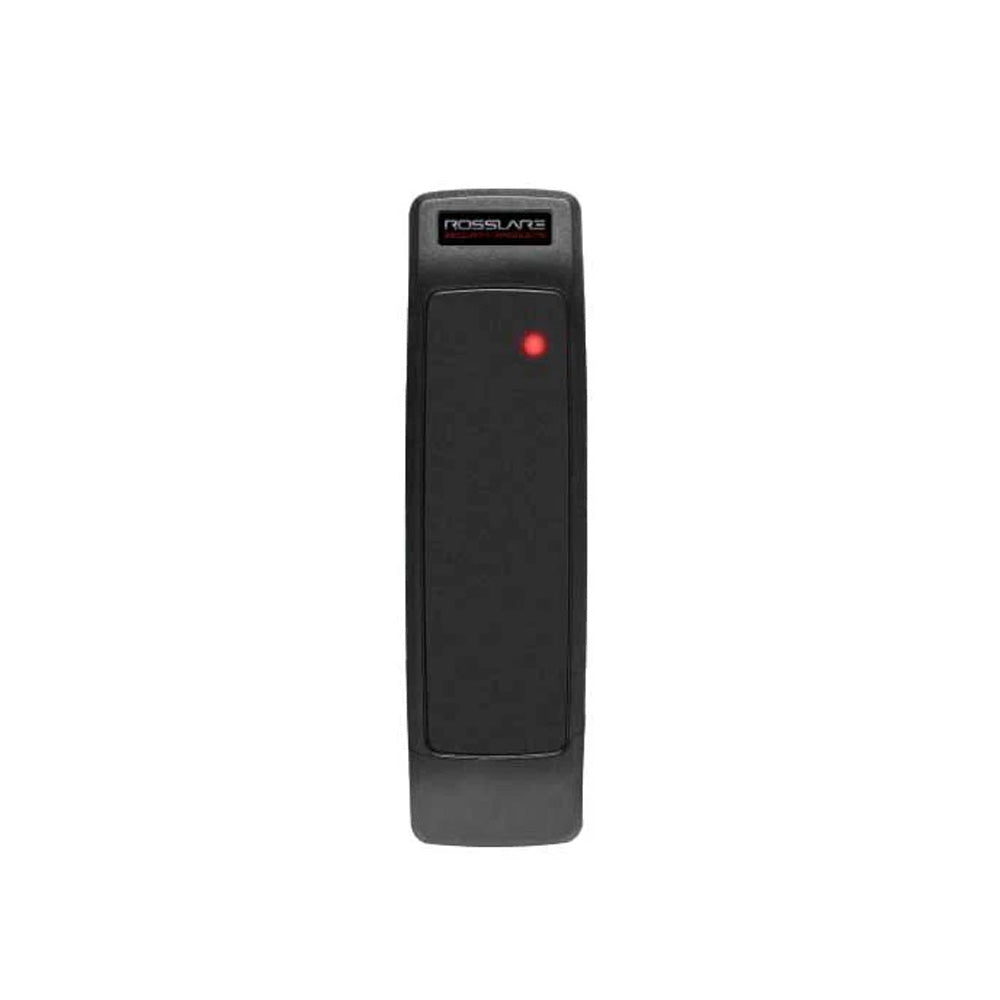

Rosslare - AY-L23G - Outdoor Long-Range RF Reader and Remote Controls - IP65
The advanced AY-L23 is a long-range wireless receiver that can activate electronic barriers, garage doors, home security systems, or any other device that can accept an auxiliary input. The receiver works with Rosslare's SA-23 family of wireless remote control transmitters. It can receive remote control signals from up to 70 meters (230 ft.) And can output the ID in two different Wiegand formats with SA-23. When attached to a controller as a reader input, the slim, cost-effective device can act as a remote control for an endless array of applications.
Features:
- Excellent RF performance.
- Modern, slender design with internal antenna.
- Microprocessor design incorporating SMT for high quality.
- Optical wall and case tamper protection, including tamper output signal.
- Two different Wiegand output formats.
- Ultra-low current consumption.
- Single control wire selects the LED color (green or orange).
- Mountable on a flat surface.
- Receiver interfaces to any control panel with an available reader input.
- Internal buzzer sounds when the unit successfully reads an RF signal.
Specifications:
| Operating Voltage Range | 7 to 24 VDC |
| Input Current | Standby: 26 mA , Max: 65 mA |
| Read Range | 230 ft. |
| RF Frequency | G: 433.92 MHz |
| Output format | 2 Wiegand (sel. 26,32,34,40 Bits): Wiegand1: D0 D1 Wiegand2: D0 D1 2 Output (Open Collector) Output1 (200mA) Output2 (200mA) |
| Tamper Output | Open collector, active Open, max. sink current of 16 mA |
| Maximum Cable Distance to Controller | 500 ft. |
| LED Control | Green, Orange |
| Dimensions | 5.7 x 1.7 x 0.8 in. |
| Weight | 500 g (1.1 lb) |
| Device Certifications | IP65 |
