Rosslare - AY-S55 - Anti-Vandal Piezoelectric 2x6 PIN Reader - IP65
Description
Description

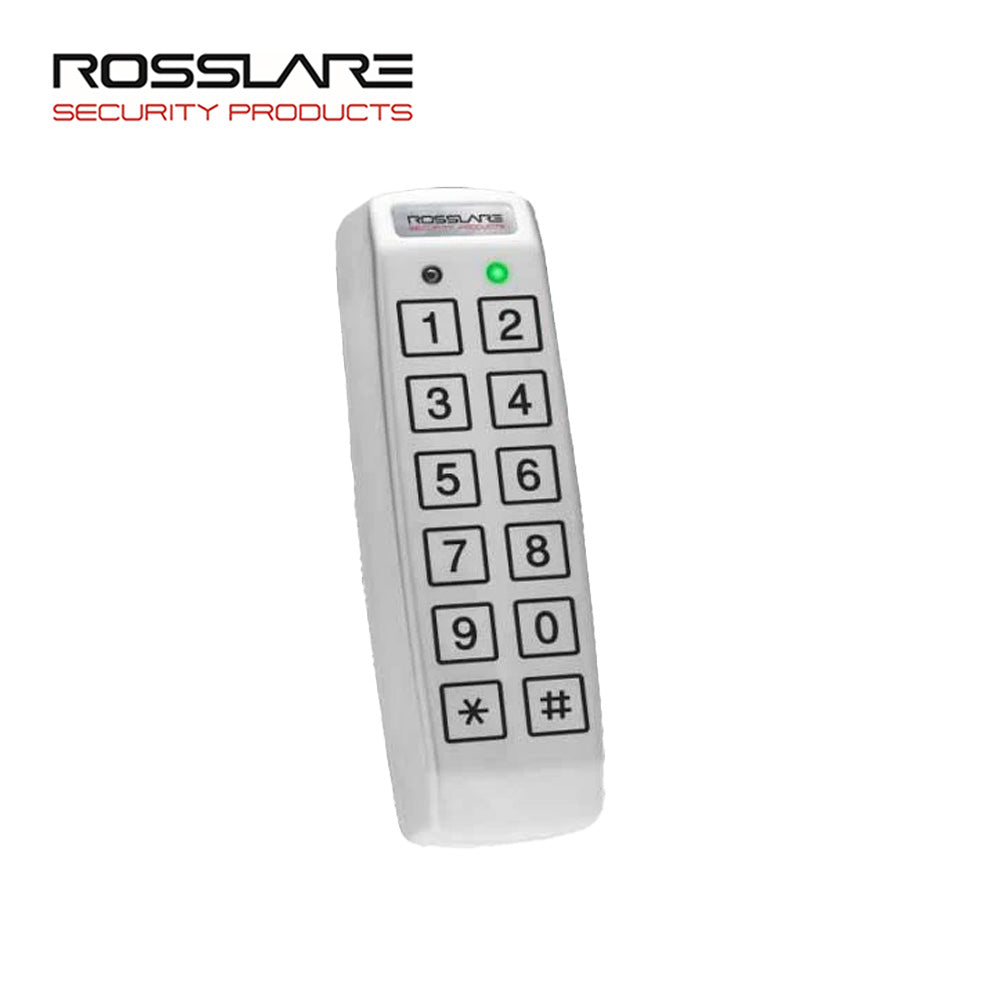

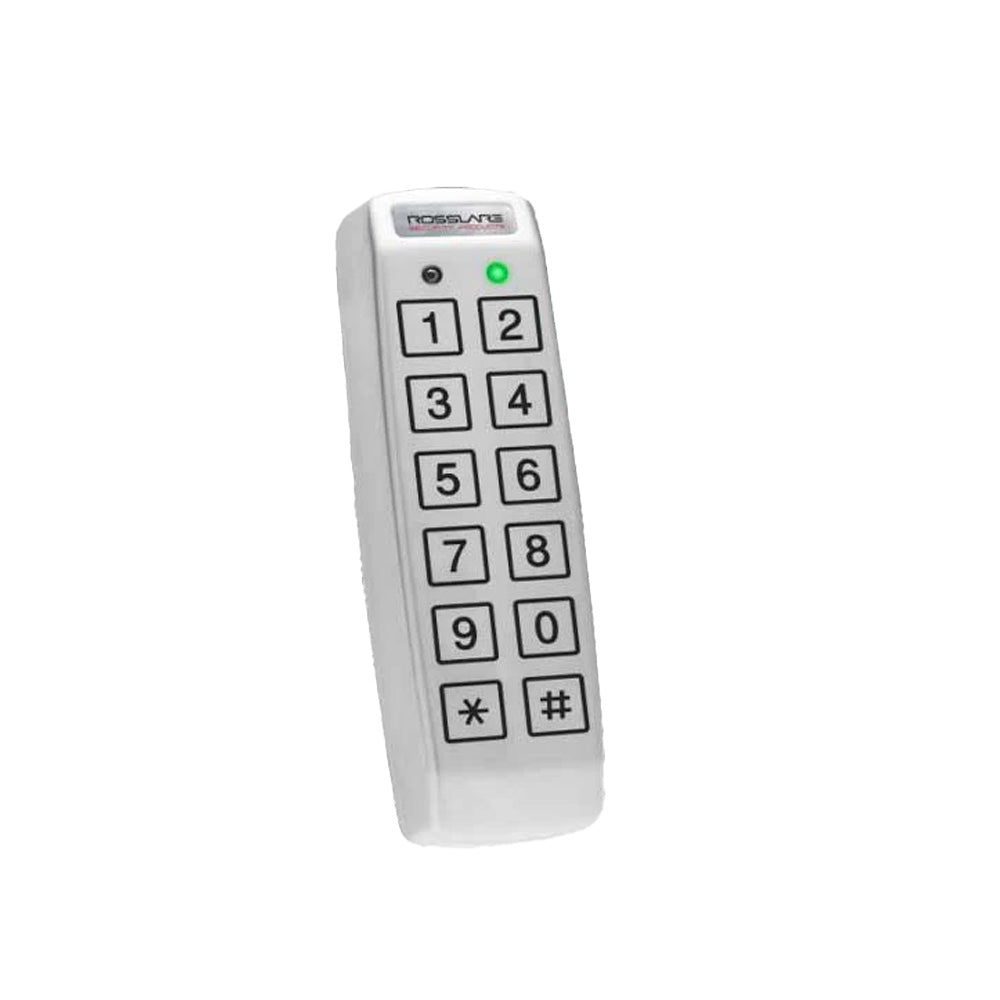

Rosslare - AY-S55 - Anti-Vandal Piezoelectric 2x6 PIN Reader - IP65
This sturdy access control unit provides a rugged reader with advanced access control features, in an aesthetically-designed housing.
The AY-S55 offers 8 selectable PIN transmission formats, LED control, and tamper detection to provide extra security and flexibility. Multi-format settings are programmed entirely through the piezoelectric keypad interface. The unit has an attractive slim profile, free from sharp edges, ideal for installations where style and rigidity are important.
Features:
- Supports 4-digit to 8-digit PIN credentials.
- Smooth, attractive design, with all-weather indoor and outdoor operation.
- Large metallic piezoelectric keypad with highly sensitive keys.
- 2 tri-colored LEDs and an integral sounder for programming and operation.
- User-friendly menu system based on keypad, LED, and sounder indicators.
- Back Optical tamper detection output.
- Door bell feature ('*' key), when operated with Rosslare controllers.
- 8 selectable PIN transmission modes including options for key stream, binary, parity, and 3x4 Matrix.
- LED control.
- P.rogrammable Facility code.
- Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening.
Specifications:
| Operating Voltage Range | 5-16 VDC, from a regulated power supply |
| Standby Input Current | 30 mA |
| Maximum Input Current | 120 mA |
| LED Control Input | Dry Contact, N.O. |
| Tamper Output | Open collector, active low, max. sink current 32 mA |
| Keypad | 2x6 Keys for PIN codes entry and local programming Doorbell key ('*') function (with Rosslare controllers only |
| Facility Code | Programmable 8 selectable formats, from single-digit to 8-digit PIN codes, including: - Wiegand 6-Bit and 8-Bit, nibble and parity bit options, optional |
| PIN Code Formats | Rosslare format 8 selectable formats, from single-digit to 8-digit PIN codes, including: - 1-5 keys, fixed 4 keys and 6 keys BCD with Facility code, Wiegand 26-Bit - 2x6 matrix single key - 1 to 8 keys BCD, Clock & Data |
| Audio/Visual | Two tri-color LED indicators, Built-in sounder |
| Design | Epoxy-potted, fully-sealed in a rugged metal slim enclosure, high strength construction, high-sensitive piezoelectric metal keys, no moving parts. Highly suitable for extremely harsh environments. |
| RFI Protection | > 10 V/m up to 1000 MHz |
| Device Certifications | IP65 |
| Dimensions | 5.9 x 1.7 x 1.1 in. |
| Weight | 400 g (14.1 oz) |
Downloads:
