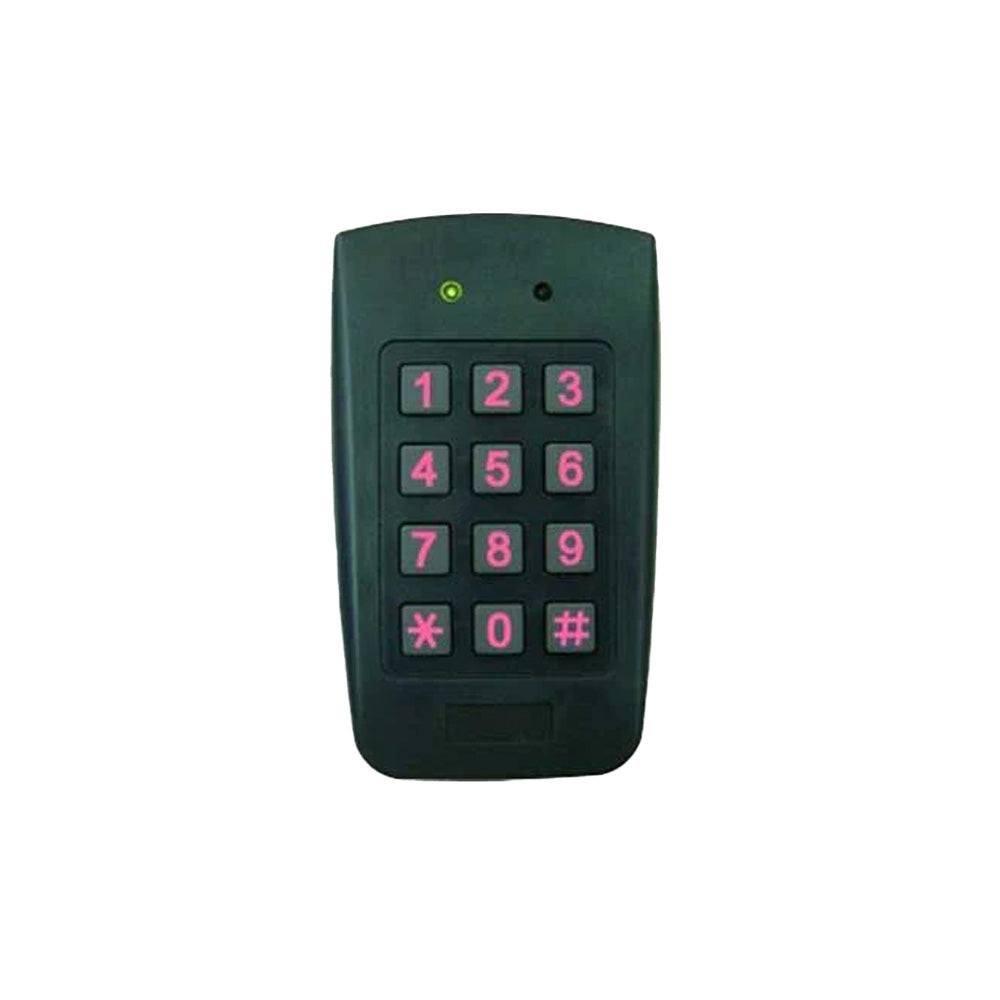

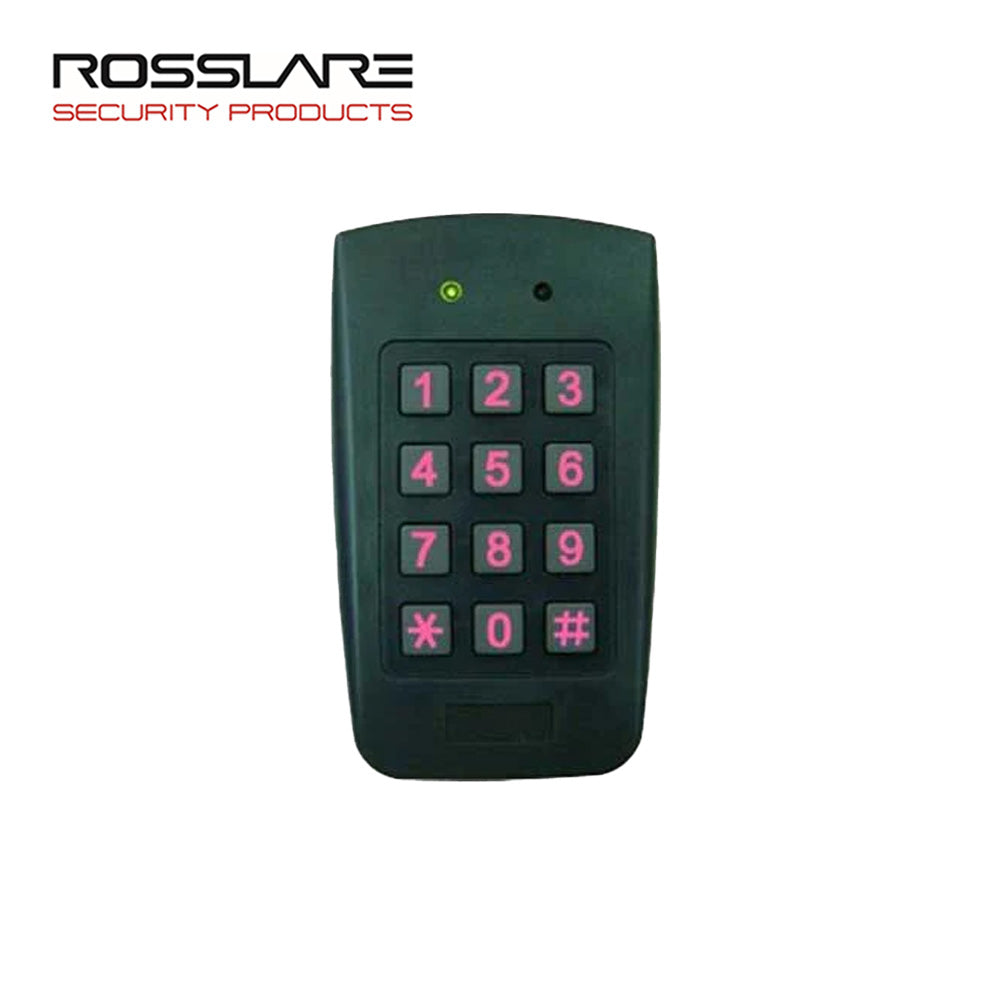

Rosslare - AYC-F54 - Convertible Backlit PIN Reader and Controller
The AYC-F54 offers programmable PIN transmission formats, LED control and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its rugged ultraviolet-resistant housing and waterproof enclosure for maximum durability. The backlit keypad is clearly visible day or night, making this unit ideal for residential and commercial applications.
Features:
- Supports 4- to 8-Digit PIN credentials.
- Smooth, attractive design, with all-weather indoor and outdoor operation.
- Large, high-visibility RED backlit keypad.
- 2 tri-colored LEDs and an integral sounder for programming and operation.
- User-friendly menu, based on keypad, LED and sounder indicators.
- Back and cover optical tamper detection and output.
- Automatically recognizes Rosslare's PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays.
- 8 selectable PIN transmission modes including options for key stream, binary, parity, and 3x4 matrix.
- Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening.
- 60 cm (23.6 in.) shielded interface cable.
Specifications:
| Operating Voltage Range | 5-16 VDC |
| Input Current | 75 mA at 12 VDC |
| Input Current Max | 110 mA at 16 VDC |
| Keypad | 3x4 keypad for local programming and 4 to 8 digit PIN codes entry |
| Design | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments. |
| Operating Temperature | -30°C to 65°C (-22°F to 150°F) |
| PIN Code Formats | 8 selectable formats, from single to 8-digit PIN codes, including: – Wiegand 6-Bit or 8-Bit, nibble/parity options, optional Rosslare format – 1-5 keys, fixed 4 keys, 6 keys BCD w/Facility code, Wiegand 26- bit – 3x4 Matrix single key – 1 to 8 keys BCD, Clock & Data |
| Audio/Visual | Two tri-color LED indicators, built-in buzzer |
| LED Control | Dry contact, N.O |
| Facility Code | Programmable |
| Capacity | 500 users, single/dual PIN code each |
| User Levels | Normal, Secure, Master |
| Dimensions | 120 x 76 x 21 mm (4.72 x 2.99 x 0.83 in.) |
| Weight | 215 g (0.47 lb) |
