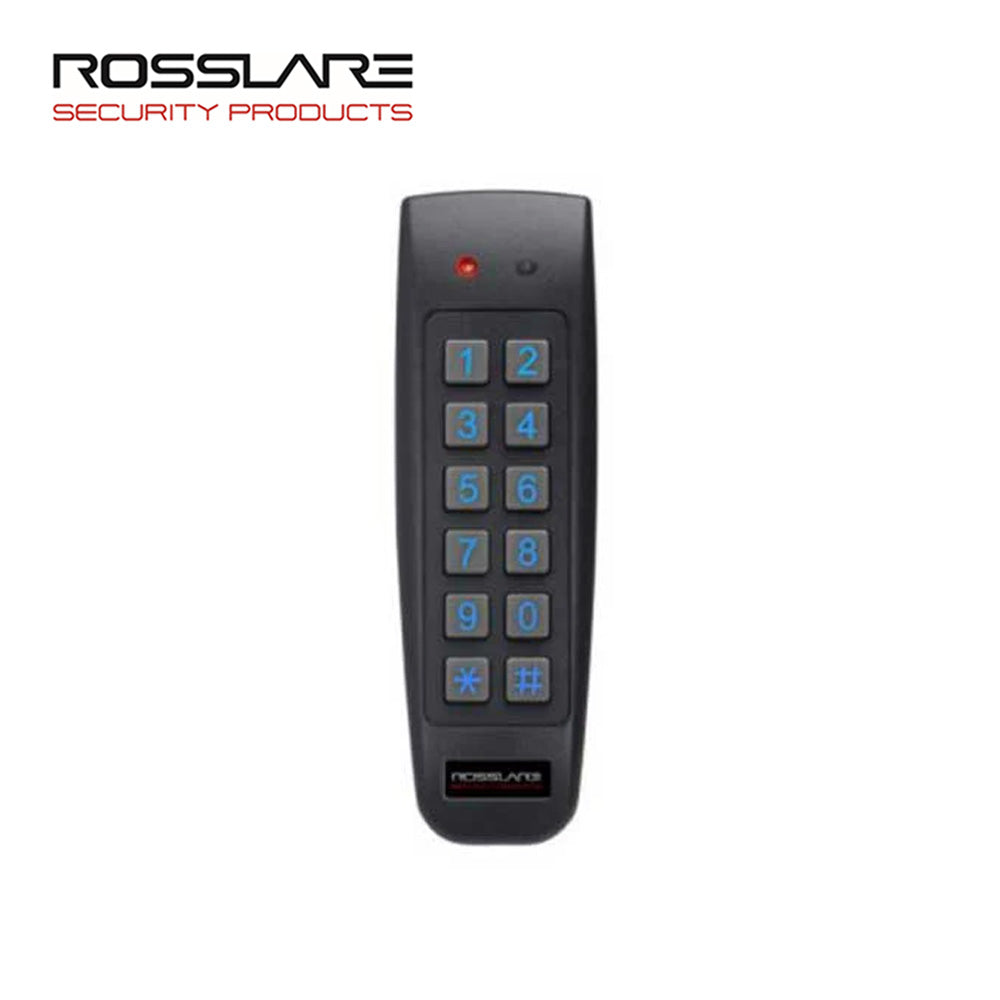

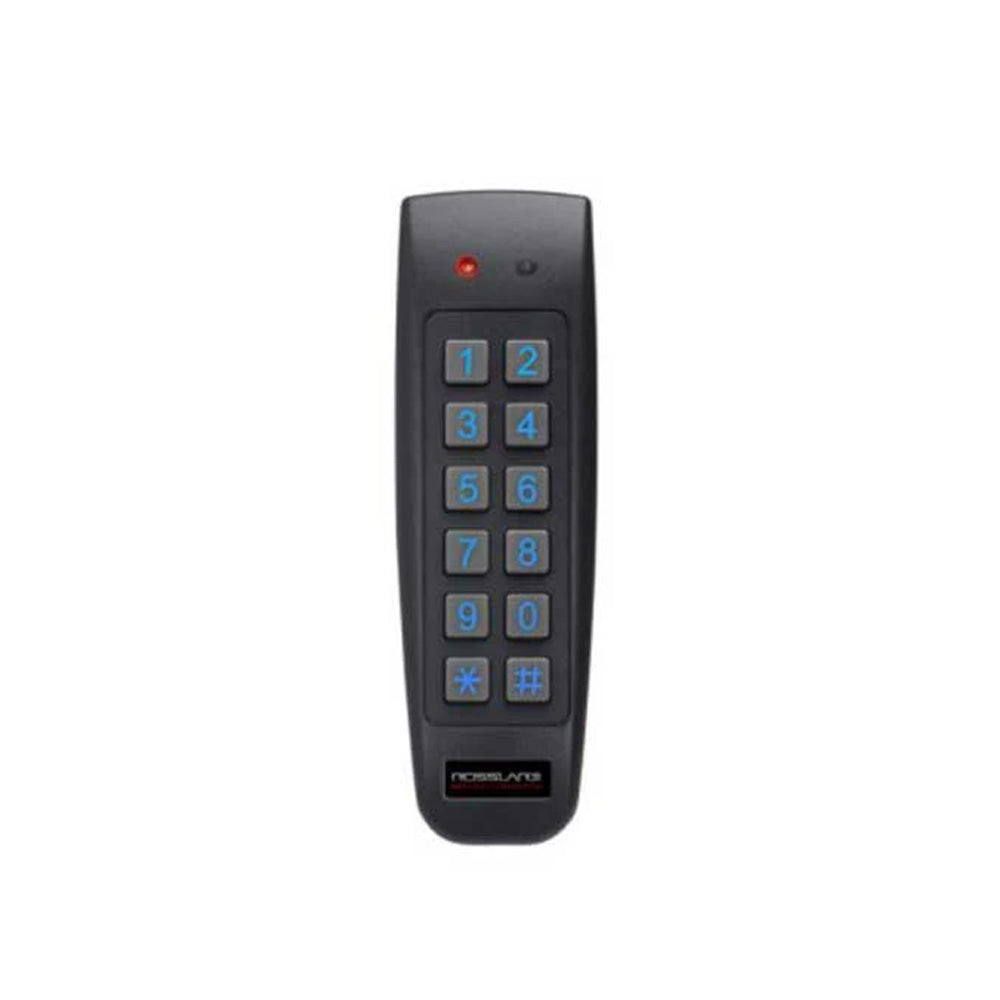

Rosslare - AYC-G60 - Mullion Go Prox and PIN Convertible Reader/Controller
The AYC-G60 can read all HID Prox Cards/Tags (125 kHz FSK) using Genuine HID Technologyâ„¢ and outputs HID Prox card data in Wiegand according to the number of bits of data stored on the card. The units also read Rosslare PROx - EM Proximity Cards (125 kHz - EM) and can output EM card data as Wiegand 26-Bit, Clock & Data, and Wiegand + PIN. As a controller, the units accept up to 500 users, and allow entry via a personal identification number (PIN) and/or by presenting a proximity card. The PIN code length for the controller can vary. The PIN code length can be a set number of 4, 5, or 6 digits or it can be flexible from 4 to 8 digits.
Features:
- Advanced, secure, multi-application functionality for intelligent installations.
- Smooth, attractive design, with all-weather indoor and outdoor operation.
- 2 tri-colored LEDs and an integral sounder for programming and operation.
- Unique backlit piezoelectric keys.
- User-friendly menu based on keypad, LED, and sounder indicators.
- Back and cover optical tamper detection and output.
- Default operation as a multi-format reader (Rosslare PROx and HID Genuine Technologyâ„¢ formats, Wiegand 26-Bit, Clock & Data).
- Automatically recognizes Rosslare's PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays.
- 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN).
Specifications:
| Operating Voltage Range | 5-16 VDC |
| Standby Input Current | 100 mA |
| Maximum Input Current | 140 mA |
| Tamper Output | Open collector, active low, max. sink current 32 mA |
| LED Control Input | Dry Contact N.O. |
| Cable Distance Host Controller | Up to 150 m (500 ft) using an 18 AWG cable |
| Max Proximity Card Range | 60 mm (2.36 in.) |
| Proximity Card Modulation | ASK and FSK at 125 kHz |
| Card Transmit Format (Reader) | Rosslare PROx - EM cards: Wiegand 26-Bit, or Clock & Data FSK cards: According to card type |
| LED Indicators | Two tri-colored LEDs |
| Compatible Cards | 125 kHz and/or dual technology ISO cards, clamshell and tags |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Dimensions | 137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.) |
| Weight | 160 g (0.35 lbs) |
