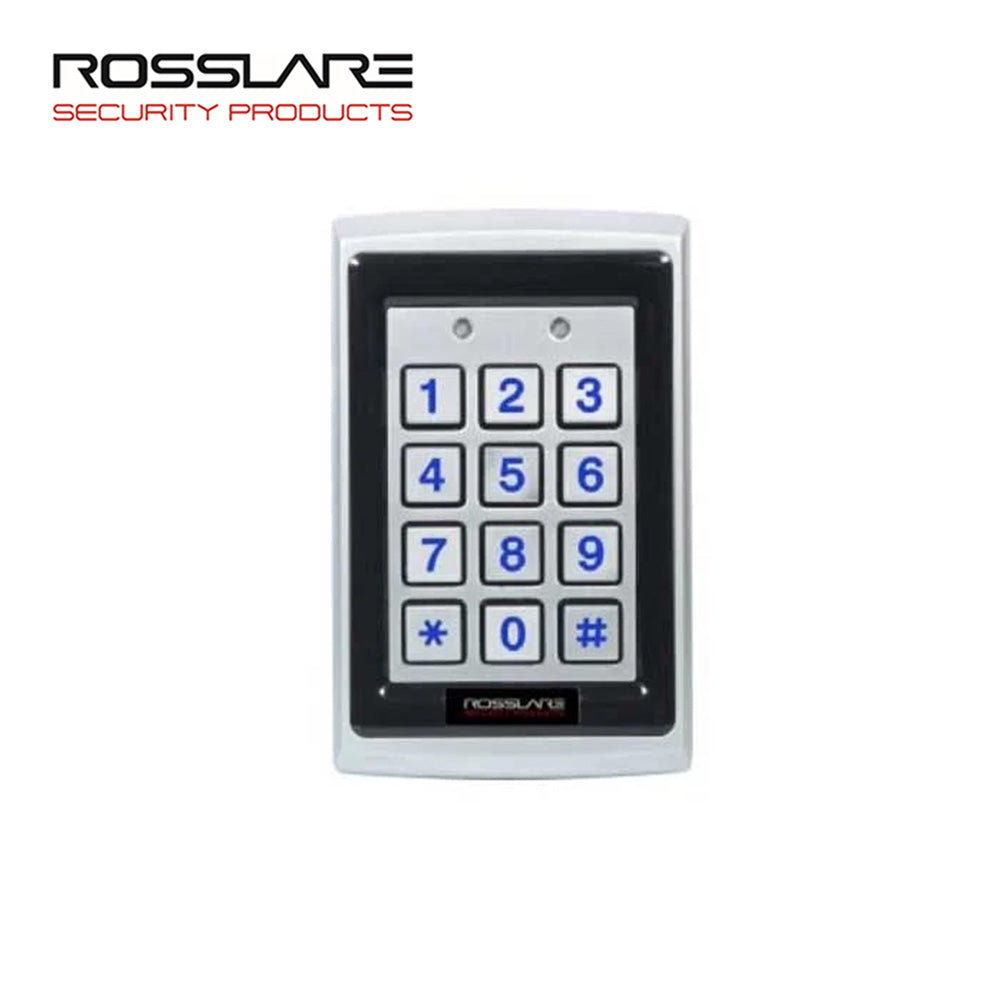

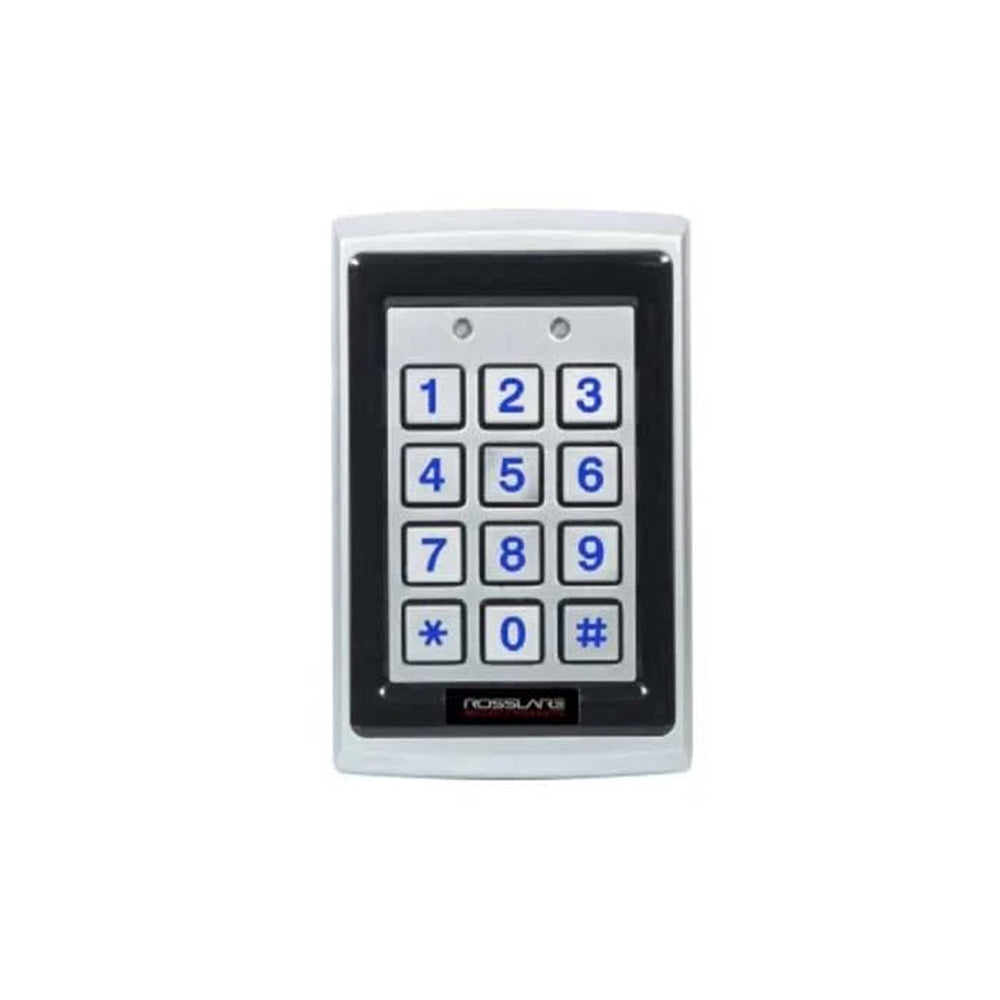

Rosslare - AYC-Q54B - Convertible Anti-Vandal Backlit PIN Reader/Controller
The AYC-Q54B offers programmable PIN transmission formats, LED control and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its extremely-strong metallic housing and waterproof enclosure for maximum durability. The backlit keypad, with its auto-dimming options, is clearly visible day or night, making these units ideal for residential and commercial applications.
Features:
- Supports 4- to 8-digit PIN credentials.
- Smooth, attractive design, with all-weather indoor and outdoor operation.
- Large, highly-visible blue backlit keypad.
- 2 tri-colored LEDs and an integral sounder for programming and operation.
- User friendly menu, based on keypad, LED and sounder indicators.
- Back and cover optical tamper detection and output.
- Automatically recognizes Rosslare's PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays.
- 8 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 3x4 Matrix.
- Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening.
- 60 cm (23.6 in.) shielded interface cable.
- Meets IP65 for outdoor use.
Specifications:
| Operating Voltage Range | Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
| Input Current | 65 mA |
| Input Current Max | 110 mA |
| Tamper | Optical back tamper sensor, O.C. active low, 32 mA max. sink current |
| Keypad | 3x4 keys for local programming and 4- to 8-digit PIN codes entry |
| Design | Epoxy potted, fully-sealed in a rugged metal enclosure, blue backlit metal keys, highly strong construction. Suitable for extremely harsh environments. |
| Security Modes | Normal, Bypass, Secure |
| Audio/Visual | Two tri-color LED indicators, built-in buzzer |
| LED Control Input | Dry Contact N.O. |
| Facility Code | Programmable |
| PIN Code Formats | 8 selectable formats, from 1- to 8-digit length PIN codes |
| Capacity | 500 users, single/dual PIN code each |
| User Levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Inputs | REx (Request to Exit) Auxiliary/door monitor with 10 programmable modes |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Operating Environment | All weather, indoor and outdoor use, meets IP65 |
| Dimensions | 120 x 76 x 21 mm (4.72 x 3 x 0.83 in.) |
| Weight | 480 g (1.05 lbs) |
