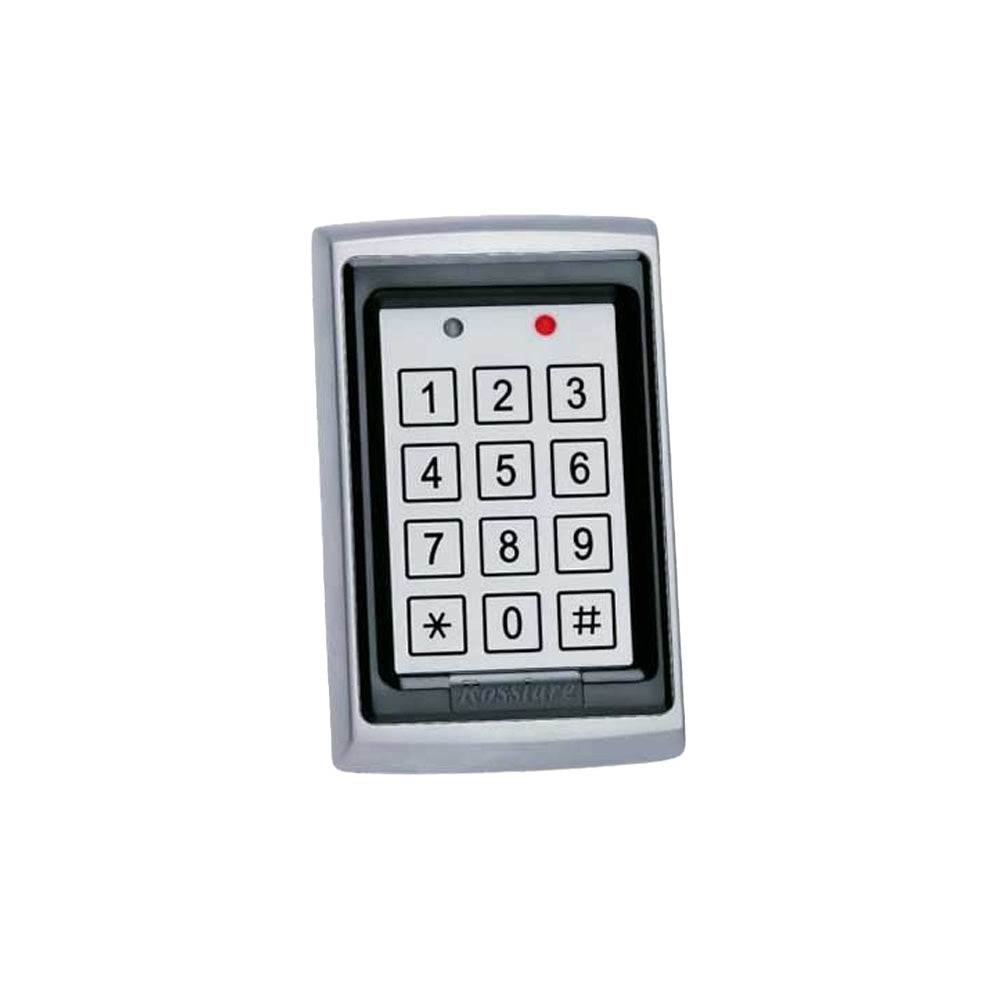

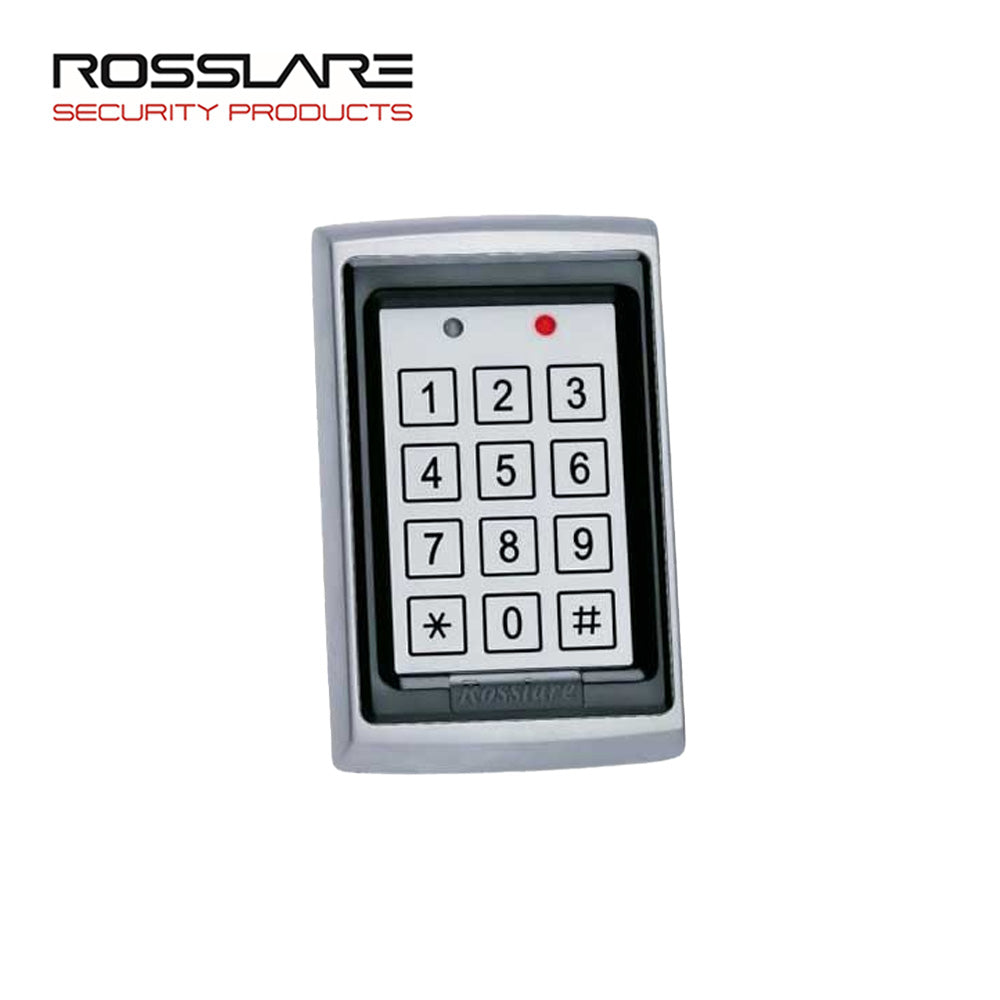

Rosslare - AYC-Q65 - Convertible Anti-Vandal Piezoelectric Proximity & PIN Reader/Controller
The AYC-Q65 offers programmable Proximity and PIN transmission formats, LED control, and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its extremely strong metallic housing and waterproof enclosure for maximum durability.
Features:
- Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags.
- Smooth, attractive design, with all-weather indoor and outdoor operation.
- Large, highly-visible piezoelectric keypad.
- 2 tri-colored LEDs and an integral sounder for programming and operation.
- User-friendly menu, based on LED and sounder indicators.
- Back and cover optical tamper detection and output.
- Multi-format reader (Wiegand 26-Bit/Clock and Data/Card & PIN).
- Automatically recognizes Rosslare's PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays.
- 9 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 3x4 Matrix.
- Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening.
- 60 cm (23.6 in.) shielded interface cable.
Specifications:
| Operating Voltage Range | 5-16 VDC |
| Standby Input Current | 90 mA |
| Maximum Input Current | 130 mA |
| Max Read Range | 45 mm |
| Tamper | Optical back tamper sensor, O.C. active low, 30 mA max. sink current |
| Keypad | 3x4 keypad for local programming and 4- to 8-digit PIN codes entry |
| Design | Epoxy-potted, fully-sealed in a rugged metal enclosure, metal piezoelectric keypad, highly strong construction. Suitable for extremely harsh environments. |
| LED Control Input | Dry Contact N.O. |
| Audio/Visual | 2 tri-color LED indicators, built-in buzzer |
| Facility Code | Programmable |
| Read Card Format | Selectable Wiegand 26-Bit, Clock and Data, Card & PIN |
| PIN Code Formats | 9 selectable formats, from 4- to 8-digit length PIN codes |
| Capacity | 500 users, dual code/card or code + card each |
| User Levels | Normal, Secure, Master |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Dimensions | 120 x 76 x 21 mm (4.72 x 3 x 0.83 in.) |
| Weight | 480 g (1.05 lb) |
