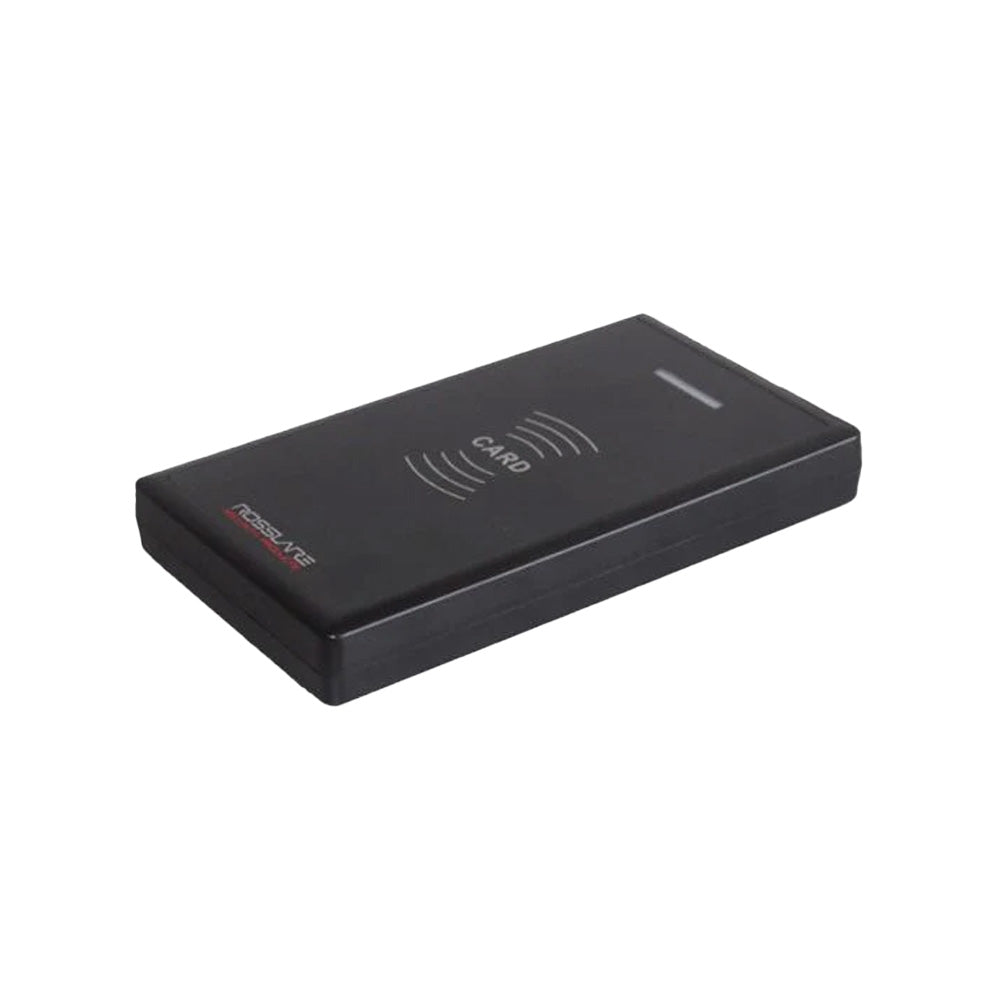

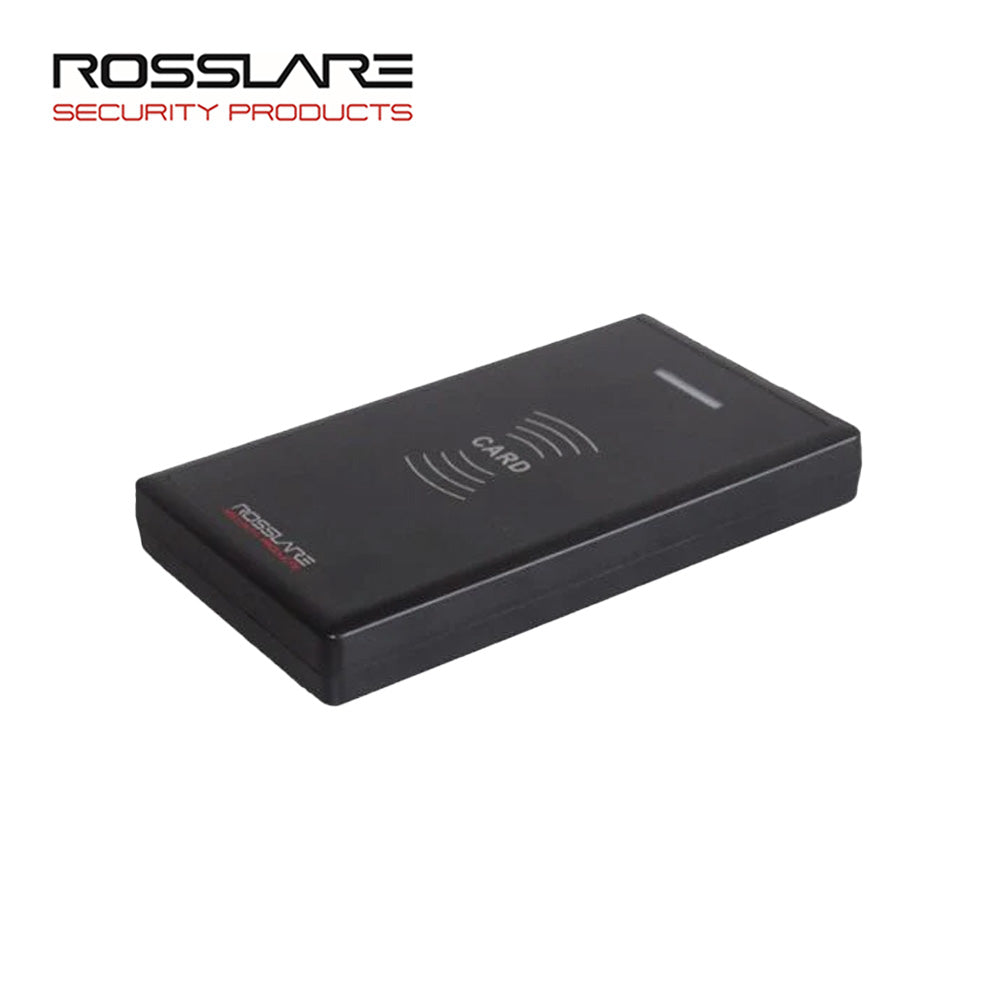

Rosslare - DR-U955BT - Multi-technology Desktop Enrollment Reader with Bluetooth support
The DR-U955BT is part of Rosslare's UHF SMART series of products. It is an innovative USB enrollment station that features three-in-one access control credential technology, making it easier than ever to deploy the latest in access control systems. The DR-U955BT reads a wide range of 13.56 MHz multiformat smart cards, UHF EPC-Gen2-6C, and Rosslare BLE-IDâ„¢ credentials (Facility code, Credential ID), and transmits the credential to the connected access control software, such as Rosslare's AxTraxNGâ„¢. Its configurable software allows you to choose a unique output for each system.
Features:
- Compatible with Rosslare AxTraxNG management system.
- Enrolls 13.56 MHz smart card Unique ID (UID) and can read the UID of a range of credentials.
- Enrolls UHF-ID - Reads a wide range of passive transponders with ISO 18092 (NFCIP-1) and ISO/IEC 18000-6C credential support.
- Enrolls Bluetooth - Rosslare BLE-ID credential directly into AxTraxNG Server or directly into third-party software systems.
- Enables access control with multi-credential authentication factors.
- USB 2.0 compliant and USB powered.
- Mobile App.
Specifications:
| Operating Voltage | 5 VDC (USB powered) |
| Operating Current | Standby: 250 mA Maximum: 300 mA |
| System Compatibility | Compatible with a Rosslare's AxTraxNG, as well as many third-party access control software. |
| Supported Credentials | 13.56 MHz (RFID) UID: MIFARE Ultralight / C (Android), MIFARE Classi (iOS), MIFARE Plus S / Plus (Android), MIFARE DESFire EV1 (iOS), ISO 14443A and 14443B, ISO 15693, HIDGlobal iClass, ISO 18092 (NFCIP-1), FeliCa (14443C Sony) UHF CREDENTIALS: ISO-18000 (6C) (Windshield), Hard Tags, Vandal Evident ROSSLARE BLE-ID: APP-A411, APP-B411, APP-A412, APP-A412 |
| Read Range | UHF and MIFARE: Up to 5 cm (2 in.) BLE: Up to 6 m (19.7 ft) |
| Operation Frequency | RFID: 13.56 MHz DR-U955BT US: 902–928 MHz (America) RFID DR-U955BT EU: 865-868 MHz (Europe) RFID Bluetooth: 2.402-2.480 GHz |
| Output Format | Supports Wiegand 26-Bit to 64-Bit |
| Operating Environment | Indoor use |
| Operating Temperature Range | 0°C to 63°C (32°F to 145°F) |
| Storage Temperature Range | -20°C to 63°C (-4°F to 145°F) |
| Relative Humidity Range | 0 to 95% (non-condensing) |
| Weight | 130 g (4.6 oz) |
| Dimensions (L x W x H) | 123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.) |
