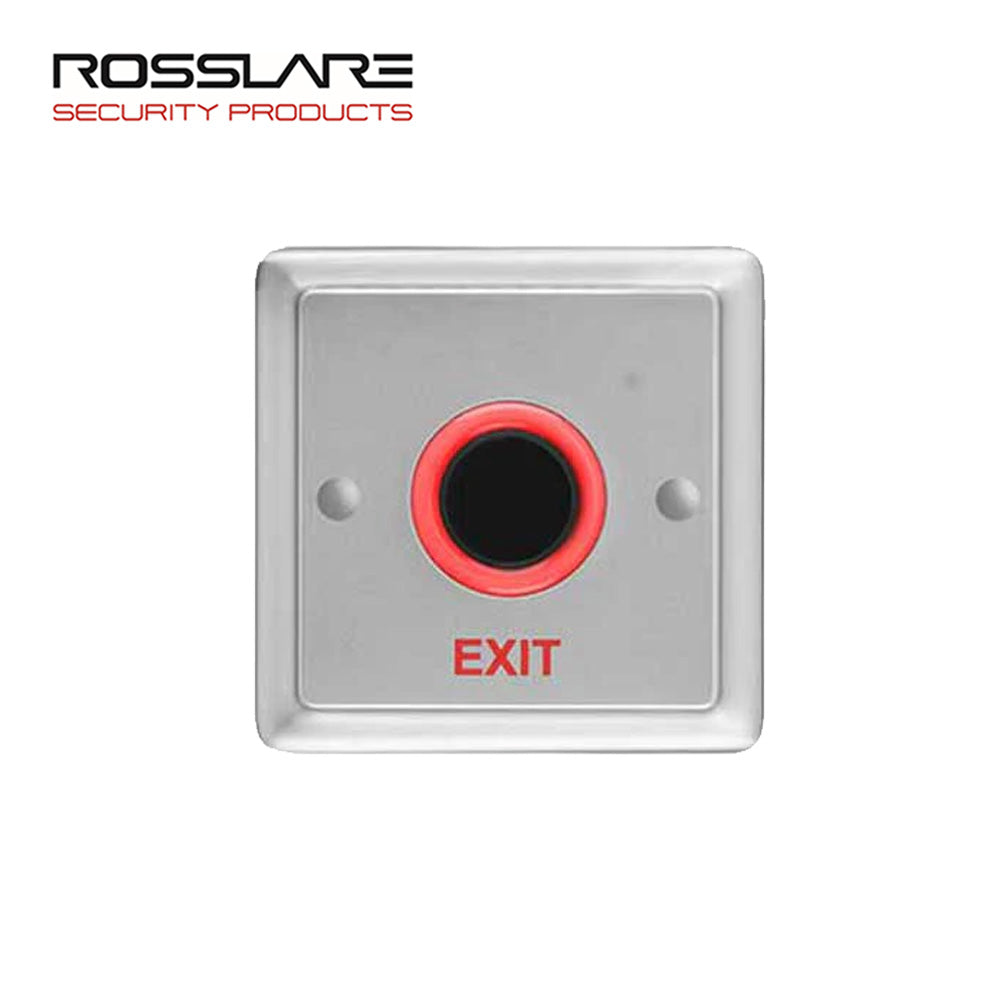

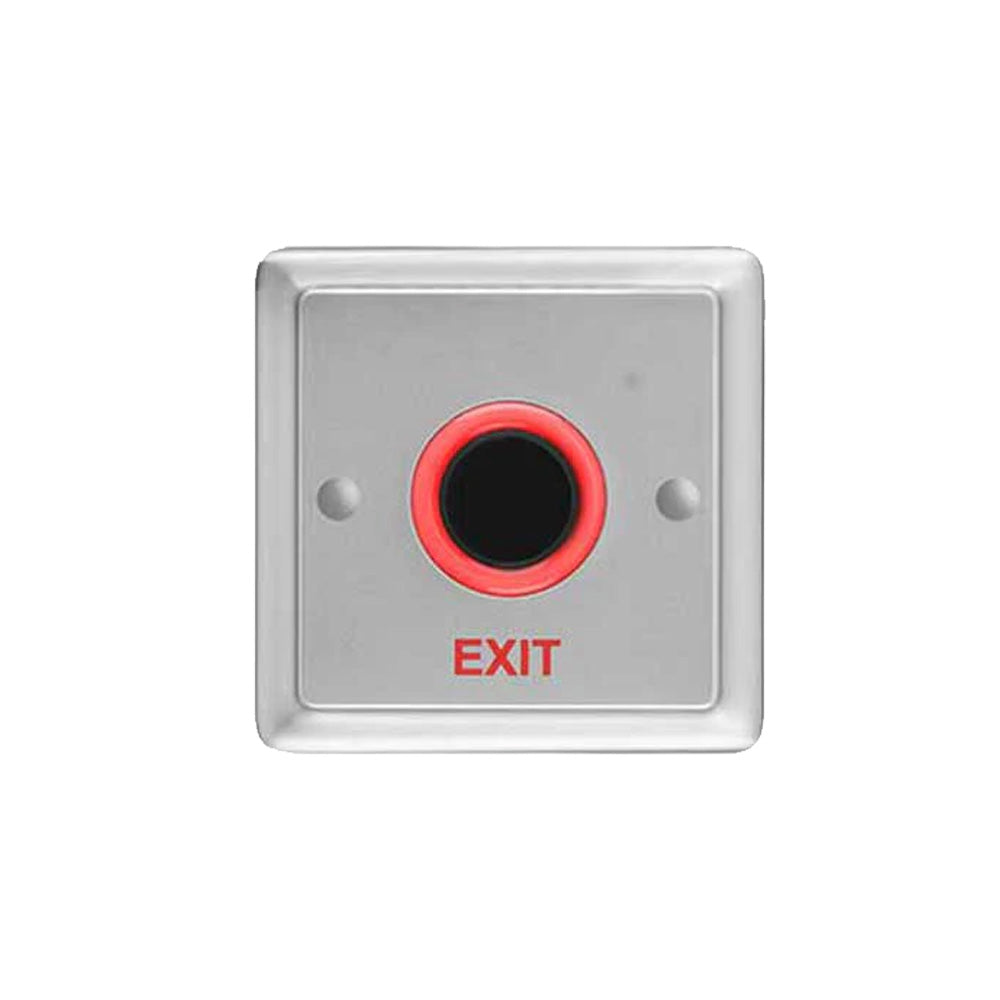

Rosslare - Ex-M22 - Passive No Touch Exit Switch with Motion Infrared and 8-30 VDC
The Ex-M22 are passive infrared motion sensors (no touch switch). The new access control switches are designed as flash mounting for US and UK electric boxes with passive infrared technology. The switches have a red/green LED ring to display the switch status.
The switches are designed as Request-to-Exit (REx) buttons for access control systems, direct activate electric strike, or magnet locks.
Features:
- Advanced passive infrared motion sensor switch.
- New weatherproof design - water and dust proof.
- Circuit assembly encapsulation.
- No moving parts.
- Light ring status indicator and accidental activation hindrance.
- External LED control wire.
Specifications:
| Input Voltage | 8-30 VDC |
| Switch Voltage | 30 VDC [OC] |
| Outputs | Normally open (transistor output open collector) |
| Wire Leads (Switch Output) | 2 x 24 AWG 280 mm (11.02 in.) length (UL 1569) Blue wires |
| VDC and Ground | Red and black wires for LED power |
| Operating Environment | Suitable for indoor and outdoor use |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Dimensions | 92 x 92 x 10 mm (3.6 x 3.6 x 0.4 in.) |
| Weight | 55 g (1.9 oz.) |
