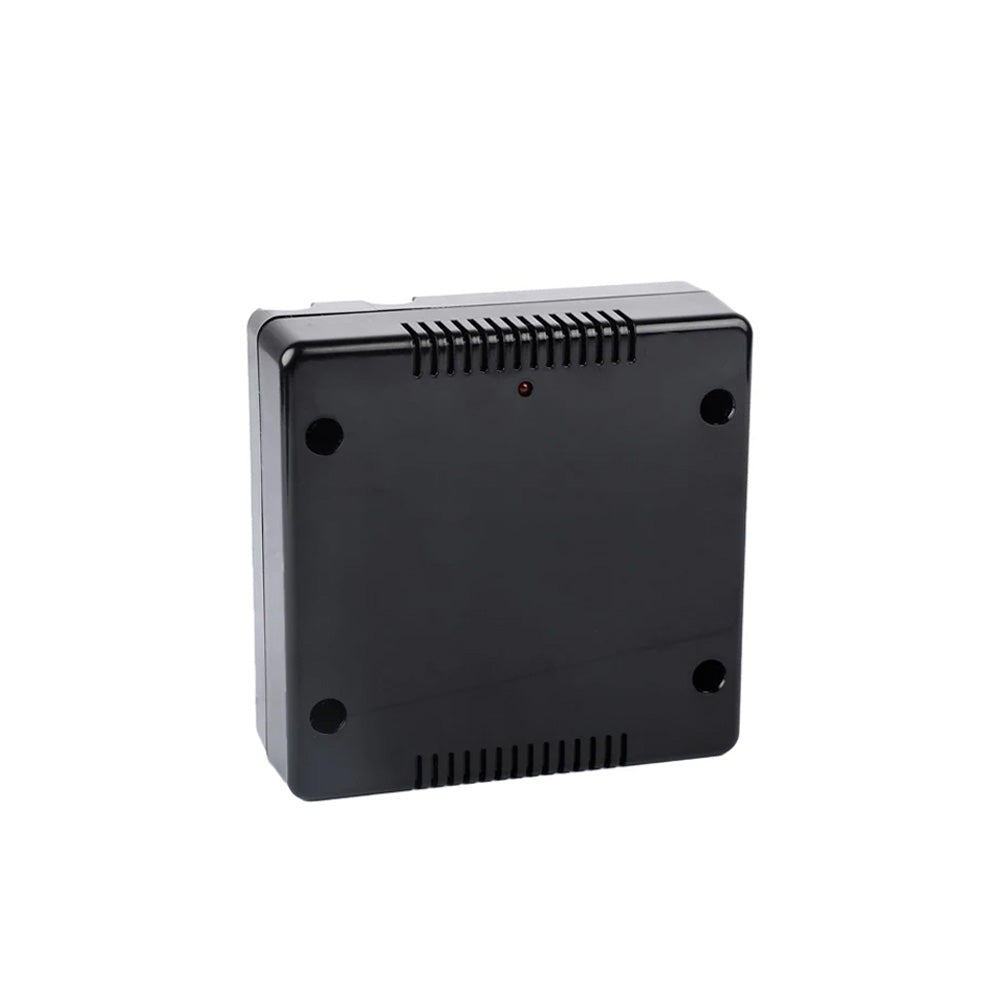

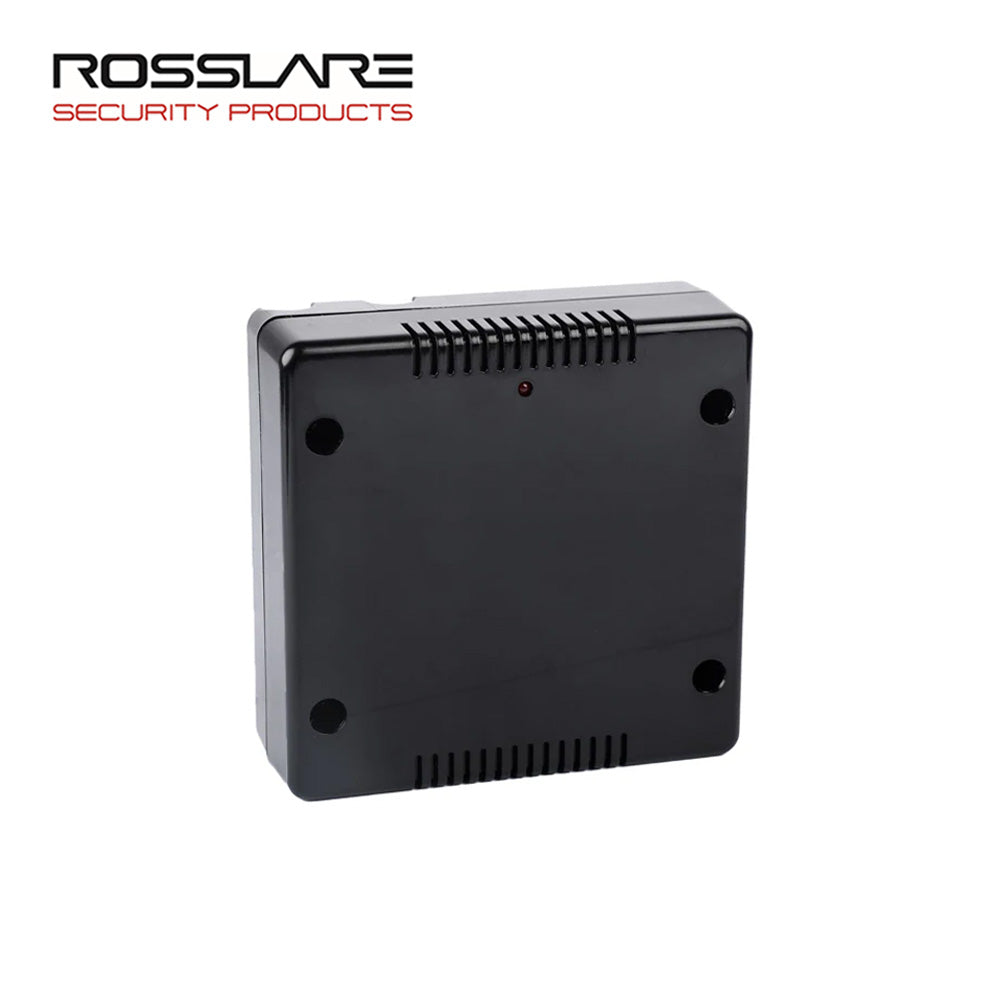

Rosslare - MD-25TB - Secure Relay I/O Module
The MD-25TB isolates the lock from the Controller Unit, securing lock functionality when the Controller Unit is tampered with on the outside of the secure premises. The proprietary two-way protocol allows the Controller Unit to activate the Lock/Auxiliary relays and activate the built-in speaker (for bell, chime, and siren) in the Secure Module, while the Secure module can also communicate REx input status to the Controller Unit. If the data line between the Controller Unit and the secure module is cut, the system detects the data line has been tampered with and generates a one-minute siren and closes the lock output.
The MD-25TB is designed to be used together with Rosslare's ME-0515M Multipurpose Power Management Enclosure, providing optimum performance and convenience together with universal AC input and a UPS using a Sealed Lead Acid backup battery inside a spacious metal enclosure.
Features:
- Secure Relay I/O Module for use with Rosslare's convertible series readers (AYC).
- Activates the Lock / Auxiliary Relays and the BuiltIn Speaker for Bell, Chime and Siren tones.
- Returns REx status back to the controller unit.
Specifications:
| Input | 12VDC 2A |
| Output | 12V DC, 250mA |
| Relay | 2x, 5A Form C |
| Operating Environment | Indoor |
| Operating Temperature Range | -10°C - 50°C (14°F - 122°F) |
| Enclosure Dimensions | 102 x 100 x 35 mm |
| Weight | 0.155 kg (0.34 lb) |
