Rosslare - MD-D02 - Two Reader Expansion Board and 12VDC
Description
Description

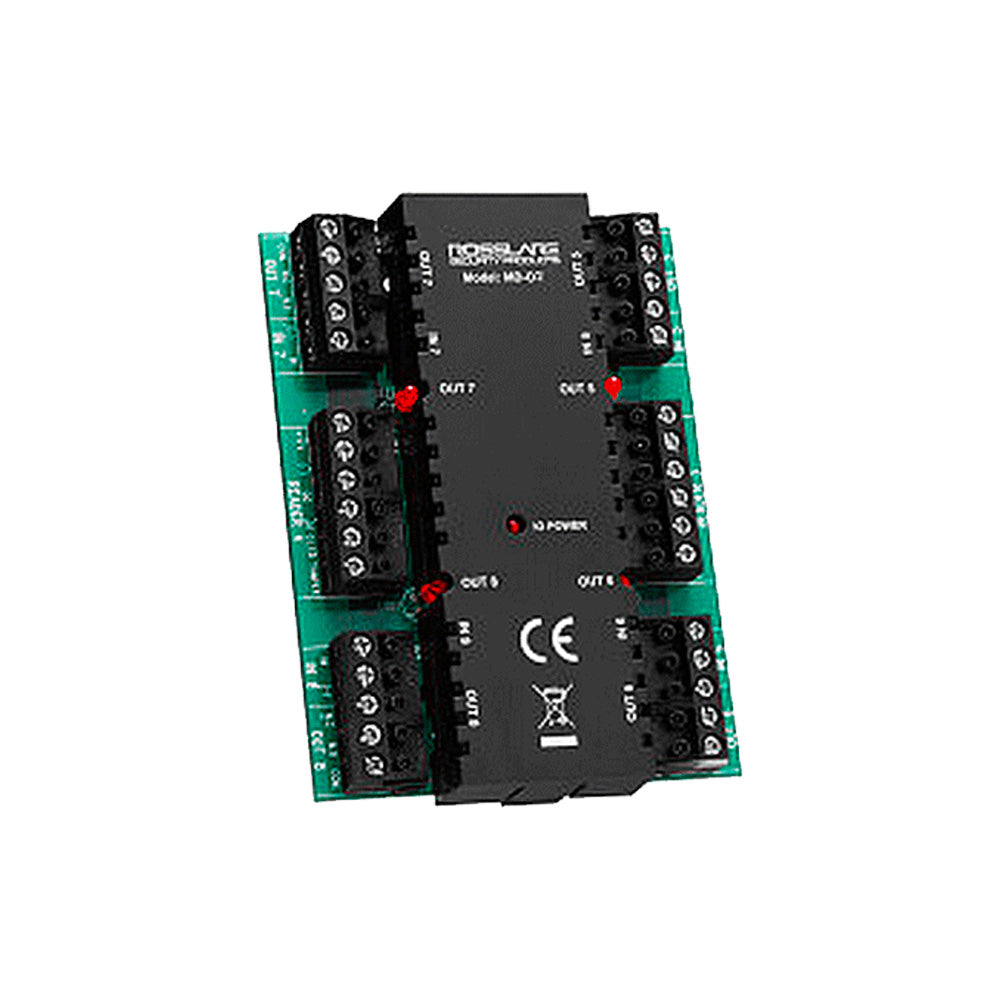

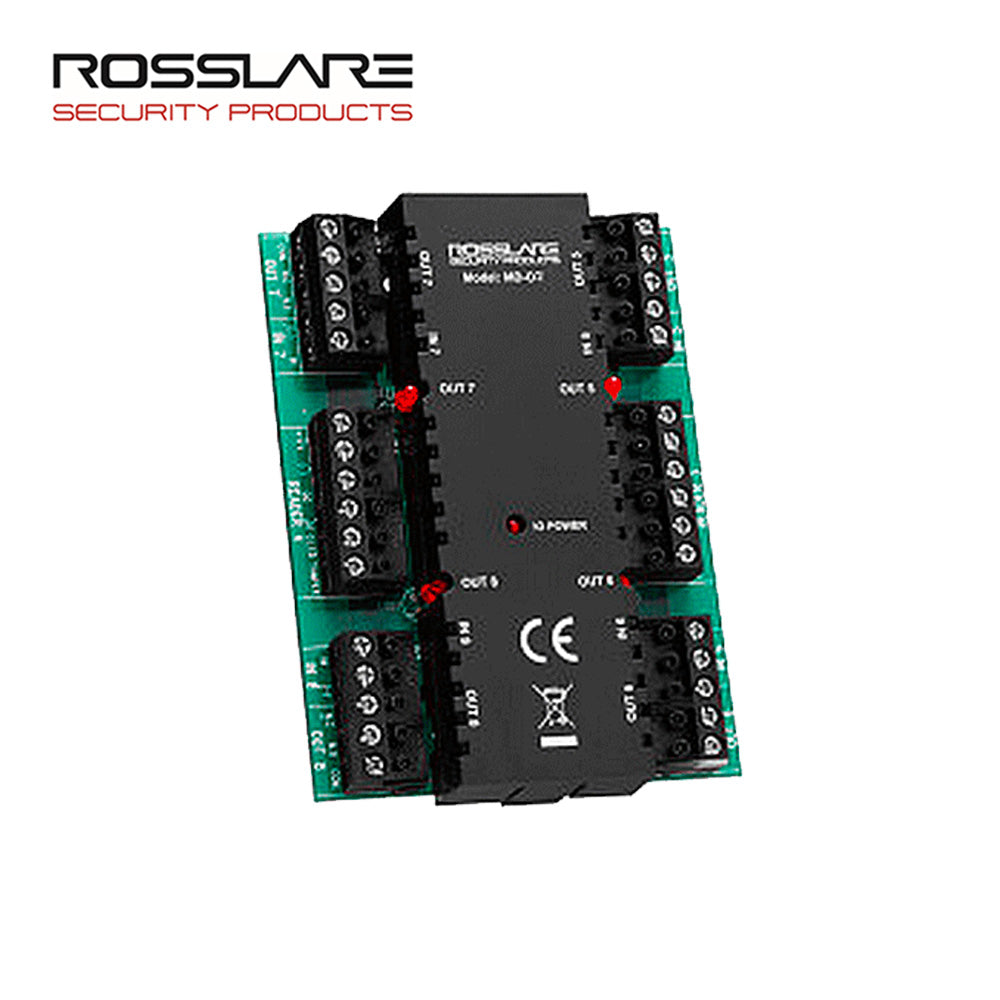

Rosslare - MD-D02 - Two Reader Expansion Board and 12VDC
The ROS-MD-D02 2 Reader expansion board is designed with a focus on high quality and reliability and is ideal for residential and commercial applications. Easy to install and operate, the MD-D02 expansion board features state-of-the-art supervised communications with the controller. The expansion board adds two additional readers or keypad inputs; four relay outputs and four supervised inputs to the access control panel. As a result, an access control panel with the MD-D02 expansion board can support a total of four readers and four doors. In addition, it is possible to add any keypad or biometric reader that supports the Wiegand, Clock-and-Data or any other format supported by Rosslare's AS-525 AxTrax Software transmission formats. The host access controller has complete control over the additional readers, inputs and outputs of the MD-D02 expansion board.
Features:
- Additional two proximity readers or keypads.
- Four relay outputs and four supervised inputs to the access control panel.
- Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility.
- LED status feedback for 12V power and relay activation.
- Cost effective and modular installation.
- Compatible with Rosslare's AC-225 and AC-525 networked access controllers.
- Input and output configurability using Rosslare's AS-525 AxTrax software.
- Backed by Rosslare's International Guarantee and service with ISO9001 (Certified TUV Rhineland) level business and manufacturing operations.
Specifications:
| Input Voltage | 12V DC from host controller |
| Input Current | Standby: 30mA Maximum: 135mA |
| Number of Reader Ports | 2 |
| Number of Inputs | 4 |
| Output Relays | 4 x 5A with N.O., N.C. and COM contacts Form-C Relays |
| Inputs Voltage | 5V DC maximum voltage |
| Reader Output Voltage | 12V DC |
| Max. Reader Current | 300 mA |
| LED Control Output | Open collector, active low |
| Tamper Input | 5V DC maximum voltage |
| Dimensions | 3.93 x 2.98 x 1.28 inch (100 x 75.9 x 32.5 mm) |
