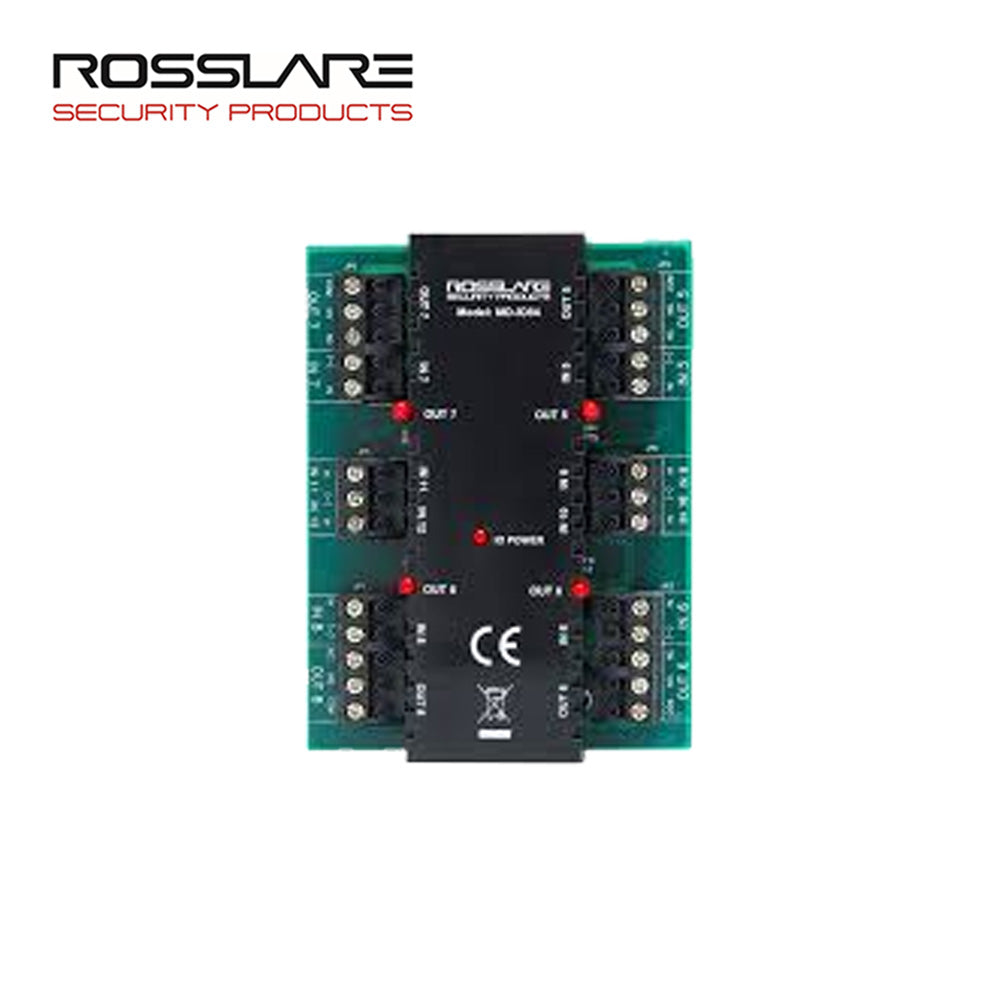

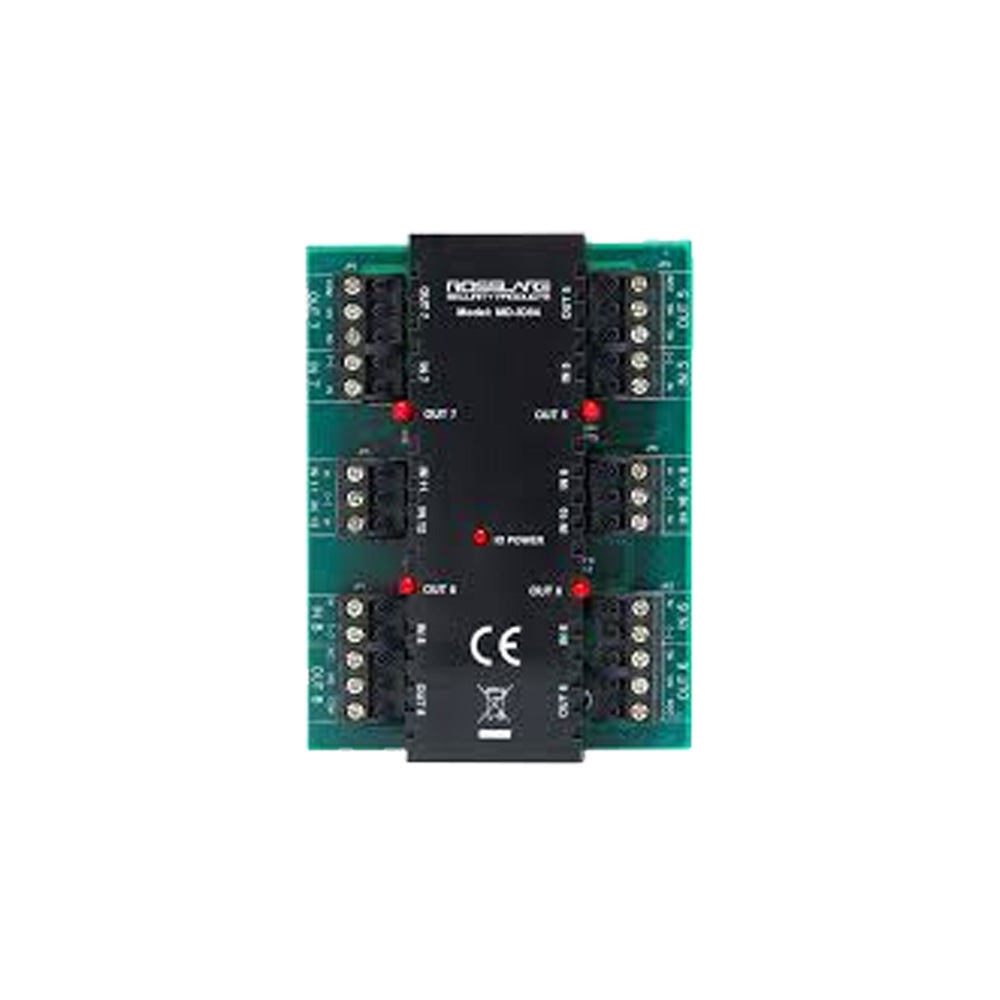

Rosslare - MD-IO84 - Eight Input and Four Output Expansion Board
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Rosslare - MD-IO84 - Eight Input and Four Output Expansion Board
Description
Description
Rosslare - MD-IO84 - Eight Input and Four Output Expansion Board
The MD-IO84 is an optional I/O expansion board for use with Rosslare Security's family of state-of-the-art networked access controllers. The expansion board adds an additional four relay outputs and eight supervised inputs to the access control panel. The host access controller has complete control over the additional inputs and outputs of the MD-IO84 expansion board. The inputs and outputs can be configured using an access control software system such as Rosslare Security's VeriTrax AS-225. The software system also configures the MDIO84's input connection topology. This guide explains how to install and begin working with your new MD-IO84 access controller expansion board.
Specifications:
| Input Voltage | 12VDC |
| Input Current | Standby: 30mA / Maximum: 135 mA |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Output Relays | 5A Form C Relays, NO, NC and COM contacts and Form C Relays |
| Inputs Voltage | 5V DC |
| Dimensions | 100mm L x 75.9mm W x 32.5 D (3.93in. x 2.98 in. x 1.28 in.) |
Downloads:
