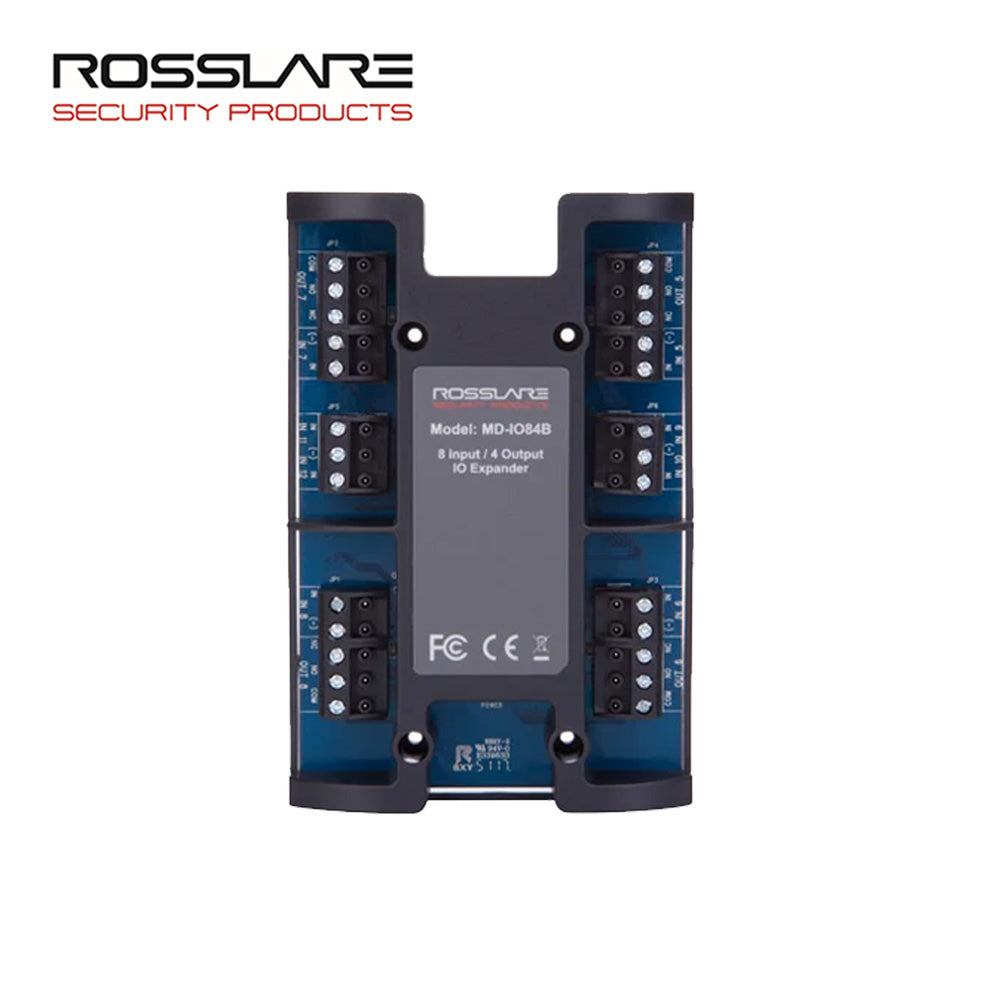

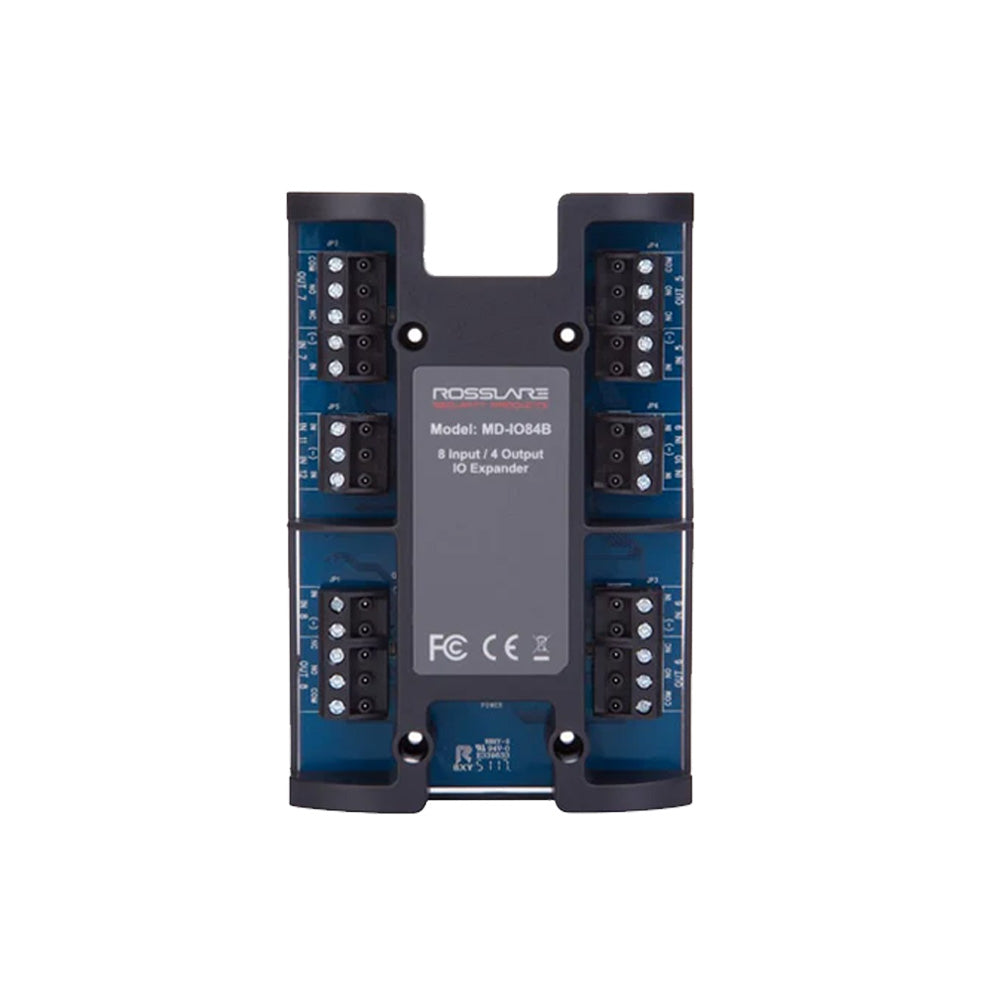

Rosslare - MD-IO84B - Access Controller 8 Input and 4 Output Expansion Board
The MD-IO84B is a plug-in expansion module for Rosslare's AC-225x-B and AC-425x-B Access Control Panels. This I/O expansion board provides 8 Supervised Outputs with EOL (End-Of Line) resistor protection, and 4 Relay Outputs (5 Amp Form C NO/NC). Installation of the module takes under 1 minute with the tailored expansion port in the panels and auto-recognize by the panel. Once it is installed and the panel is powered on, the expansion can be seen by the AxTraxNG Server, and the MD-IO84B may be programmed for Access Control and Automation. Advanced communication with the controller, allows for Firmware update, and real-time event logging with support for full offline operation by the host panel.
Features:
- Eight additional supervised inputs.
- Four additional fully programmable relay outputs.
- LED status feedback for 12 V power and relay activation.
- Cost effective and simple installation.
- Compatible with Rosslare's AC-225x-B, AC-425x-B networked access control panels.
- Input and output configurability using Rosslare's AxTraxNGâ„¢ Server software (Version 27.5.7.x and above).
Specifications:
| Input Voltage | 12VDC |
| Input Current | Standby: 30mA / Maximum: 135 mA |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Output Relays | 5A Form C Relays, NO, NC and COM contacts and Form C Relays |
| Inputs Voltage | 5V DC |
| Dimensions | 100mm L x 75.9mm W x 32.5 D (3.93in. x 2.98 in. x 1.28 in.) |
