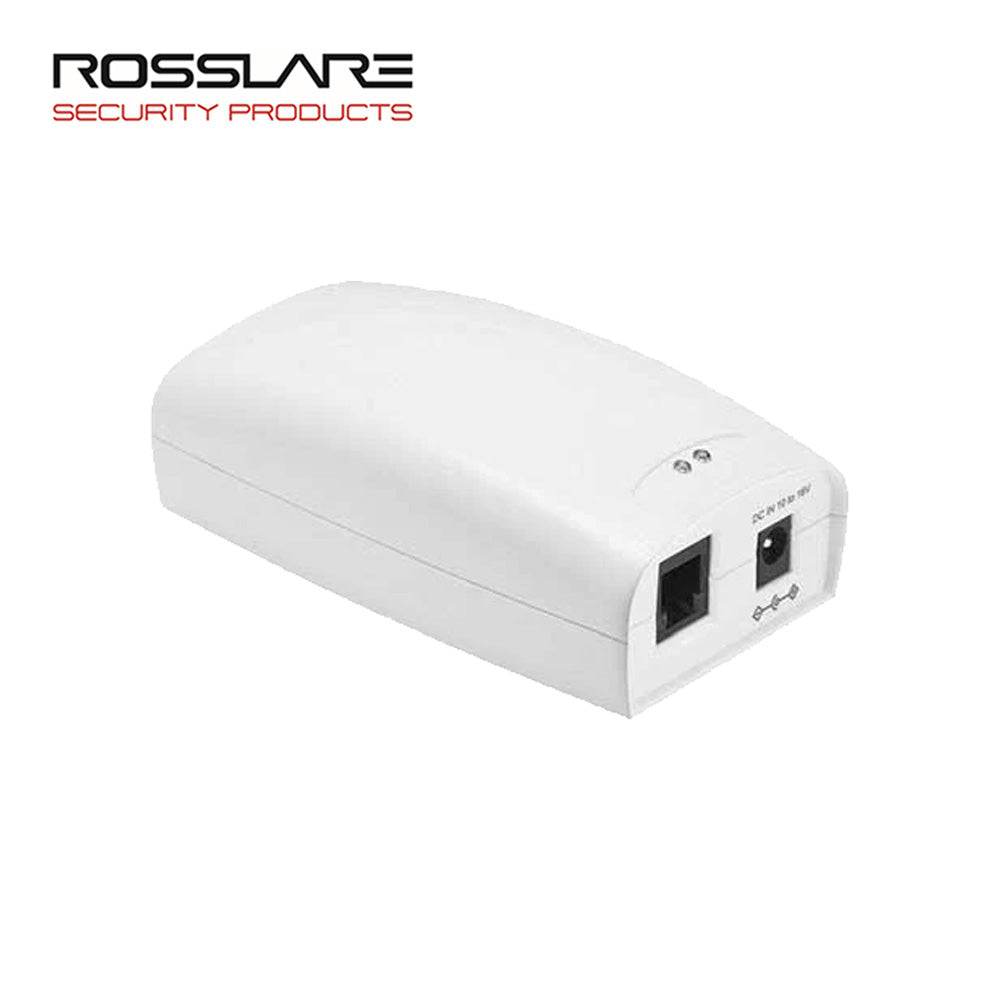

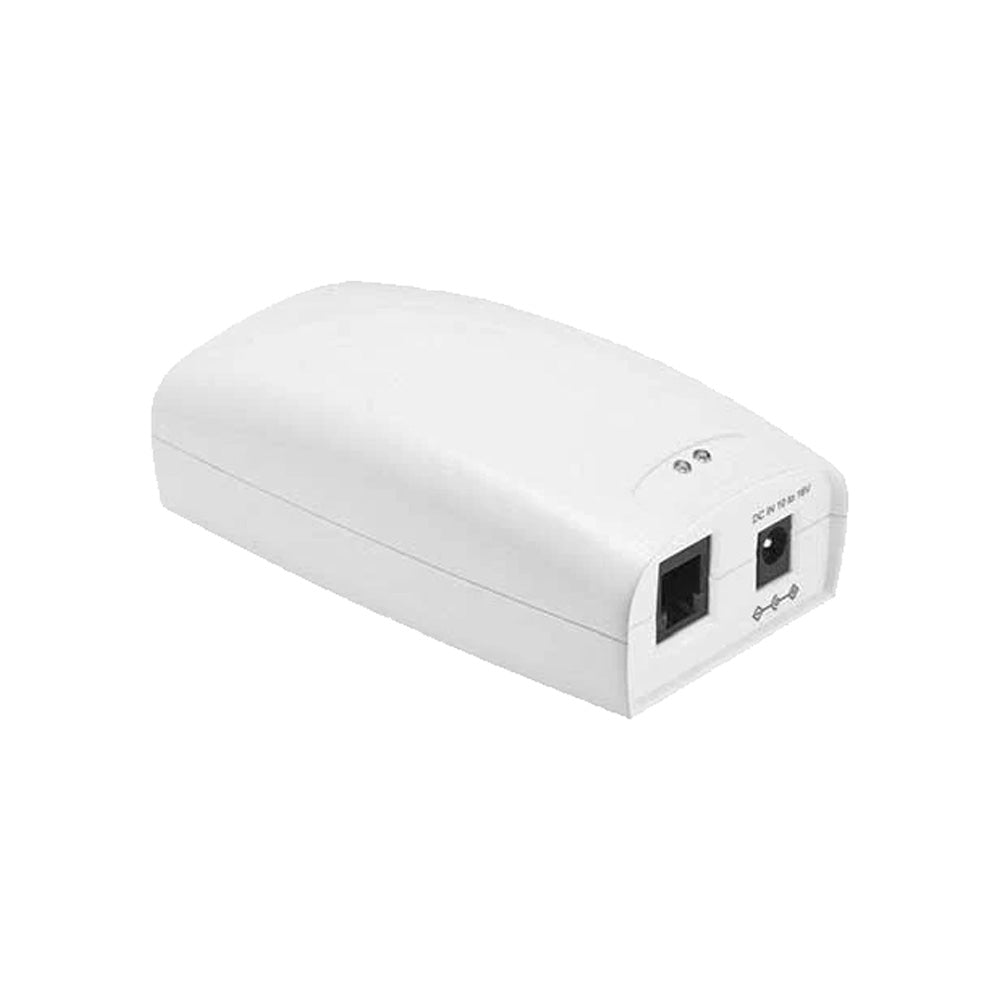

Rosslare - MD-N32 - Home Security Electronics and RS-232 To TCP/IP Adapter Ethernet Gateway
The MD-N32 is a powerful, high performance gateway designed to send and receive information between varied pc-managed access control system products via a LAN or WAN, thus saving on serial cabling installation. Integrally compatible with the AxTraxNG software, the MD-N32 gateway packs advanced features such as ping, search on LAN, variable baud rate, data type, MAC/IP address, and communication parameters. One unit can handle multi-door subnetworks (RS-485/232) connected via TCP/IP to the AxTraxNG server.
Features:
- Universal RS-232 to TCP/IP gateway for general use.
- Supports DHCP dynamic IP addressing.
- +12 VDC jack power input connector.
- RS-232 speed from 1200 bps to 230.4 Kbps.
- Bi-directional conversion of RS-232 to TCP/IP.
- Powered by external 12 V wall adapter type power supply.
Specifications:
| Input Power | 10 to 16 VDC |
| Power Consumption | Typical: 75 mA / Maximum: 115 mA |
| Serial Port | D9 male connector RS-232 |
| Data | 1, 4, 6, 7, 8, 9 - N.C. 2 - Rx 3 - Tx 5 - GND Signal |
| MCU | 32 bit micro-controller |
| Serial Line Format | 8-N-1, 8-O-1, 8-E-1, 7-O-1, 7-E-1 |
| Serial Flow Control | None, xON/xOFF |
| Transmission Speed | 1200 bps to ~115 Kbps |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Dimensions | 110 x 63 x 39 mm (4.33 x 2.48 x 1.54 in.) |
