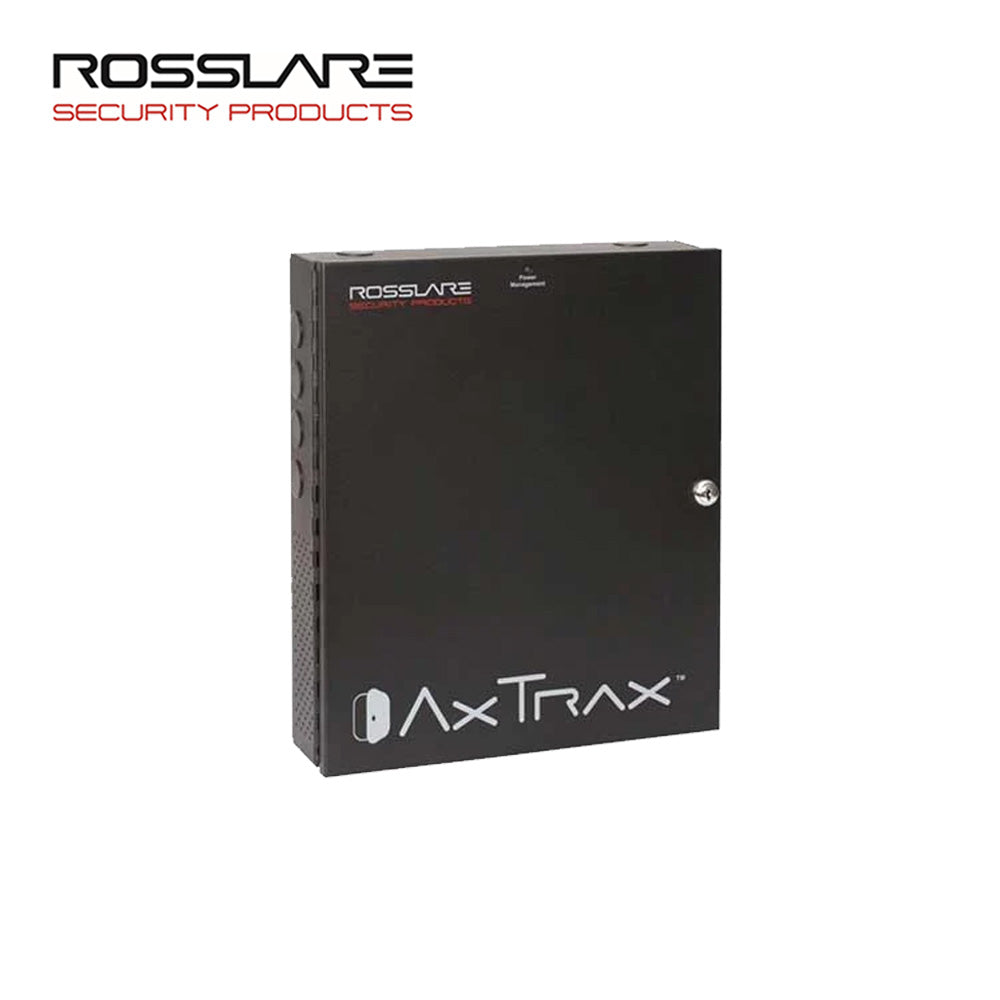

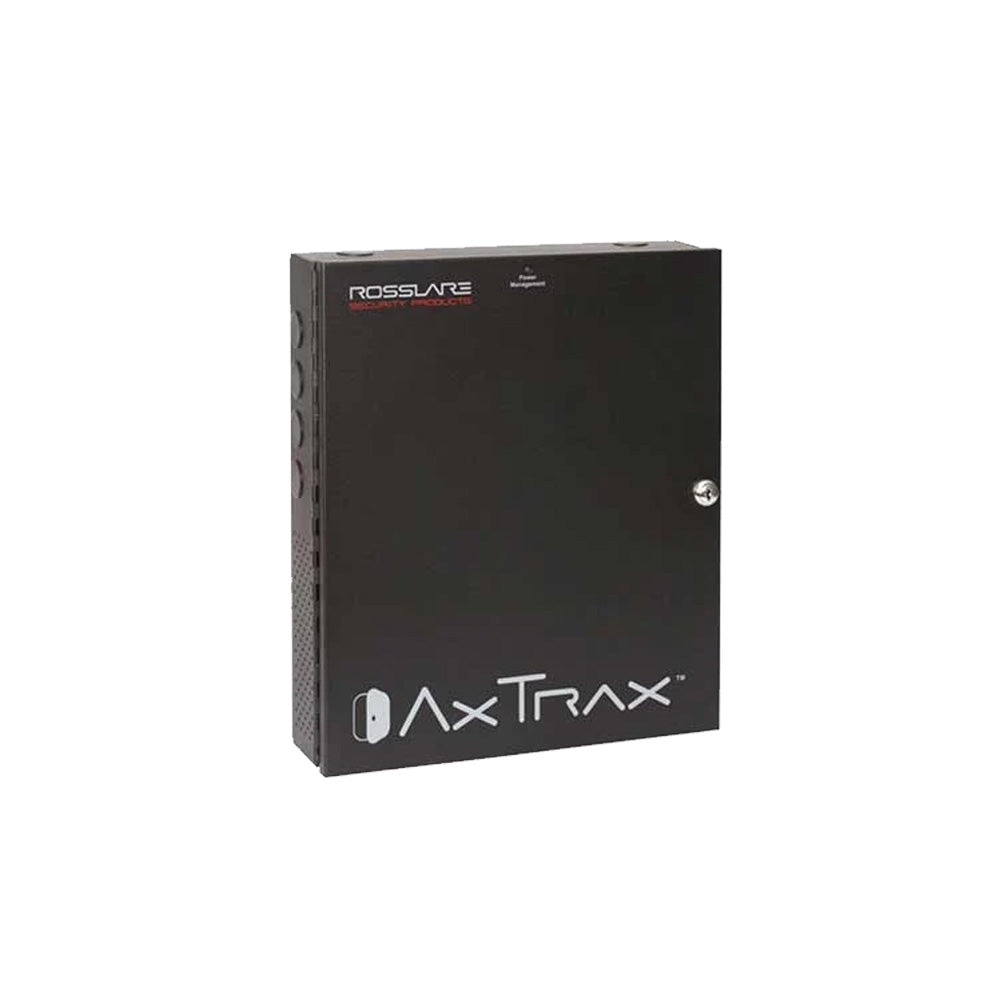

Rosslare - ME-1515 - Enclosure for AC-825IP Series
The is a power management enclosure in an innovative lockable metal cabinet designed for maximum ease of use, installation, and maintenance. The ME-1515 features a split managed power supply and UPS circuit that is designed to fit and power Rosslare's AC-8215IP series of access control panels.
Features:
- Global input voltage - 100 to 240 VAC, 1.6 A, 50/60Hz auto select.
- Power module delivers isolated 13.8 VDC power @ 2 Amp output channels with PTC resettable fuse and LED indications.
- Built-in power event generation to let the control panels receive power supply and UPS events.
- Built-in Rosslare LightBarâ„¢ for lighting the way during maintenance and installation.
- Full system hinge and key lock unit (including 2 keys), thick high-quality oven baked black matte coating.
- Silk screen of all the connections on inside of door. Rosslare PowerLockâ„¢ C13 socket - power cable can be secured using a locking mechanism and cannot be pulled out of the socket. Can be supplied with various C14 power plugs per country requirements.
- Supplied with removable terminal blocks and special key for ease of installation.
Specifications:
| Dimensions | (H x W x D) 346 x 404 x 101 mm (13.6 x 15.9 x 4.0 in.) |
| Type | Enclosure |
| Switch Mode PS Input Voltage | 100 ~ 240 VAC, 50 ~ 60 Hz from main power Maximum input current: 1.6 A |
| Switch Mode PS Output Voltage | 15 VDC, 4 A (60 W) to the PM-10 power management board |
| Power Output from PM-10 | Isolated PTC fused output, providing 13.8 VDC, 2 A |
| Battery Charger Output | 13.8 VDC, 300 mA for 12 VDC, 7 Ah lead acid battery |
| Built-In Speaker (Audio Indication) | 0.5 W, 8Ω |
| LED Indicators | 2 LED for Power Outputs 1 and 2 Green LED shows power status visible when case is closed |
| Operating Temperature Range | -5°C to 40°C (23°F to 104°F) |
| Lock Type | Mini-cylinder lock with 2 keys |
| Application | Secure Power Management Enclosure |
| Compatible | AC-825IP board or two R/S/D/P-805 expansions |
| Dimensions | 404 × 346 × 101 mm (15.9 x 13.6 x 4.0 in.) |
