Rosslare - P-805 - Controller Expansion Board - 16 Inputs and 8 Out...
Description
Description

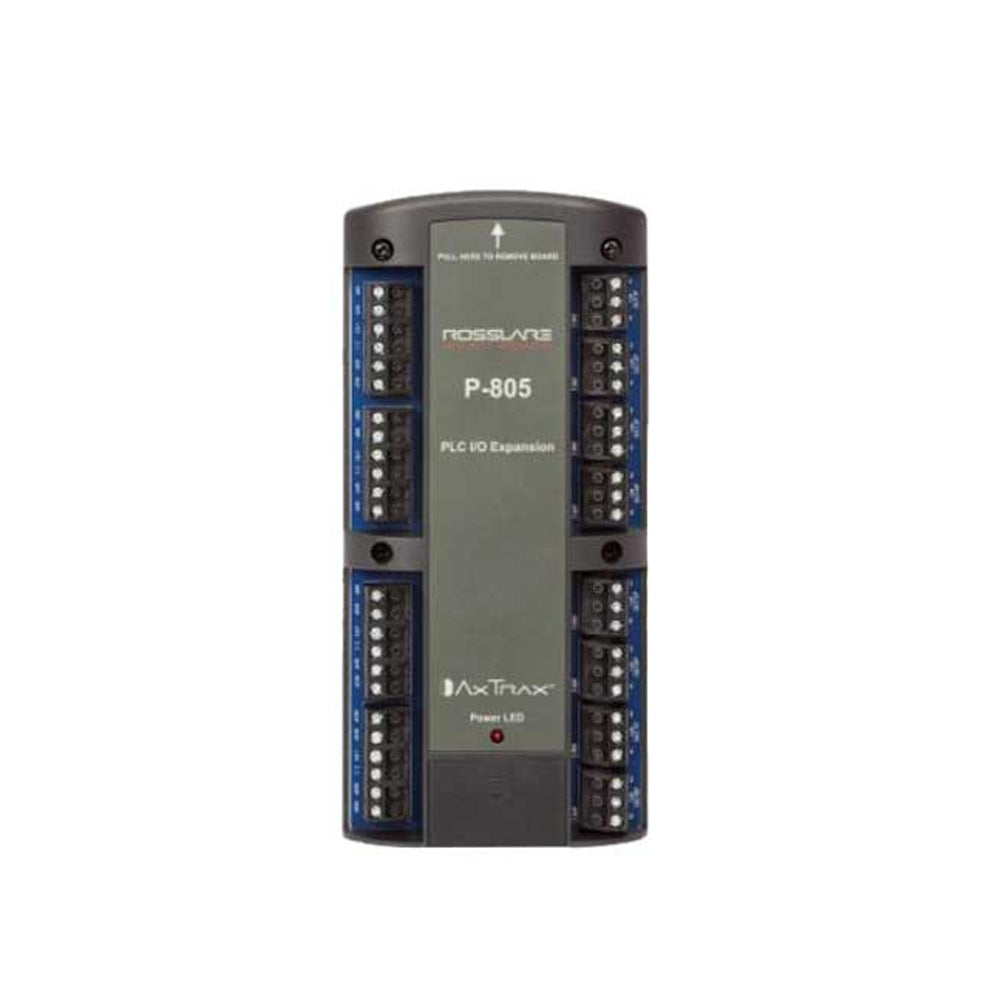

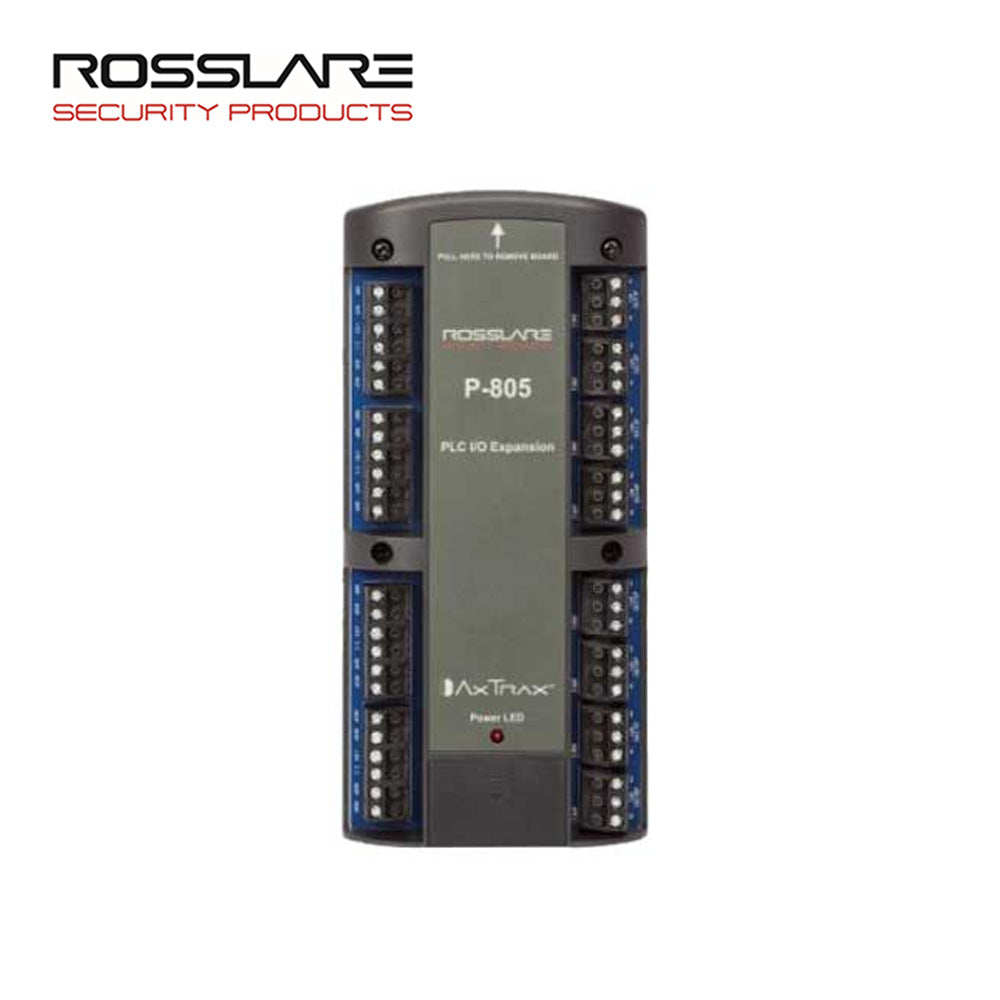

Rosslare - P-805 - Controller Expansion Board - 16 Inputs and 8 Outputs for AC-825IP
The P-805 is a 16-Input, 8-Output expansion board for the AC-825IP networked controller. The expansion board supports 16-supervised inputs and 8 relays (5 A Form-C) for general purpose and security application. An expansion slot can expand the controllers and up to 12 extensions can be connected via OSDP connected.
Specifications:
| Enclosure | ME-1515 (up to 2 R/S/D/P expansions) |
| Enclosure SMPS | Input: 90 to 265 VAC, 50-60 Hz, Switch mode power management board Output: 12 VDC, 4 A |
| PCBA Input Power | 12 VDC, 2 A, regulated power management board |
| Battery Charger | 12 V sealed lead acid (SLA) up to 7 Ah |
| Relays 5 A, Form-C | 8 |
| Inputs | 16 |
| Readers (Wiegand+OSDP) | N/A |
| Connectivity | OSDP |
| Board Dimensions | 7.0 x 3.4 x 1.1 in. |
| Enclosure Dimensions | 13.6 x 15.9 x 3.9 in. |
| Dimensions | 6.2 x 2.3 x 1.3 in. |
| Weight | 200 g (7.1 oz) |
Downloads:
