Sargent | SKU: SAR-1431-O-10BE-RH

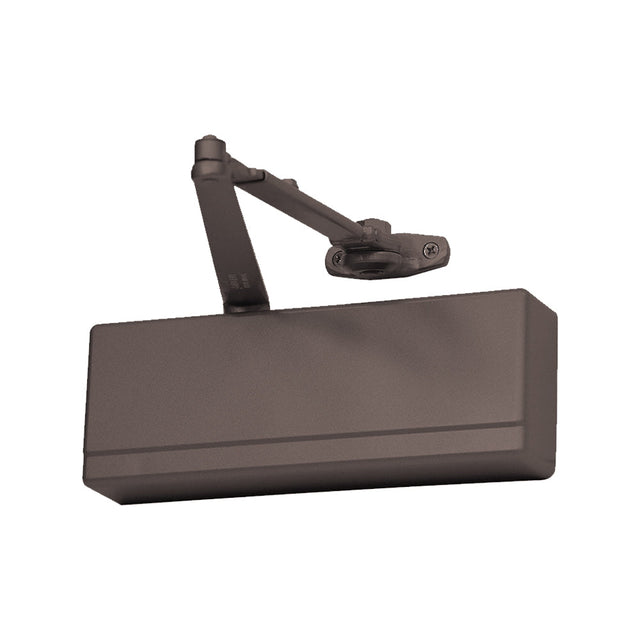

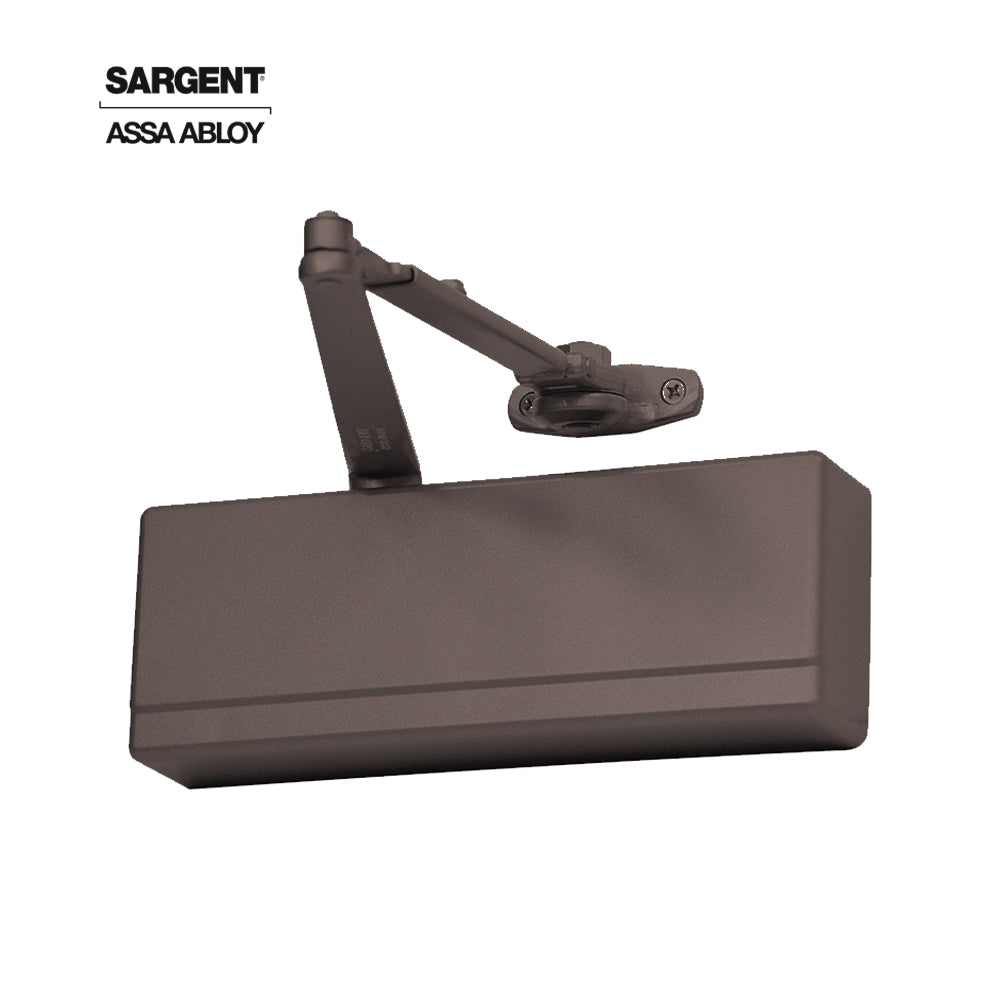

Sargent - 1431 - Powerglide Cast Iron Surface Door Closer - Standard and Top Jamb Applications - Plastic Cover - Grade 1 - 10BE (Dark Anodized, Satin Bronze)

$341¹² ~~$409³⁴~~

Shipping calculated at checkout.

Secure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more

Description

Sargent - 1431 - Powerglide Cast Iron Surface Door Closer - Standard and Top Jamb Applications - Plastic Cover - Grade 1 - 10BE (Dark Anodized, Satin Bronze)

The 1431 Series of surface mounted door closers has been engineered to meet the demands of architects and building owners. The 1431 Series is a complete line of closers for interior and exterior doors with quality and flexibility to meet virtually every application.

Exceeds 15 Million cycles
Certified ANSI/BHMA A156.4 Grade 1
UL 10C listed for positive pressure fire test
UL / cUL listed for use on fire rated doors
User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
Self sticking templates supplied for most applications

Benefits:

Operates effectively in extreme heat and cold without readjustment
Meets ADA requirements in all applications except push-side track applications
Versatile mounting permits standard, top jamb, parallel and track installations

Arm Types:

O - Standard Arm
RO - Regular Arm
H - Hold Open Arm
O8 - Mortise Foot Arm
H8 - Mortise Foot Hold Open Arm
OLC - Standard Arm for Low Ceiling
UH - Universal Hold Arm
UO - Universal Standard Arm
ROU - Universal Regular Arm
OZ - Standard Arm Deep Reveals
HZ - Hold Open Arm for Deep Reveals
OZA - Standard Arm for Extra Deep Reveal
HZA - Hold Open Arm for Extra Deep Reveal

Finish:

10BE - Dark Anodized, Satin Bronze
EB - Sprayed Bronze Enamel to match Dark Satin Bronze
ED - Sprayed Bronze Enamel to match Dark Statuary Bronze
EN - Sprayed Aluminum Enamel
EP - Sprayed Bronze Enamel to match Satin Bronze
EAB - Sprayed Brass Enamel
BSP - Black Suede Powder Coat
WSP - White Suede Powder Coat

Product Specifications:

Manufacturer	Sargent
Grade	Grade 1
Installation	Commercial
Unit of Measure	Each
Base Material	VARIES
Fire Rated	3 Hours {A}

Technical Specifications:

Construction	Heavy Duty Aluminum Alloy
Function	Door Closer
Interior or Exterior	Universal
Handing	Non-Handed
Door Width	24 - 48"
Diameter Piston	1-1/2"
Projection from Wall	2-1/4"
Application	Standard, Top Jamb, Parallel
Fasteners	Machine Screws and self tapping screws provided for closer and arm
Max. Door Opening	120° Standard 180° with alternate mounting or corner bracket
ADA	Meets ADA requirements in all applications, except Push Side Track application
Fire Rating	UL 10C listed for positive pressure fire test
Certifications	Certified ANSI/BHMA A156.4 Grade 1
