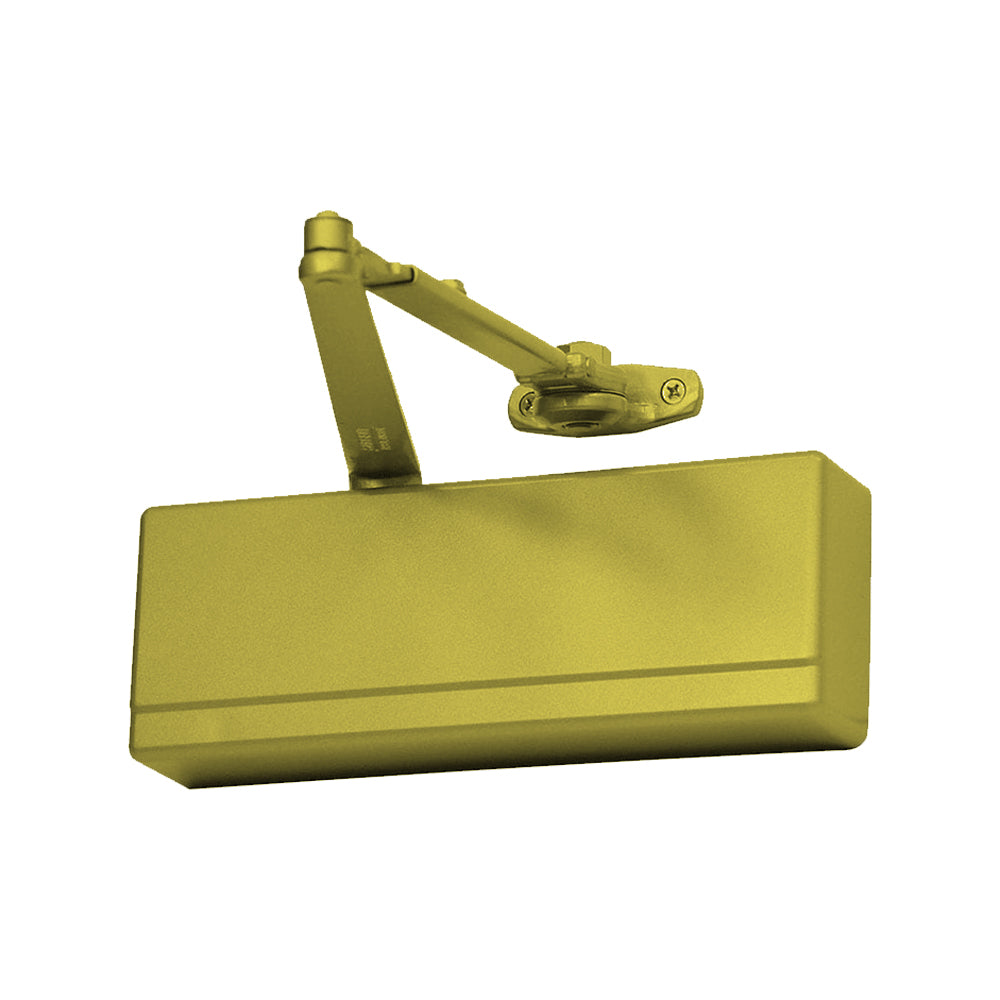

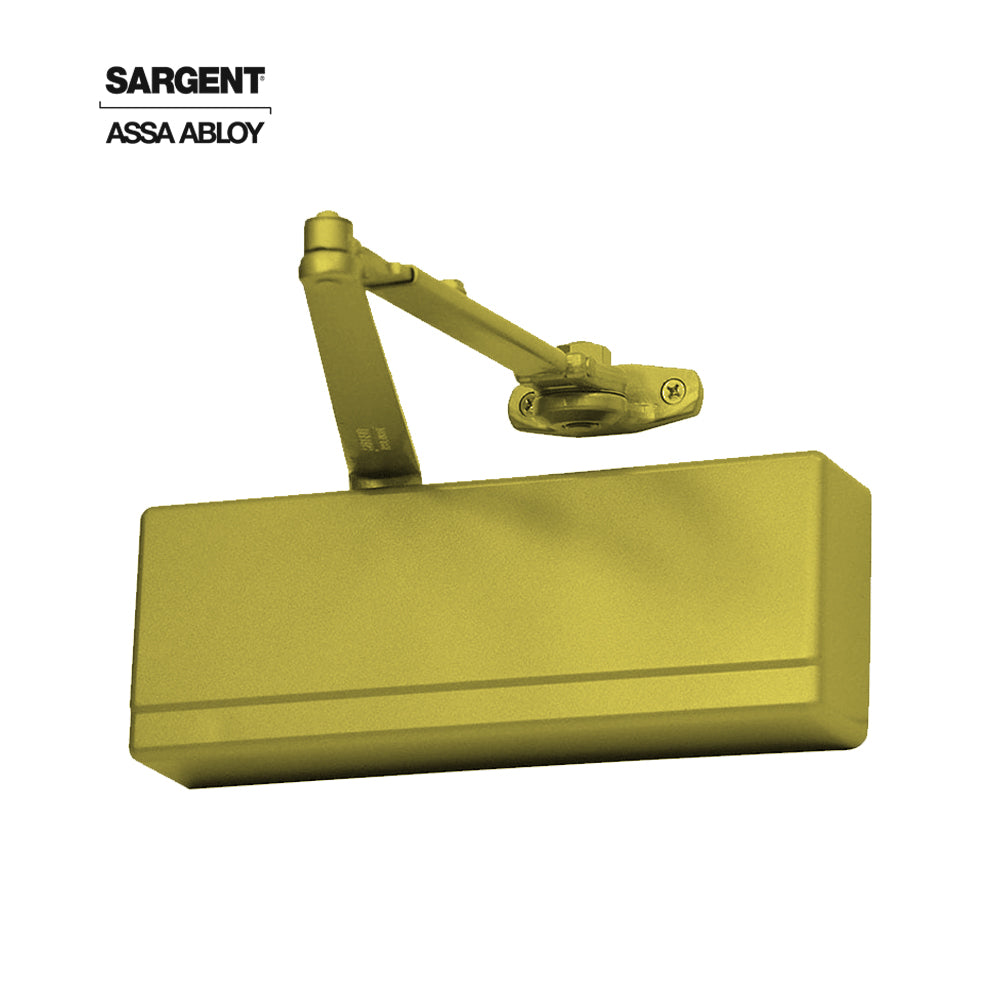

Sargent - 1431 - Powerglide Cast Iron Surface Door Closer - Standard and Top Jamb Applications - Plastic Cover - Grade 1 - EAB (Sprayed Brass Enamel)
The 1431 Series of surface mounted door closers has been engineered to meet the demands of architects and building owners. The 1431 Series is a complete line of closers for interior and exterior doors with quality and flexibility to meet virtually every application.
- Exceeds 15 Million cycles
- Certified ANSI/BHMA A156.4 Grade 1
- UL 10C listed for positive pressure fire test
- UL / cUL listed for use on fire rated doors
- User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
- Self sticking templates supplied for most applications
Benefits:
- Operates effectively in extreme heat and cold without readjustment
- Meets ADA requirements in all applications except push-side track applications
- Versatile mounting permits standard, top jamb, parallel and track installations
Arm Types:
- O - Standard Arm
- RO - Regular Arm
- H - Hold Open Arm
- O8 - Mortise Foot Arm
- H8 - Mortise Foot Hold Open Arm
- OLC - Standard Arm for Low Ceiling
- UH - Universal Hold Arm
- UO - Universal Standard Arm
- ROU - Universal Regular Arm
- OZ - Standard Arm Deep Reveals
- HZ - Hold Open Arm for Deep Reveals
- OZA - Standard Arm for Extra Deep Reveal
- HZA - Hold Open Arm for Extra Deep Reveal
Finish:
- 10BE - Dark Anodized, Satin Bronze
- EB - Sprayed Bronze Enamel to match Dark Satin Bronze
- ED - Sprayed Bronze Enamel to match Dark Statuary Bronze
- EN - Sprayed Aluminum Enamel
- EP - Sprayed Bronze Enamel to match Satin Bronze
- EAB - Sprayed Brass Enamel
- BSP - Black Suede Powder Coat
- WSP - White Suede Powder Coat
Product Specifications:
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | VARIES |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Construction | Heavy Duty Aluminum Alloy |
| Function | Door Closer |
| Interior or Exterior | Universal |
| Handing | Non-Handed |
| Door Width | 24 - 48" |
| Diameter Piston | 1-1/2" |
| Projection from Wall | 2-1/4" |
| Application | Standard, Top Jamb, Parallel |
| Fasteners | Machine Screws and self tapping screws provided for closer and arm |
| Max. Door Opening | 120° Standard 180° with alternate mounting or corner bracket |
| ADA | Meets ADA requirements in all applications, except Push Side Track application |
| Fire Rating | UL 10C listed for positive pressure fire test |
| Certifications | Certified ANSI/BHMA A156.4 Grade 1 |
