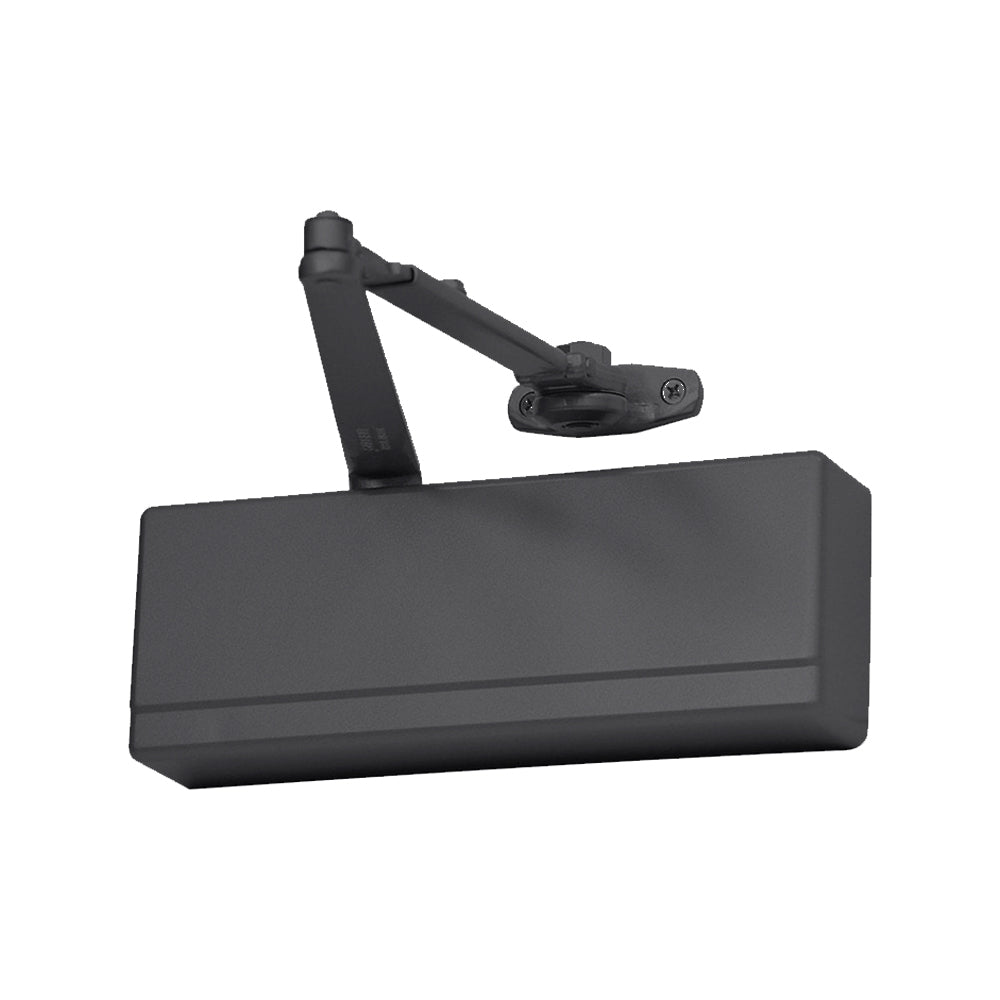

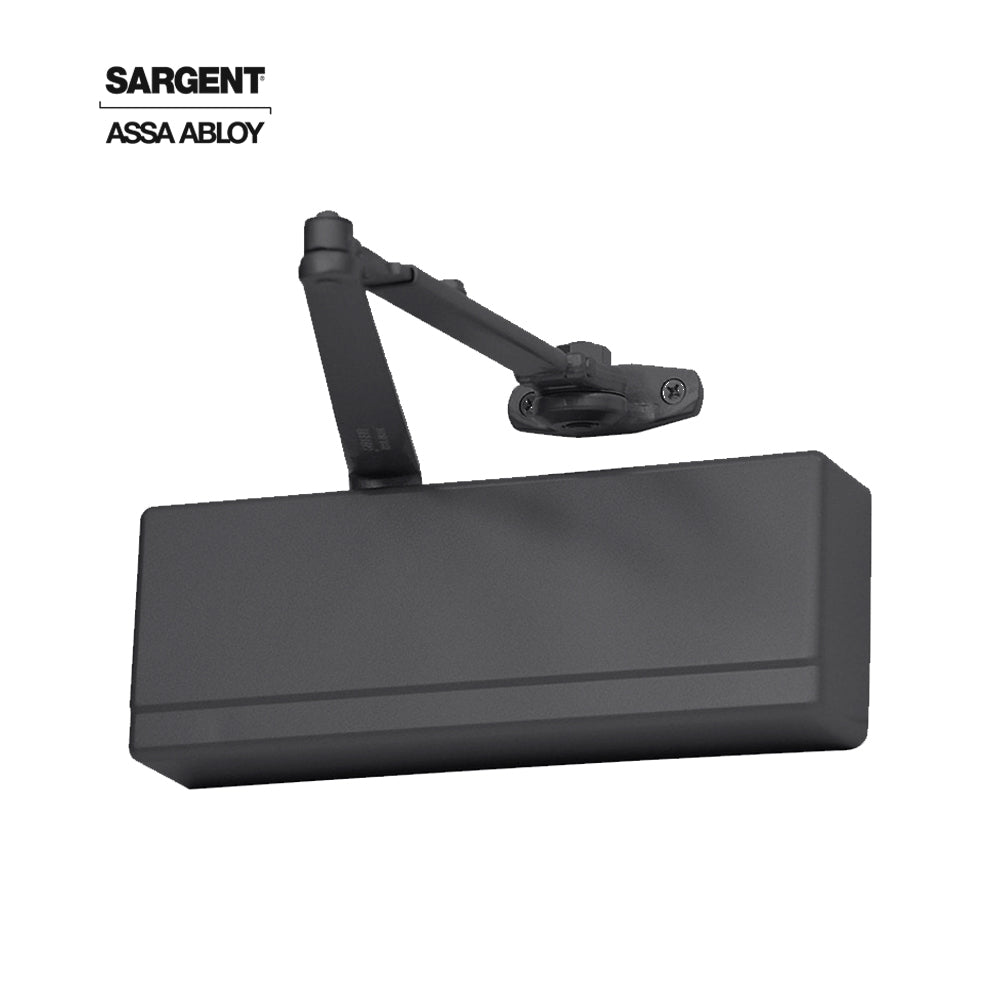

Sargent - 1431 - Powerglide Cast Iron Surface Door Closer - Track Type Applications - Plastic Cover - Grade 1 - BSP (Black Suede Powder Coat)

Sargent - 1431 - Powerglide Cast Iron Surface Door Closer - Track Type Applications - Plastic Cover - Grade 1 - BSP (Black Suede Powder Coat)

The 1431 Series of surface mounted door closers has been engineered to meet the demands of architects and building owners. The 1431 Series is a complete line of closers for interior and exterior doors with quality and flexibility to meet virtually every application.

• Exceeds 15 Million cycles
• Certified ANSI/BHMA A156.4 Grade 1
• UL 10C listed for positive pressure fire test
• UL / cUL listed for use on fire rated doors
• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
• Self sticking templates supplied for most applications

Benefits:

• Operates effectively in extreme heat and cold without readjustment
• Meets ADA requirements in all applications except push-side track applications
• Versatile mounting permits standard, top jamb, parallel and track installations

Arm Types:

• OT - Pull Track Arm
• OTB - Pull with Bumper Track Arm
• HT - Pull with Hold Track Ark
• HTB - Pull with Holder and Bumper Track Arm
• OD - Pull Double Egress
• ODB - Pull Double Egress with Bumper
• HD - Pull Double Egress with Holder
• HDB - Pull Double Egress with Holder and Bumper
• POT - Push Track Arm
• POTB - Push with Bumper Track Arm
• PHT - Push with Holder Track Arm
• PHTB - Push with Holder and Bumper Track Arm

Finish:

• 10BE - Dark Anodized, Satin Bronze
• EB - Sprayed Bronze Enamel to match Dark Satin Bronze
• ED - Sprayed Bronze Enamel to match Dark Statuary Bronze
• EN - Sprayed Aluminum Enamel
• EP - Sprayed Bronze Enamel to match Satin Bronze
• EAB - Sprayed Brass Enamel
• BSP - Black Suede Powder Coat
• WSP - White Suede Powder Coat

Product Specifications:

Download:

• Catalog
• OT/OTB/HT/HTB Arm Installation Instruction
• POT/POTB/PHT/PHTB Arm Installation Instruction
