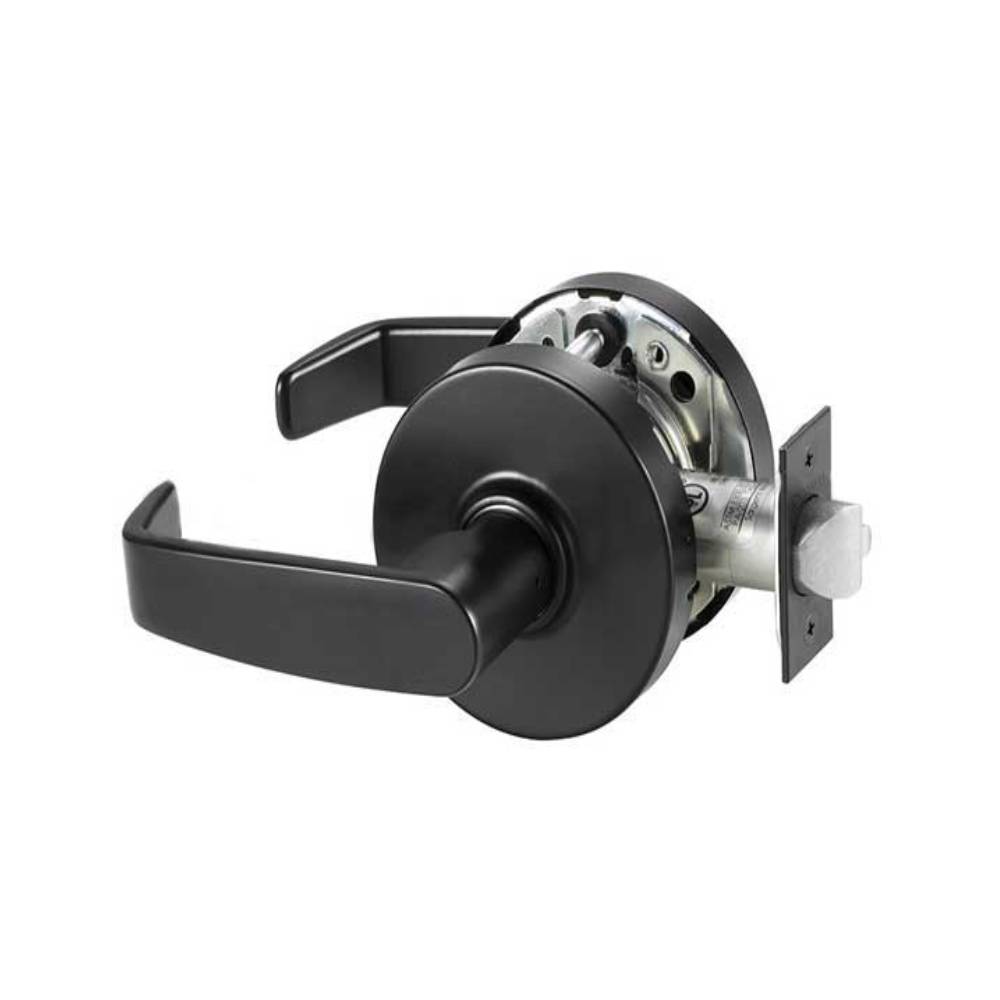

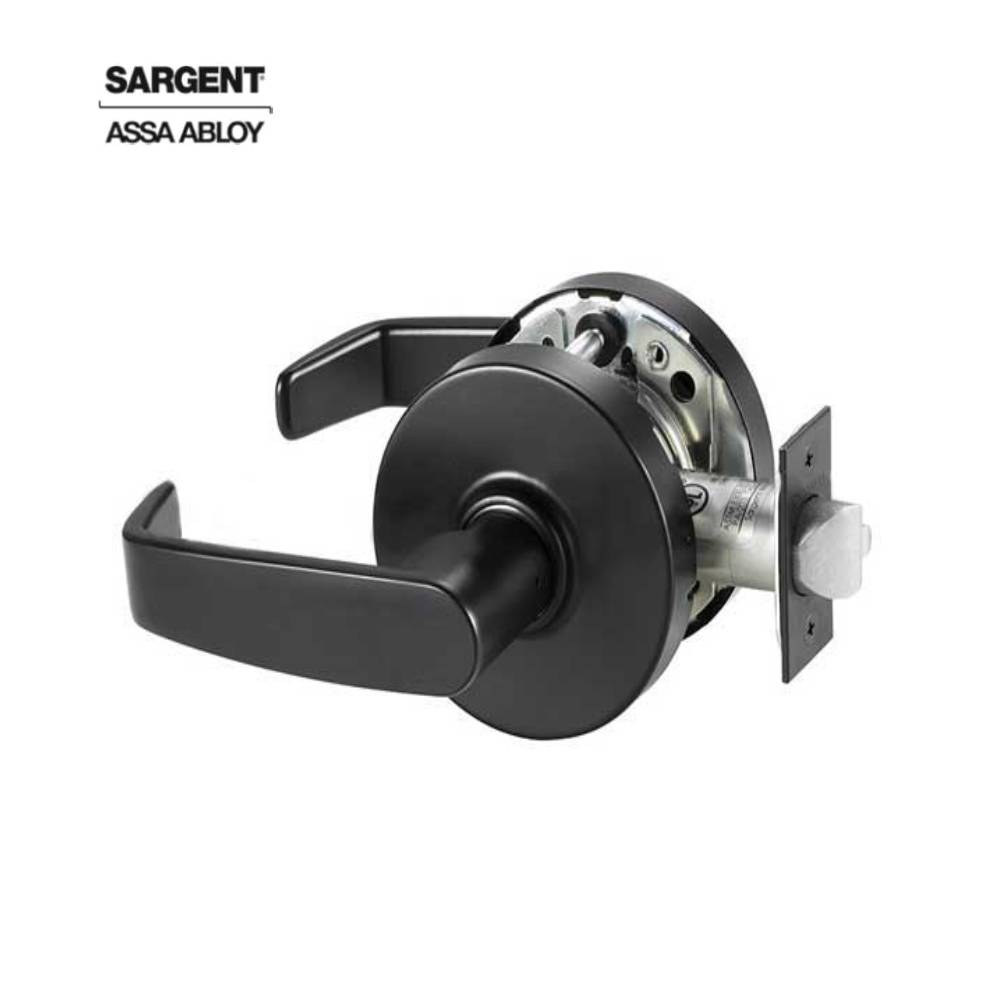

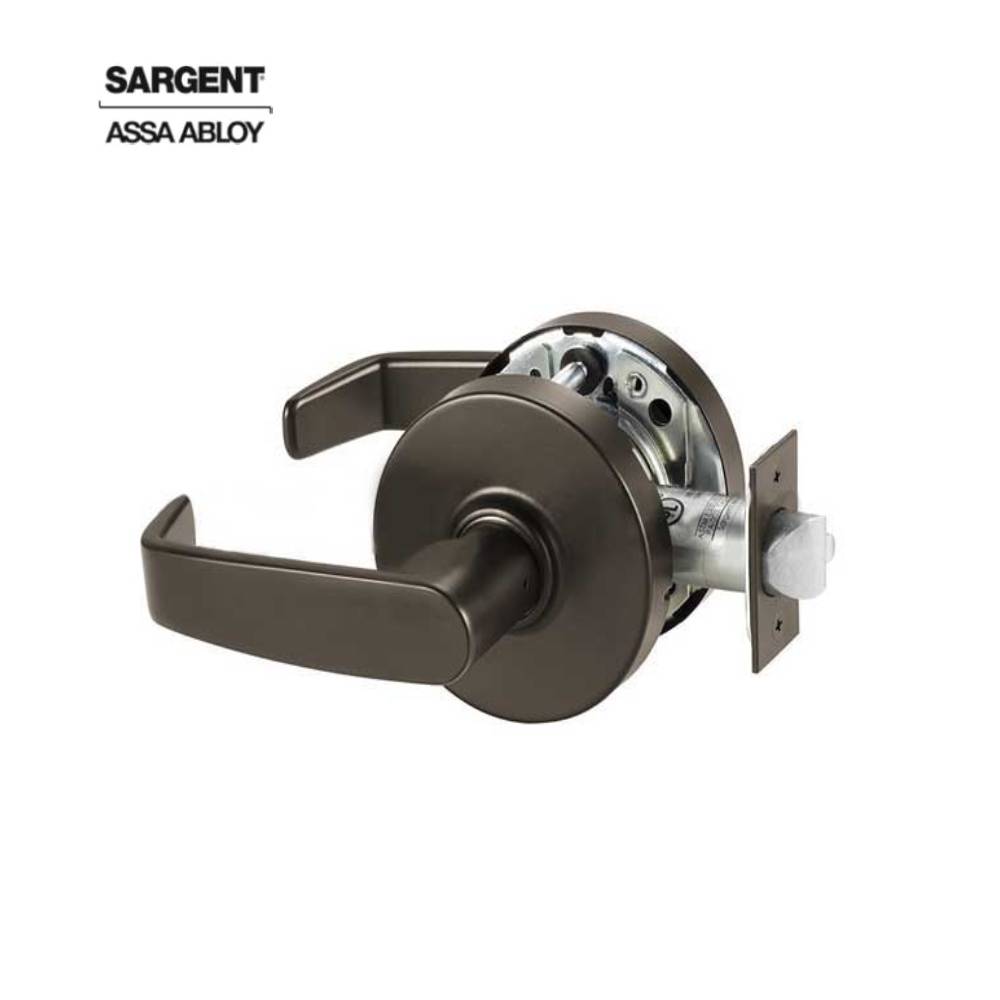

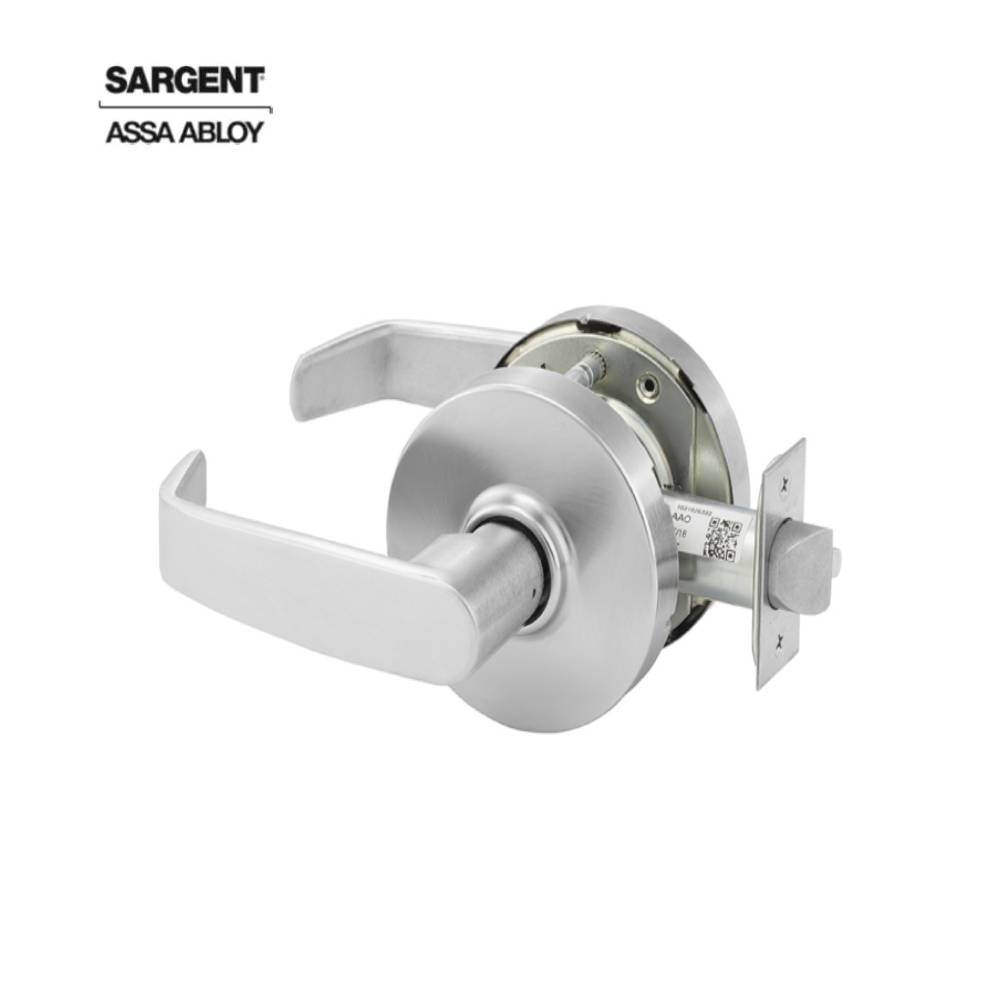

Sargent - 28-10U15 - Passage Cylindrical Lock with 2-3/4" Backset and 4-7/8" ASA Strike - L Lever - Grade 1 - Optional Color
The 28-10U15 is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.
Feature:
- ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
- UL-cUL listed for 3 hour fire doors and windstorm applications
- Freewheeling trim optional
- Available in 21 different functions, including classroom security and electromechanical options for access control applications
- Offered in 12 architectural grade finishes to match any decor
- Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage and Medeco LFIC)
- 6 lever designs, 2 rose designs offered
- Applications: Offices, Schools/Universities, Hospitals, Manufacturing facilities
Product Specifications:
| Vendor | ASSA ABLOY |
| Manufacturer | Sargent |
| SKU | 28-10U15 LL BSP 28-10U15 LL 26D 28-10U15 LL 10BE |
| UID | SAR1002810U15LLBSP SAR1002810U15LL26D SAR1002810U15LL10BE |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Heavy Duty |
| Fire Rated | 3 Hours {A} |
| Finish | BSP US26D US10BE |
Technical Specifications:
| Function | 15-Passage Lock |
| ANSI Function | F75 - Passage |
| Lever/Knob Design | L Lever |
| Rose/Escutcheon Design | L Rose |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type | Non-Keyed |
| Handing | Not Handed |
| Door Thickness | 1-3/4" - 2" |
| Std. Latch Number | 36800 |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 808 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Product Type | Cylindrical Lock |
