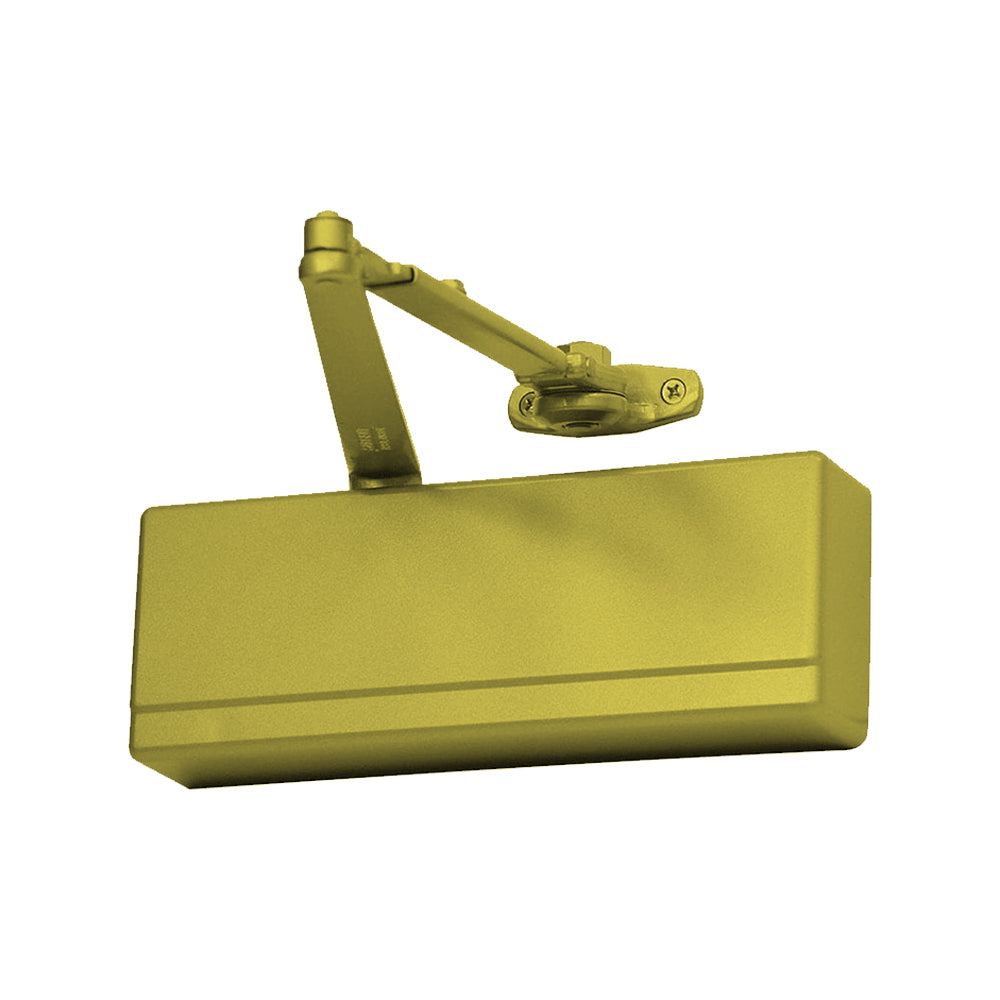

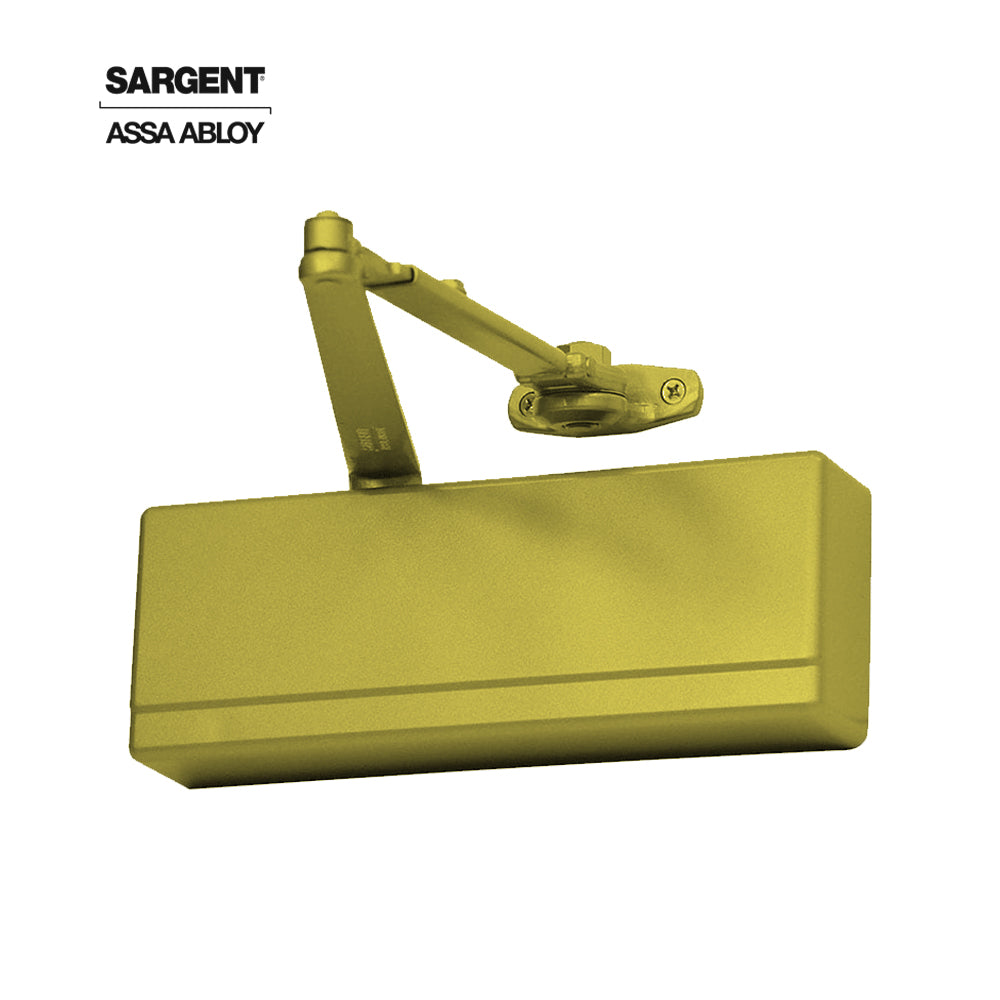

Sargent - 281 - Powerglide Cast Iron Surface Door Closer - Standard and Top Jamb Applications - Plastic Cover - Grade 1 - EAB (Sprayed Brass Enamel)

Sargent - 281 - Powerglide Cast Iron Surface Door Closer - Standard and Top Jamb Applications - Plastic Cover - Grade 1 - EAB (Sprayed Brass Enamel)

The 281 Series has been engineered to meet the demands of architects and building owners. The 281 Series is a complete line of closers for interior and exterior doors with quality and flexibility to meet virtually every application. Designed to meet the needs of facilities maintaining “cast iron” specifications, the 281 Series Powerglide® Cast Iron Door Closer features a heavy-duty one-piece cast iron body for superior strength and wear resistance. With a full complement of arm types and front-facing valves, the 281 series can be easily installed and maintained—for interior and exterior applications.

• ANSI/BHMA A156.4 – 2000 Grade 1 certified
• Meets Buy America Act
• Conforms to UL10C and UBC for positive pressure fire test
• 10 Year Warranty
• Versatile mounting applications permit standard, top jamb, parallel and track installations
• UL and CUL listed for use on fire doors

Benefits:

• Operates effectively in extreme heat and cold without readjustment
• Meets ADA requirements in all applications except push-side track applications
• Versatile mounting permits standard, top jamb, parallel and track installations

Arm Types:

• O - Standard Arm
• H - Hold Open Arm
• O8 - Mortise Foot Arm
• H8 - Mortise Foot Hold Open Arm
• OLC - Standard Arm for Low Ceiling
• UH - Universal Hold Arm
• UO - Universal Standard Arm
• O10 - Standard Heavy-Duty Arm
• H10 - Standard Holder Heavy Duty Arm
• OZ - Standard Arm Deep Reveals
• HZ - Hold Open Arm for Deep Reveals
• OZA - Standard Arm for Extra Deep Reveal
• HZA - Hold Open Arm for Extra Deep Reveal

Finish:

• 10BE - Dark Anodized, Satin Bronze
• EB - Sprayed Bronze Enamel to match Dark Satin Bronze
• ED - Sprayed Bronze Enamel to match Dark Statuary Bronze
• EN - Sprayed Aluminum Enamel
• EP - Sprayed Bronze Enamel to match Satin Bronze
• EAB - Sprayed Brass Enamel
• BSP - Black Suede Powder Coat
• WSP - White Suede Powder Coat

Specifications:

Download:

• Catalog
• O10, H10 & SSO Arm Installation Instruction
• “H” Holder Arm Installation Instruction
• Regular Arm Installation Instruction
