Description
Description

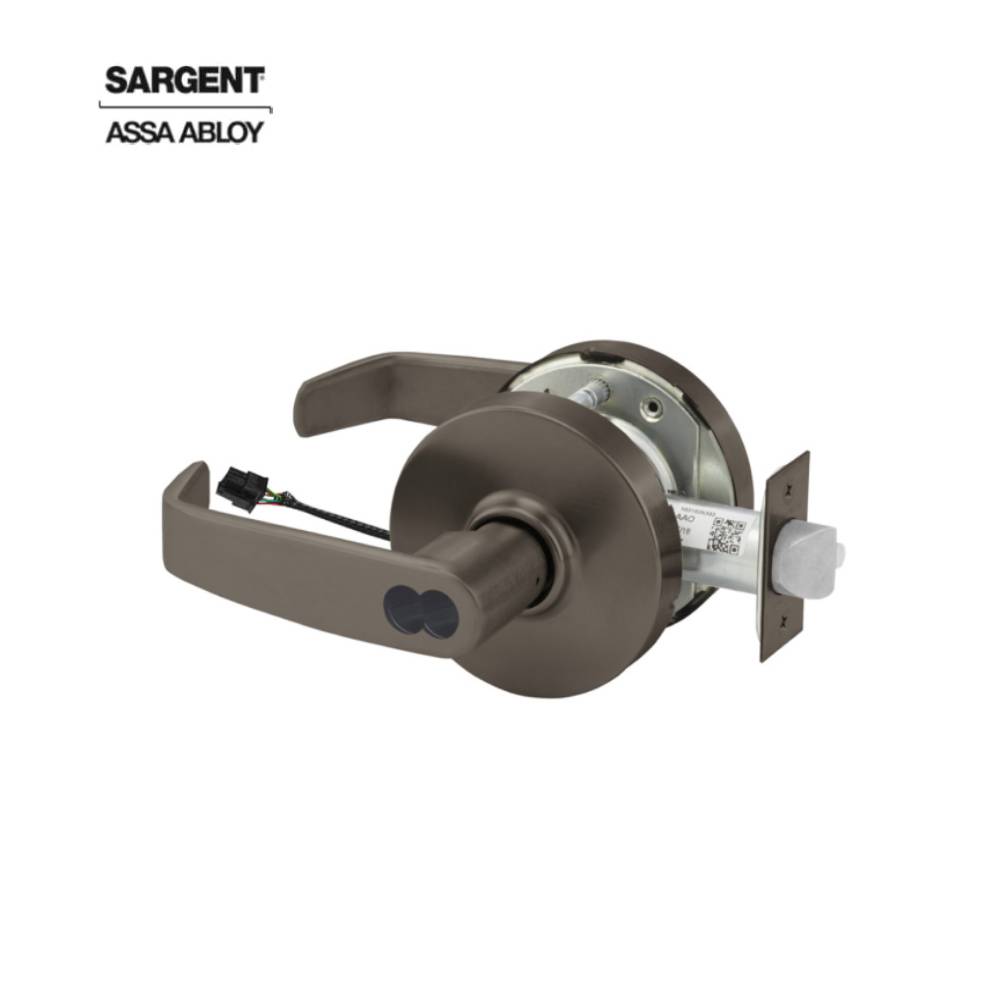

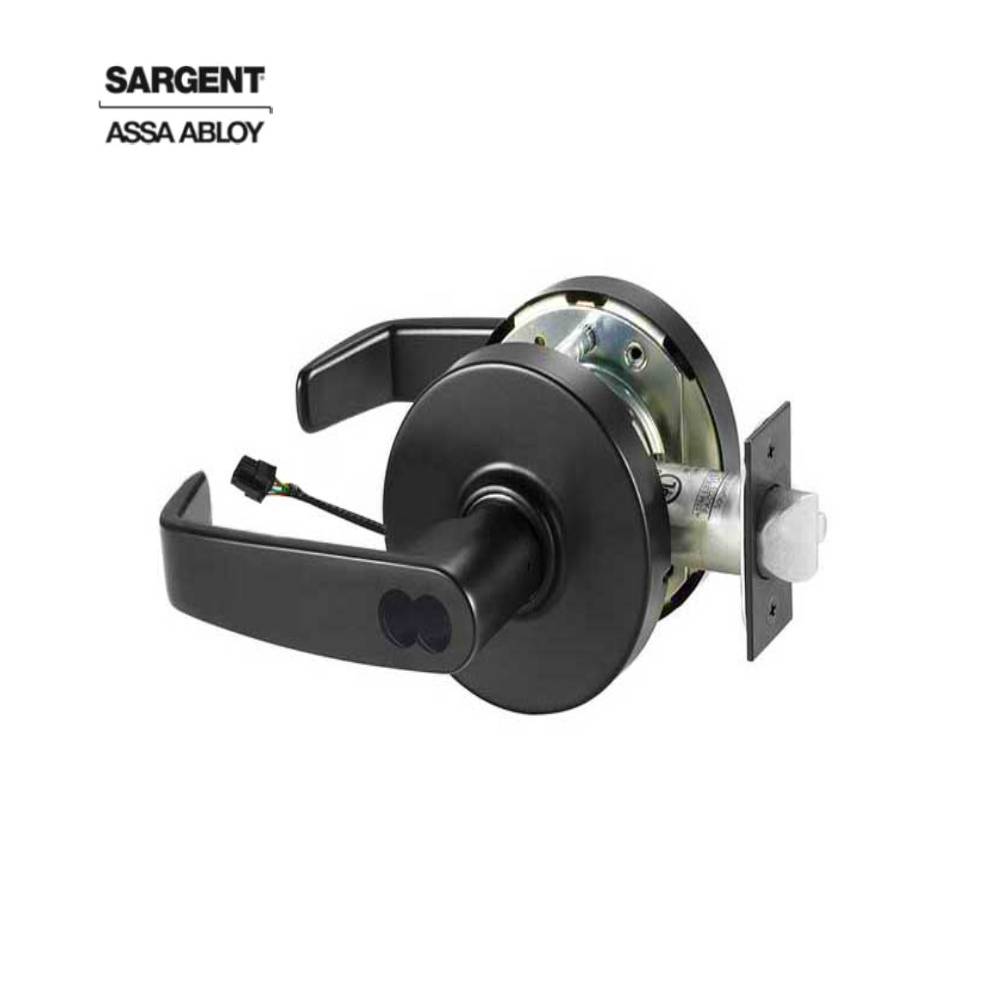

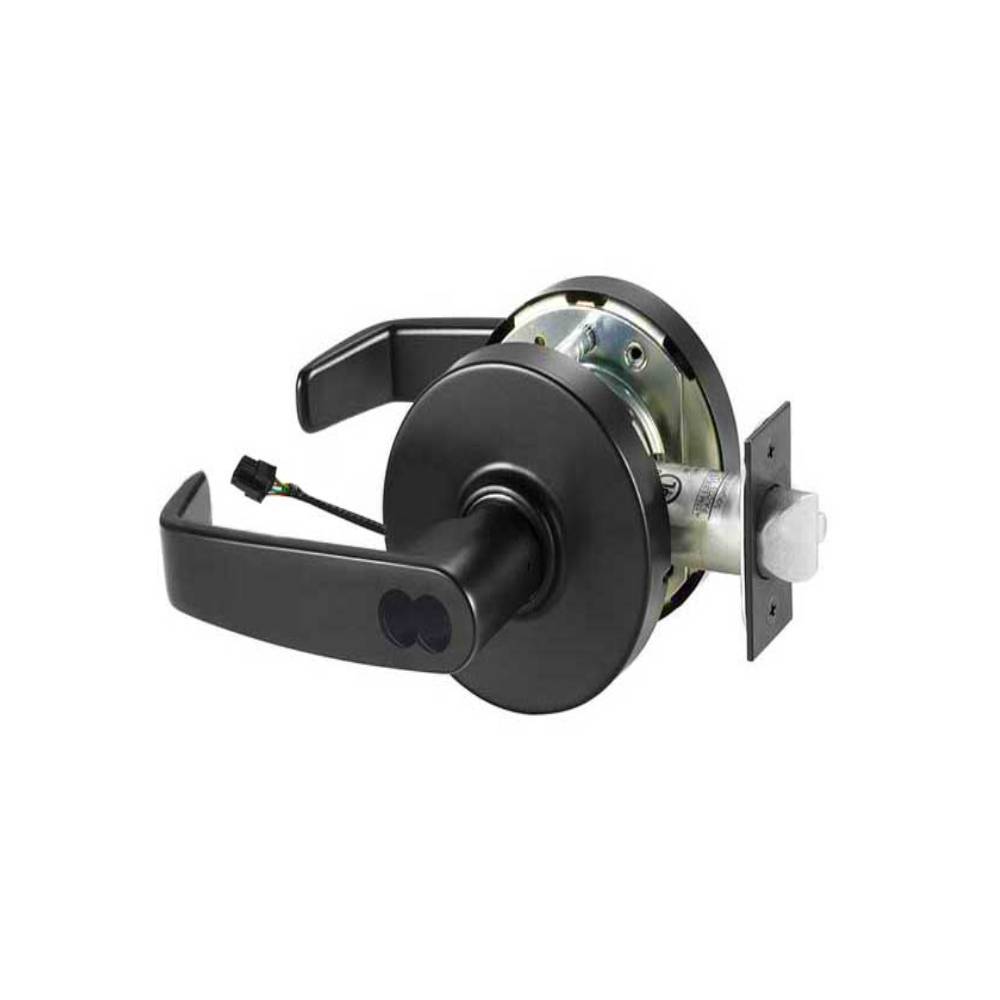

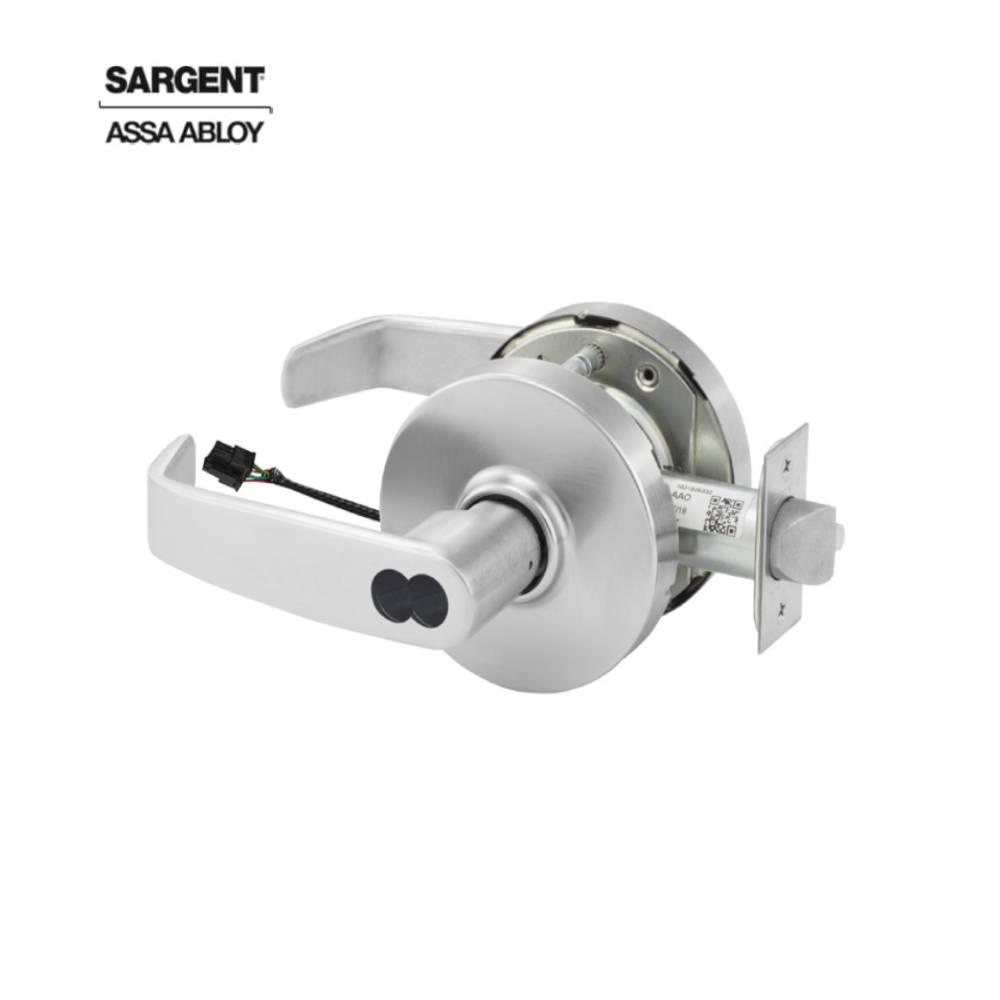

Sargent - 2870-10G70 - Electrified Cylindrical Lock Fail Secure with 2-3/4" Backset and 4-7/8" ANSI Strike - 24V - LL Design - SFIC Prep - Optional Color
A heavy duty electrified cylindrical key-in-lever handle lockset exceeds by nine times the Grade 1 standards. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.
Feature:
- 10G70: Power off, unlocks outside lever
- 10G71: Power off, locks outside lever
- Deadlocking latch
- Key retracts latch
- Inside lever always allows egress
- Voltage requirements: 12VDC or 24VDC Regulated; always specify voltage
- 250mA at 24VDC or 500mA at 12VDC
- Provided with ElectroLynx 8-Pin Connector
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Sargent |
| SKU | 2870-10G70-24V LL BSP 2870-10G70-24V LL 26D 2870-10G70-24V LL 10B |
| UID | SAR287010G7024VLLBSP SAR100287010G7024VLL26D SAR100287010G7024VLL10B |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Fire Rated | 3 Hours {A} |
| Finish | BSP US26D US10B |
Technical Specifications:
| Function | 70-Electromechanical Fail Safe |
| Lever/Knob Design | L - Lever |
| Rose/Escutcheon Design | L - Rose |
| Cylinder Type | SFIC Prep Less Core |
| Hand | Non Handed |
| Door Thickness | 1-3/4" to 2" |
| Latch Number | 472169 |
| Latch Type | Dead Latch (Guarded) |
| Latch Backset Dim | 2-3/4" |
| Lock Face Size | 2-1/4" X 1-1/8" |
| Bolt Projection | 1/2" |
| Strike Number | 808 |
| Strike Type | ASA |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 24VDC |
| Amp Draw | 250mA |
| Product Type | Electric Cylindrical Lock |
