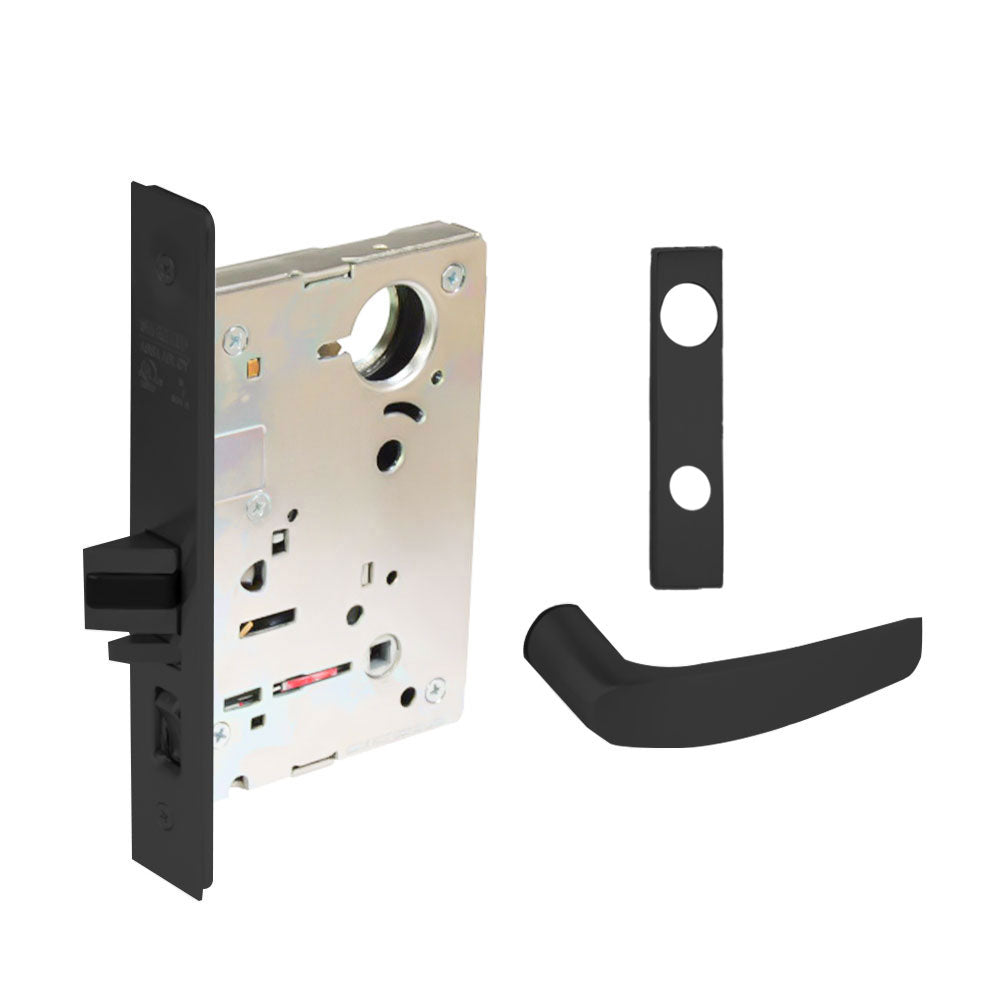

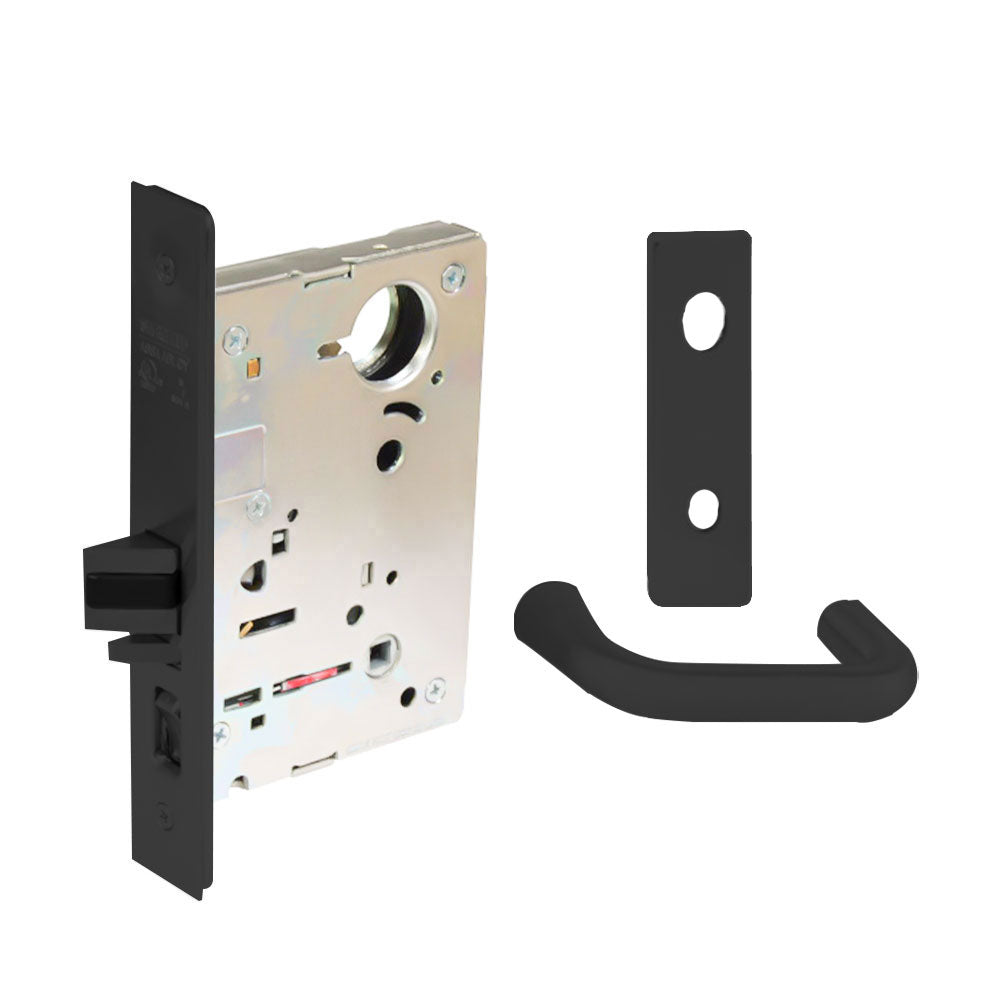

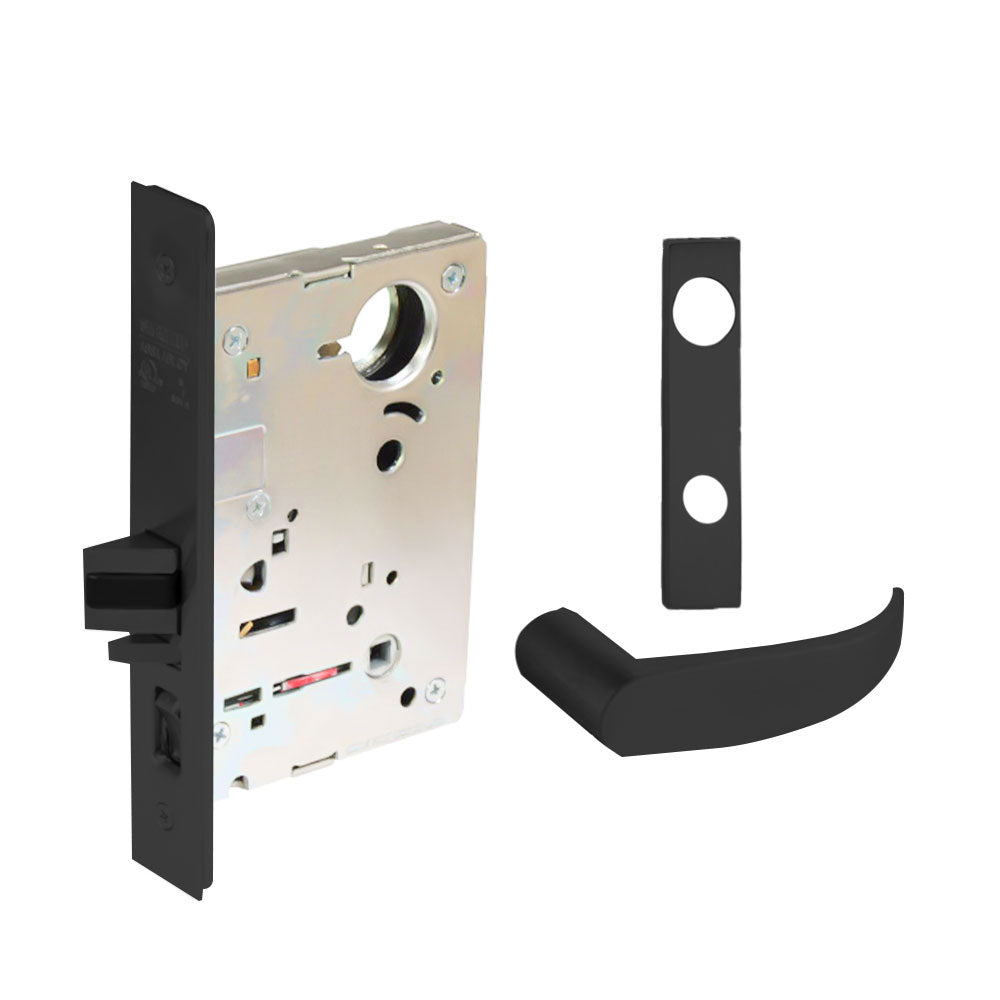

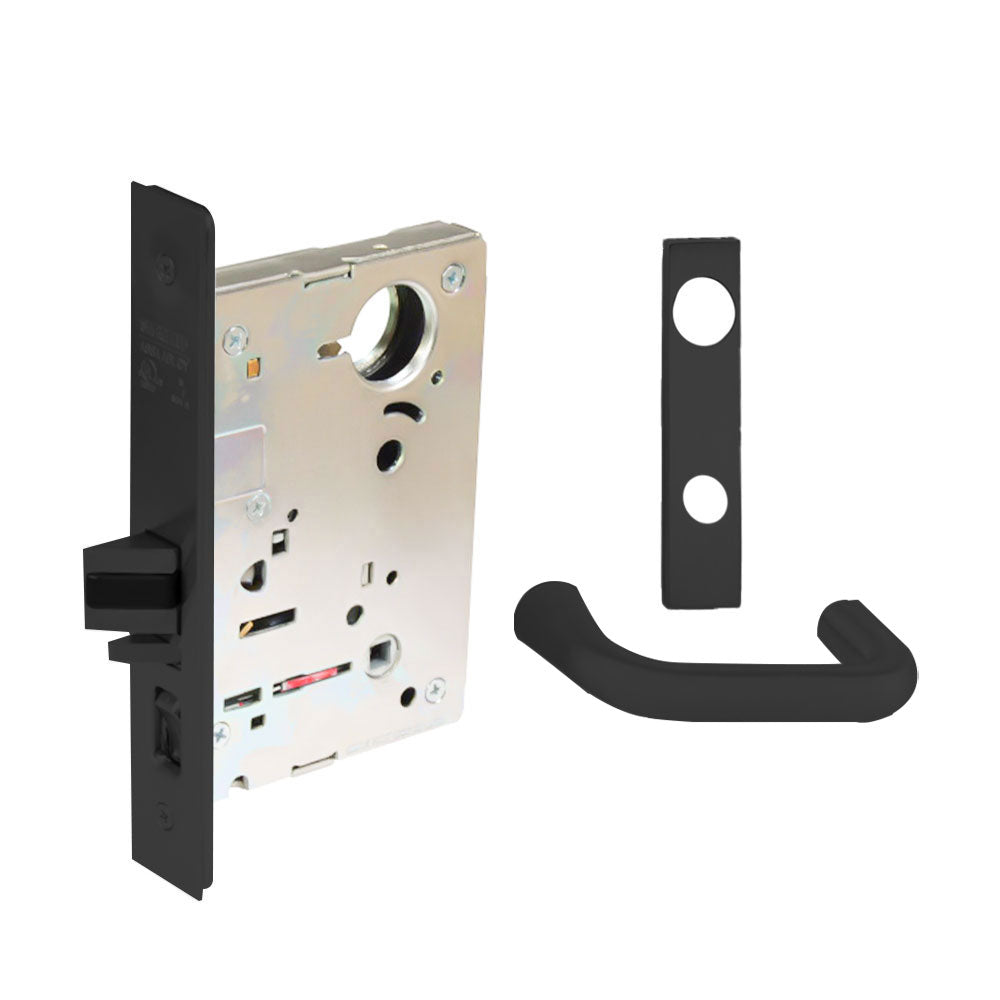

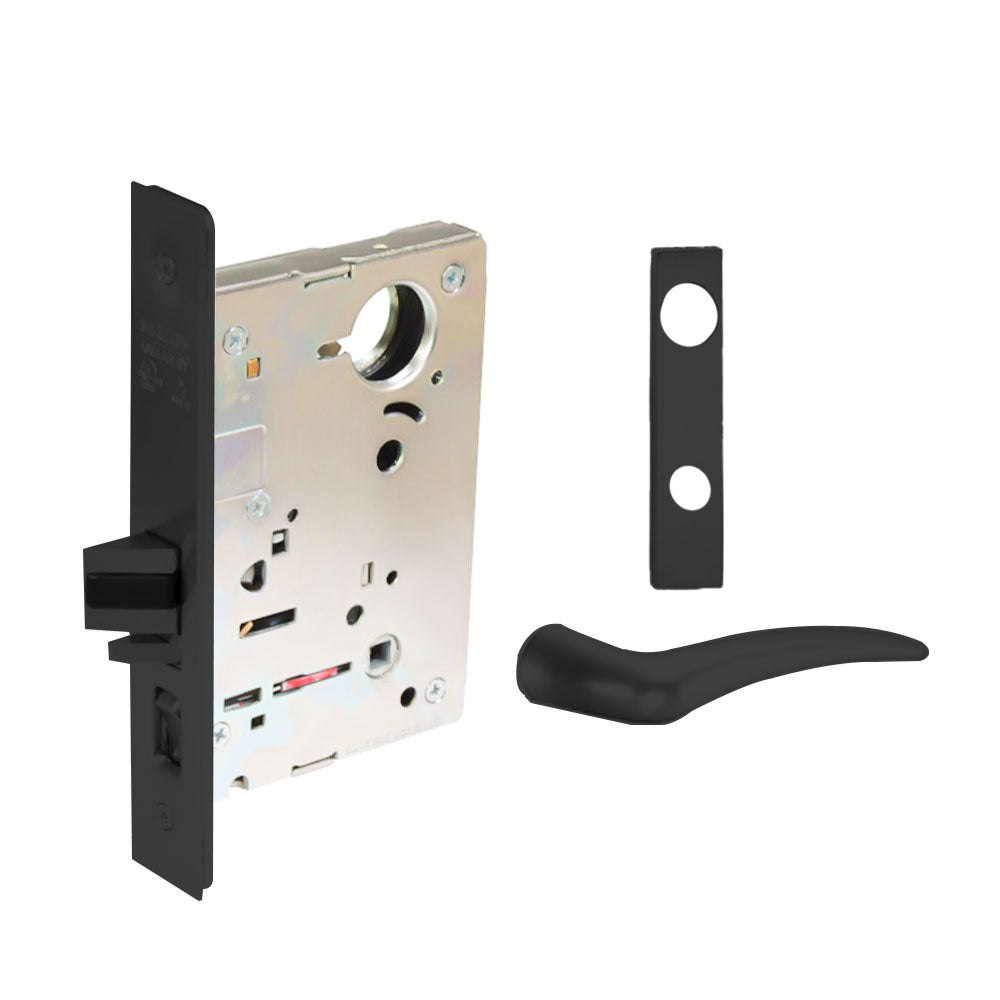

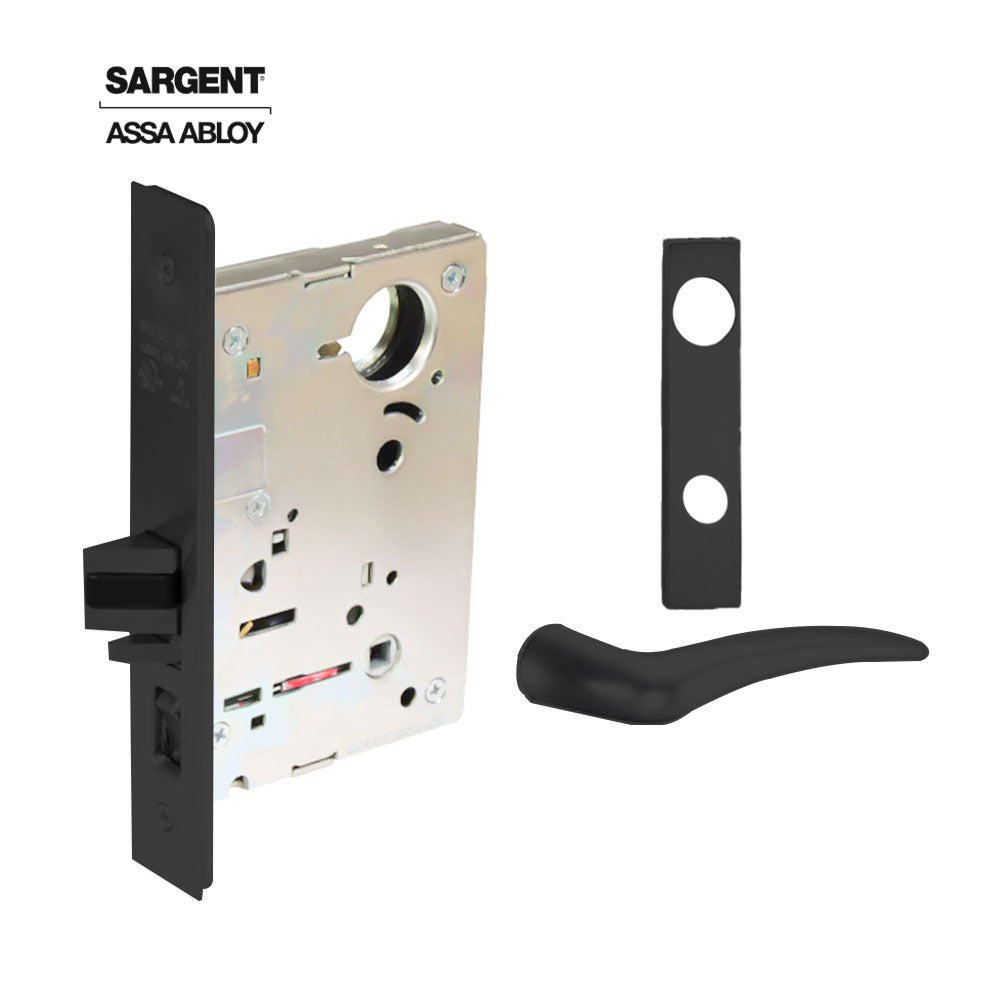

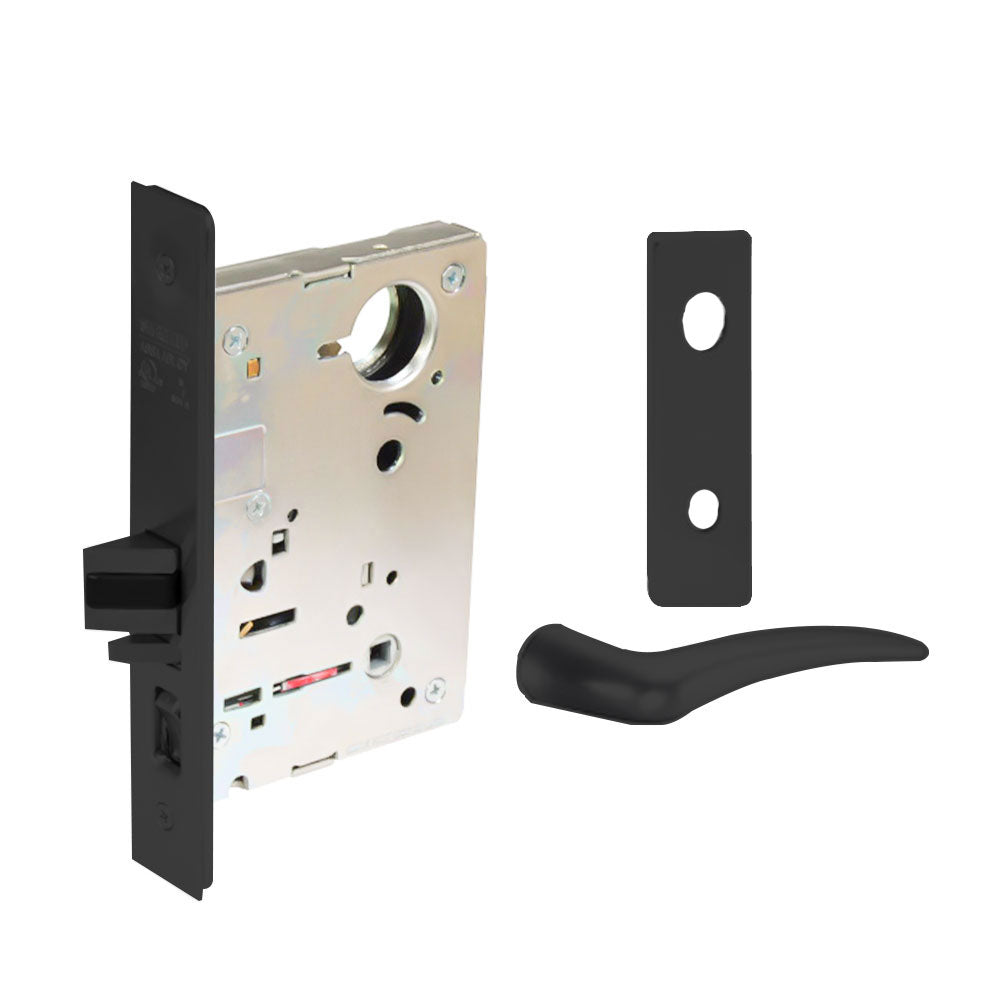

Sargent - 8204 - Storeroom Mortise Lock - Heavy Duty Less Cylinder - SFIC - Key Code- Escutcheon Trim Function - Grade 1 - BSP (Black Suede Powder Coat)
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Description
Description
Sargent - 8204 - Storeroom Mortise Lock - Heavy Duty Less Cylinder - SFIC - Key Code- Escutcheon Trim Function - Grade 1 - BSP (Black Suede Powder Coat)
8200 Series mortise locks offer maximum security, performance, and durability with high-quality components. It's the industry benchmark for mortise locks, featuring a multi-functional lock body with a variety of lever and escutcheon styles. The lock is robust, easy to install, and has a redesigned status indicator option with a large viewing window for assurance. The electromechanical version operates from 12 to 24VDC, with Eco-Flex technology that significantly reduces power consumption up to 96%.
Feature:
- Heavy duty lever-style mortise lock.
- Utilizes Eco-Flex technology on all electromechanical functions, creating up to 89% energy savings.
- UL Cycle Above and Beyond test completed at 16 million cycles (Verification ID: V584148).
- Integrates with all SARGENT key systems (Degree, Signature, KESO, and XC)
- 8 lever designs, 4 roses designs, and 16 architectural finishes offered
- Available with behavioral health trim.
- Status indicators available.
- Patented design and construction.
- 10-years Manufacturer warranty.
Product Specifications:
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Application | Complete Lock |
| Color | BSP (Black Suede Powder Coat) |
| BAA Qualified | Yes |
| Fire Rated | 2 Hours {B} |
Technical Specifications:
| Function | 04-Storeroom or Closet |
| ANSI Function | F07 - Storeroom/Exit |
| Cylinder Type | SFIC Prep Less Core |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
| Lever Design | A, B , E, F, J, L, P, W - Lever |
| Escutcheon Design | LE1 LW1 WT LS |
Benefits:
- Strength and Reliability: Far exceeds independently verified testing, making it the strongest and most durable mortise lock in the industry. Verified for over 14 million cycles.
- Security: Several security features provide additional resistance against vandalism and unauthorized entry.
- Flexibility and Aesthetics: Aesthetic design combined with a variety of functions, lever designs and architectural finishes match a wide range of styles and make it ideal for all types of applications (e.g. offices, hospitals, behavioral health environments, schools/universities).
- Ease of Install and Maintenance: Multifunctional lock body makes switching functions on-site easy and reduces inventory requirements.
