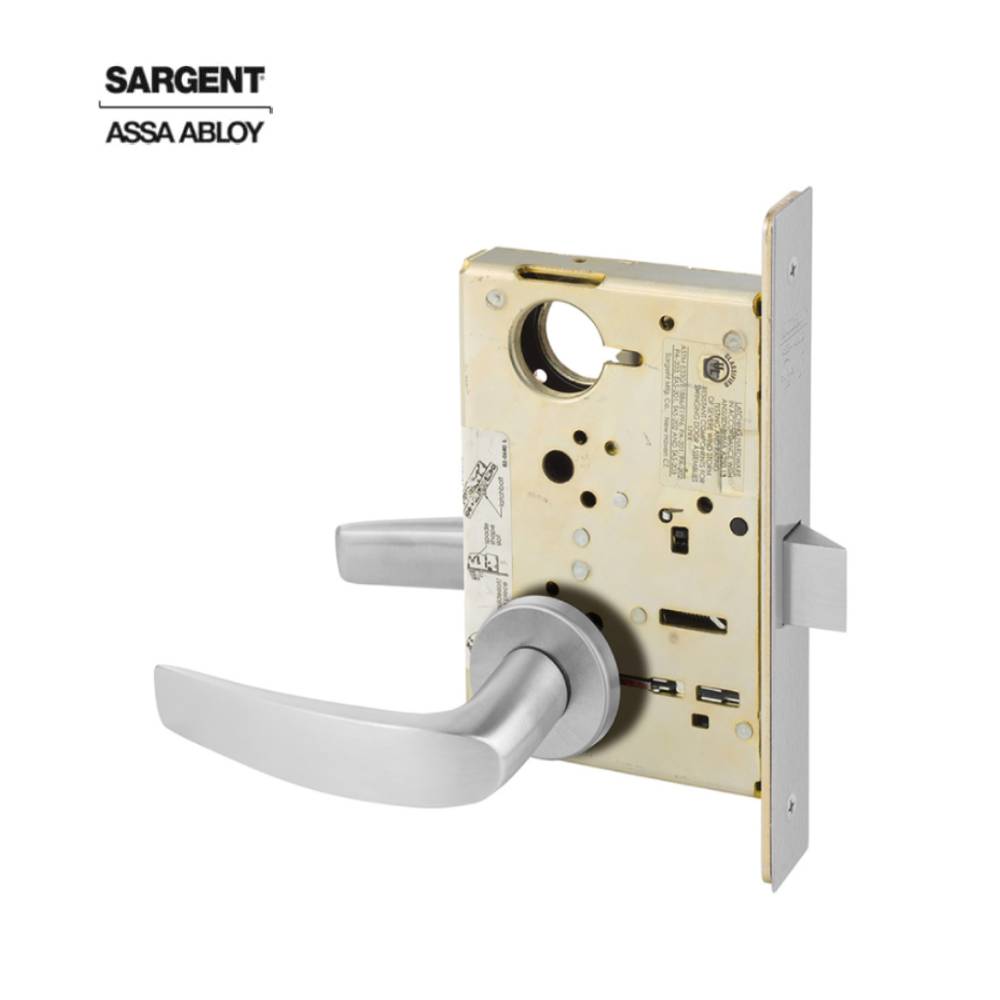

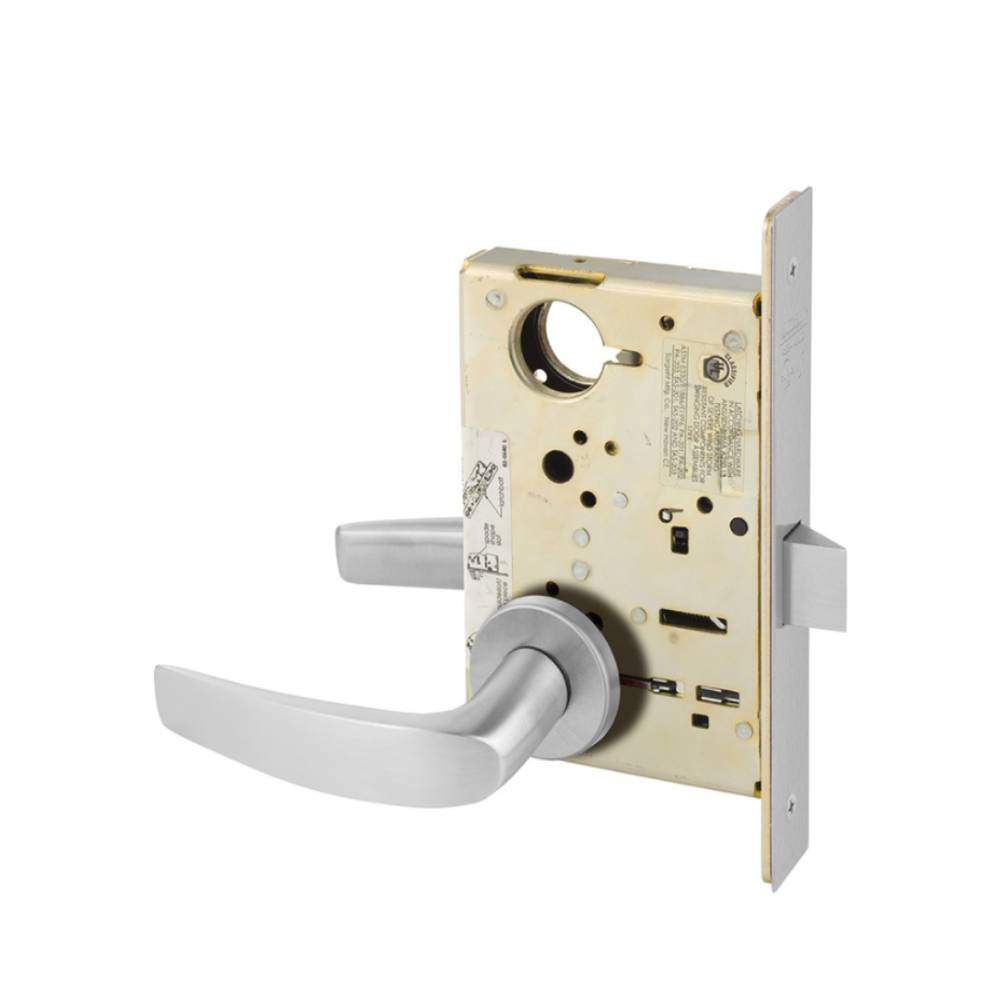

Sargent - 8215 - Passage Mortise Lock with 2-3/4" Backset and 4-7/8" ASA Strike - B Lever - LN Rose - Grade 1 - US26D (Satin Chrome)
The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable���far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing���for additional resistance against vandalism and unauthorized entry.
Feature:
- ANSI/BHMA Grade 1 certified for cycle and strength requirements
- UL-cUL listed for 3 hour fire fdoors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- Patented design and construction
Product Specifications:
| Manufacturer | Sargent |
| SKU | 8215 LNB 26D |
| UID | SAR1008215LNB26D |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Fire Rated | 2 Hours {B} |
Technical Specifications:
| Function | 15-Passage or Closet |
| ANSI Function | F01 - Passage |
| Lever/Knob Design | B - Lever |
| Rose/Escutcheon Design | LN - Rose |
| Handing | Field Reversible |
| Door Thickness | 1-3/4 In. |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 8 In. x 1-1/4 In. |
| Bolt Projection | 3/4 In. Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Mortise Lock |
