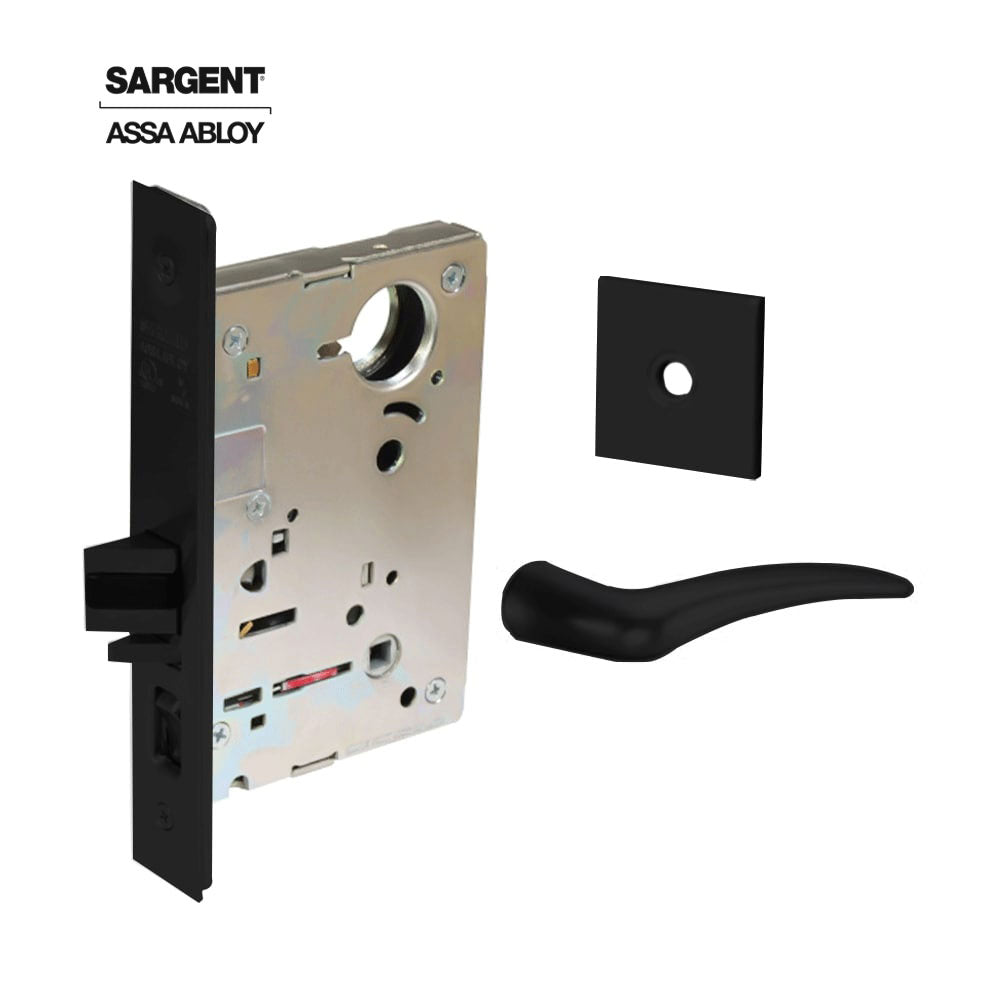

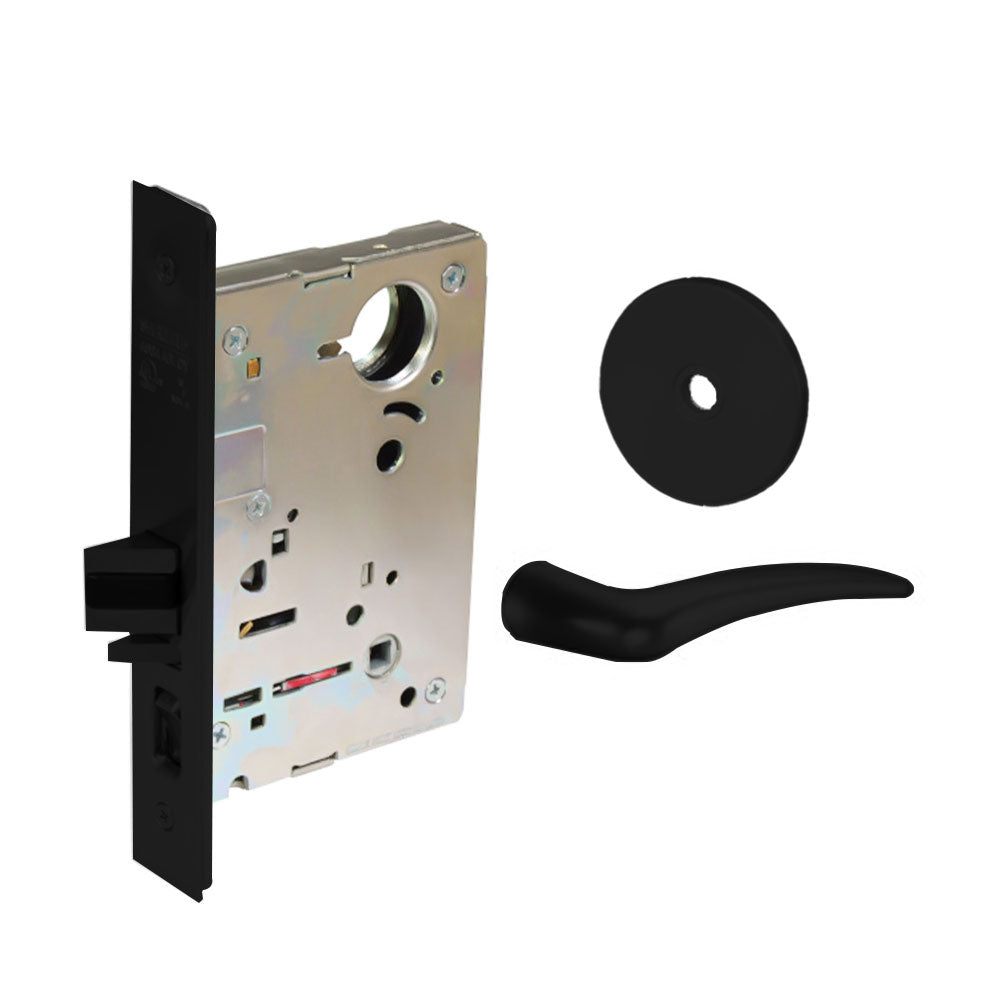

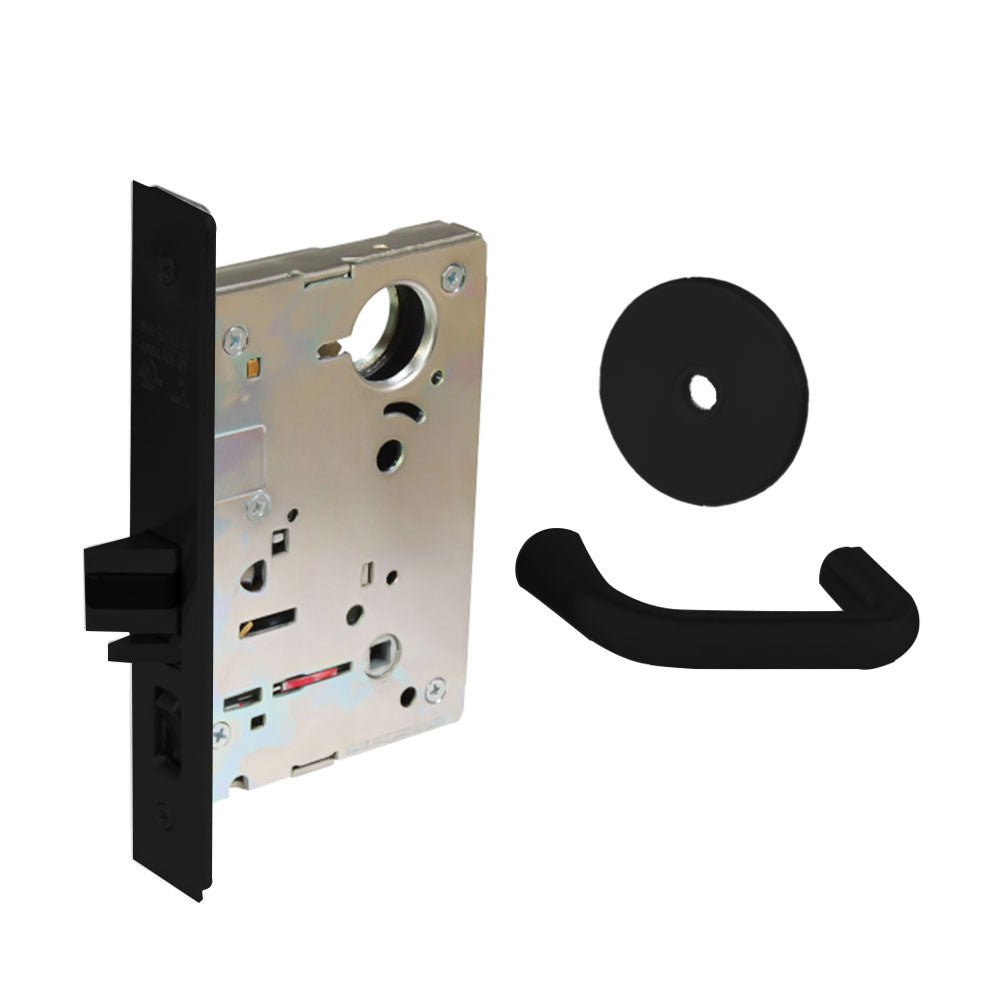

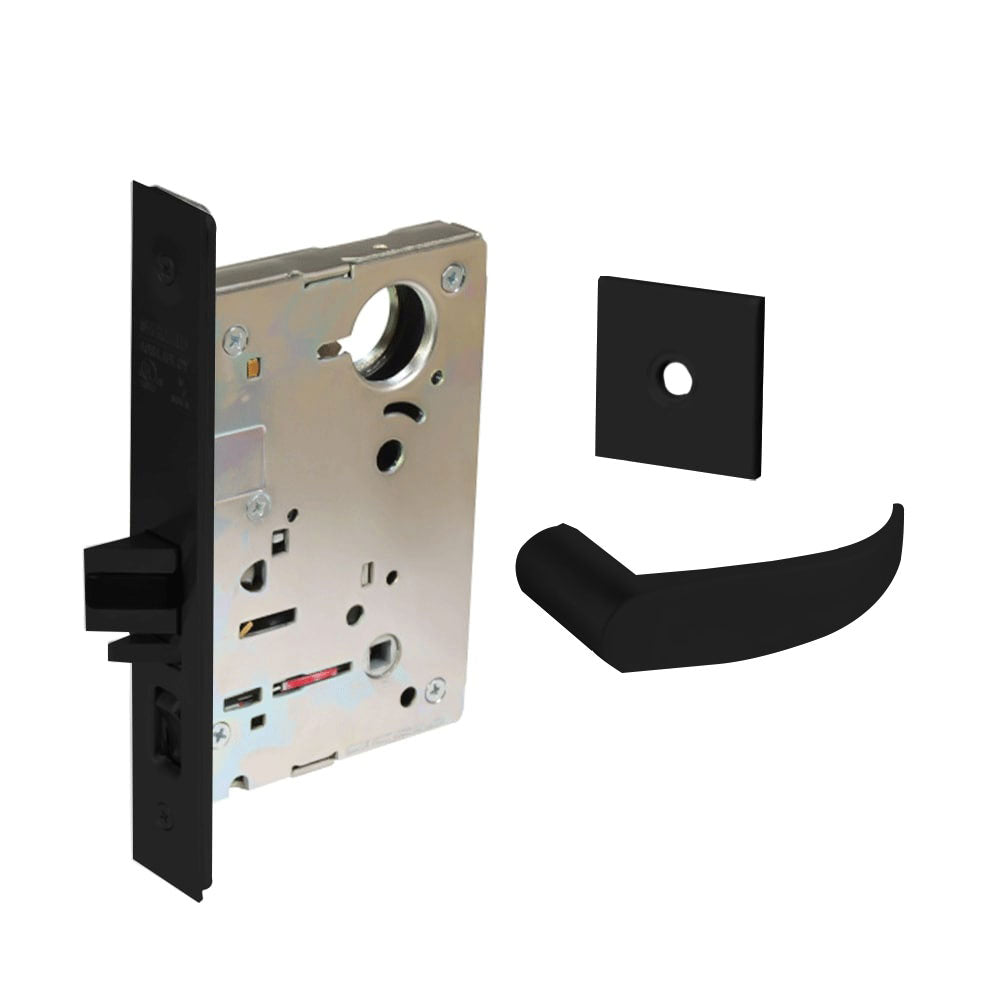

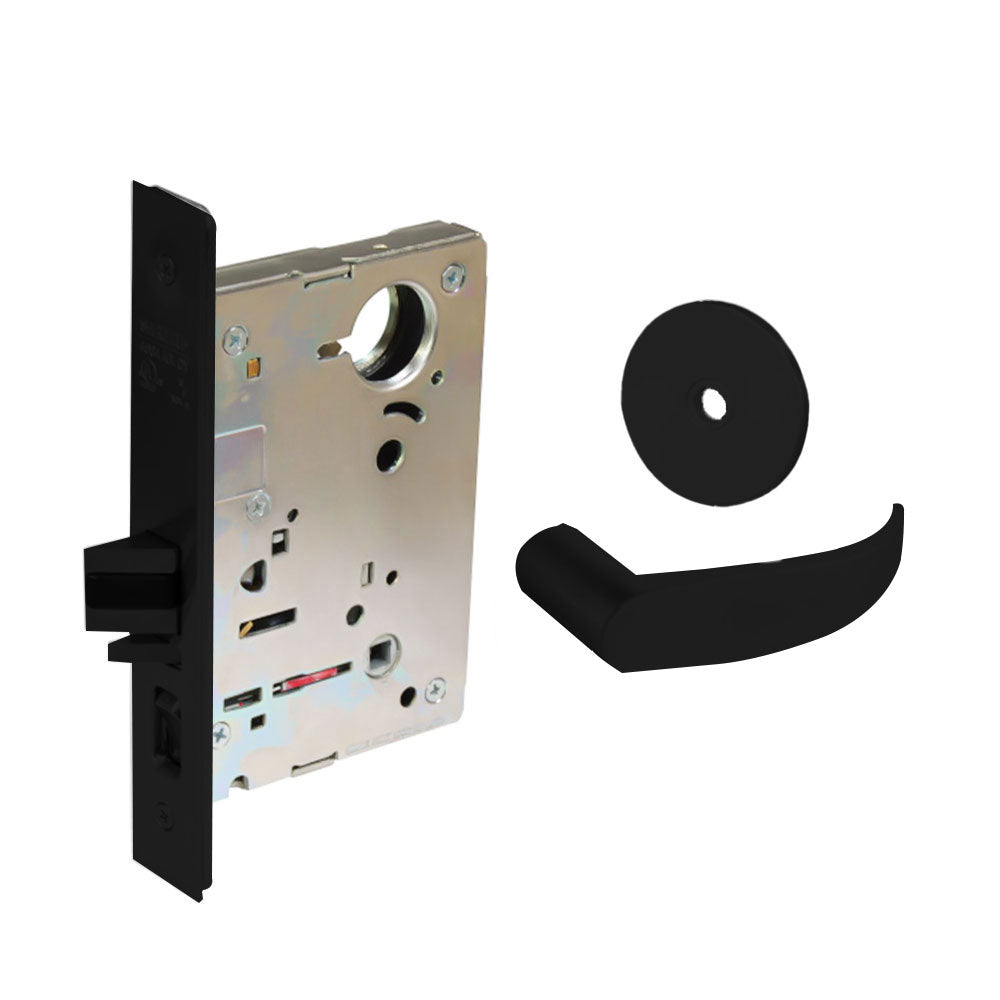

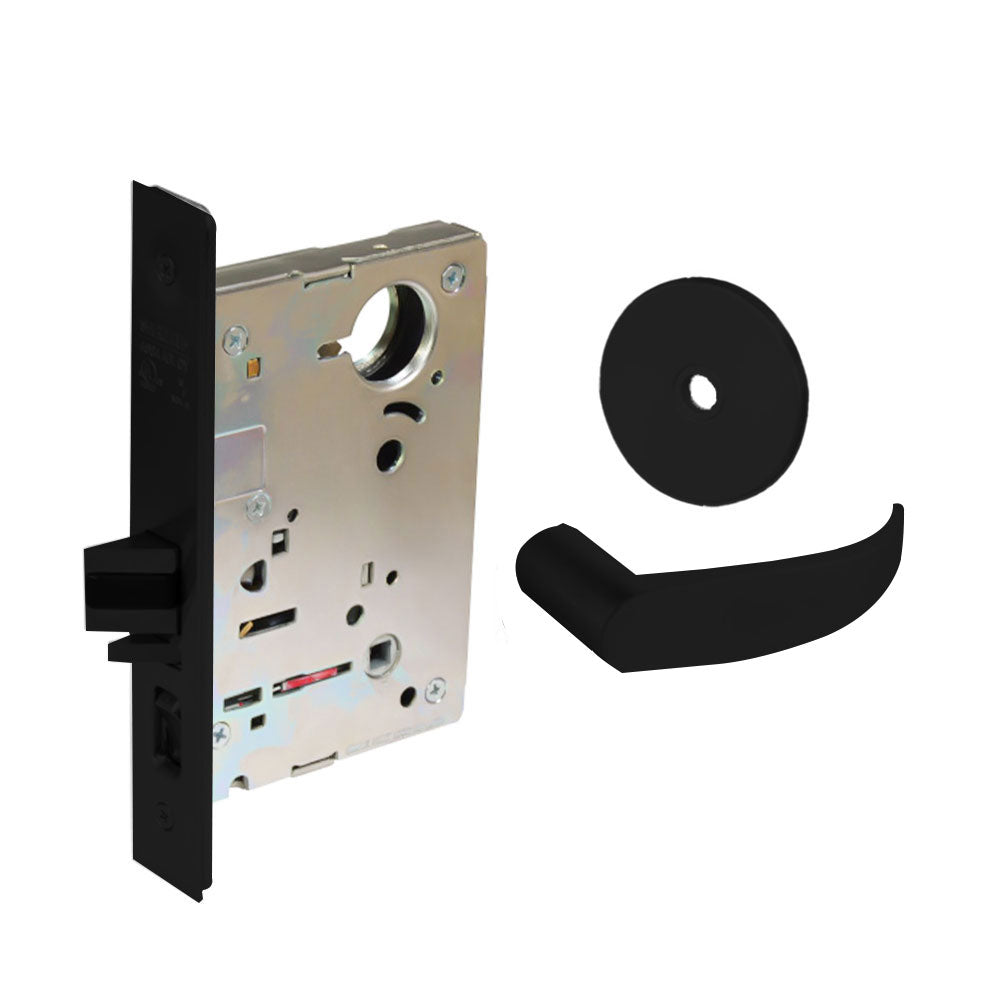

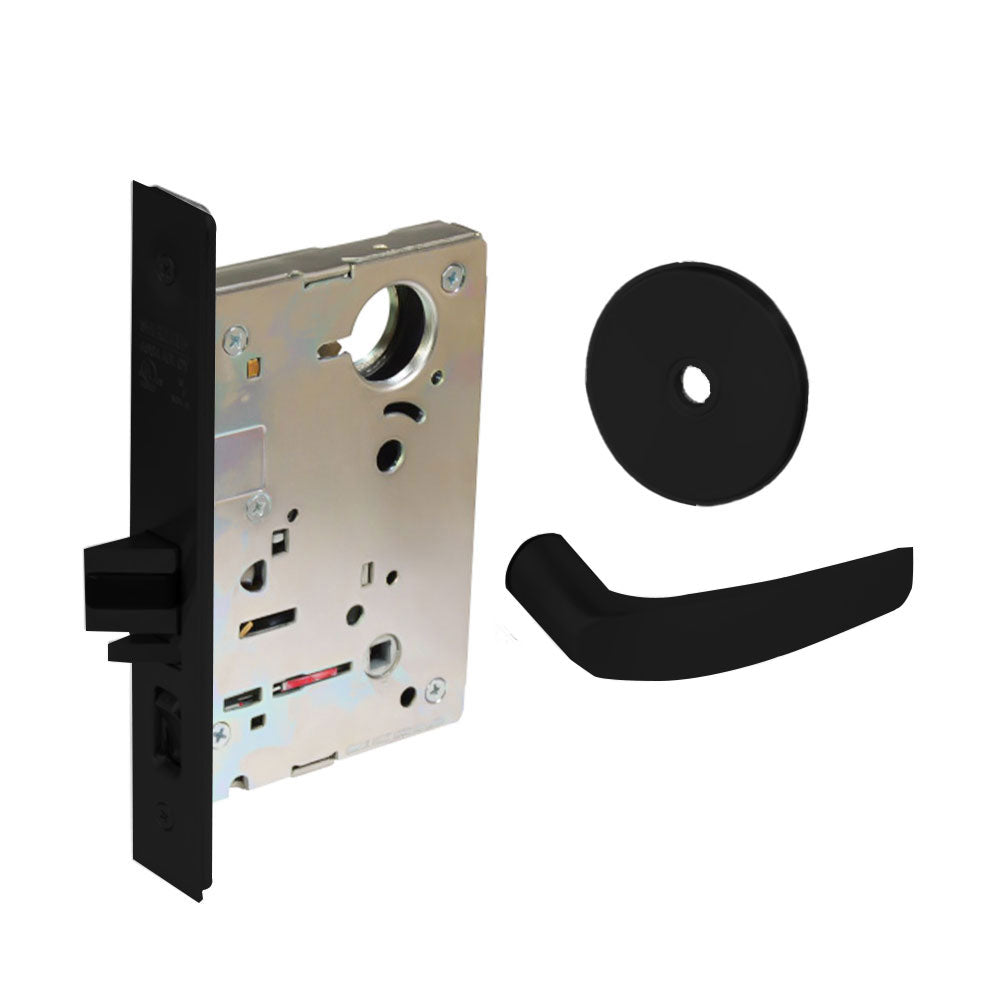

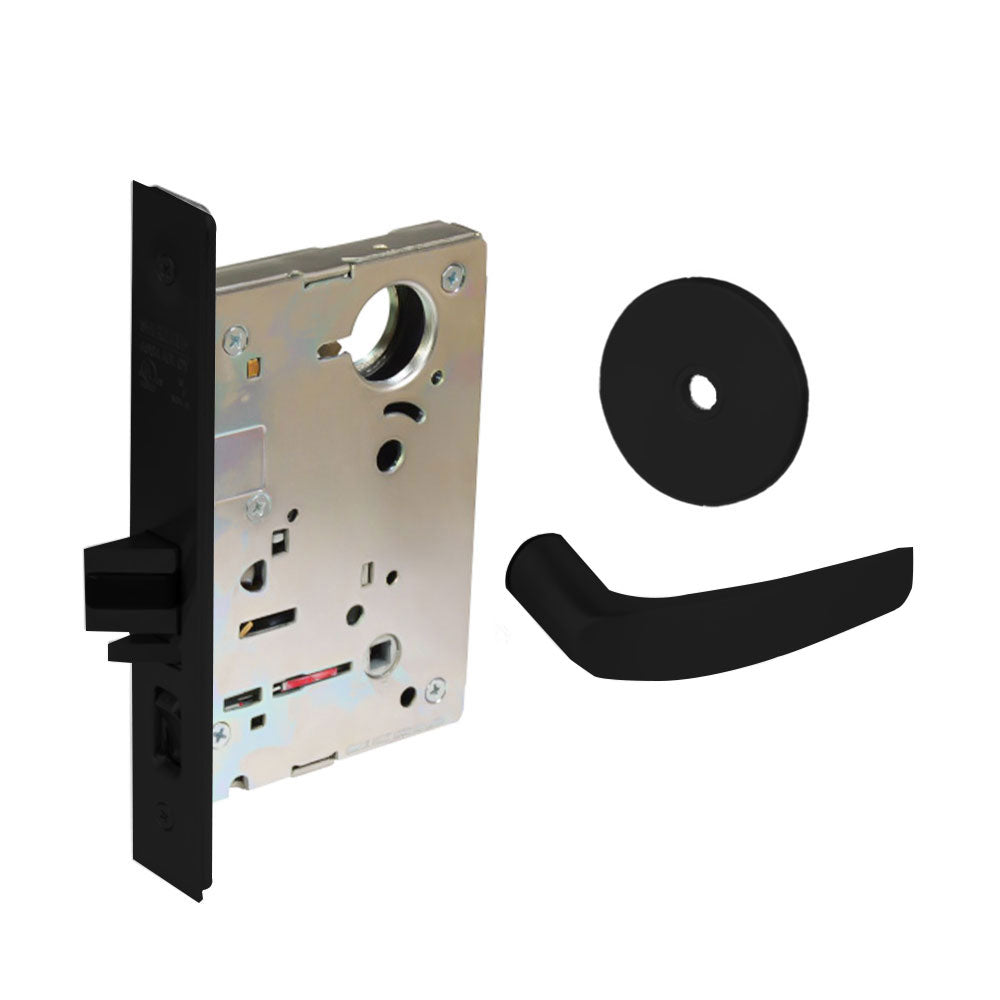

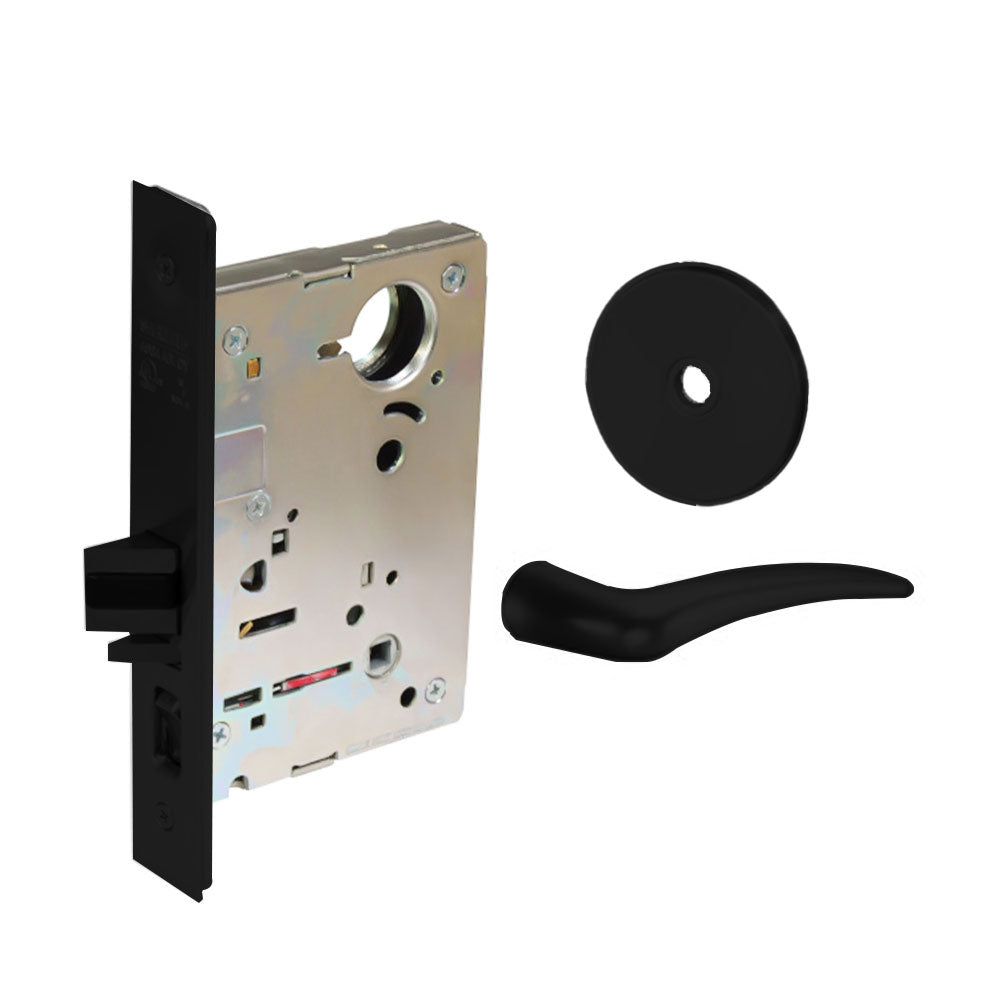

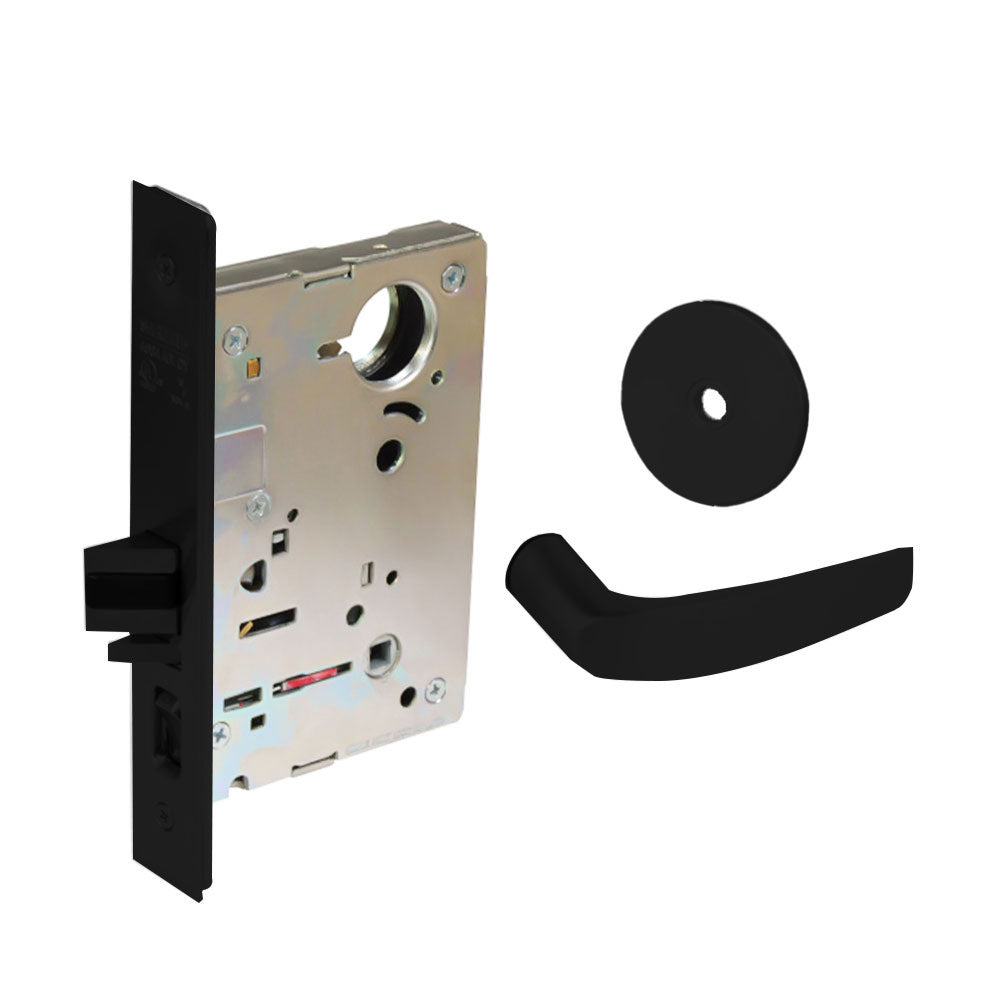

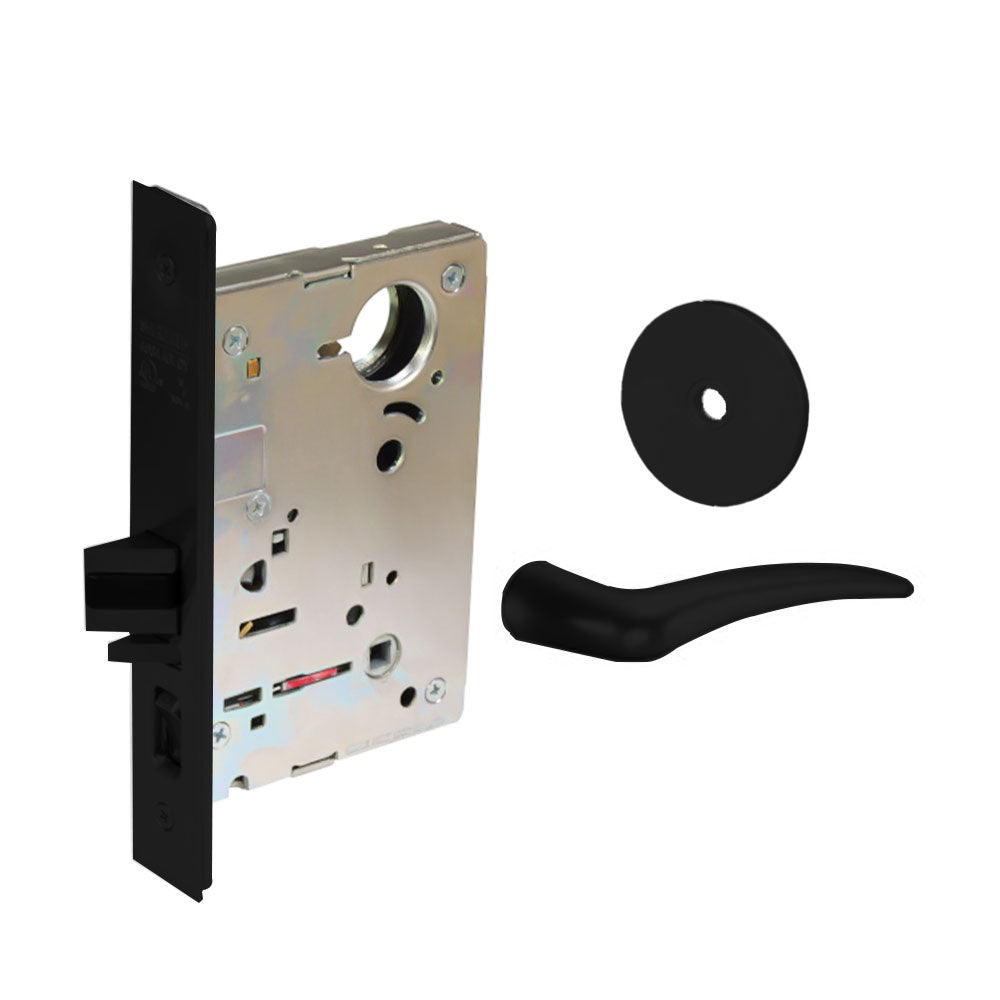

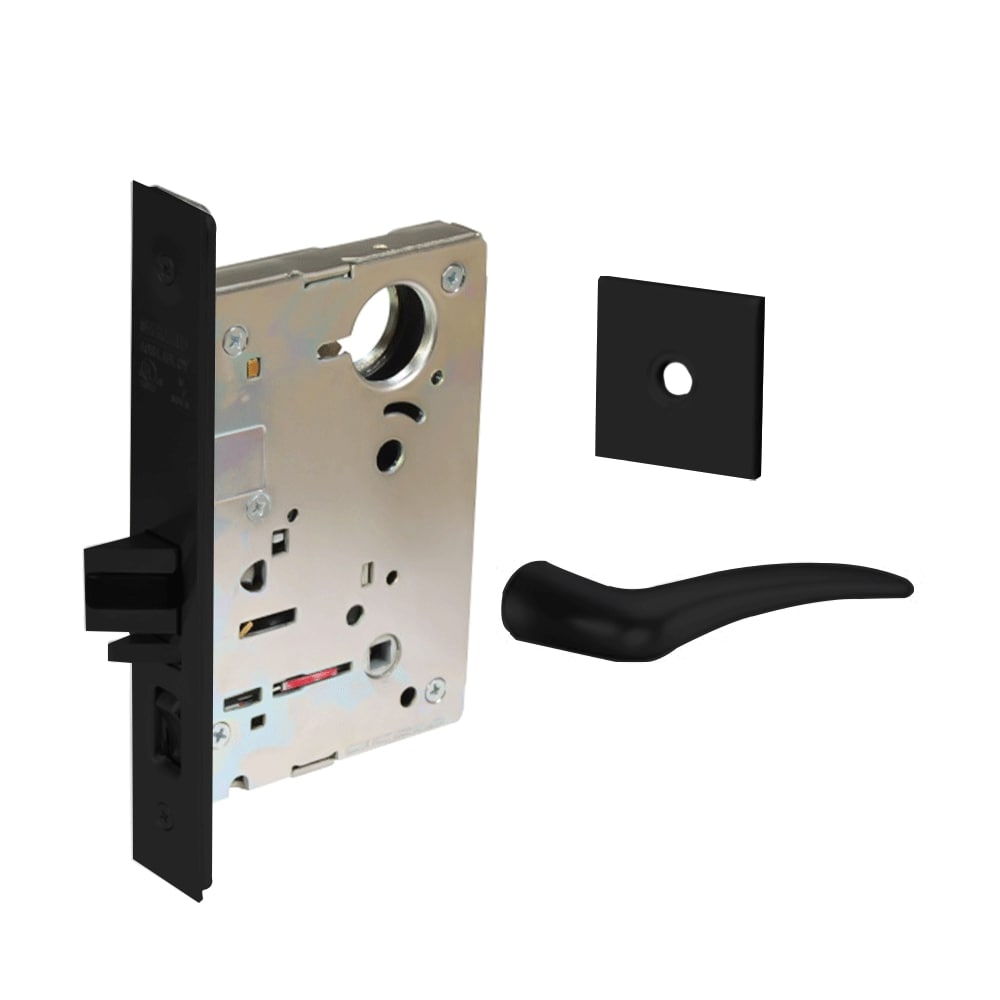

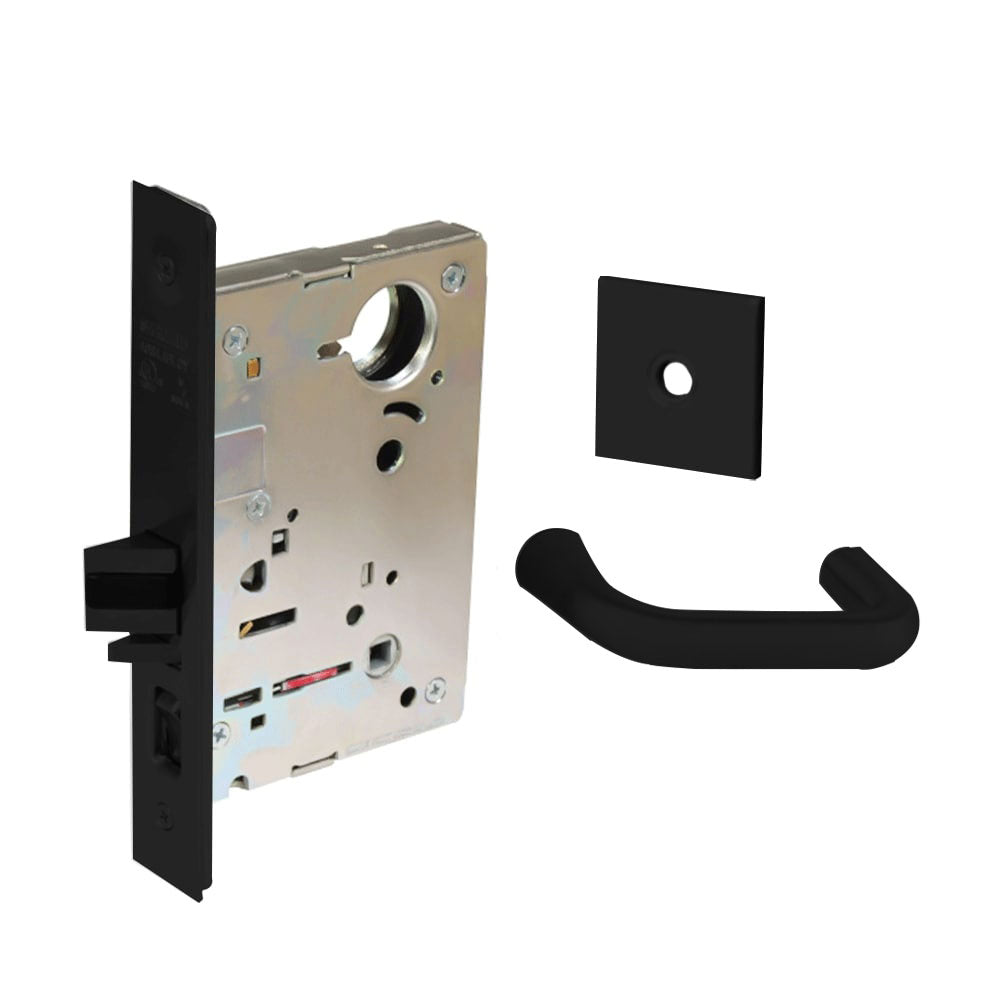

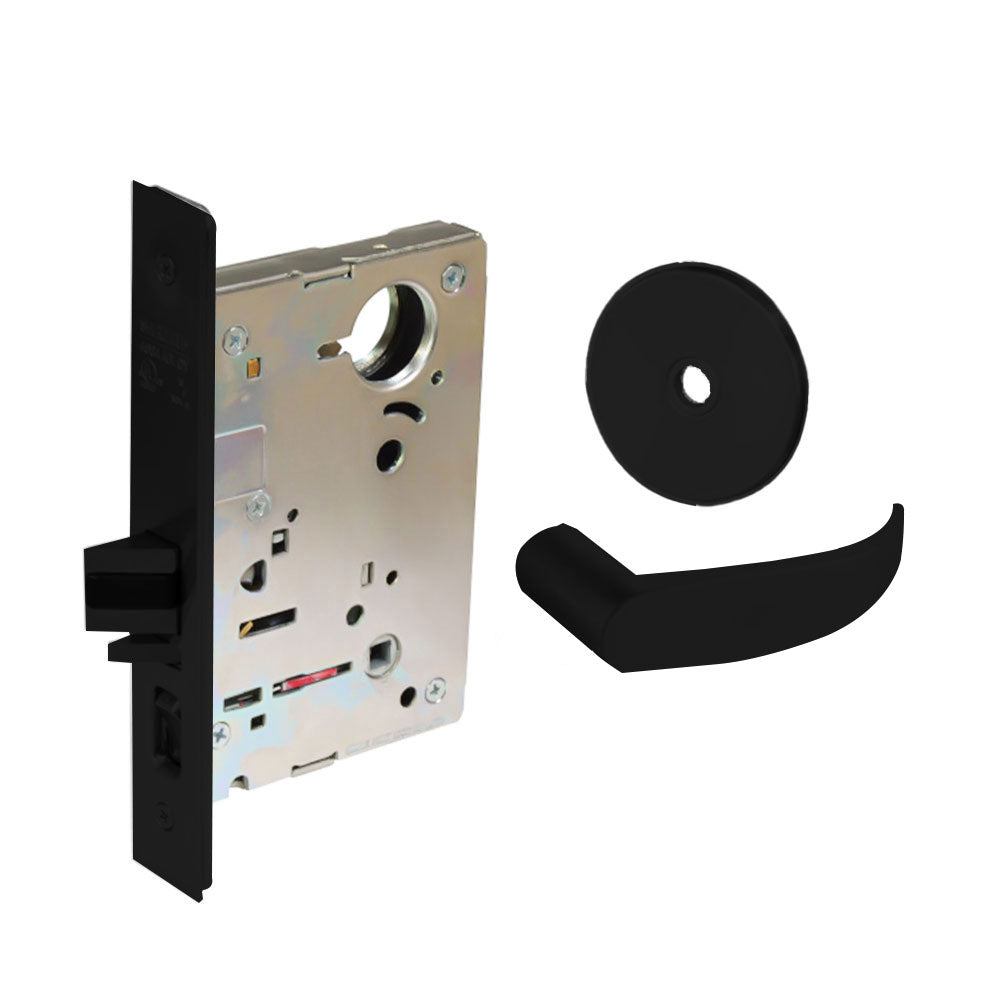

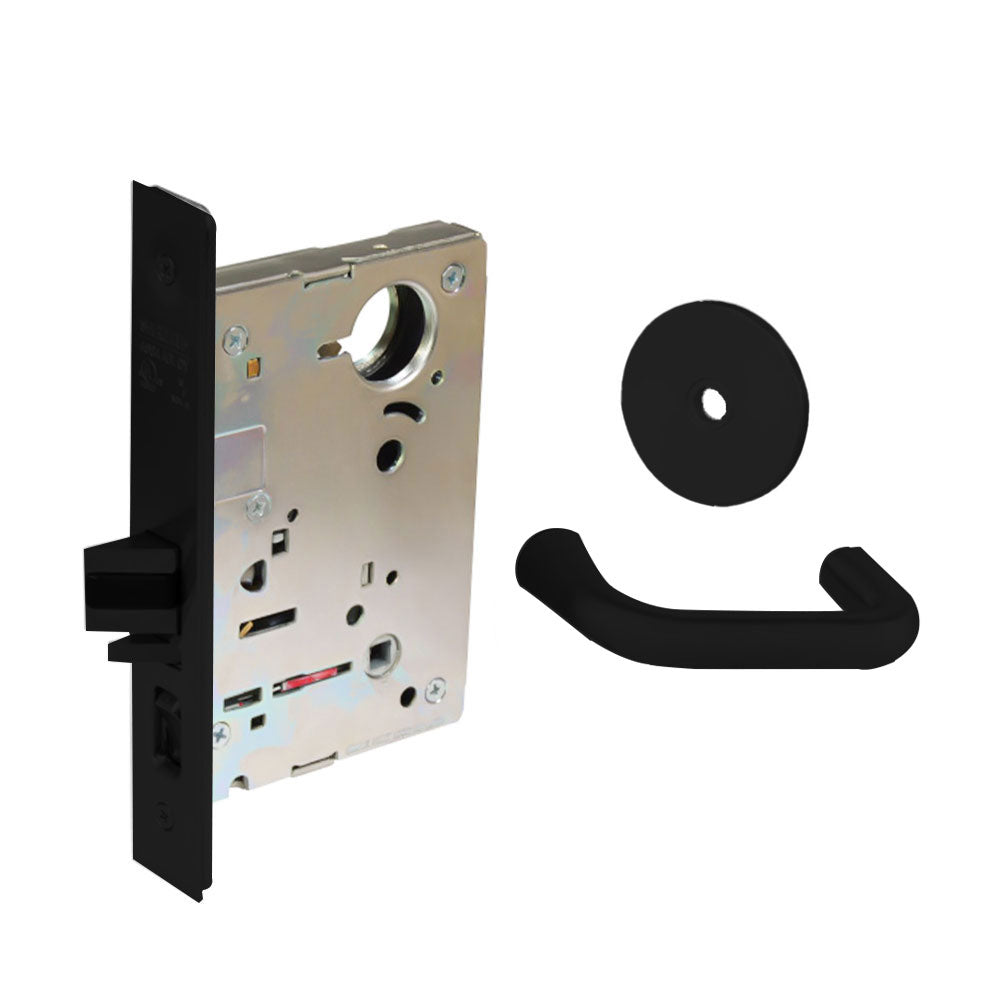

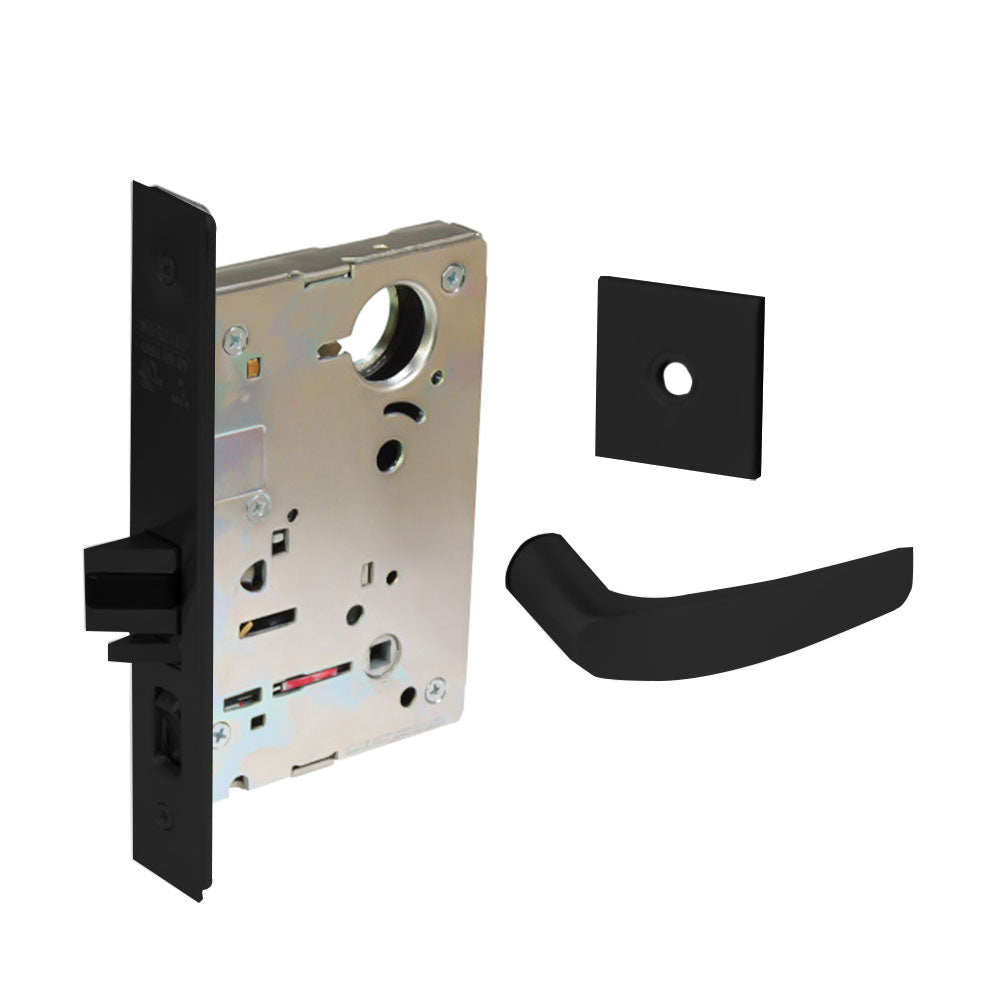

Sargent - 8237 - Classroom Mortise Lock - Heavy Duty Standard Cylinder - LFIC - Keyed Different - Rose Trim Function - Grade 1 - BSP (Black Suede Powder Coat)
8200 Series mortise locks offer maximum security, performance, and durability with high-quality components. It's the industry benchmark for mortise locks, featuring a multi-functional lock body with a variety of lever and escutcheon styles. The lock is robust, easy to install, and has a redesigned status indicator option with a large viewing window for assurance. The electromechanical version operates from 12 to 24VDC, with Eco-Flex technology that significantly reduces power consumption up to 96%.
Features:
- ANSI/BHMA Grade 1 certified for cycle and strength requirements
- UL-cUL listed for 3 hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- 8 lever designs, 4 roses designs, and 16 architectural finishes offered
- Available with behavioral health trim
- Patented design and construction
Product Specifications:
Manufacturer | Sargent |
Grade | Grade 1 |
Origin | USA |
Unit of Measure | Each |
Application | Complete Lock |
BAA Qualified | Yes |
Fire Rated | 2 Hours {B} |
Color | BSP (Black Suede Powder Coat) |
Technical Specifications:
Function | 37-Classroom |
ANSI Function | F05 - Classroom |
Lever Design | A, B , E, F, J, L, P, W - Lever |
Rose Design | E 3-1/16 Inch (78mm) L 3-1/2 Inch (89mm) O 2-3/4 Inch (67mm) LN 2 Inch (51mm) |
Cylinder Type | LFIC |
Handing | Field Reversible |
Door Thickness | 1-3/4" |
Lock Face Size | 8" x 1-1/4" |
Bolt Projection | 3/4" Latch |
Standard Strike Number | 82-0110 |
Standard Strike Type | ASA |
Standard Strike Height | 4-7/8" |
Standard Strike Width | 1-1/4" |
Screws | Combination |
Product Type | Mortise Lock |
Benefits:
- Strength and Reliability: Far exceeds independently verified testing, making it the strongest and most durable mortise lock in the industry. Verified for over 14 million cycles.
- Security: Several security features provide additional resistance against vandalism and unauthorized entry.
- Flexibility and Aesthetics: Aesthetic design combined with a variety of functions, lever designs and architectural finishes match a wide range of styles and make it ideal for all types of applications (e.g. offices, hospitals, behavioral health environments, schools/universities).
- Ease of Install and Maintenance: Multifunctional lockbody makes switching functions on-site easy and reduces inventory requirements.
